UNLESS OTHERWISE SPECIFIED:
5	.X = ± .060" .XX = ± .030"
	.XXX = ± .015" ANGLE = ± 2° FRACTION = ± 1/32
	REMOVE ALL BURRS BREAK SHARP EDGES .01 MAX
-	DRAWN BY: KBJ DATE: 10/25/96

WEIGHT: 7.2 LBS. SCALE: 1:12

TOLFRANCE

DATE

KKJ 03/23/1

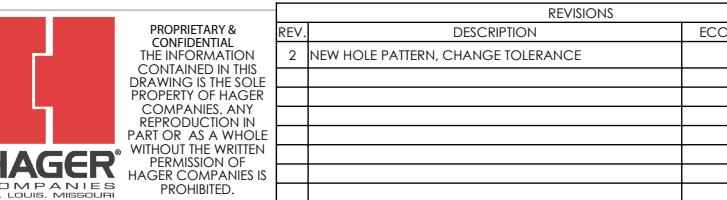

TEMPLATE 780-112 HEAVY DUTY ROTON HINGE 83" LONG

2

780-112-HD-83

DESCRIPTION
