View PDF| DEPTHS | SPACES | ||||
|---|---|---|---|---|---|
| # | INCH | MM | # | INCH | MM |
| 0 | 1 | .158 | 4.01 | ||
| 1 | .284 | 7.21 | 2 | .283 | 7.19 |
| 2 | .268 | 6.81 | 3 | .408 | 10.36 |
| 3 | .253 | 6.42 | 4 | .533 | 13.54 |
| 4 | .237 | 6.02 | 5 | .658 | 16.71 |
| 5 | .222 | 5.64 | 6 | .783 | 19.89 |
| 6 | .206 | 5.24 | 7 | ||
| 7 | .191 | 4.85 | 8 | ||
| 8 | .175 | 4.45 | 9 | ||
| 9 | (6 | 10 | |||
| 10 | 11 | ||||
| 11 | 12 | ||||
| DEPTH | SPACE | ||||
| INCH | MM | INCH | ММ | ||
| .0155 | .394 | .125 | 3.175 | ||

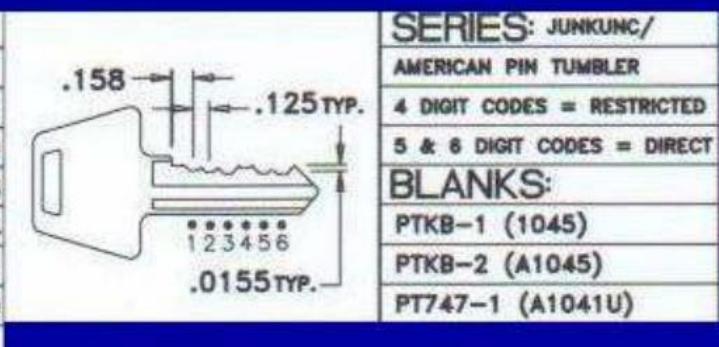

AMERICAN SMALL PIN
