OUTSWING DOORS

Single Lock

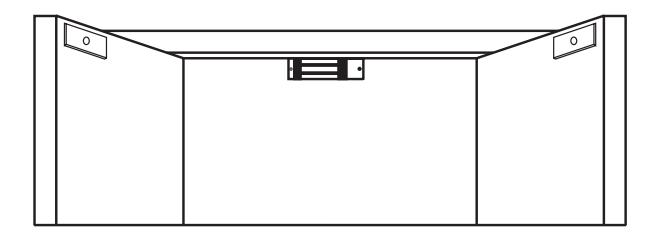

Single Lock Mounted On Double Door Without Center Mullion

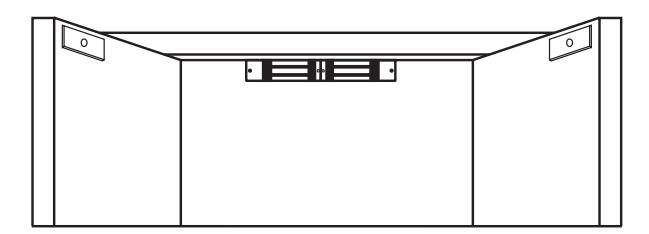

Double Lock Mounted On Double Door Without Center Mullion

3000 Series Electromagnetic Locks have the unique ability to change hand to match door handing. The wiring compartment may be located on the left or right hand side of the lock assembly, ideally toward the center of the opening. Handing may be specified at time of order or easily modified in the field.*

3000LHR 3000RHR

* Field modifications will result in the misorientation of the DynaLock logo. Replacement access covers are available from the factory at no charge .

INSWING DOORS

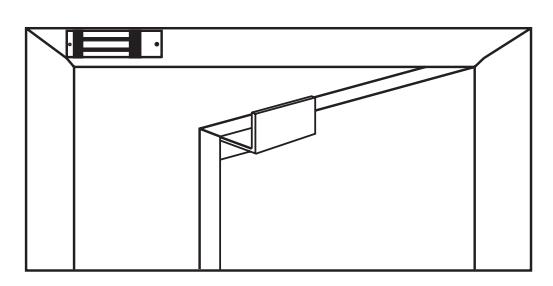

Single Lock, Inswing Door Mounted To Header Face With Adjustable Top Jam "Z" Bracket

Double Lock, Inswing Door Center Mounted To Header Face With Adjustable Top Jamb "Z" Brackets
