Template-422 Series Door Closer with PCTHB2 or PCTHB2 Arms

(194)

11-1/8 (283)

• Left hand door shown
  • Do not scale drawing
  • Dimensions are given in inches(mm)
• Maximum door opening: 110° Max. Non Hold Open track 110° Max. Hold Open track
• Minimum thickness recommended for reinforcements in hollow-metal door and frames .1046 (2.6mm) unless otherwise noted.
• Hold open door closers are not permitted to be installed on fire/smoke barrier doors.

Preparation for Fasteners
Fasteners		Door or Frame		Drill-Sizes
Standard	1/4" Self-Drilling Screw (Closer Body Only)	Closer	Aluminum Metal or Wood	3/16" (4.30 mm) pilot hole required
	# 12-14 Self-Drilling Screw (Track Only)	Track		3/32" (2.38 mm) pilot hole required
	1/4" - 20 machine screw	Closer	Metal	Drill: #7 (.201" dia.) Tap: 1/4" - 20
	#12-24 machine screw	Track		Drill: 4.4mm or #16 (.172") Tap: #12 - 24
Optional	Sleeve nuts and bolts	Closer Body Only	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
			Aluminum or Wood	3/8" (9.5 mm) through
	Through-bolts and grommet-nuts	Closer Body	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

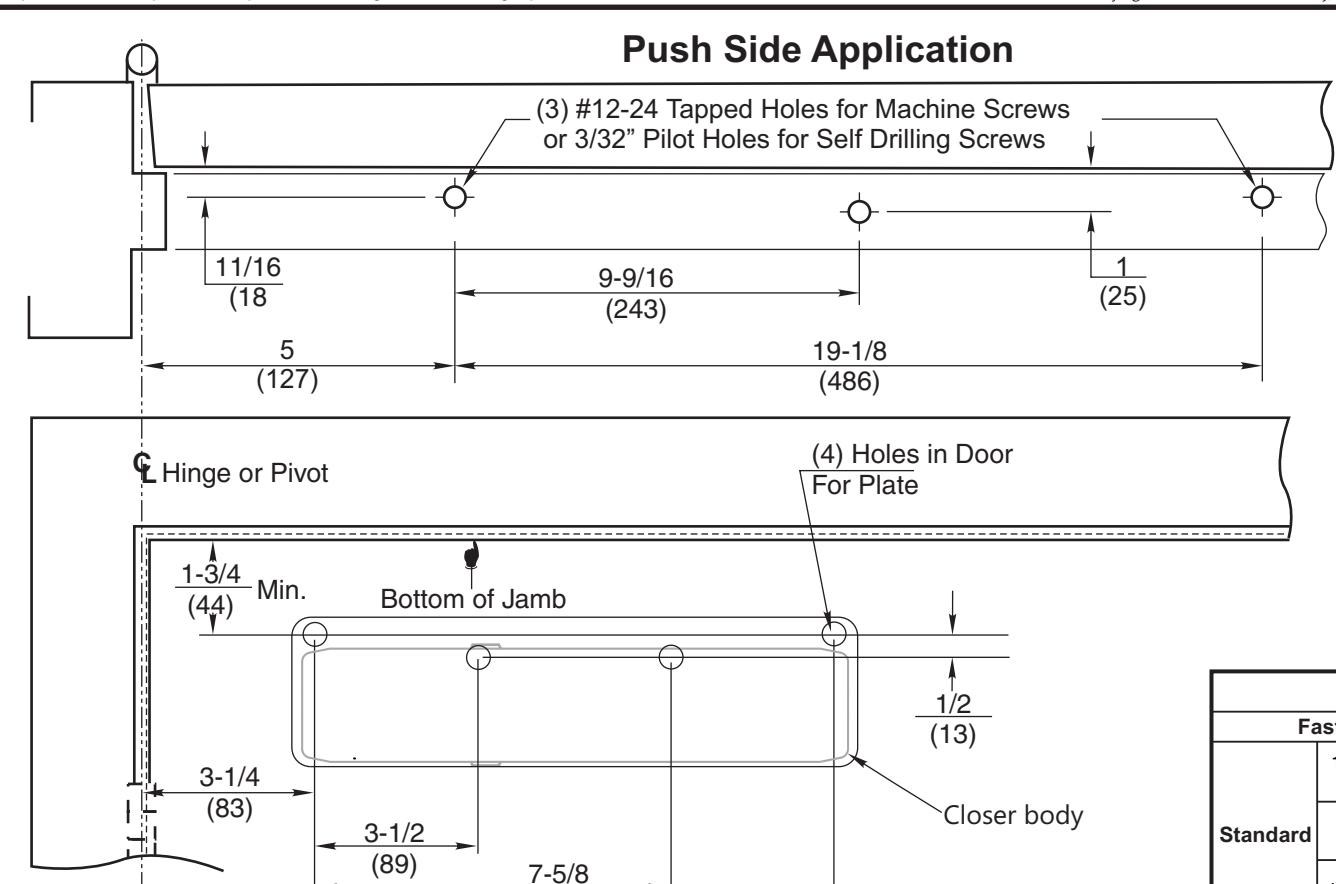

TEMPLATE - 422 SERIES CLOSER WITH PCTB2 OR PCTHB2 ARMS PUSH SIDE APPLICATION WITH 422D DROP PLATE

SARGENT

ASSA ABLOY

www.sargentlock.com

TEMPLATE NUMBER

REV

A8240

<u>A</u>
