T-ED04037 – Template for 2945 with 4600 RIM Exit Device

Open the original PDF document

View PDF

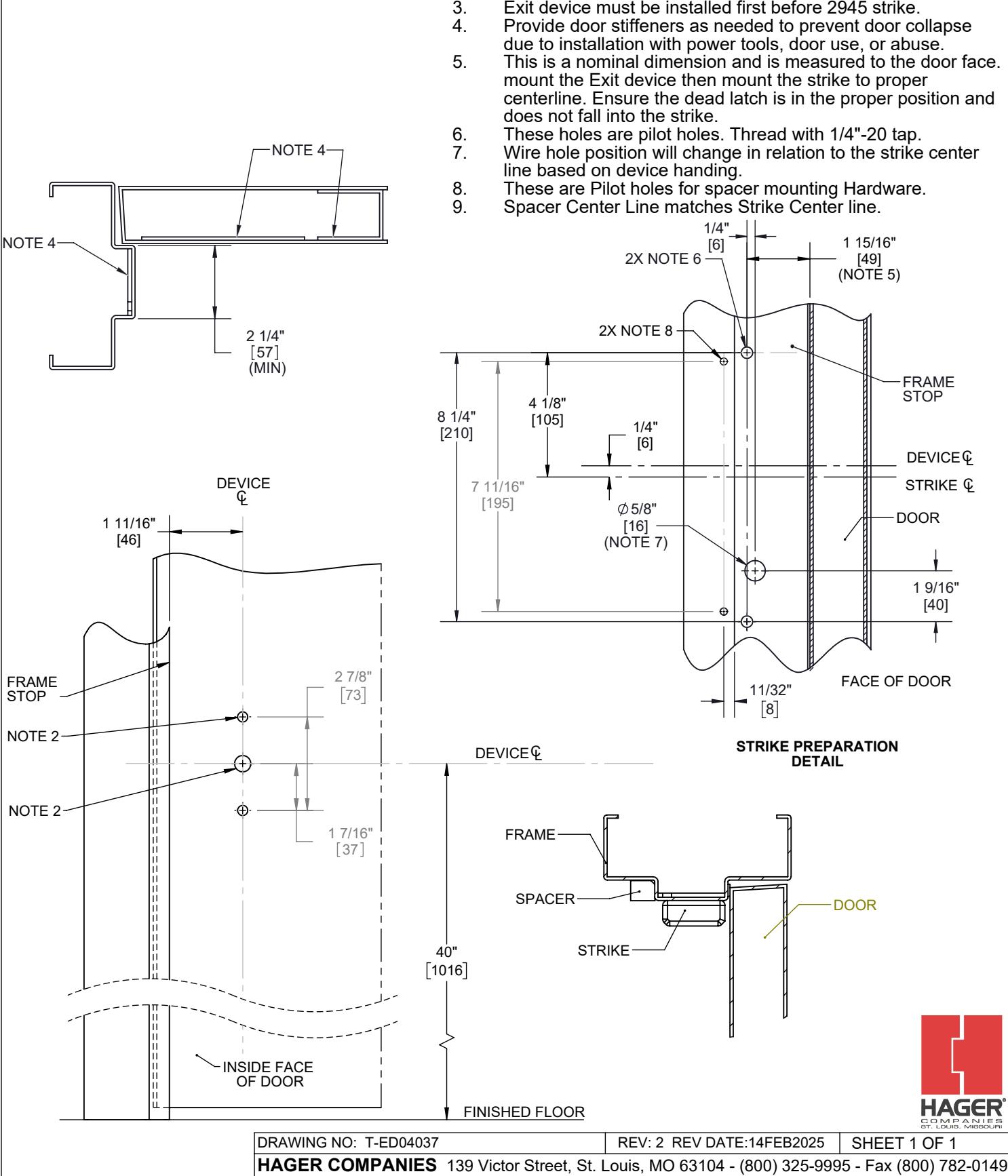

4600 RIM DEVICE WITH 2945 DOOR PREP TEMPLATE

APPLICATION FOR METAL AND WOOD DOORS (FOR PANIC AND FIRE RATED DEVICES)

NOTES:

  • 1. LHR door shown. Preparation is typical for both door hands.
  • 2. Please see 4600 Series Rim Exit Device Installation Instructions (I-ED01162 and T-ED01192) for sizing.
