Securitron M38D, M68D Electromagnetic Locks Template
Open the original PDF document
View PDF
DO NOT PHOTOCOPY TEMPLATE (dimensions will change)

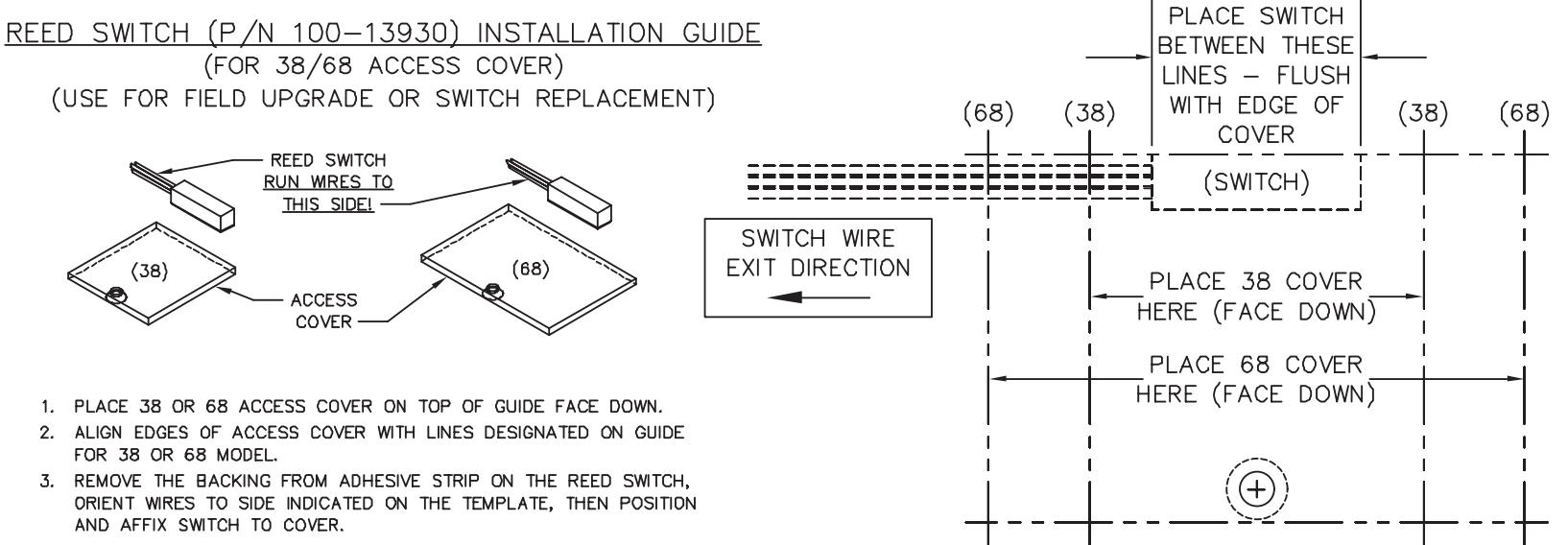

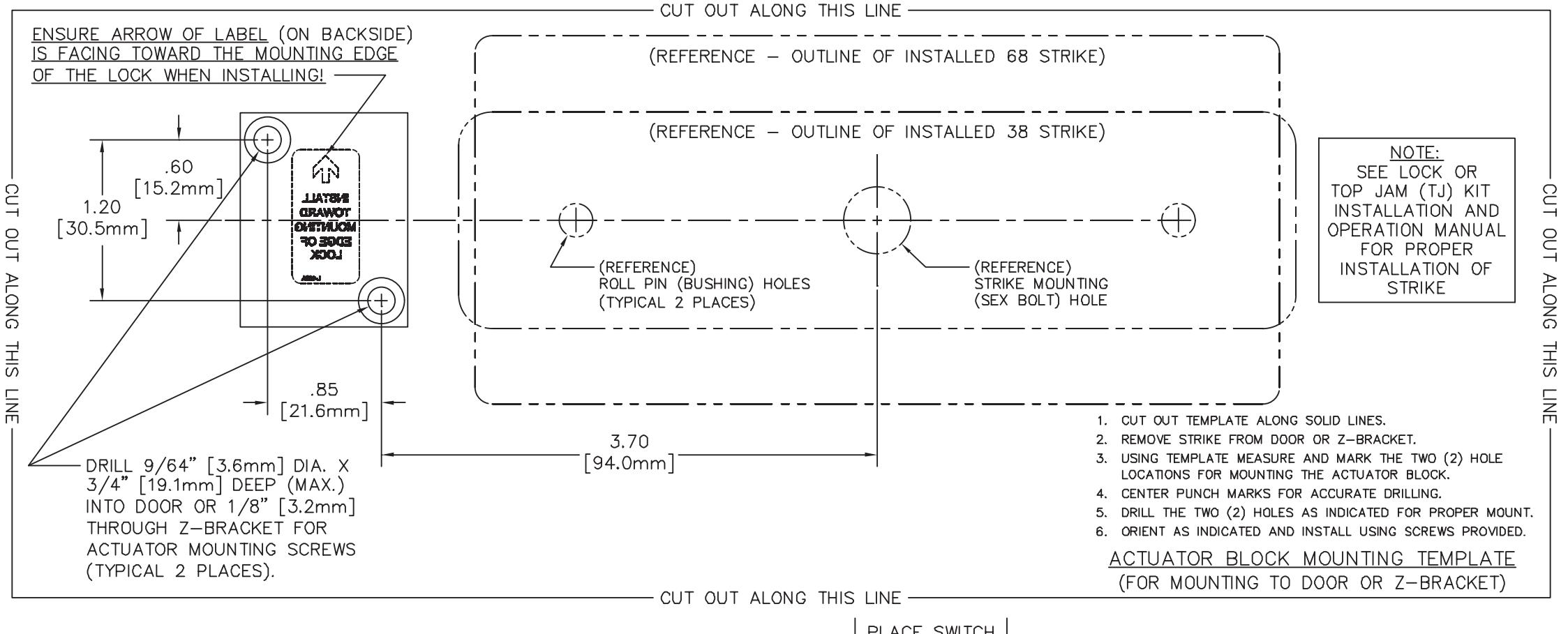

INSTALLATION TEMPLATE FOR 38D & 68D SERIES DOOR POSITION LOCK COMPONENTS (INSTALLATION OR UPGRADE)
___CCURITRON
ASSA ABLOY
P/N 500-61050-D.
