P1 Passport 1000 W-DPS 80 Series Template

Open the original PDF document

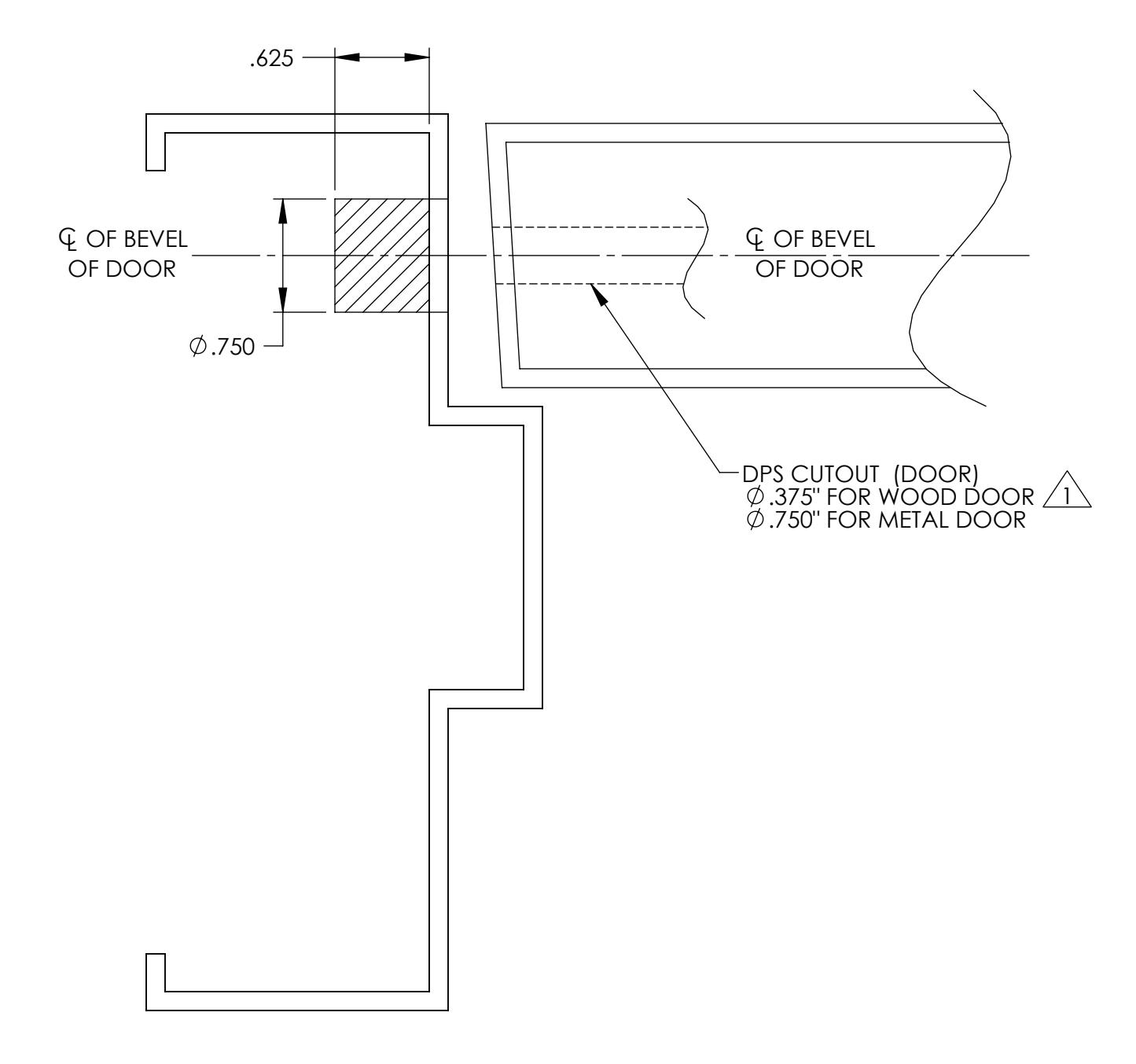

FRAME DETAIL

DOOR SHOWN IN CLOSED POSITION

SARGENT ASSA ABLOY

Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511

SHEET 3 OF 3

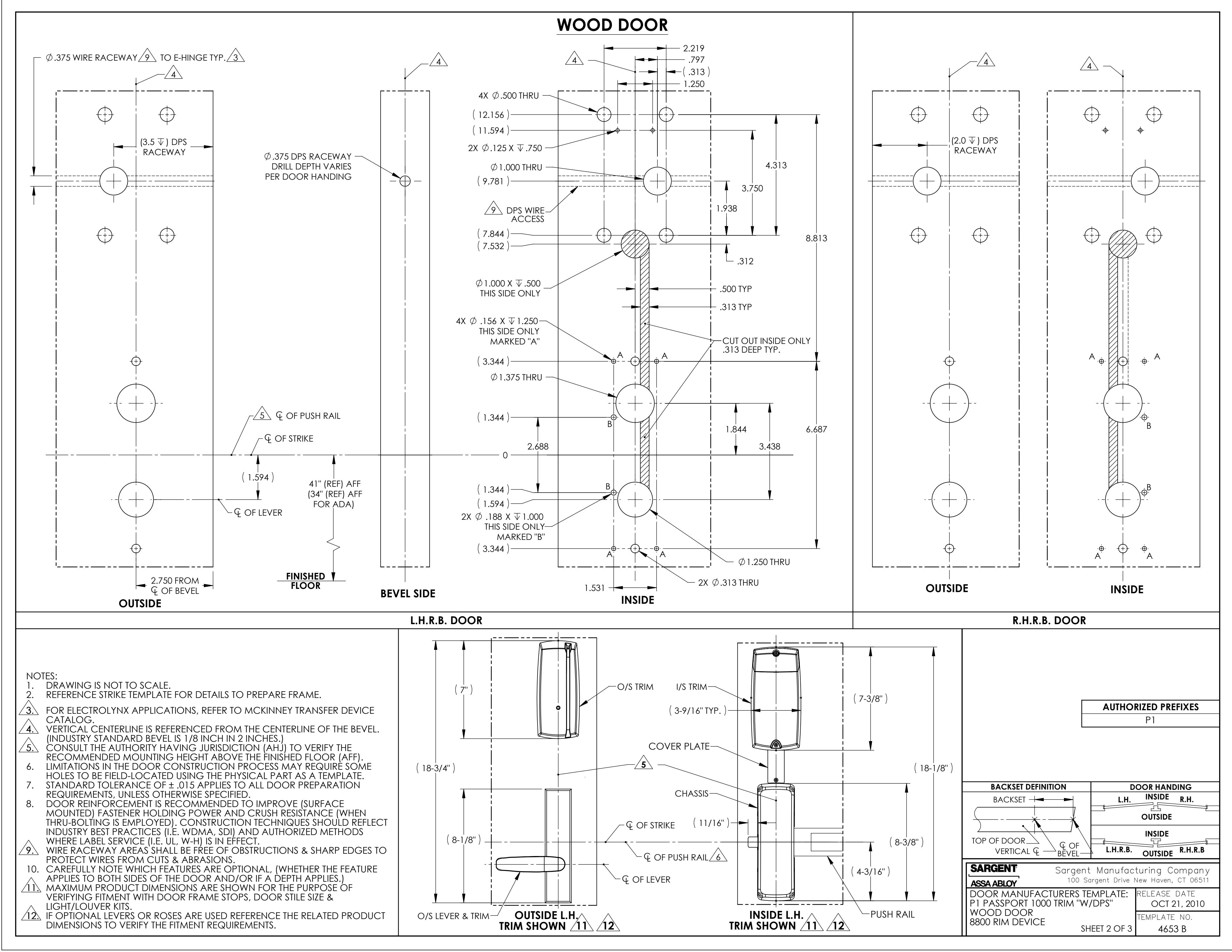

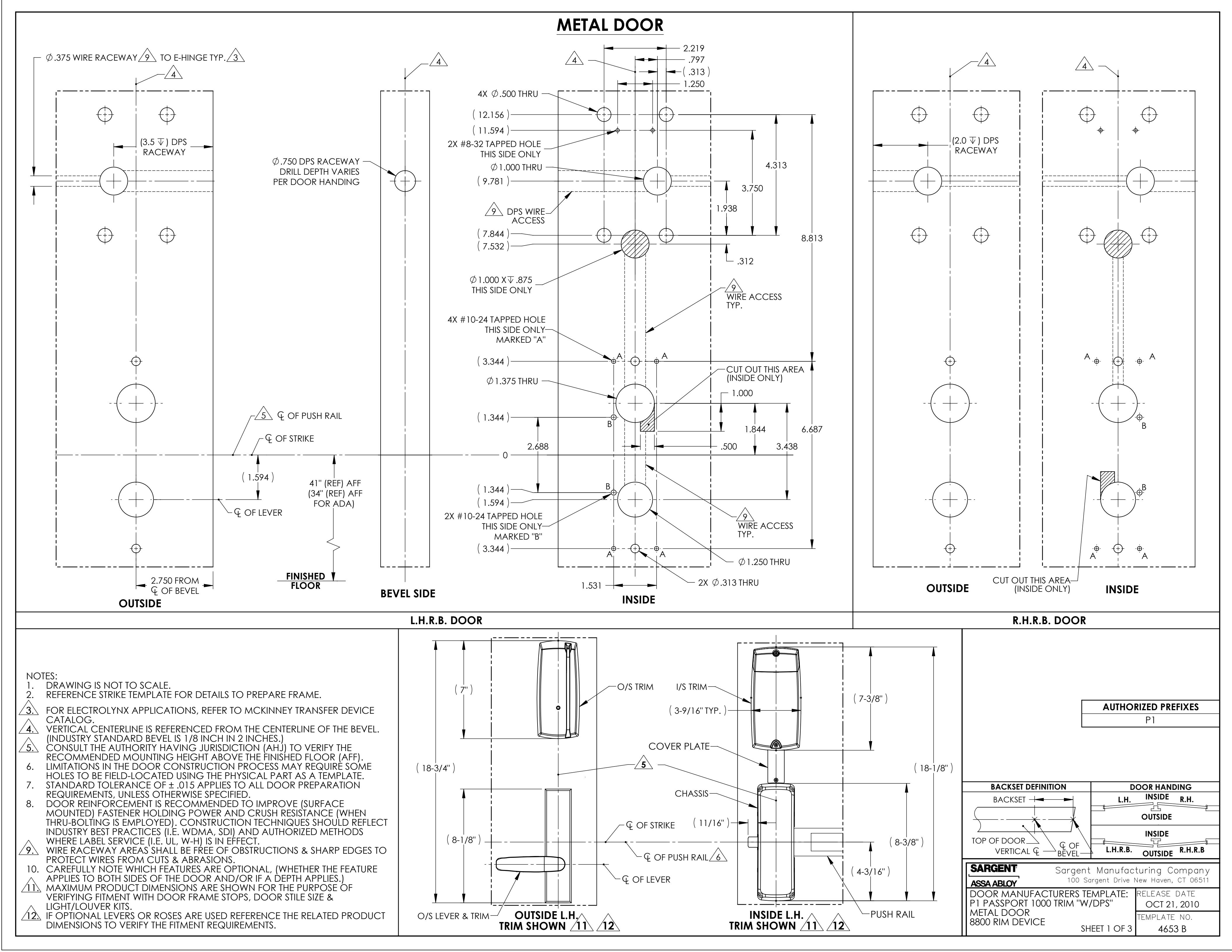

DOOR MANUFACTURERS TEMPLATE: P1 PASSPORT 1000 TRIM "W/DPS" METAL/WOOD DOOR 8800 RIM DEVICE

OCT 21, 2010 TEMPLATE NO.

4653 B

RELEASE DATE

NOTES:

$\stackrel{\checkmark}{1.}$ DPS CUTOUT ON FRAME TO BE ALIGNED HORIZONTAL AND VERTICAL WITH DPS CUTOUT ON DOOR IN CLOSED POSITION.
