H117-3/4 Pivot Set x 587 Arm

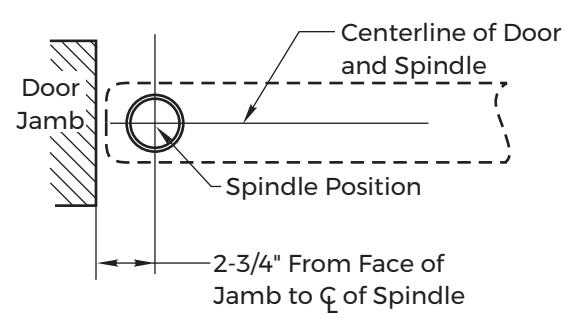

1. Locate Pivot

A. Measure 2-3/4" out from door jamb on centerline of door. This is the location of the spindle center.

2. Install Cement Case in Floor

• A. For floor plate application: Cement case is set 1/16" (1.6mm) below floor level.
• B. For threshold application: Cement case is set flush with floor.
• C. Set cement case in floor and block in position.
• D. Case should be parallel with center line of door.

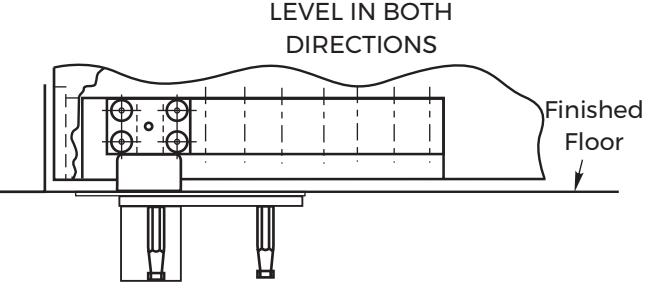

• E. CEMENT CASE SHOULD BE LEVEL.
• F. Grout in cement case.

3. Install Pivot and Arm

• A. Install top pivot in door per template.
• B. Install top pivot in jamb per template.
• C. Centerline of pivot pin should line up with centerline of spindle. Use plumb line to assure accuracy.
• D. Mortise door for arm.
• E. Install arm in bottom of door.

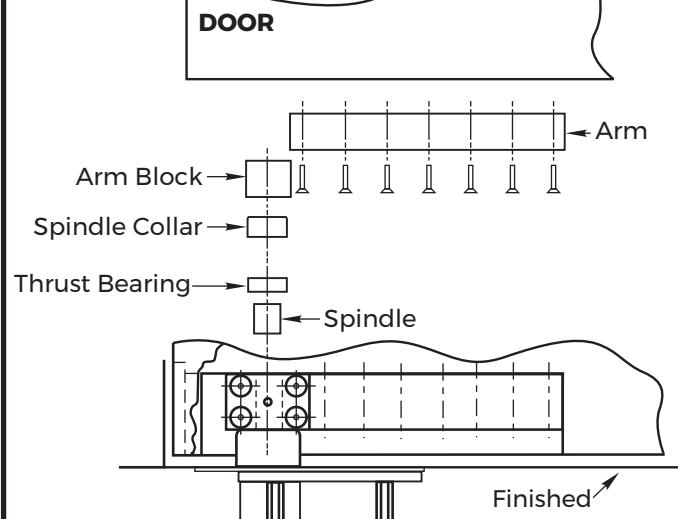

4. Hang Door

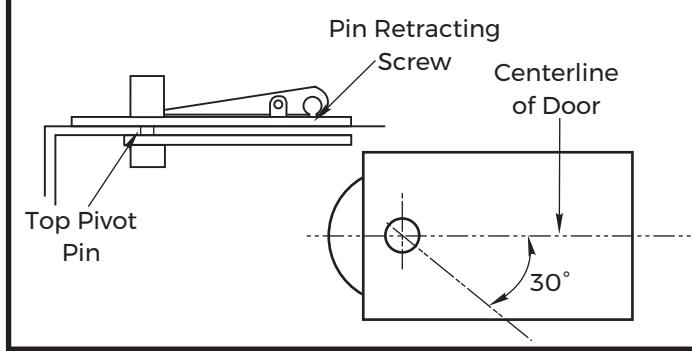

• A. Retract top pivot pin by turning retracting pin screw counterclockwise.
• B. Slide door on spindle. Attach arm cap but do not tighten.
• C. Line up two portions of top pivot and turn pin retracting screw clockwise.
• D. Tighten arm end block screws.
• E. Drill and tap for #8-32 machine screw, centered (screw by others).

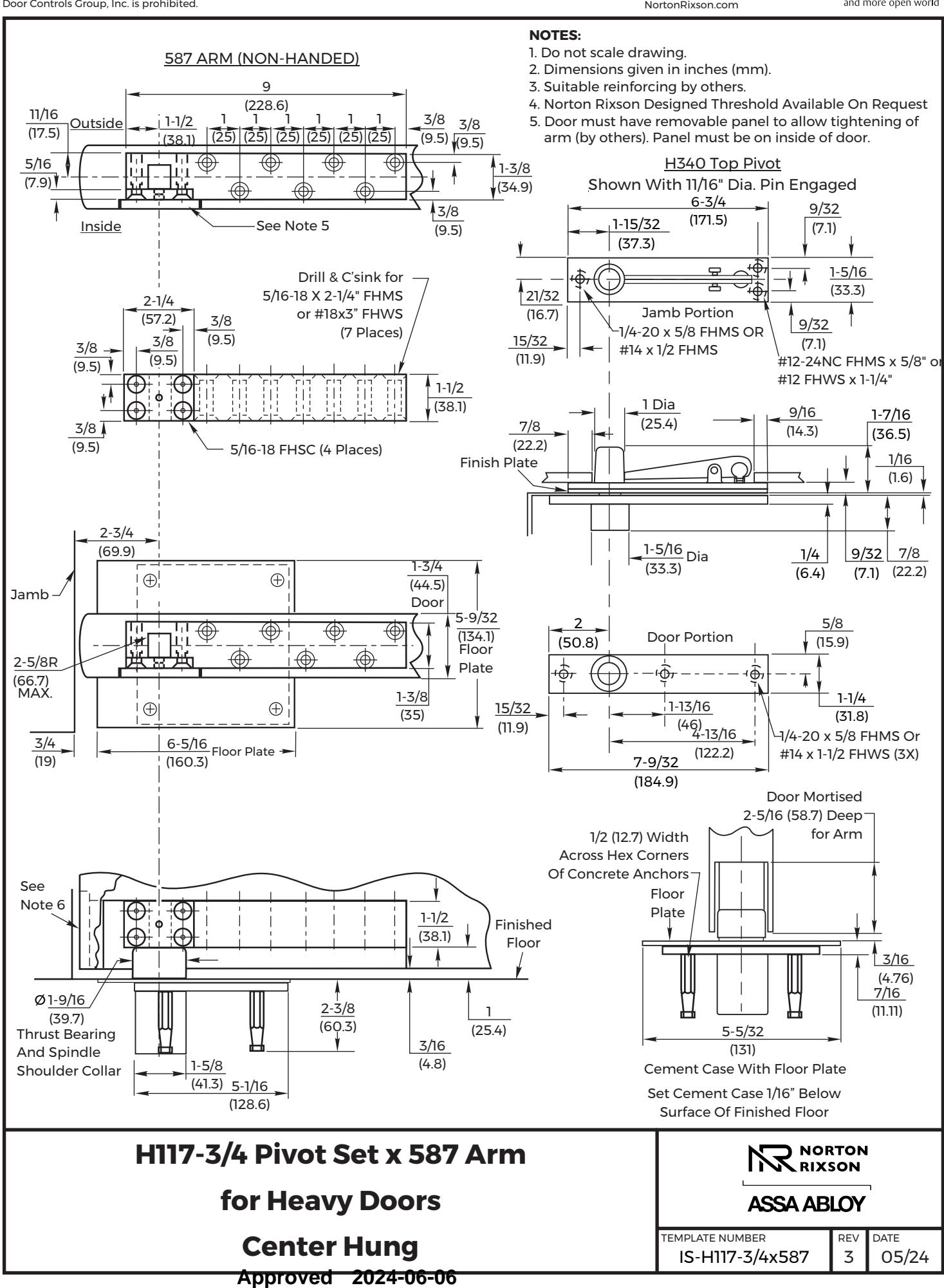

H117-3/4 Pivot Set x 587 Arm

Floor

for Heavy Doors

Center Hung

Approved 2024-06-06

TEMPLATE NUMBER REV IS-H117-3/4x587 05/24

3 DATE
