INSTALLATION INSTRUCTIONS

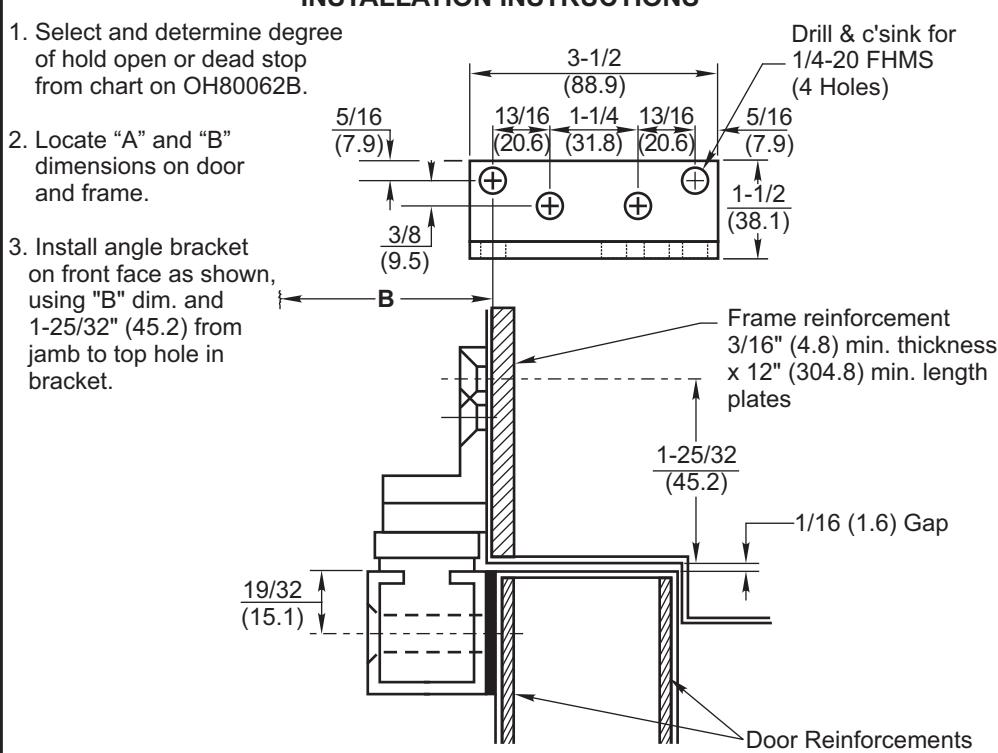

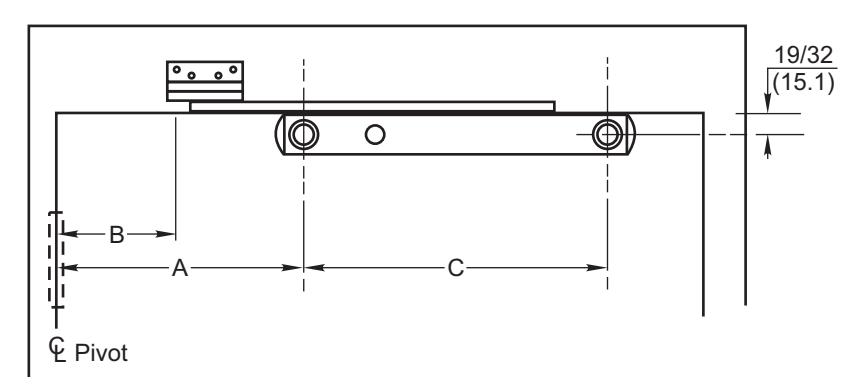

4. Install channel on door with "A" dimension and 19/32" (15.1) from top of door. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with top edge of door. Drill 1/2" (12.7) dia. sex bolt hole and finish installing holder. Install control knob on channel as shown. Install jamb bracket to angle bracket.
Notes:
- ·All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12"(304.8) min. length reinforcement plates.
- ·All hollow metal doors should be properly reinforced with 2-1/2" (63.5) wide x 3/16" (4.8) min. thick x full width of door reinforcement plates.
- ·All drilling and tapping to be done by field men.
- ·Suggest mounting door stop or holder first and then other hardware to clear.
- ·Contact factory if interference results with other hardware.

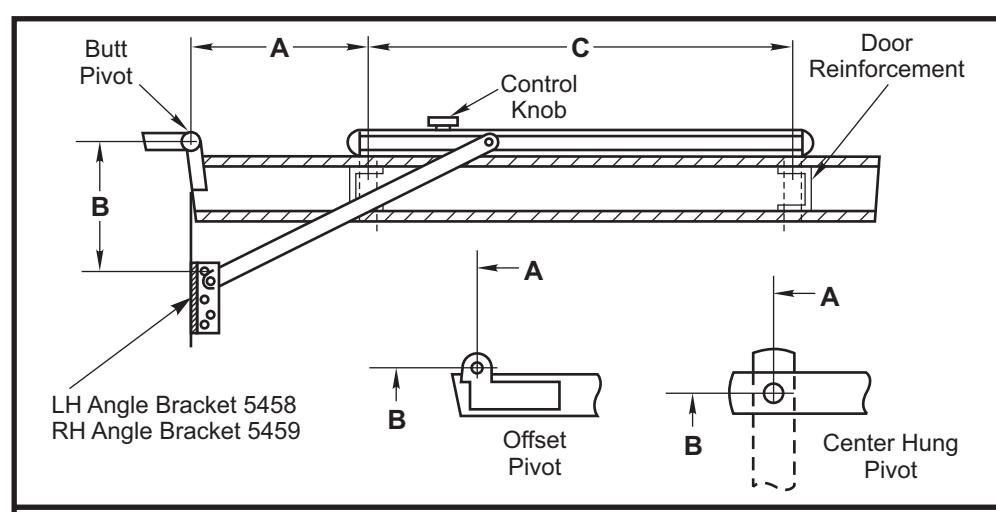

- ·Left hand shown
- ·Left hand door use Bracket #5458
- ·Right hand door use Bracket #5459
- ·Note hole pattern in jamb bracket.
- ·All dimensions are given in inches (mm).
Caution:
Note location of swing clear hinge centerline to determine "A" and "B" dimensions.
| Screw Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Jamb | Door | |||||||||
| #14-20 x 3/4" FHMS | 5/16-18 x 2" FHMS | |||||||||
| or | and | |||||||||
| #14 x 1-1/2" FHWS | 1/2" Dia. Sex Bolt | |||||||||
| (4 Places) | (2 Places) | |||||||||
No. 9 Series Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders
OH80062A 1 of 2 A B 4 08/24
NORTON RIXSON
No. 9 Series Angle Bracket Surface Mounted on Pull Side of Door
- 1. See OH80062A for installation instructions.
- 2. Select proper dimensions noted below.
- 3. All drilling and tapping to be done by field man.
- 4. All dimensions given in inches (mm). Metric = decimal (numerator divided by denominator) x 25.4.
H.O. = Hold Open D.S. = Dead Stop
|
Device
Number |
Degree | 85° | 90° | 95° | 100° | 105° | 110° | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-3/4 - 2-1/4 (44.5 - 57.2)
Butts & 3/4 (19) Offset Pivot |
Degree | H. | H.O. D.S. | S. | H.O. | D.S. | H.O. | D.S. | H.O. | D.S. | H.O. | D.S. | H.O. | D.S. | |||||||||||||||
| Friction | H.O. | Stop |
Door
Opening |
Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | А | В | Α | В | Α | В | Α | В | С | |
| 9-116 | 9-126 | 9-136 | 25-1/8 - 28-1/2 | 6_1/8 | 4-3/4 | 6-3/4 | 4-3/4 | 5-7/8 | 4-3/8 | 6-1/2 | 4-3/8 | 5-9/16 | 4-1/16 | 6-3/16 | 4-1/16 | 5-3/8 | 3-13/16 | 6 | 3-13/16 | - | - | - | - | - | - | 15-15/16 | |||
| 9-216 | 9-226 | 9-236 | 28-9/16 - 33-1/2 | 7-7/8 | 5-7/8 | 8-1/2 | 5-7/8 | 7-1/2 | 5-7/16 | 8-1/8 | 5-7/16 | 7-1/8 | 5-1/8 | 7-3/4 | 5-1/8 | 6-15/16 | 4-13/16 | 7-9/16 | 4-13/16 | 6-11/16 | 4-1/2 | 7-5/16 | 4-1/2 | 6-1/2 | 4-5/16 | 7-1/8 | 4-5/16 | 17-3/16 | |
| 9-316 | 9-326 | 9-336 | 33-9/16 - 38-1/2 | 11-9/16 | 7-1/4 | 12-3/16 | 7-1/4 | 11-1/16 | 6-3/4 | 11-11/16 | 6-3/4 | 10-5/8 | 6-5/16 | 11-1/4 | 6-5/16 | 10-3/8 | 5-15/16 | 11 | 5-15/16 | 10 | 5-5/8 | 10-5/8 | 5-5/8 | 9-3/4 | 5-3/8 | 10-3/8 | 5-3/8 | 18-11/16 | |
| 9-416 | 9-426 | 9-436 | 38-9/16 - 43-1/2 | 14-7/16 | 9-1/8 | 15-1/16 | 9-1/8 | 13-7/8 | 8-1/2 | 14-1/2 | 8-1/2 | 13-3/8 | 8 | 14 | 8 | 12-15/16 | 7-9/16 | 13-9/16 | 7-9/16 | 12-3/4 | 7-3/16 | 13-3/8 | 7-3/16 | 12-3/16 | 6-7/8 | 12-13/16 | 6-7/8 | 20-13/16 | |
| 9-516 | 9-526 | 9-536 | 43-9/16 - 48 | 18 | 10-3/8 | 18_5/8 | 10-3/8 | 17-3/8 | 9-3/4 | 18 | 9-3/4 | 16-13/16 | 9-1/8 | 17-7/16 | 9-1/8 | 16-3/8 | 8-5/8 | 17 | 8-5/8 | 15-7/8 | 8-3/16 | 16-1/2 | 8-3/16 | 15-1/2 | 7-13/16 | 16-1/8 | 7-13/16 | 22-5/16 | |
|
1-3/4 - 2-1/4 (44.5 - 57.2)
Center Hung |
Device
Number |
Degree | 85° | 90° | 95° | 100° | 105° | 110° | |||||||||||||||||||||
| Н. | H.O. D.S. | H.O. | D.S. | H.O. | D.S. | H.O. | D.S. | H.O. | D.S. | H.O. | D.S. | ||||||||||||||||||
| Friction | H.O. | Stop |
Door
Opening |
Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | Α | В | С | |
| 9-116 | 9-126 | 9-136 | 27-3/8 - 31 | 6-1/8 | 5-9/16 | 6-3/4 | 5-9/16 | 5-13/16 | 5-13/16 | 6-7/16 | 5-13/16 | 5-7/16 | 4-15/16 | 6-1/16 | 4-15/16 | 5-1/8 | 4-11/16 | 5-3/4 | 4-11/16 | 4-7/8 | 4-7/16 | 5-1/2 | 4-7/16 | 4-11/16 | 4-3/16 | 5-5/16 | 4-3/16 | 15-15/16 | |
| 9-216 | 9-226 | 9-236 | 31-1/16 - 36 | 8-1/8 | 6-1/2 | 8-3/4 | 6-1/2 | 7-5/8 | 6-1/8 | 8-1/4 | 6-1/8 | 7-1/4 | 5-3/4 | 7-7/8 | 5-3/4 | 7 | 5-7/16 | 7-5/8 | 5-7/16 | 6-5/8 | 5-3/16 | 7-1/4 | 5-3/16 | 6-3/8 | 4-15/16 | 7 | 4-15/16 | 17-3/16 | |
| 9-316 | 9-326 | 9-336 | 36-1/16 - 41 | 11-13/16 | 8 | 12-7/16 | 8 | 11-1/4 | 7-1/2 | 11-7/8 | 7-1/2 | 10-13/16 | 7-1/16 | 11-7/16 | 7-1/16 | 10-7/16 | 6-11/16 | 11-1/16 | 6-11/16 | 10 | 6-3/8 | 10-5/8 | 6-3/8 | 9-3/4 | 6-1/16 | 10-3/8 | 6-1/16 | 18-11/16 | |
| 9-416 | 9-426 | 9-436 | 41-1/16 - 46 | 14-3/4 | 9-3/4 | 15-3/8 | 9-3/4 | 14-1/16 | 9-3/16 | 14-11/16 | 9-3/16 | 13-9/16 | 8-11/16 | 14-3/16 | 8-11/16 | 13-1/16 | 8-3/16 | 13-11/16 | 8-3/16 | 12-5/8 | 7-13/16 | 13-1/4 | 7-13/16 | 12-1/4 | 7-1/2 | 12-7/8 | 7-1/2 | 20-13/16 | |
| 9-516 | 9-526 | 9-536 | 46-1/16 - 50 | 18-7/16 | 11-3/16 | 19-1/16 | 11-3/16 | 17-5/8 | 10-1/2 | 18-1/4 | 10-1/2 | 17-1/8 | 9-7/8 | 17-3/4 | 9-7/8 | 16-1/2 | 9-3/8 | 17-1/8 | 9-3/8 | 16 | 8-7/8 | 16-5/8 | 8-7/8 | 15-5/8 | 8-1/2 | 16-1/4 | 8-1/2 | 22-5/16 | |
Note: "A" and "B" dimensions measured from centerline of pivot, not edge of door.
No. 9 Series Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders
ASSA ABLOY
OH80062B 2 of 2 4 08/24
Approved 2024-08-13
