Norton Rixson 178 Pivot Set, Center Hung, Non-Handed, 74210 Top Pivot, Patch Fitting Installation Instructions_IS-178

Approved 2024-05-24

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

1. Locating Closer

Patch Fitting

Use plumb line to make sure that center line of top pivot pin lines up with center line of closer spindle.

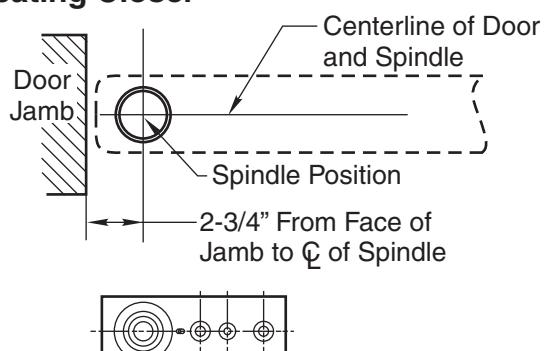

• A. Measure 2-3/4" out from door jamb on centerline of door. This is the location of the spindle center.
• B. Affix pivot with screws provided.

2. Install Pivot

3. Hang Door

4. Adust Bottom Door Pivot

• A. Install patch fittings (top & bottom) into door per template.
• B. Install top pivot in jamb per template.

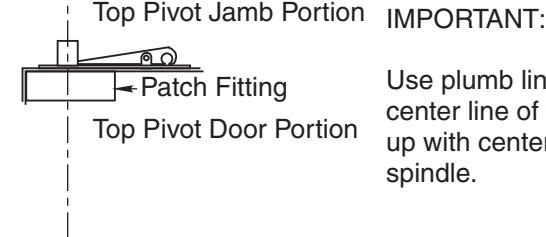

• C. Centerline of pivot pin should line up with centerline of spindle. Use plumb line to assure accuracy.

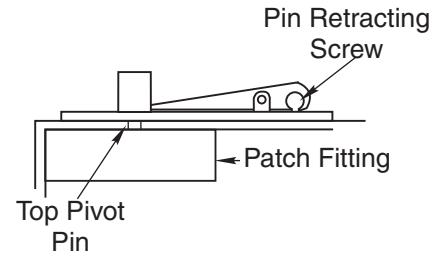

• A. Retract top pivot pin by turning retracting pin screw counterclockwise. (see illustration)
• B. Using wrench, turn until arm is in 30° open position. (see illustration)
• C. Set door on bottom pivot.
• D. Align jamb po tion of the pivot with top patch and turn pin retracting screw clockwise. r

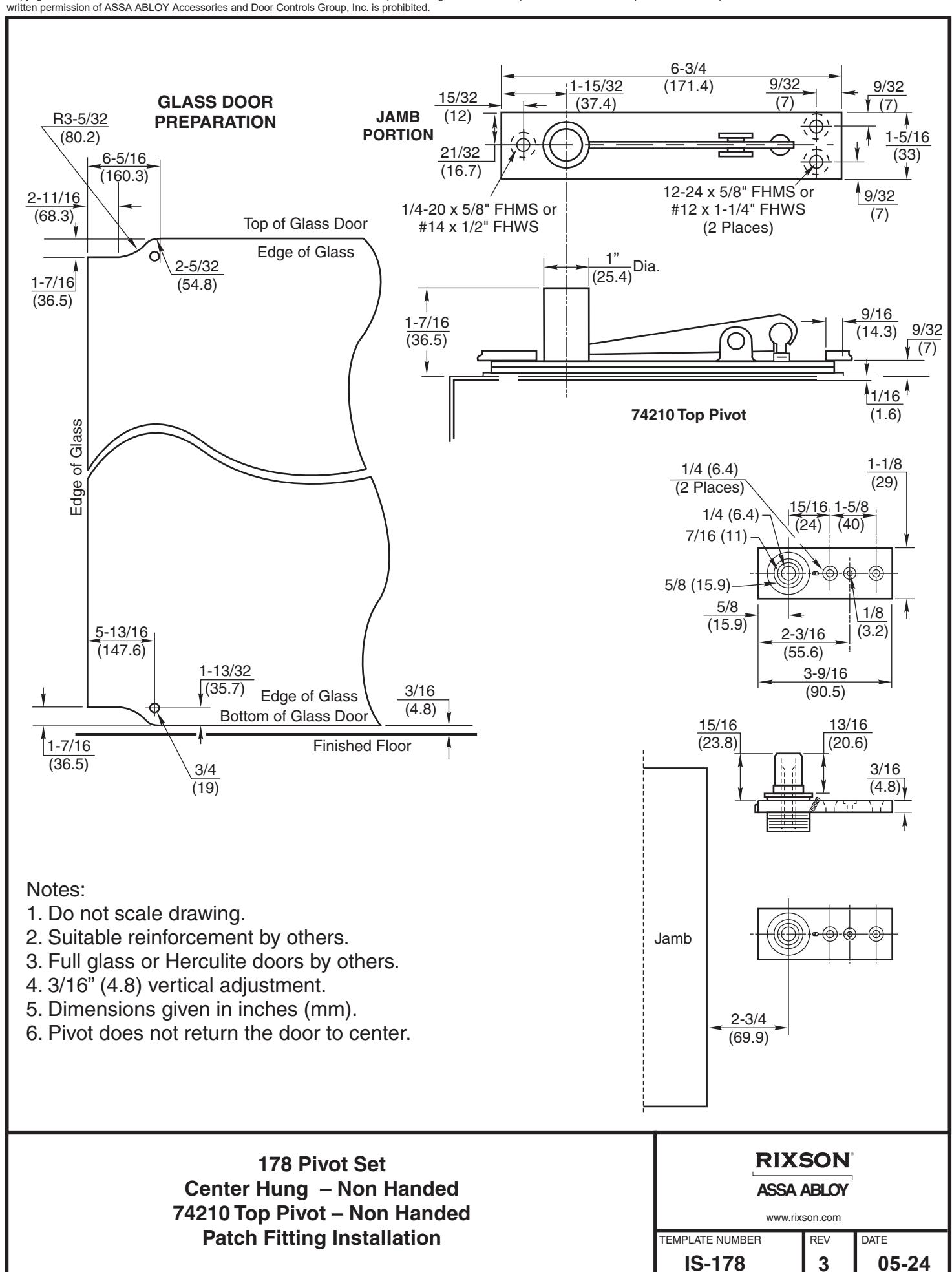

178 Pivot Set Center Hung – Non Handed 74210 Top Pivot – Non Handed Patch Fitting Installation

ASSA ABLOY RIXSON ®

www.rixson.com

IS-178 TEMPLATE NUMBER DATE

05-24 REV 3
