Norton 8000 Series Door Closer J8000 Top Jamb with 8146 Back Plate for Low Ceiling Clearance Non-Hold Open Template
Open the original PDF document
View PDF

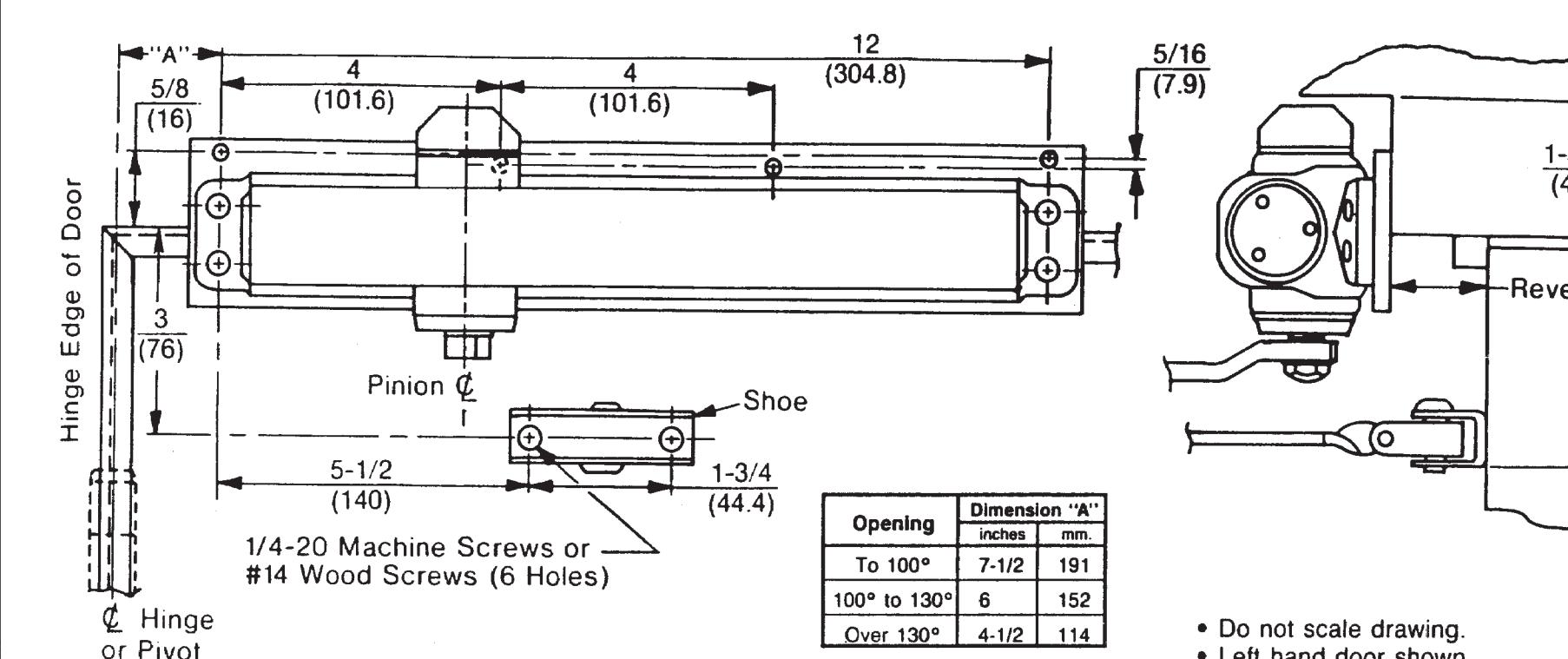

J8000 Series Door Closer Top Jamb Application With 8146 Back Plate for Low Ceiling Clearance J8100, J8300, and J8500 Sizes 1 thru 6
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE
7380-0151
09-08
