Norton 7500 Series Door Closer P7500H P7700H Parallel Arm Hold Open with or without 7788 Drop Plate Template
Open the original PDF document
View PDF
| Fasteners |
Door or
Frame |
Drill-Sizes | |
|---|---|---|---|
| Standard |
#14 type "A"
S.M. screw Arm: 1-1/4" (32mm.) Closer: 2-3/4" (70mm.) |
Wood | 3/16" (4.30mm.) |
| Aluminum | 7/32" (5.50mm.) | ||
| 1/4-20 machine-screw | Metal |
drill: #7 (.201" dia.)
tap: 1/4-20 |
|
| Optional | Sex-nuts and bolts |
Hollow-
Metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) on door or transom-face opposite to closer |
|
Aluminum
or Wood |
3/8" (9.50mm.) through | ||
| Through-bolts and grommet-nuts | AII |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia.x 3/8" (10mm.) deep on door or transom-face opposite to closer |
|

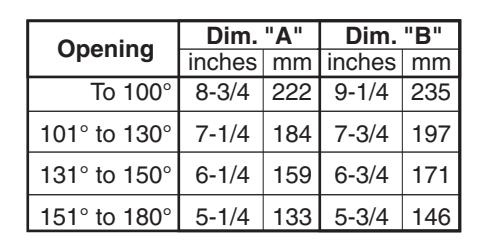

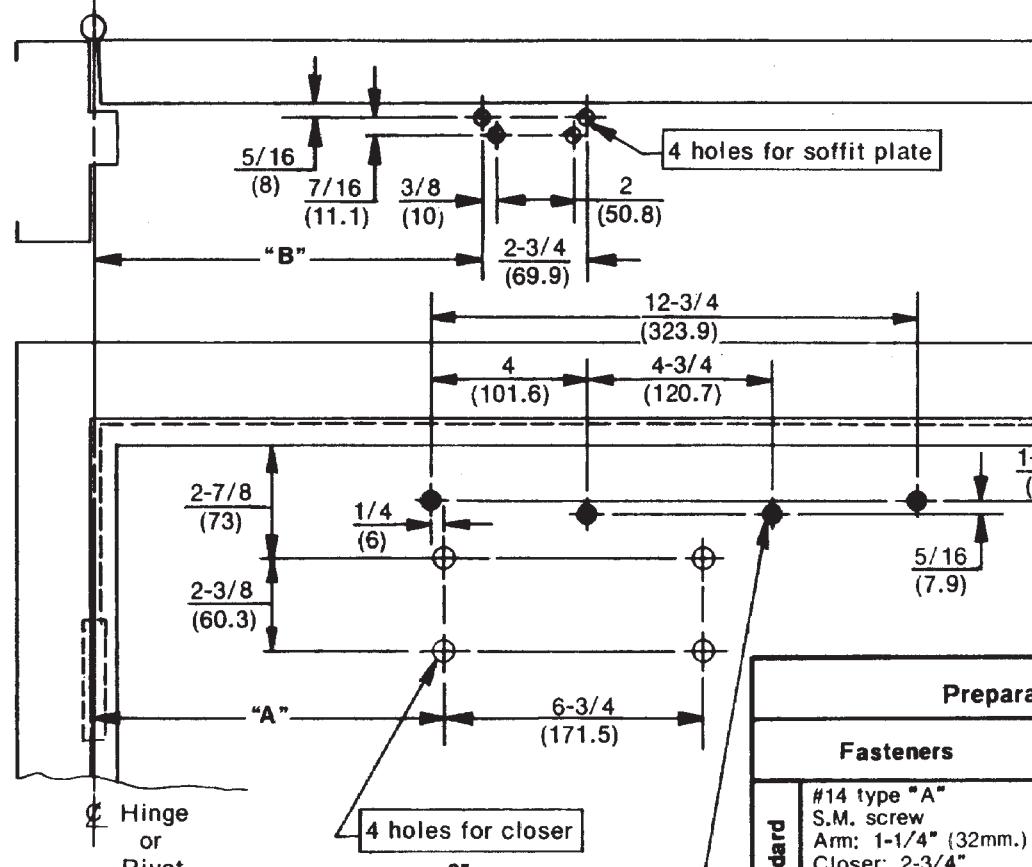

P7500H or P7700H Series Door Closers With or Without 7788 Drop Plate Parallel Arm Installation With Hold Open
www.nortondoorcontrols.com
TEMPLATE NUMBER DATE
7377-0211 07-08
