LCN 4040XP Top Jamb Template

Open the original PDF document

View PDF

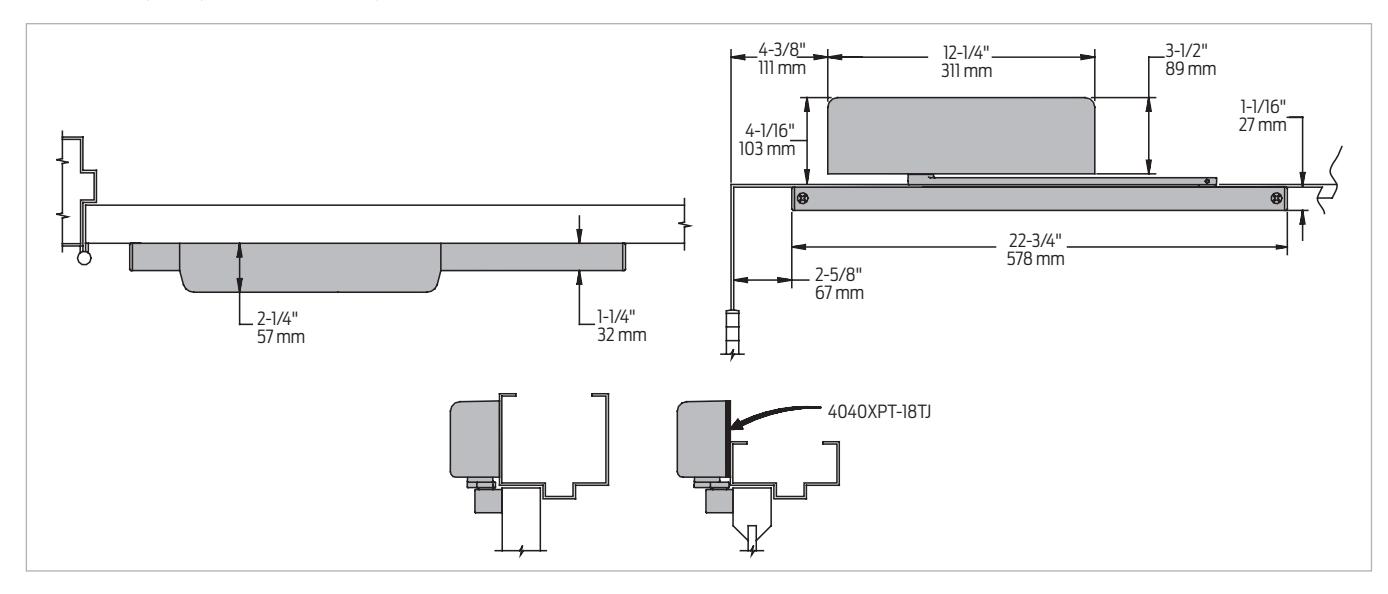

Mounting details

Top jamb (pull) side mounting

Butt hinges Should not exceed 5" (127 mm) in width
Auxiliary stop
  • Recommended at hold-open point or where a door cannot swing 180°
  • Optional track bumper assembly assists backcheck in cushioning the opening swing of the door
  • It is not intended to replace an auxiliary stop
Reveal Should not exceed 1/8" (3 mm)
Head frame Less than 3 ^{7} /8 ^{\prime\prime} (98 mm), requires PLATE, 4040XPT-18TJ. Plate requires 1 ^{3} /4 ^{\prime\prime} (44 mm) minimum
Clearance 1 1 /4" (32 mm) behind door required for 180° installation
Maximum opening
  • Templating allows 180° with standard track arm, limited to 110° with optional bumper installed
  • Consult factory if door will be held open at 180°
  • Variable hold-open angles with infinite options

Note: Consult factory for applications where an exterior or large/heavy door must swing 180^{\circ}
