Introduction

Mounting details

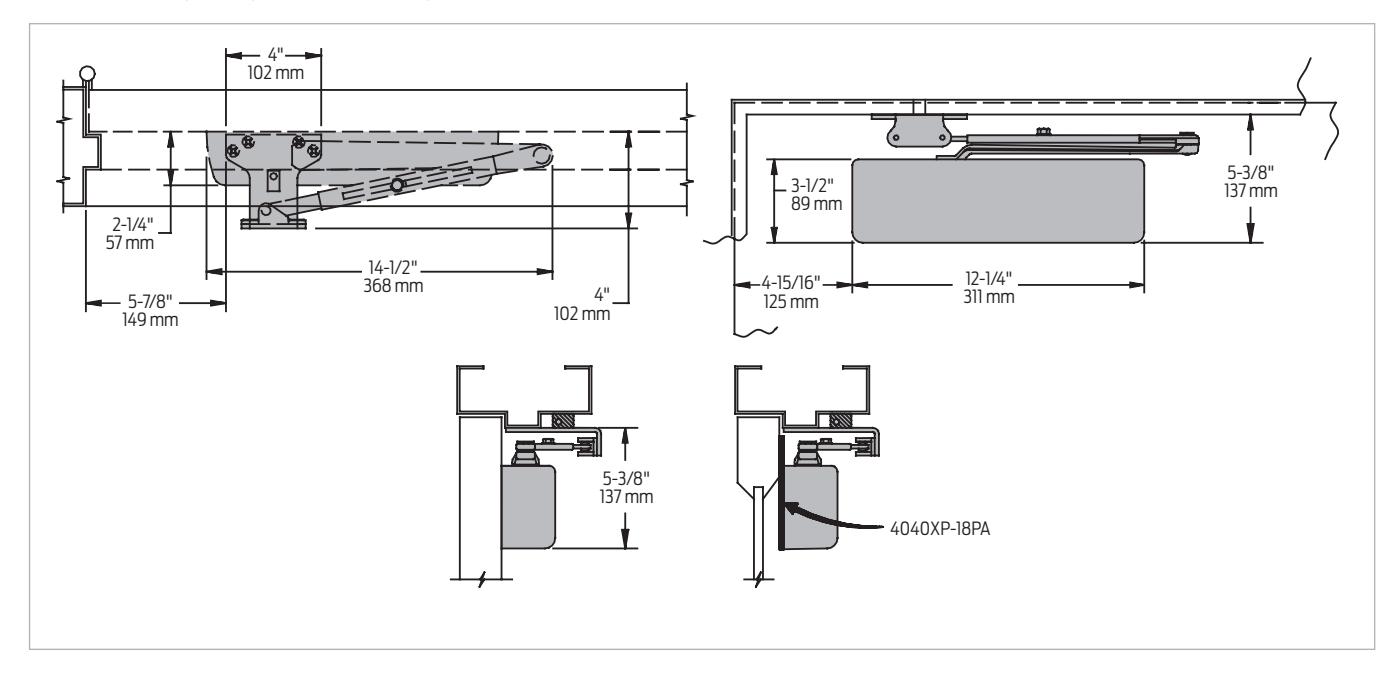

Parallel arm (push) side mounting


Butt hinges	Should not exceed 5" (127 mm) in width
Auxiliary stop	Recommended at hold-open point, where the door cannot swing 180°, or where Cush-N-Stop arm is not used
Reveal	Should not exceed ⁷ / ₃₂ " (6 mm)
Top rail	Less than 5 $^3$ /8 $^{\prime\prime}$ (137 mm) measured from the stop requires plate, 4040XP-18PA. Plate requires 2 $^{\prime\prime}$ (51 mm) minimum from the stop
Head frame	Flush or rabetted requires PA shoe adapter, 4040XP-419
Stop width	Minimum 1" (25 mm). CUSH arm requires minimum 1 $^{1}/_{2}$ " (38 mm)
Blade stop	Clearance requires 1/2" (13mm) blade stop spacer, 4040XP-61.
Clearance	4040XP-62PA shoe is 4" (102 mm) from door face. EDA shoe projects 5 ½" (140 mm) from door face. CUSH shoe projects 6" (152 mm) from door face
Delayed action	Incorporates standard 4041 cylinder, without XP cylinder Delays closing from 120° to 70°. Delay time adjustable up to approximately 1 minute.
Maximum opening	180° opening/hold-open points with all except CUSH arms 110° opening/hold-open with CUSH arms

Notes:

Optional mounting requires PA shoe, 4040XP-62PA for regular or hold-open arms Add prefix "P" to closer description (eg. P4040XP) P4040XP closer includes 4040XP-201 fifth hole spacer to support PA shoe
