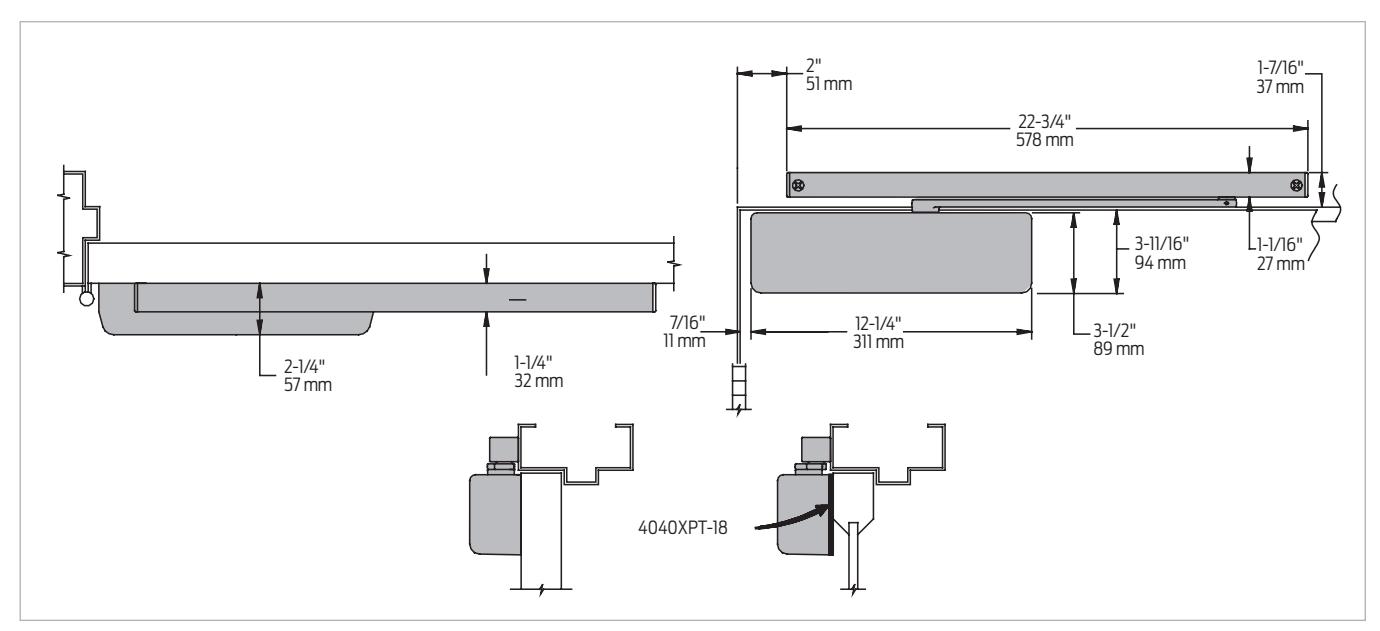

LCN 4040XP Hinge Pull Side Template

Open the original PDF document

Series Series

Butt hinges	Should not exceed 5" (127 mm) in width
Auxiliary stop	Recommended at hold-open point or where a door cannot swing 120° Optional track bumper assembly assists backcheck in cushioning the opening swing of the door Track bumper is not intended to replace an auxiliary stop
Reveal	Should not exceed ½ (3 mm) for standard arm
Top rail	Less than 3 ³ / ₄ " (95 mm) requires PLATE, 4040XPT-18. Plate requires 1 ¹³ / ₁₆ " (44 mm) minimum
Head frame	Requires 1 1/4" (32 mm) minimum
Clearance	$2^{1/4}$ " (57 mm) behind door required for 90° installation
Maximum opening	Templating allows 120° with standard arm, limited to 110° when optional bumper is installed Variable hold-open angles with infinite options

Note: Consult factory for applications where door must swing 180°.
