Mounting details

1460 Series

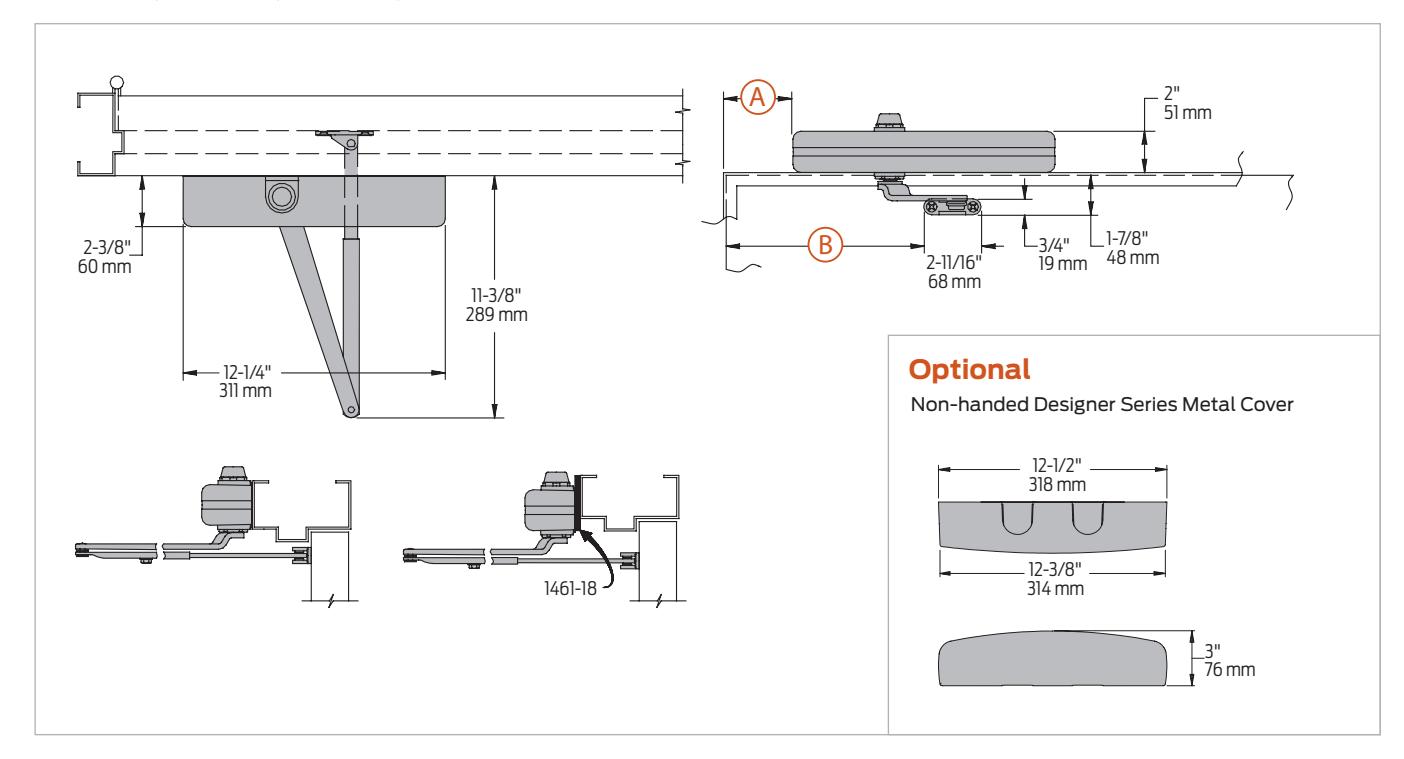

Top jamb (push side) mounting

Butt hinges	Should not exceed 5" (127 mm) in width
Auxiliary stop	Recommended at hold open point or where a door cannot swing 180°
Reveal	Arm type	Reveal	Max opening
	Regular Arm	4 ⁷ /8"	Up to 140°
	Regular Arm	3 1/2"	Up to 180°
	Long Arm	7"	Up to 140°
	Hold Open Arm	1 2 ½"	Up to 180°
	Hold Open Lon	g Arm 4 ⁷ / ₈ "	Up to 140°
Top rail	Requires 1 7/8" (48 mm) minimum. 2 3/4" (70 mm) minimum with closer on plate, 1460-18
Head frame	Less than $1^3/4$ " (44 mm) requires plate, 1460-18. For flush ceiling condition with 2" (51 mm) head frame, use plate, 1460-18
Delay action	Add suffix "CYLDEL" to selected cylinder Delays closing: 110° to 75° (using 110° template) 180° to 95° (using 180° template) Delay time adjustable up to approximately 1 minute.
Maximum opening		A= 6 ³ / ₄ " (169 mm) B= 11 ½" (286 mm)
Maximum opening	101º to 120º: 7	A= 3" (76 mm) B= 7½" (191 mm)

Note: Hold open points up to maximum opening with Hold Open Arm. $\ast$ Frame and trim permitting
