LCN 1460 Hinge Pull Side Template

Open the original PDF document

View PDF

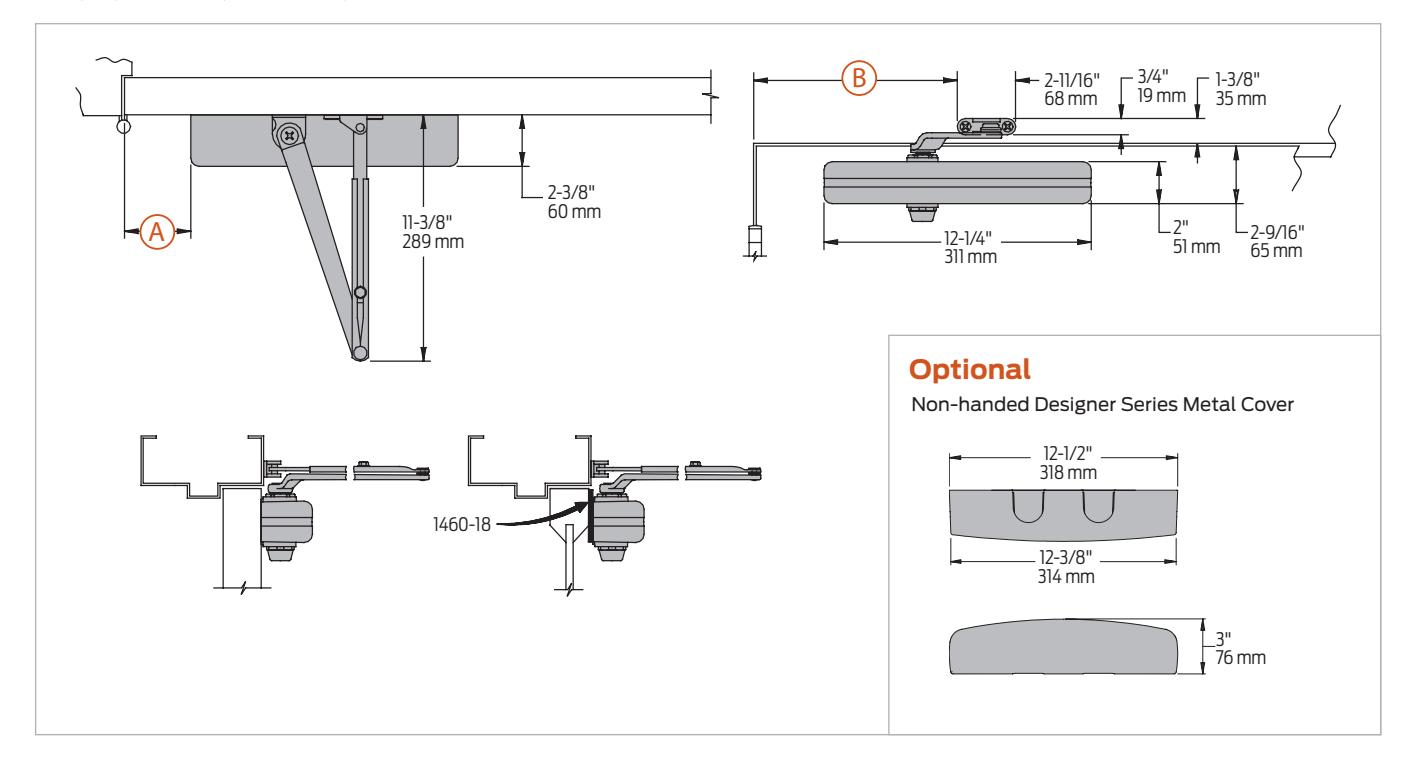

Mounting details

Hinge (pull side) mounting

Butt hinges Should not exceed 5" (127 mm) in width
Auxiliary stop Recommended at hold open point or where a door cannot swing 180°
Reveal Should not exceed 3 / 4 " (19 mm) for regular arm or 1 / 2 " (13 mm) for Hold Open Arm
Top rail
  • Less than 2 ½" (64 mm) requires plate, 1460-18
  • With Full Plastic Cover, use plate, 1460-18FC. Plate requires 1½" (38 mm) minimum
  • With Designer Series Metal Cover, use plate, 1460-18DS1
Clearance 2 ³/8" (60 mm) behind door required for installation
Delay action
  • Add suffix "CYLDEL" to selected cylinder
  • Delays closing from:
    • 110° to 65° (using 110° template)
    • 160° to 75° (using 180° template)
  • Delay time adjustable up to approximately 1 minute
Maximum opening 110°: A = 5 7 / 8 " (149 mm)
B = 10 7 / 8 " (276 mm)
or *180° A= 2 7 / 8 " (73 mm)
B = 7 7 / 8 " (200 mm)

Note: Hold open points up to maximum opening with Hold Open Arm. \ast Frame and trim permitting
