LCN 1450 Top Jamb Template

Open the original PDF document

Mounting details

1450 Series

Top jamb (push side) mounting

Butt hinges	Should not exceed 5" (127 mm) in width
Auxiliary stop	Recommended at hold open point or where a door cannot swing 180°
Reveal	Arm type		Reveal	Max opening
	Regular Arm		5"	Up to 170°
	Regular Arm		3 3/4"	Up to 180°
	Long Arm		8"	Up to 155°
	Hold Open Arm		2 3/4"	Up to 180°
	Hold Open Long Arm		47/8"	Up to 140°
Top rail	Requires 2 $\frac{1}{8}$ " (54 mm) minimum. 3 $\frac{3}{8}$ " (86 mm) minimum with closer on plate, 1450-18.
Head frame	Less than 1 $^3/_4$ " (44 mm) requires plate, 1450-18. For flush ceiling condition with 1 $^3/_4$ " (45 mm) head frame, use plate, 1450-18

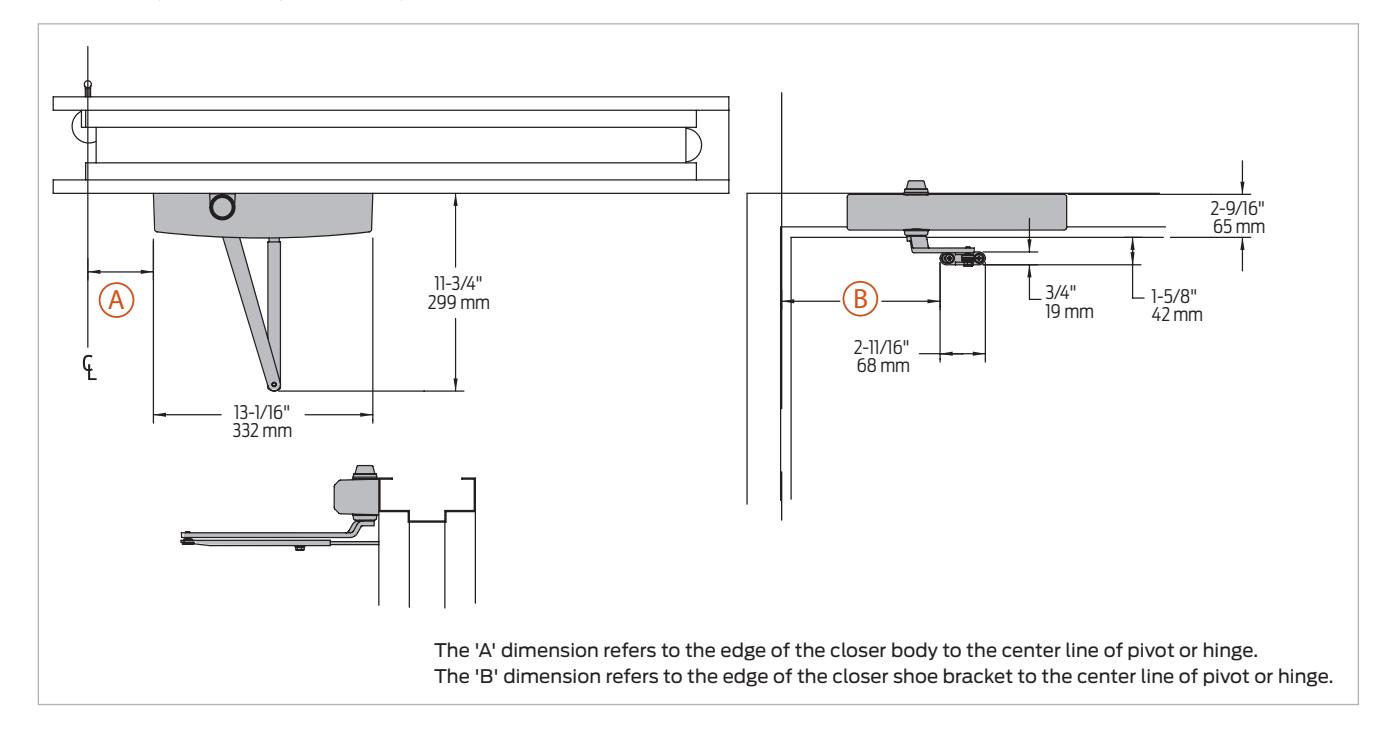

Maximum opening	100°:	A=7" (102 mm) B = 12 ³ / ₈ " (314 r	mm)
	101º to 130º:	A= 5½" (140 mm) B=10½" (276 mm)
	131º to 180º:	A= 4" (102 mm) B = 9 ³ / ₈ " (238 mm)

Note: Hold open points up to maximum opening with Hold Open Arm. $\ast$ Frame and trim permitting
