LCN 1450 Parallel Arm Template

Open the original PDF document

Mounting details

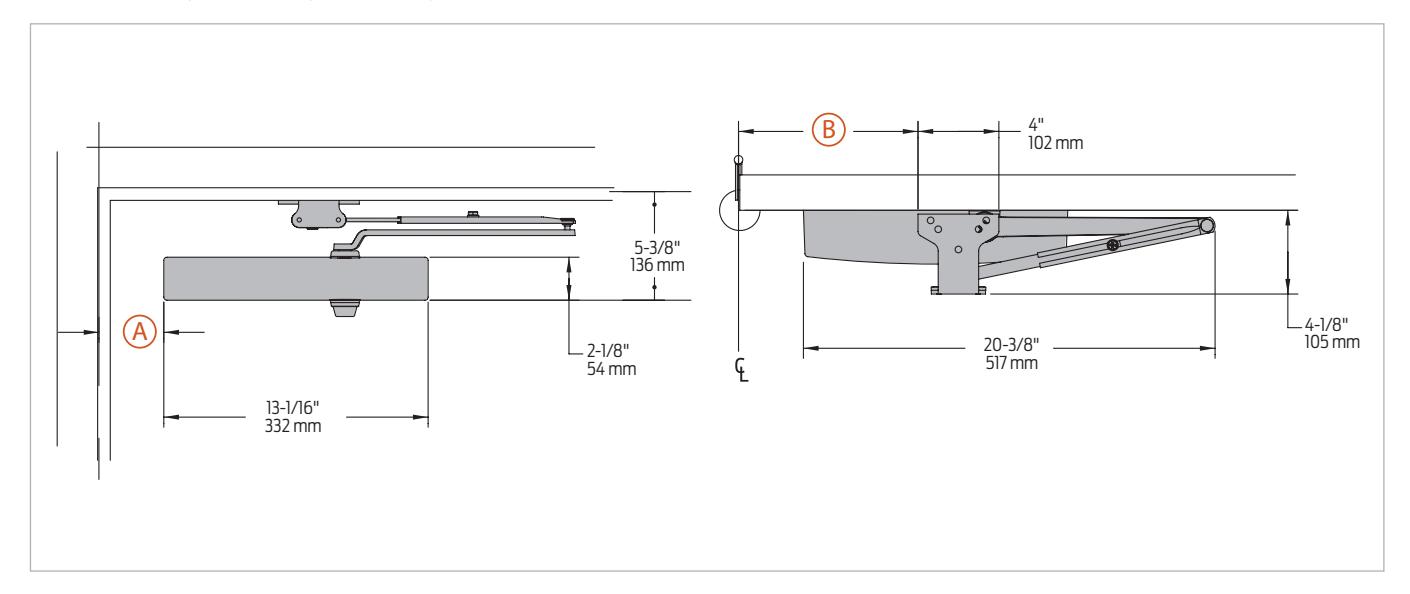

Parallel arm (push side) mounting

Butt hinges	Should not exceed 5" (127 mm) in width
Auxiliary stop	Recommended at hold open point, where a door cannot swing 180°, or where Cush-n-Stop Arm is not used
Top rail	Less than 5 ½" (133 mm) measured from the soffit requires Plate requires 1 ½" (32 mm) minimum.
	Cover	Minimum top rail (measured from soffit)	Plate required
	Plastic	3 ½" (89 mm)	1450-18
	Plastic	2 1/4" (57 mm)	1450-18PA
	Metal	3 ½" (89 mm)	1450-18FC
	Metal	2 ¹ / ₄ " (57 mm)	1450-18PAFC
Clearance	1450-62PA shoe projects 41/8" (105 mm) from door face
Head frame	Flush or single rabbeted requires PA shoe adapter, 1450-418
Stop width	Minimum 1" (25 mm)
Blade stop	Clearance, requires 1/2" (13 mm) blade stop spacer, 1450-61
Auxiliary shoe	1450-62A allows installation of regular arm with overhead holder/stop
Maximum opening	Regular or Hold Open Arm can be templated to 120°: $A = 3 ^3/_{16}$ " (81 mm) $B = 8 ^7/_6$ " (225 mm)
Maximum opening		6" (17 mm) 3 ¹ /8" (162 mm)

Note: Note: Hold open points up to maximum opening with Hold Open Arm. PA shoe is included with RWPA Arm. 1450 closer includes 1450-201 fifth hole spacer to support PA shoe.
