LCN 1450 Hinge Pull Side Template
Open the original PDF document
View PDFMounting details

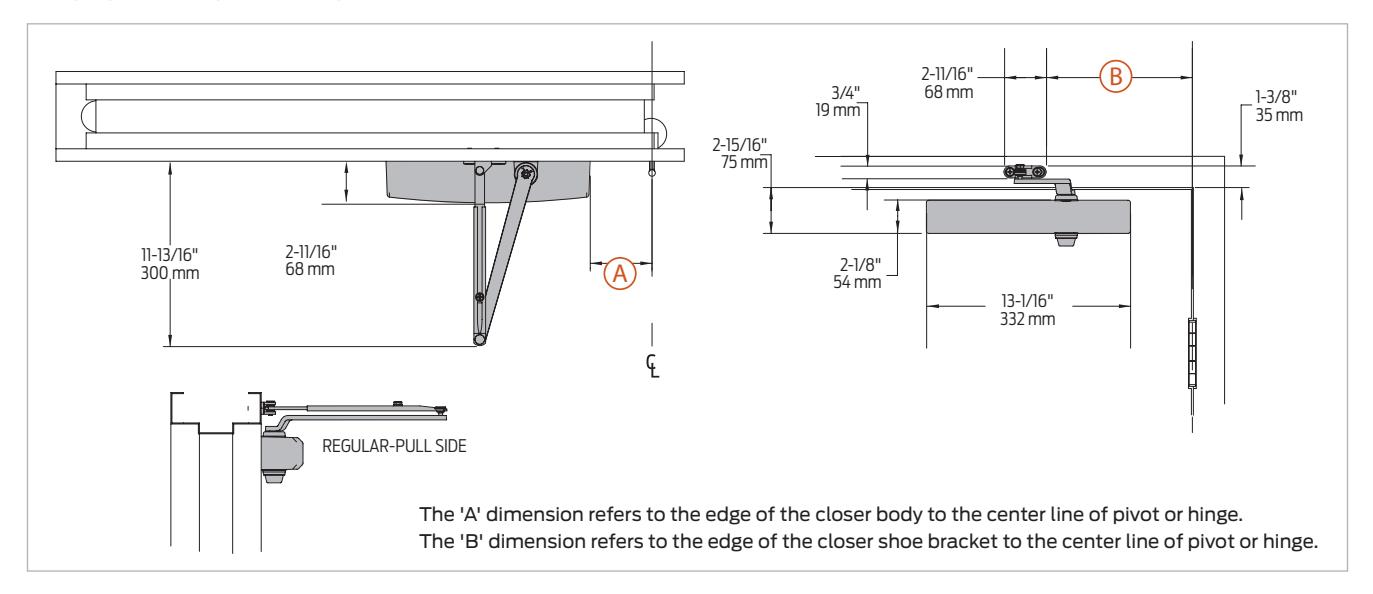

Hinge (pull side) mounting
| Butt hinges | Should not exceed 5" (127 mm) in width | |
| Auxiliary stop | Recommended at hold open point or where a door cannot swing 180° | |
| Reveal |
Should not exceed 3⁄4" (19 mm) for regular arm or 1
⁄2" (13 mm) for Hold Open Arm |
|
| Top rail |
§ Less than 2 1
⁄2" (64 mm) requires plate, 1450-18 § With full cover, use plate, 1450-18FC. Plate requires 1 1 ⁄2" (38 mm) minimum |
|
| Clearance | 2 3⁄8" (60 mm) behind door required for installation | |
| Maximum opening | 100°: |
A = 7" (102 mm)
B = 12 3⁄8" (314 mm) |
| 101° to 130°: |
A=5 1
⁄2" (140 mm) B = 10 7 ⁄8" (276 mm) |
|
| 131° to 180°: |
A=4" (140 mm)
B = 9 3⁄8" (238 mm) |
|
Note: Hold open points up to maximum opening with Hold Open Arm.
* Frame and trim permitting
