View PDFMounting details

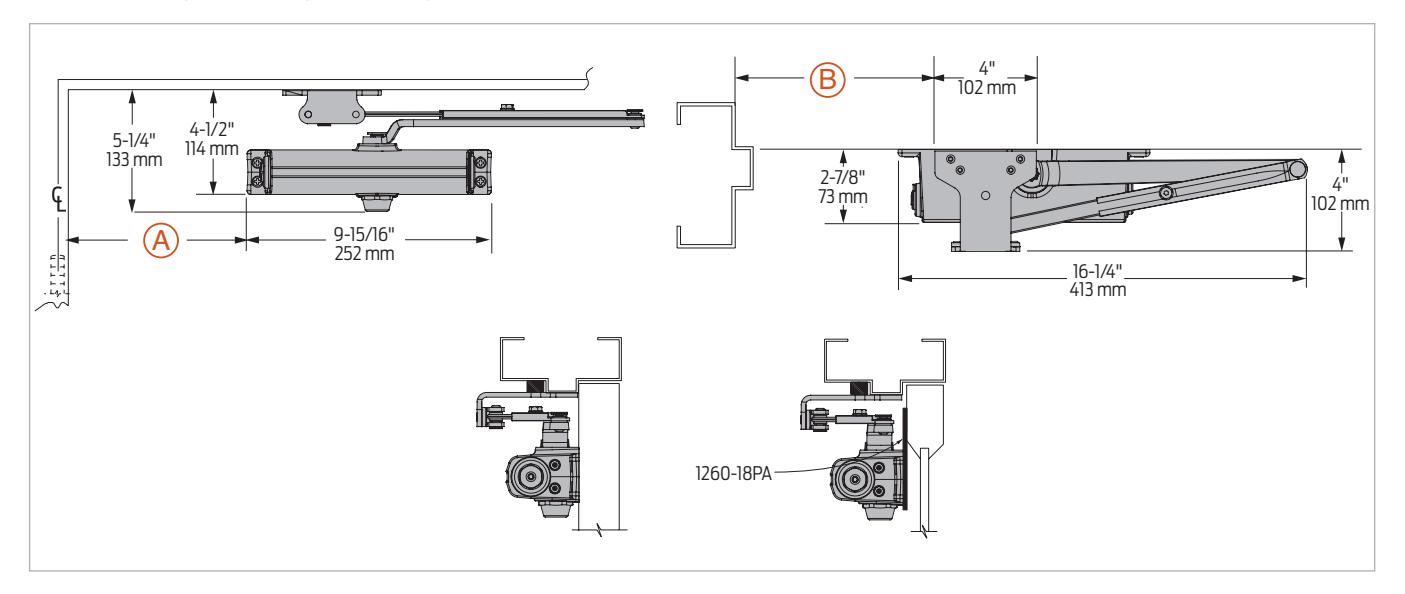

Parallel arm (push side) mounting
| Butt hinges | Should not exceed 5" (127 mm) in width | |
| Auxiliary stop | Recommended at hold open point, where a door cannot swing 180°, or where Cush-n-Stop Arm is not used | |
| Top rail | Less than 4 3 / 8 " (111 mm) measured from the stop requires plate, 1260-18PA | |
| Clearance | 1260-62PA shoe projects 4" (102 mm) from door face | |
| Stop width | Minimum 1" (25 mm) | |
| Blade stop | Clearance, requires 1/2" (13 mm) blade stop spacer, 1260-61 | |
| Auxiliary shoe | 1260-62A allows installation of regular arm with overhead holder/stop. Special templating required | |
| Maximum opening |
Regular or Hold Op
100°: |
pen Arm can be templated to " (183 mm) |
| B = 8 5 / 8 " (219 mm) | ||
| or 101º to 130º: |
A= 5
11
/
16
" (144 mm)
B = 7 1 / 6 " (181 mm) |
|
| or *131° to 180°: |
A= 3
11
/
16
" (94 mm)
B = 5 1 / 8 " (130 mm) |
|
Note: Hold open points up to maximum opening with Hold Open Arm. Optional mounting requires PA shoe, 1260-62PA for Regular and Hold Open Arms. 1260 Parallel Arm closer includes 1260-201 fifth hole spacer to support PA shoe.
* Frame and trim permitting.
