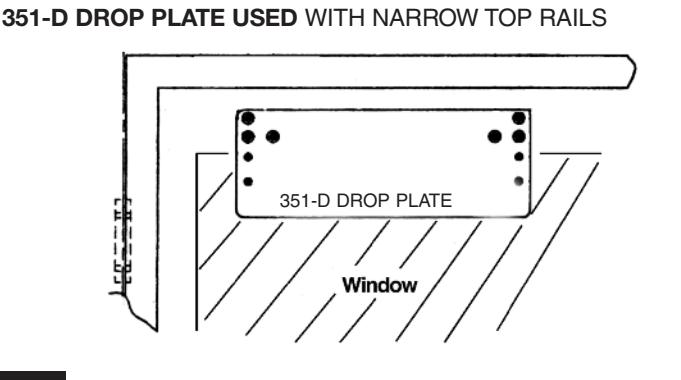

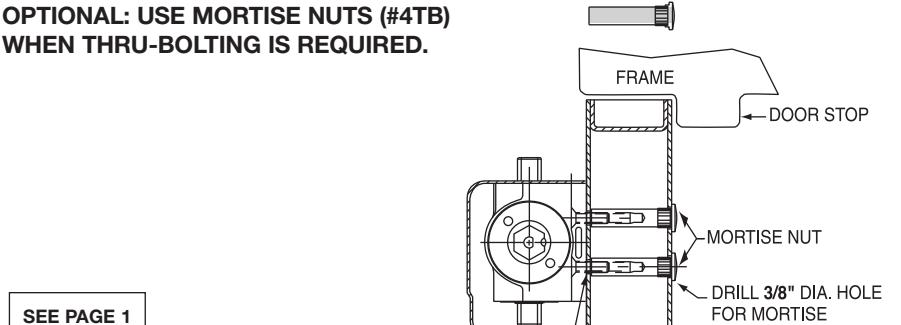

Instructions for Installing 351 Series Door Closers with PH10, P10 Arms

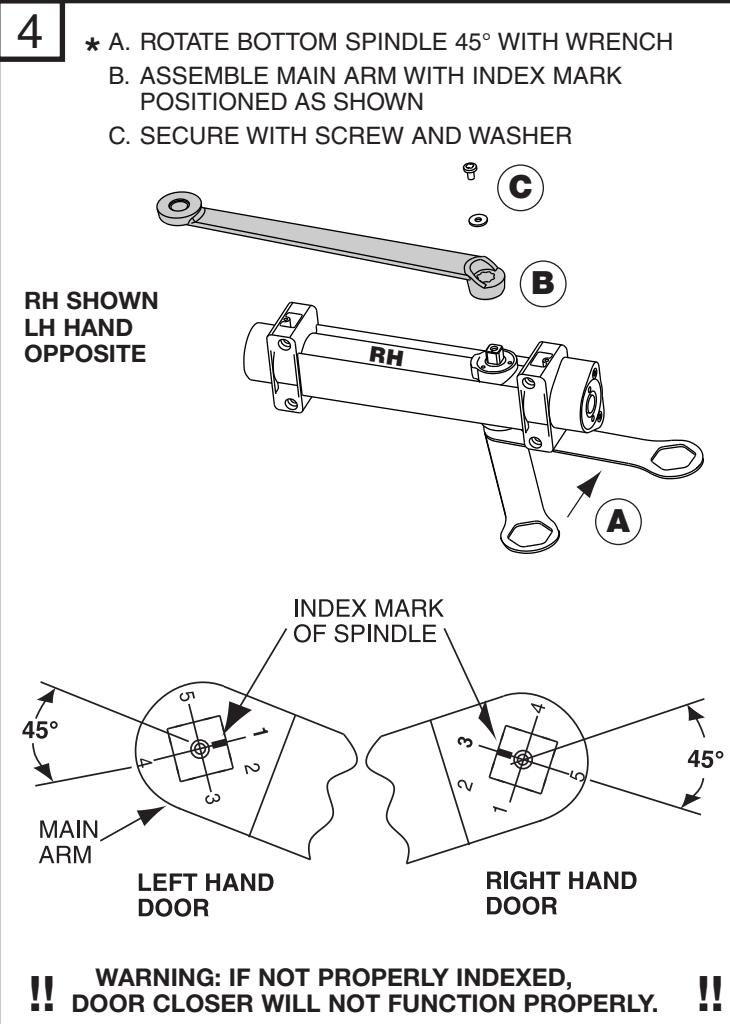

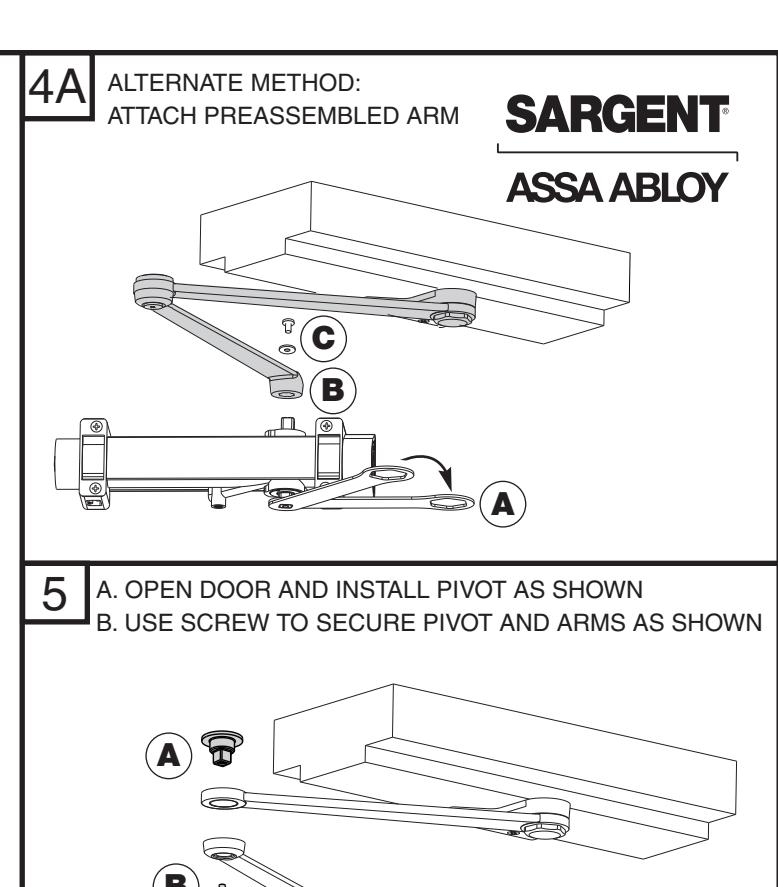

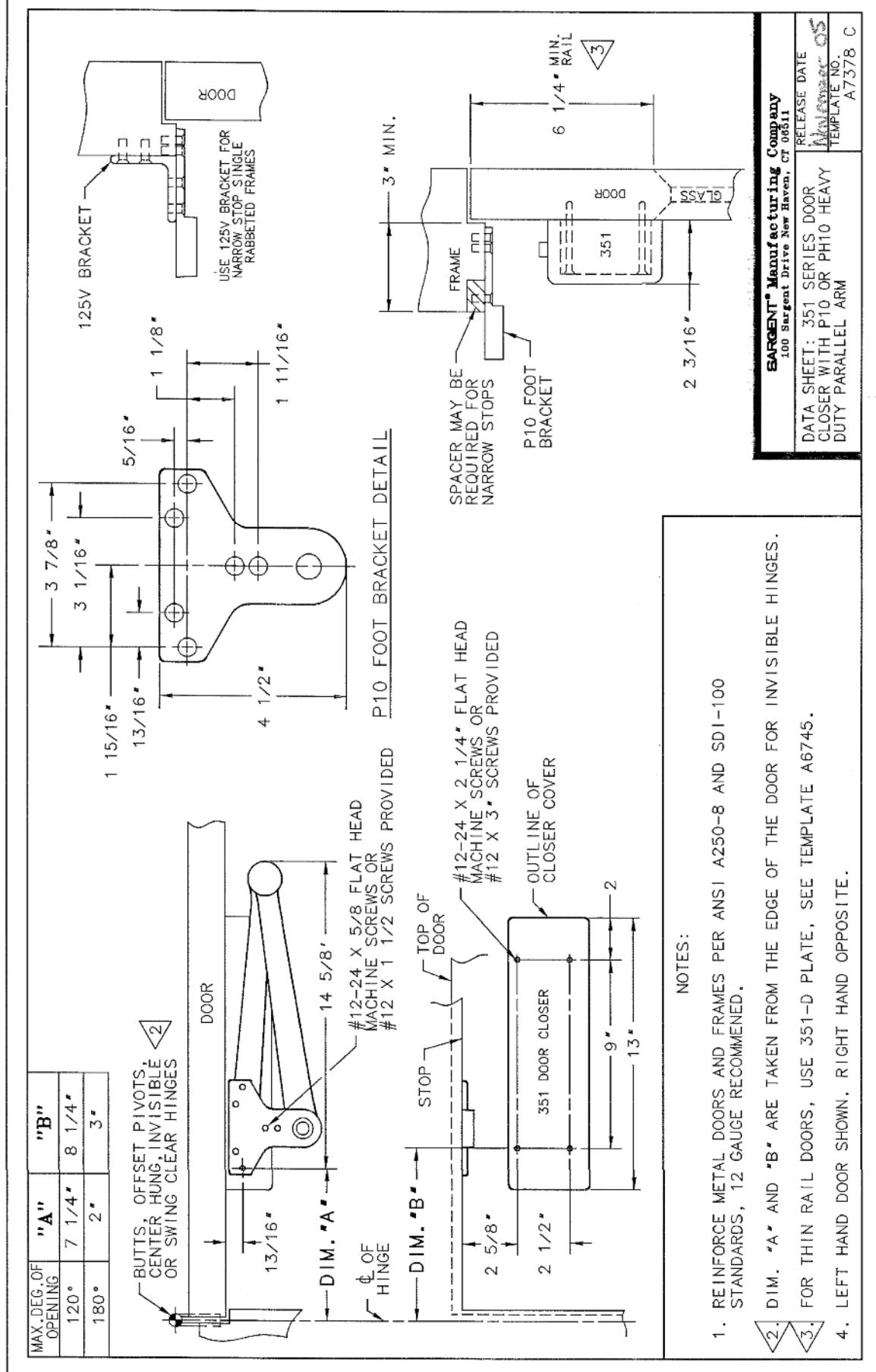

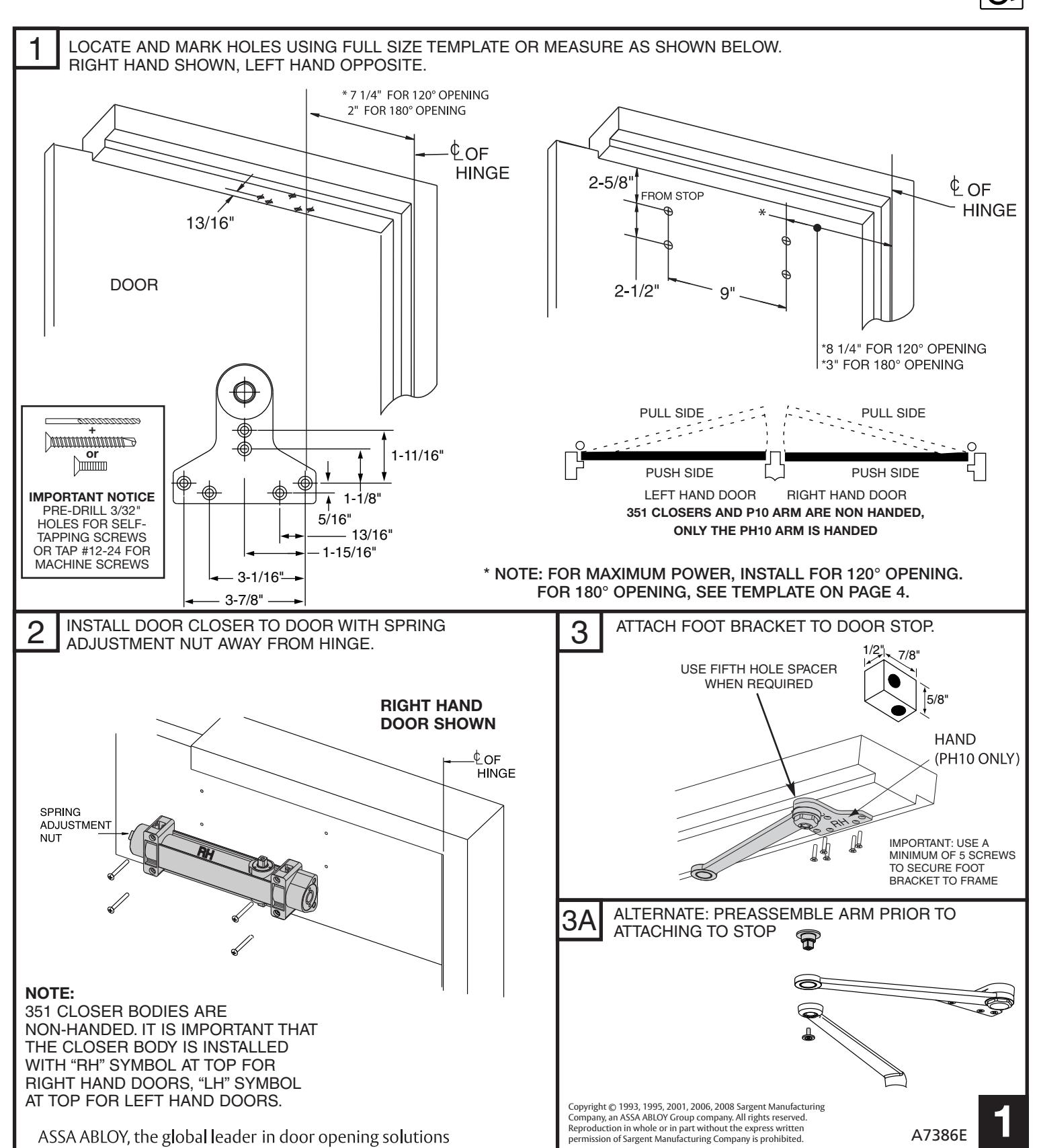

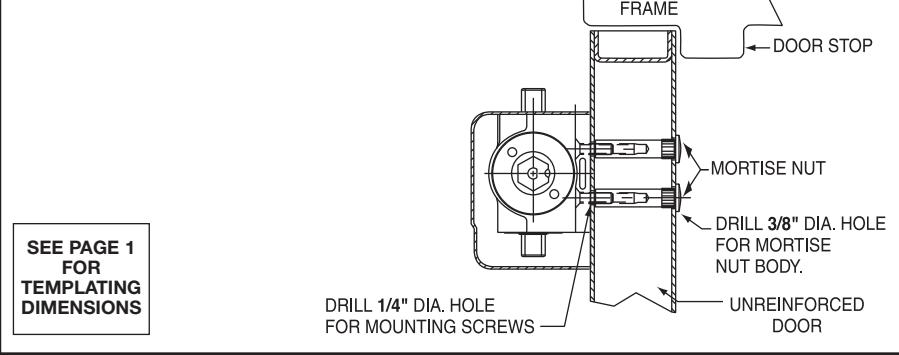

351 DOOR CLOSER WITH P10/PH10 HOLDER ARM INSTALLATION INSTRUCTIONS

SARGENT

ASSA ABLOY

351 SERIES ADJUSTABLE FROM SIZE 1 THRU 6 CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE. FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477.

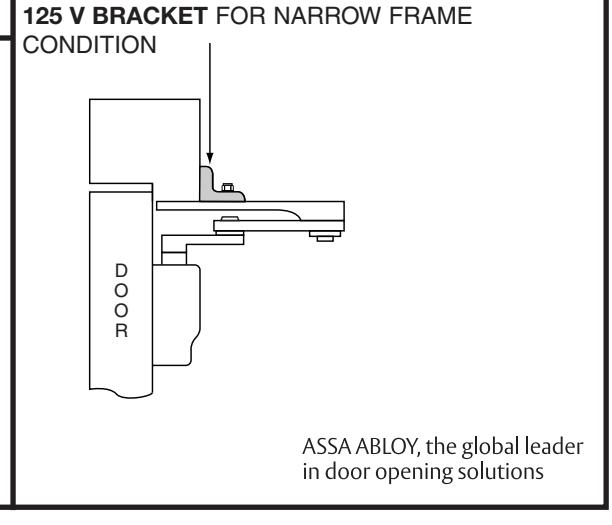

125 VF BRACKET FOR FLUSH FRAME

AND DOOR CONDITION

FLUSH FRAME

DOOR

ACCESSORIES

Copyright © 1993, 1995, 2001, 2006, 2008 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

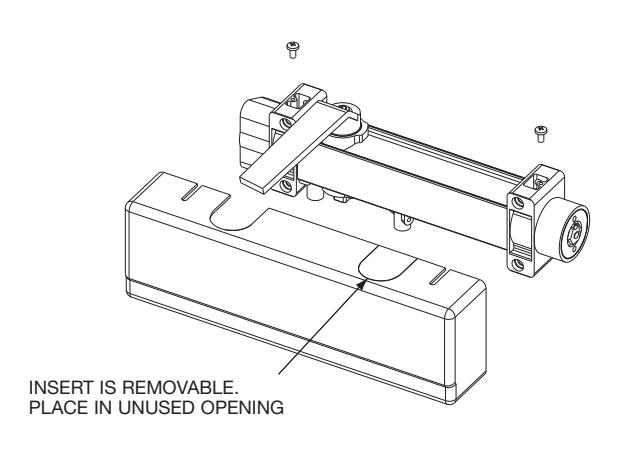

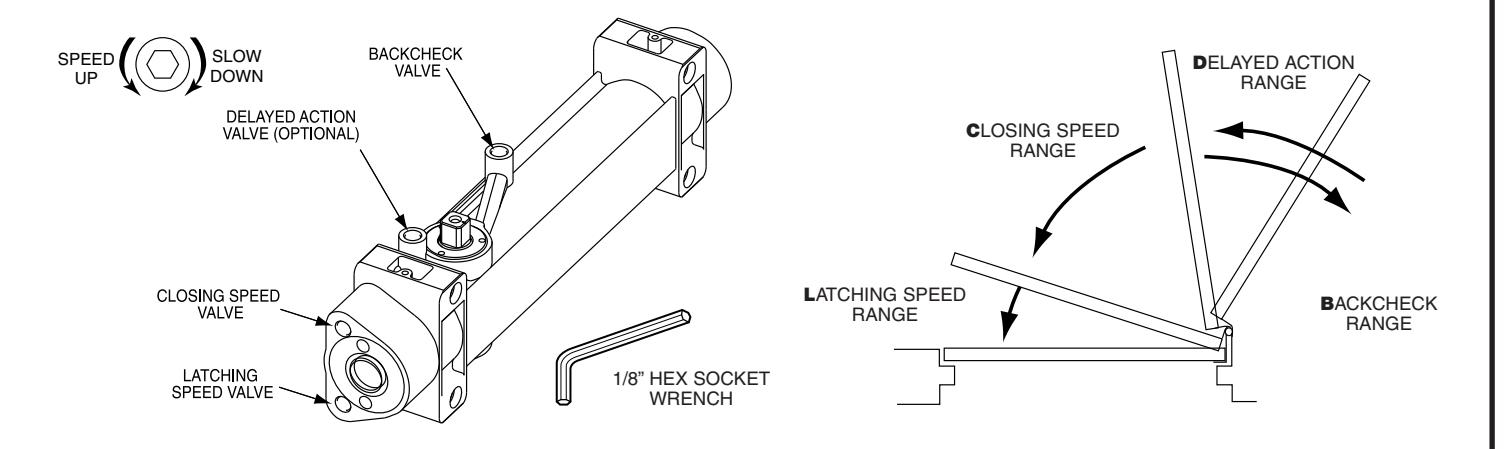

Adjusting Closing Speeds

Adjust door speed and latching speed valves to achieve the desired closing time. Recommend 6 seconds minimum from 90° to the closed position.

If Backcheck is required, adjust valve to achieve a slight cushioning effect. Auxiliary stop required.

If closer is equipped with delayed action, regulate valve to achieve the desired delay.

9

• 7 Adjust closing power to the minimum required to reliably close and latch door.
  • - If door is hard to open, decrease power slightly.
  • - If door does not latch, increase power as required.
  • - Use the chart as a starting point.
  • - Doors adjusted with high closing power to overcome strong draft conditions may exceed ADA standards.

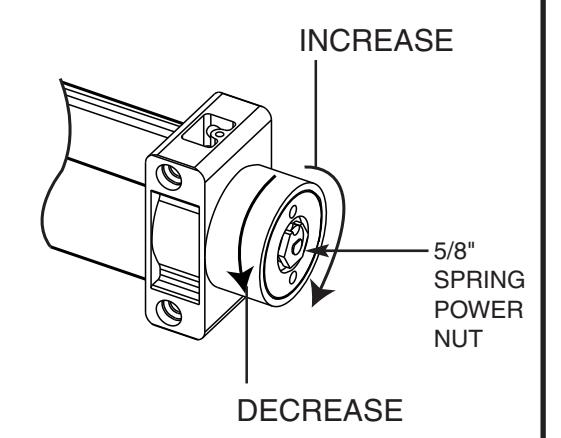

NUMBER OF TURNS OF SPRING POWER ADJUSTING NUT
DOOR WIDTH (INCHES)	EXTERIOR DOORS	INTERIOR DOORS
24-30	TURN nut 1-3	TURN nut 1-3
30-36	FACTORY SET	FACTORY SET
36-42	TURN nut 1-4	TURN nut 1-3
42-48	TURN nut 7-9	TURN nut 4-6

SLIGHT TIGHTENING OR LOOSENING OF HOLD OPEN NUT CHANGES HOLDING POSITION OF DOOR NOTE: ALWAYS USE A DOOR STOP TO STOP DOOR PROTECTING WALL AND TRIM ADJUSTMENT OF HOLD OPEN ARM (PH10 ARM ONLY) 1-3/8" WRENCH
