Installation Instructions for 4380 Series Horn

1

GENERAL INFORMATION

The 4380 Series horns are used to signal at a remote location

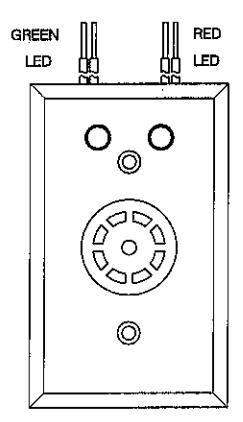

4380LH - Horn and LED's (Green and Red) Face plate dimensions: 23/4" W x 41/2" H

2

SPECIFICATIONS

Horn: Input Voltage: 6-28VDC at 3-14mA

dB Rating : 85dB LED's: Input Voltage : 24VDC

Red Wire : + White Wire : =

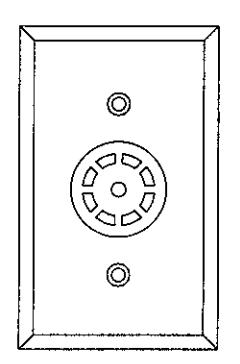

4380H - Horn only Face plate dimensions: 23/4" W x 41/2" H

3

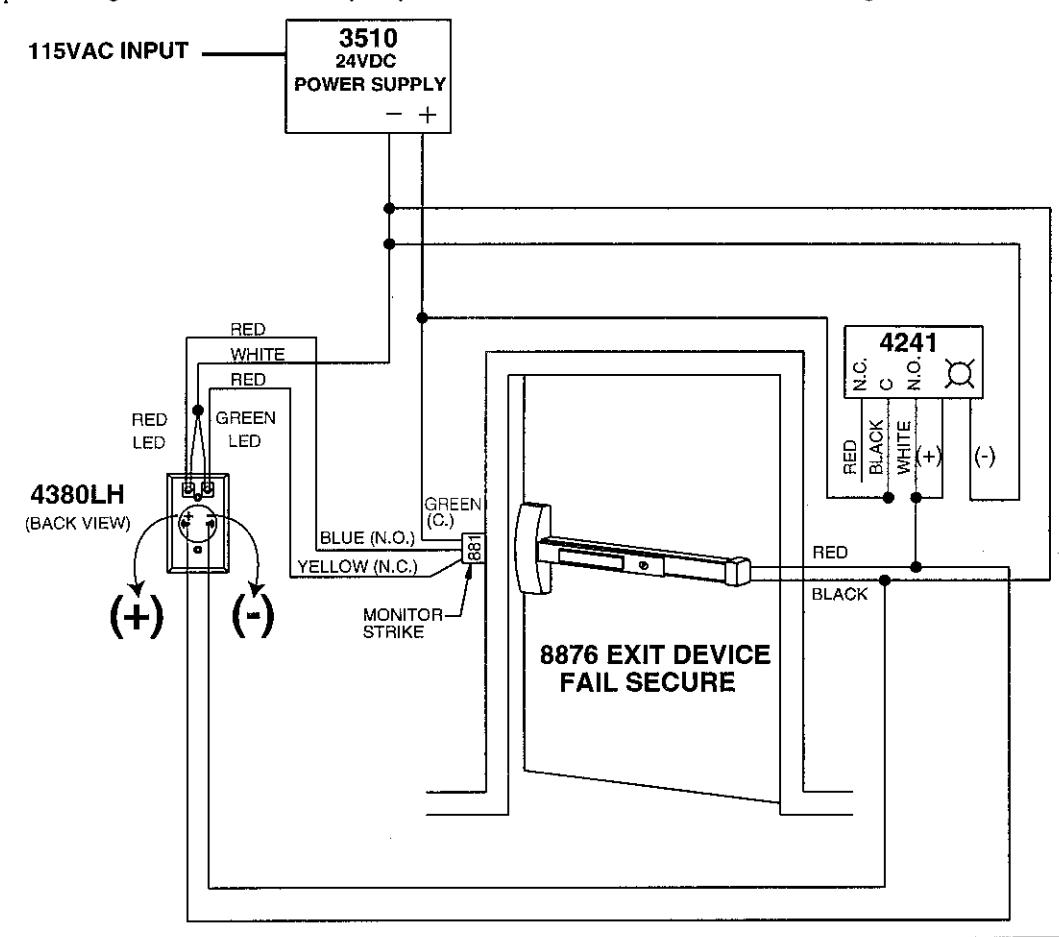

APPLICATION WIRING

Push button (4241) energizes outside trim to unlock. Horn sounds to indicate lever handle is unlocked. The red LED on 4380LH indicates door is open through the monitor strike (881). Green LED indicates door is secure through monitor strike (881).
