Power transfer pivot

Overview

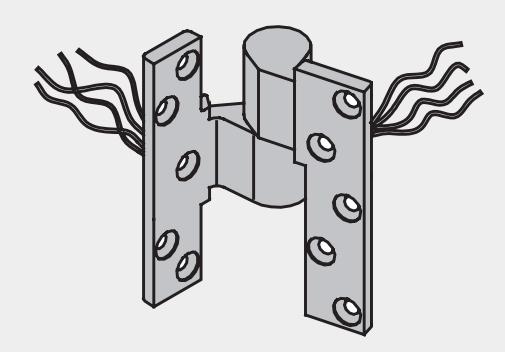

Ives offers electrified intermediate power transfer pivots to transfer power and signals from the frame to the door. Pivots are generally used on heavier exterior door applications.

Features and benefits

• § Use with 7215, 7226 or 7227 3⁄4" offset pivots
• § Four wires, 28 gauge
• § Optional 8 wire available
• § Rated 50 VDC or VAC @ 3.5 amps
• § Continuous or 16 amps pulse, maximum pulse 400 milliseconds
• § Non-load bearing

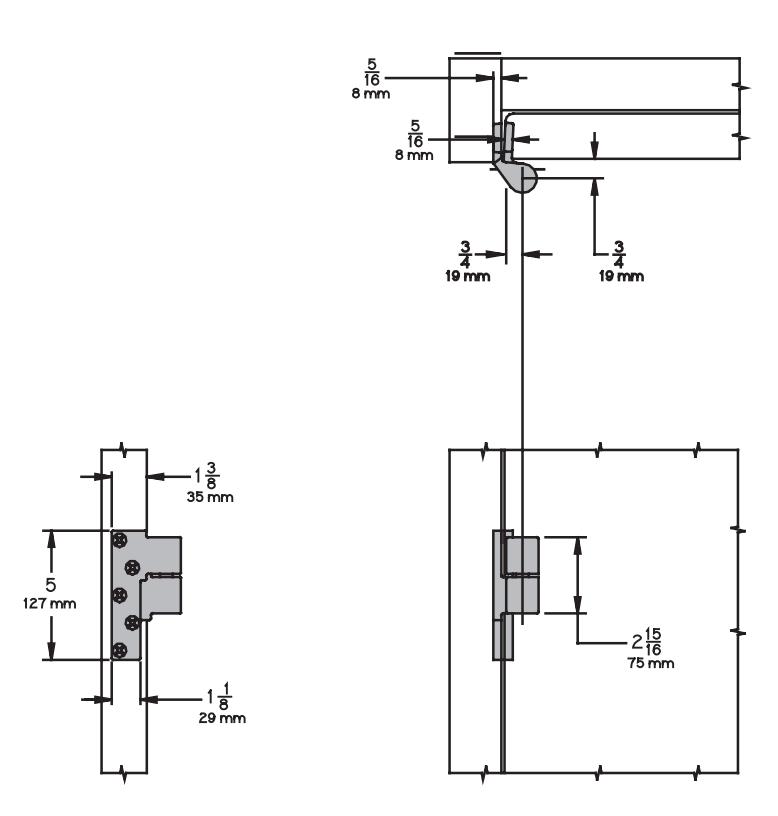

• § Use with 1 3⁄4" thick door minimum, ⁄8" bevel in 2"

Finishes
Plate finishes - brass
US number	US3	US4	US10	US10B	US26	US26D
BHMA	605	606	612	613	625	626
Painted finishes - brass
US number	SP4	SP10	SP28	SP313	SPBLK
BHMA	706	691	689	695	622
