Falcon (F)XX-V Vertical Device Wood Door Template 108803
Open the original PDF document
View PDF(F)XX-V Vertical Device

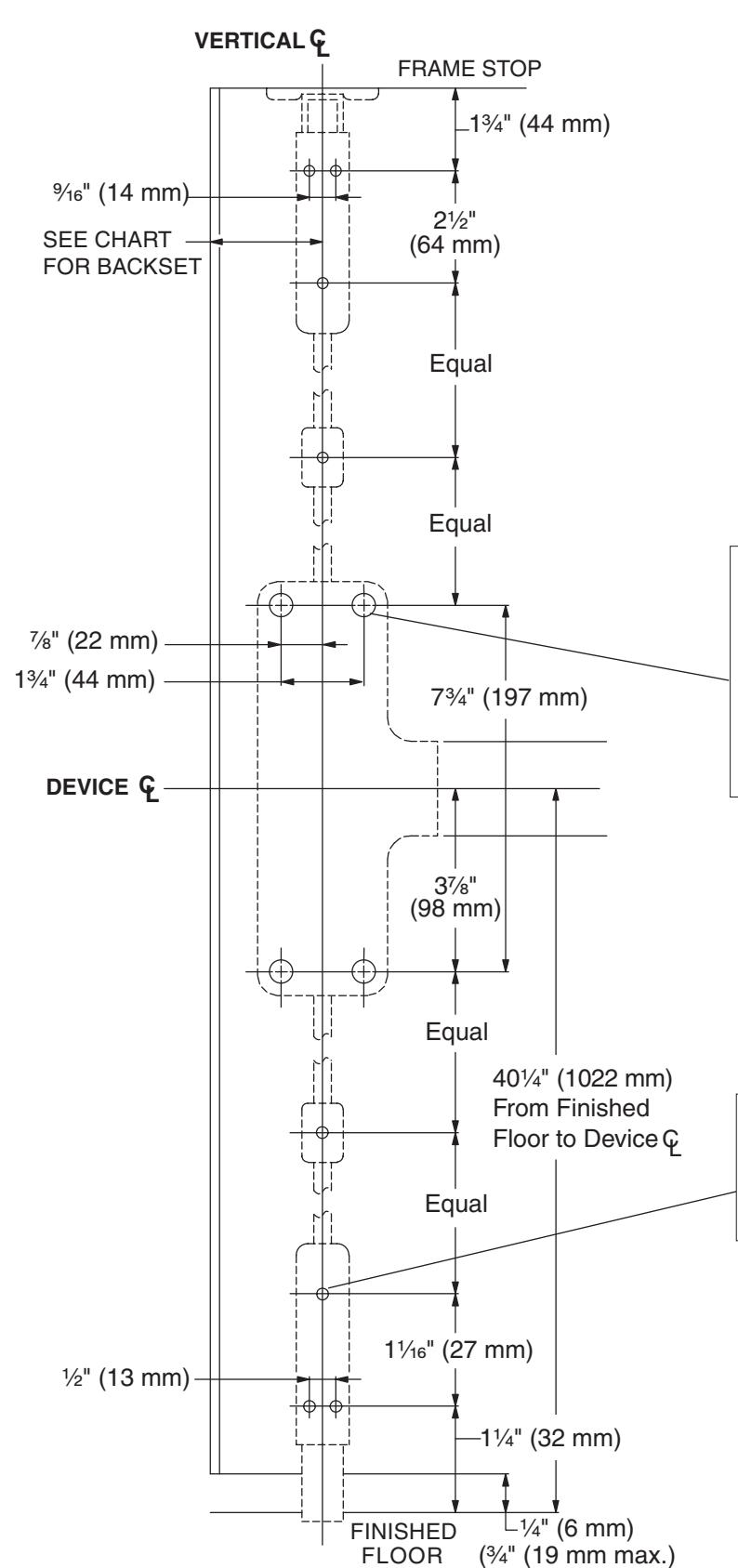

Surface Vertical Rod Panic and Fire Exit Device, Wood Door, LHR Shown, RHR Opposite
| BACKSET | ||
|---|---|---|
| Installation | 3Z\x" Min. Stile | Flush Door |
| Two Vertical Rod Devices | Z\x of stile | 2C\v" |
| Vertical Rod x Mortise Device | 2C\v" | 2C\v" |
| Single Door | Z\x of stile | 2C\v" |
|
Vertical Rod x Rim Device
(571 strike) |
2C\v" | 2C\v" |
|
Vertical Rod x Rim Device
(571-A strike) |
2Z\v" | 2Z\v" |
Note: 571 & 571-A strikes are not approved for fire rated applications.
- • For exit only device or device with non-thrubolting trim, drill >\nv"(4 mm) diameter hole x 1Z\v" (32 mm) deep, or refer to Template W-4014 for sexbolt preparation (4 holes).
- • For device with thrubolting trim, refer to trim template.
- • Fire rated devices require sexbolts.
- • Drill >\nv"(4 mm) diameter x 1Z\v" (32 mm) deep, or refer to Template W-4014 for sexbolt preparation (8 holes).
- • Fire rated devices require sexbolts.
- • For Less Bottom Rod (LBR) application (20 minute rating), refer to Template W-5494 for auxiliary fire latch preparation and omit bottom latch preparation.
- • For outside trim, see trim template for door preparation.
- • For sexbolt preparation, refer to Template W-4014.
TEMPLATE
W-1415-a
