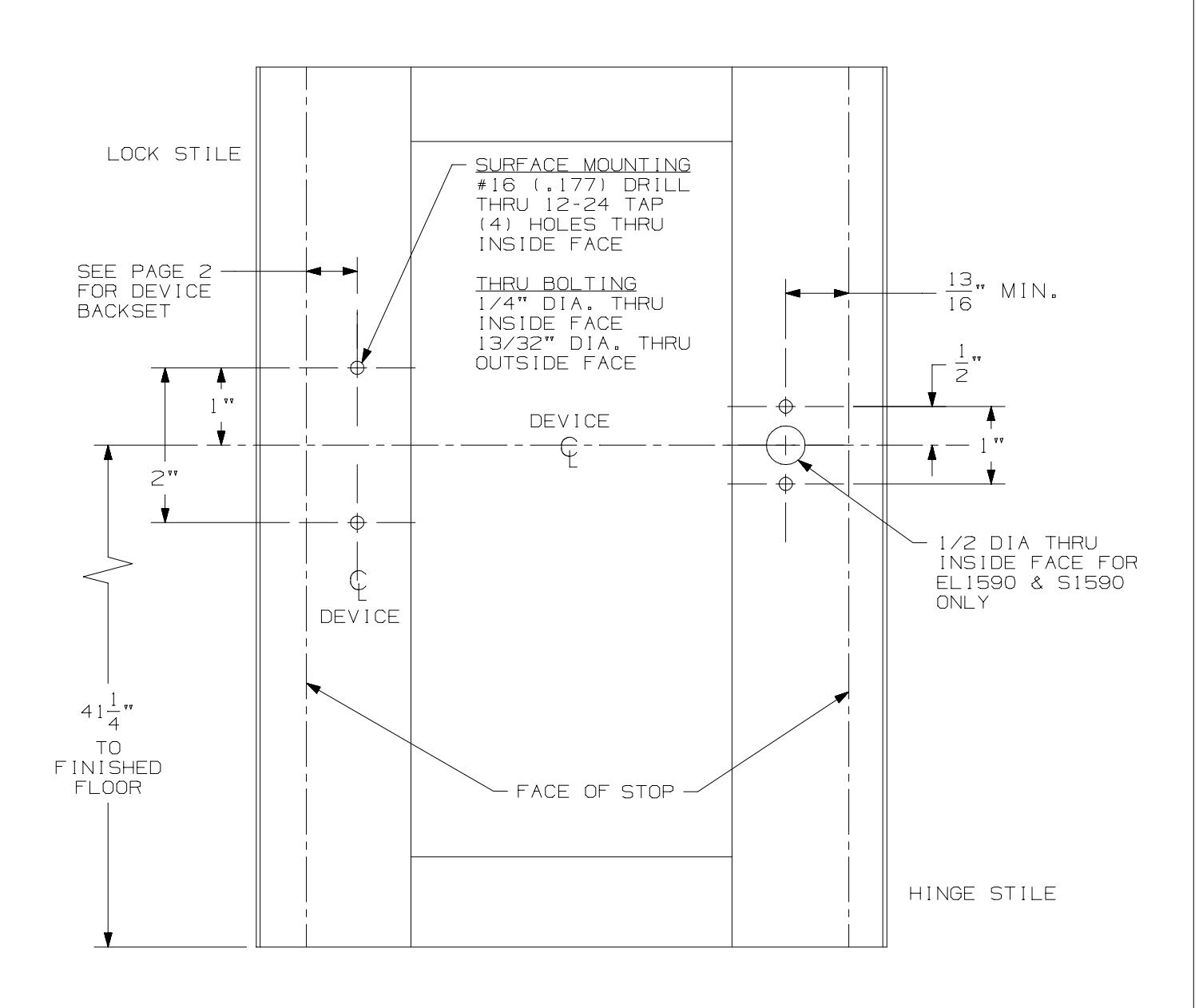

LHR SHOWN RHR OPPOSITE
DOR-O-MATIC
1590 RIM DEVICE FOR ALUMINUM DOORS
Security & Safety ®
TEMPLATE 4270200011-SHT1_1
DATE: 10-10-02
DOR-O-MATIC
1590 RIM DEVICE FOR ALUMINUM DOOR
TEMPLATE 4270200011-SHT2_1
DATE: 10-10-02
