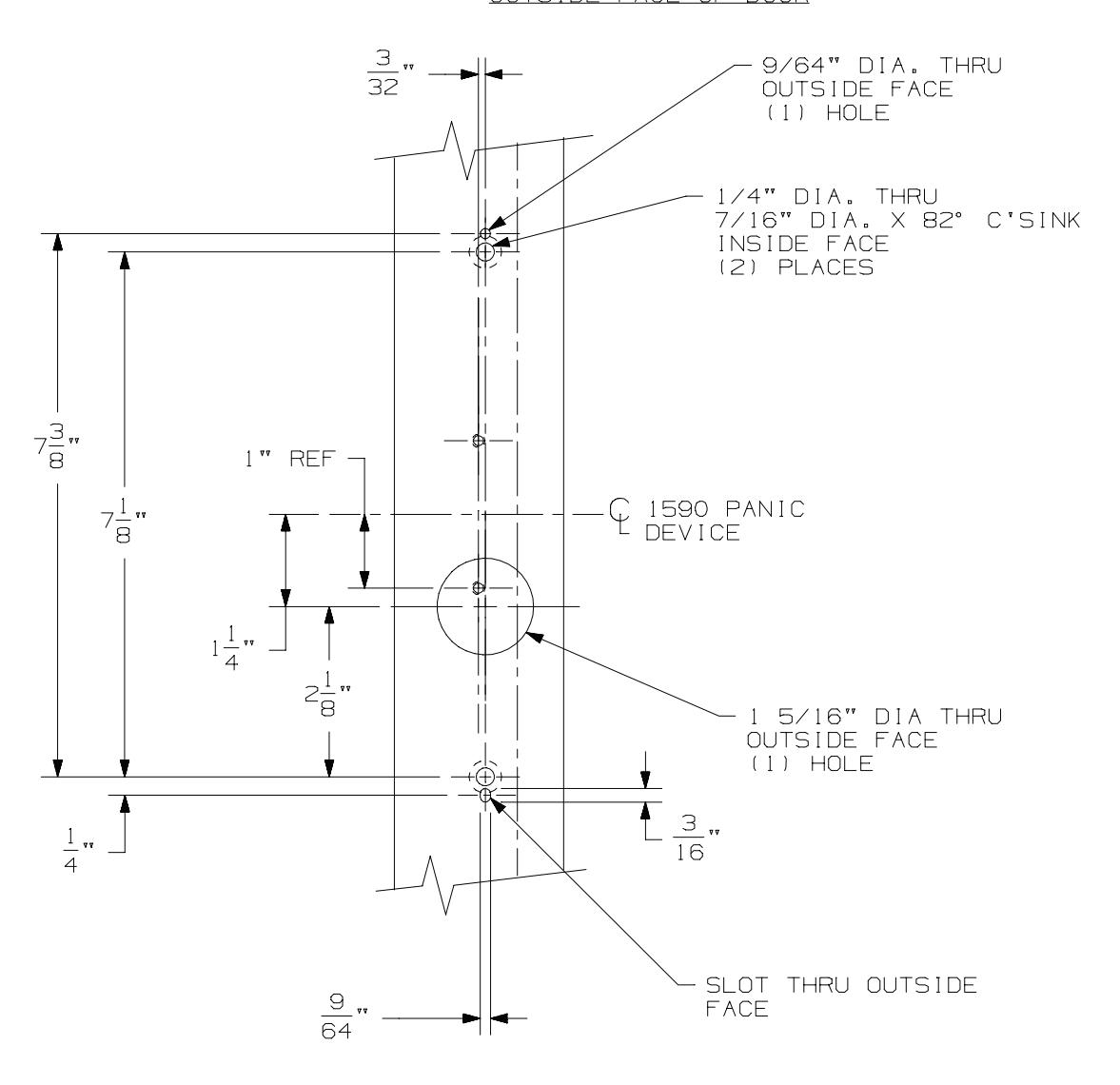

OUTSIDE FACE OF DOOR
OUTSIDE FACE OF DOOR
LHR DOOR SHOWN RHR DOOR SYMM. OPPOSITE
1590 RL-DT TRIM FOR ALUMINUM DOORS
FALCON ®
TEMPLATE NUMBER:
4270200114_b
DATE: 12-23-14
