Command Access PD27 CVR Wood Door Template

DEVICES OR SURFACE MOUNT FASTENERS

TEMPLATE: CAT-9711 REV. 0 04-27-23

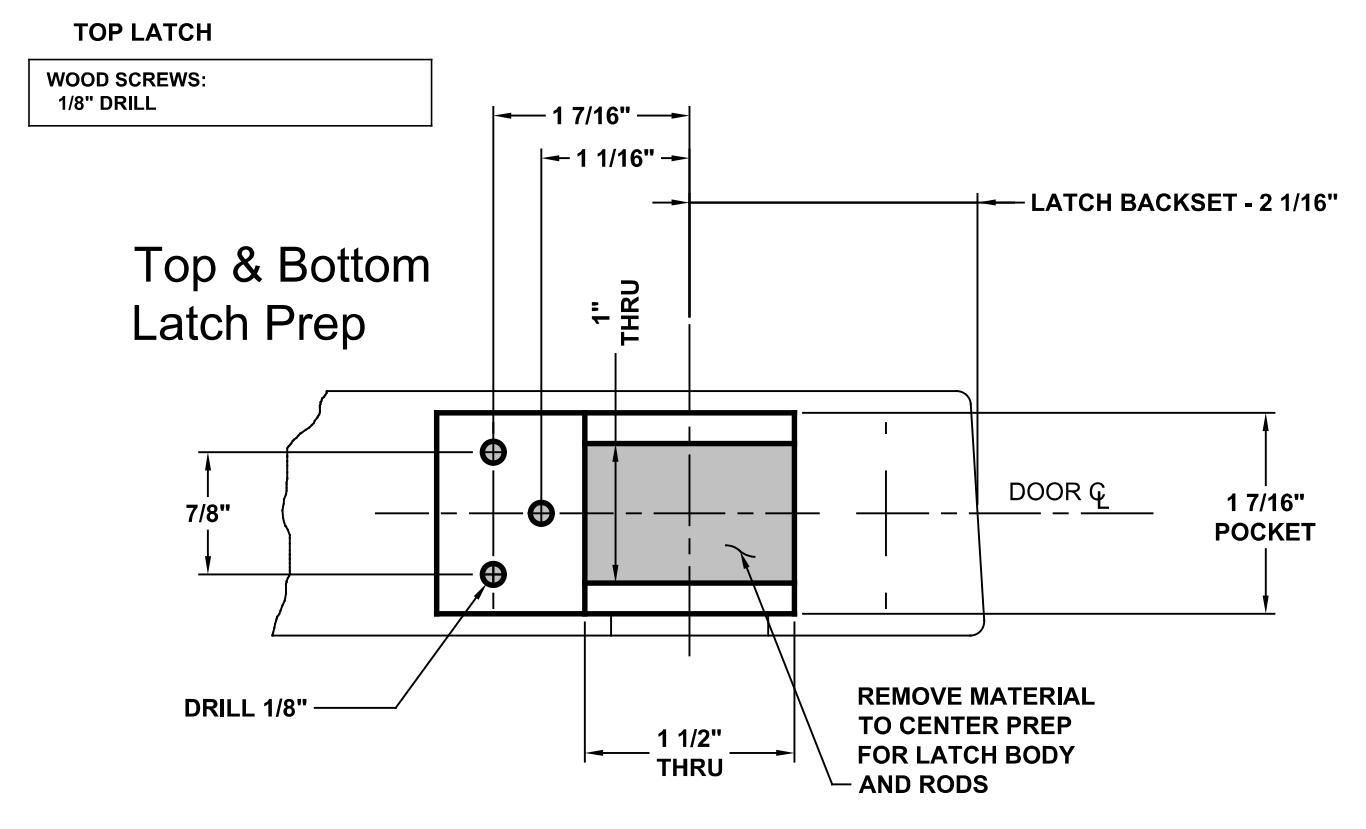

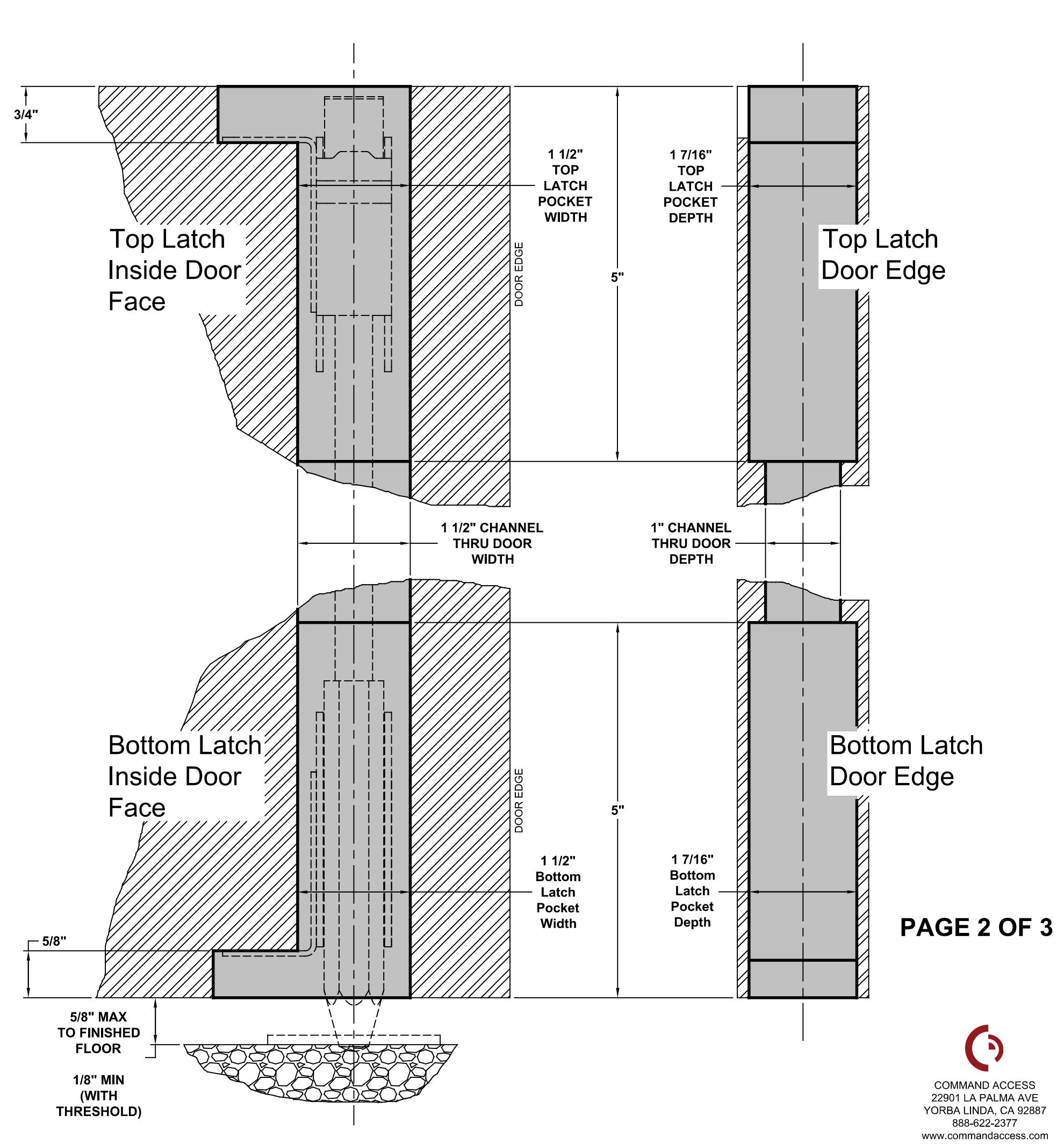

CVR LATCH - WOOD DOOR FOR PD28 SERIES EXIT DEVICES

TEMPLATE: CAT-9711 REV. 0 04-27-23

NOTES:

• 1. THIS PAGE NOT TO SCALE
• 2. BOTTOM LATCH LOCATION ASSUMES TYPICAL 5/8" UNDERCUT.
  • a. BOTTOM OF DOOR TO FINISHED FLOOR TO BE 5/8" MAX.
  • b. MINIMUM 1/8" GAP FROM 1/2" THRESHOLD.
  • c. FOR 1/2" THRESHOLD, USE UPPER PIN HOLE IN BOTTOM ROD.
• 3. CHECK PDQ WEBSITE FOR MOST RECENT REVISION WWW.PDQLOCKS.COM

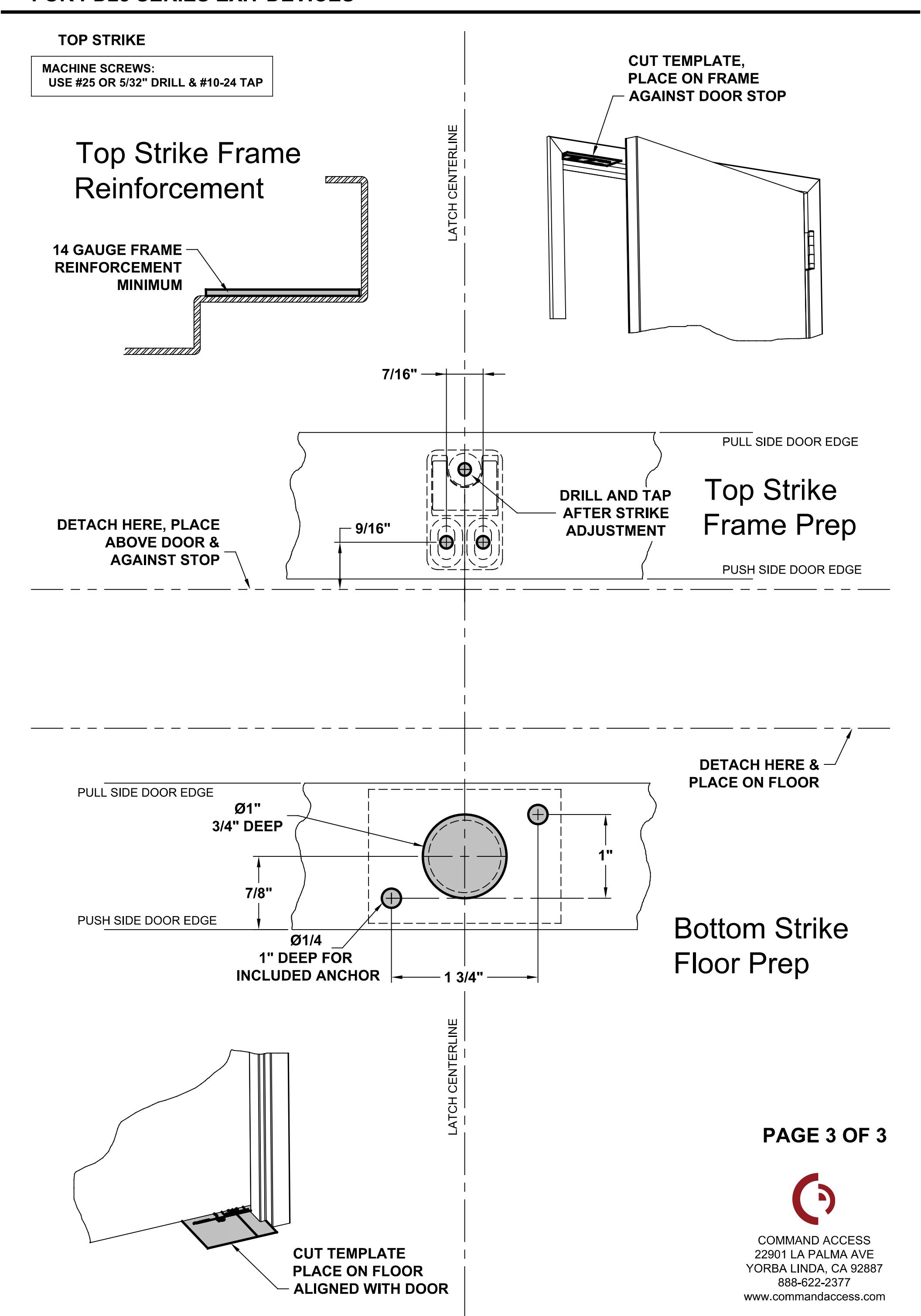

CVR TOP/BOTTOM STRIKE FOR PD28 SERIES EXIT DEVICES

TEMPLATE: CAT-9711 REV. 0 04-27-23
