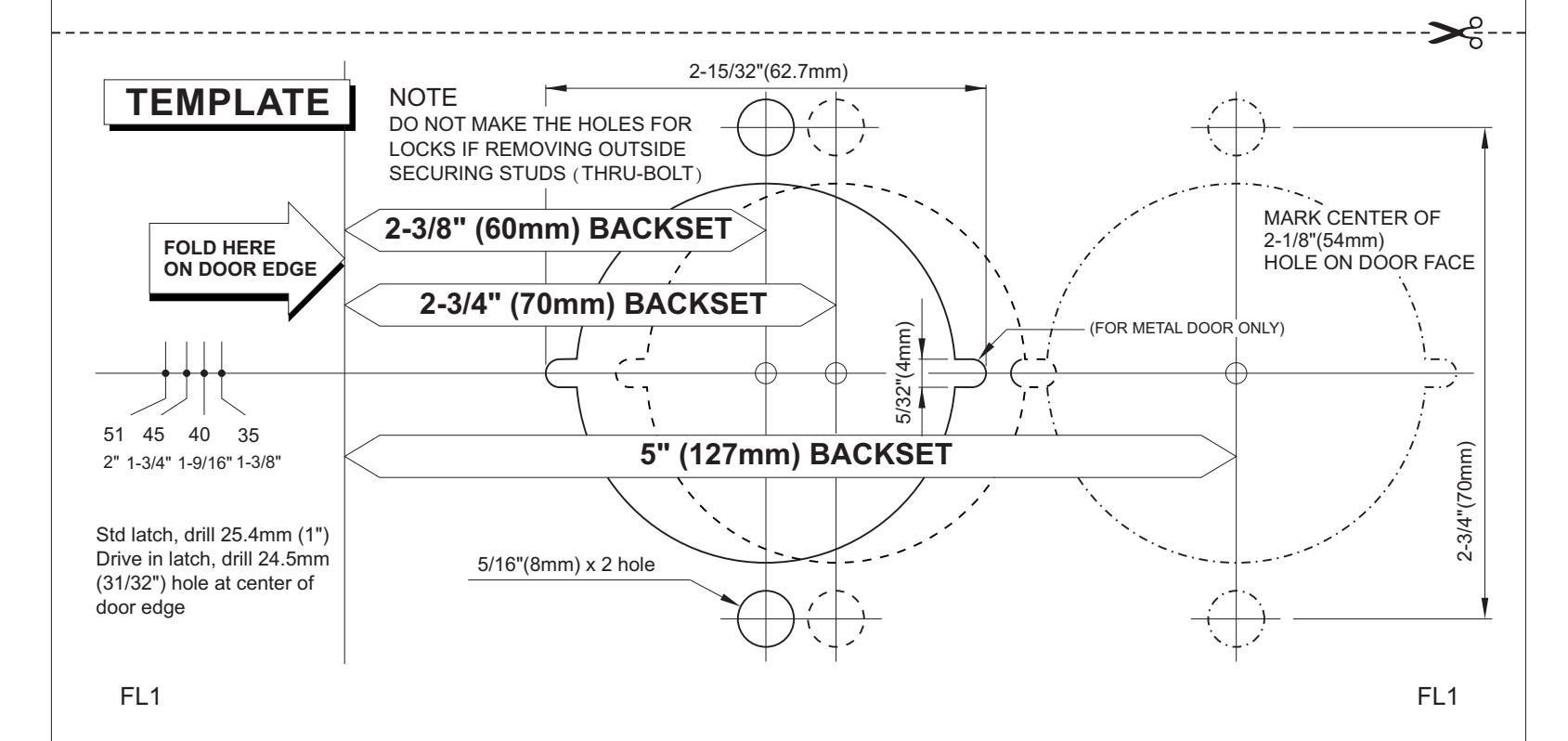

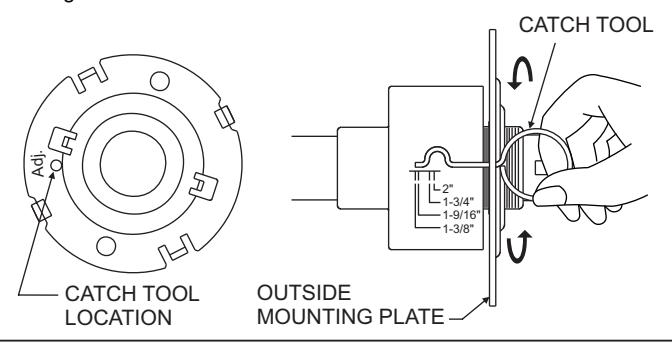

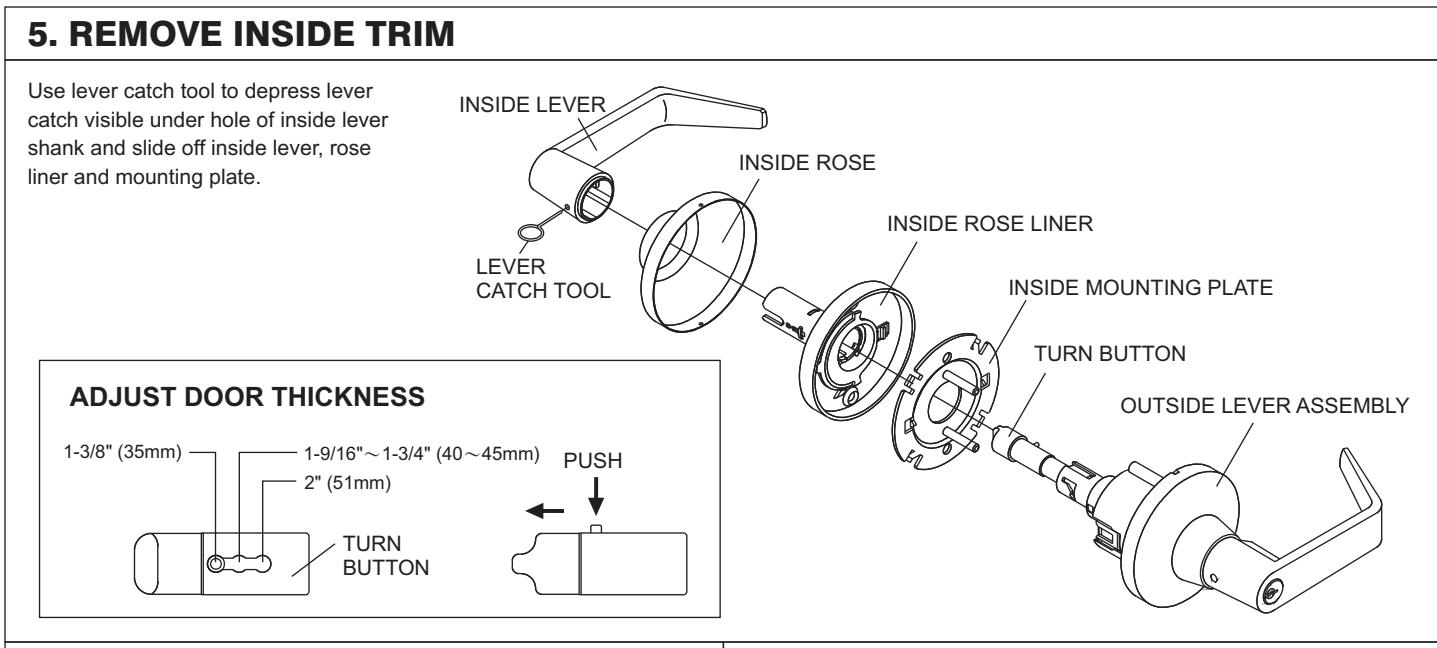

6. ADJUST DOOR THICKNESS

a. Remove outside mounting plate toward cylindrical case.

• b. Put the catch tool into the allocated position of outside mounting plate as the illustrating bellow.
• c. Rotate outside mounting plate to required door thickness by using a catch tool.

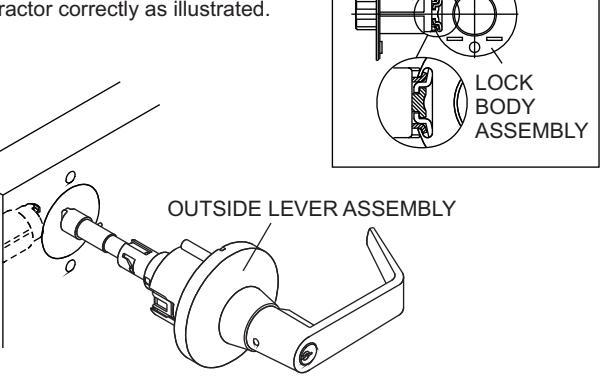

7. INSTALL OUTSIDE LEVER ASSEMBLY

Install outside lever assembly on the door. Make sure tail of latch is engaging with retractor correctly as illustrated.

LATCH

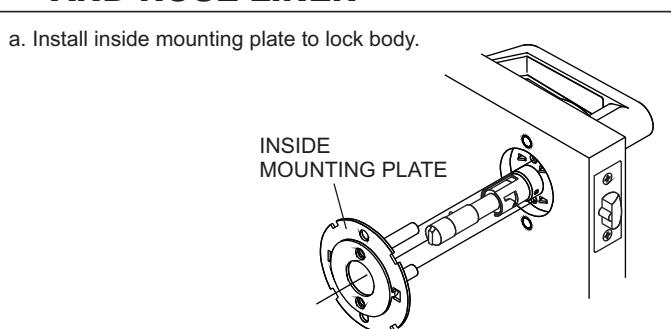

8. INSTALL INSIDE MOUNTING PLATE 9. INSTALL INSIDE ROSE AND LEVER AND ROSE LINER

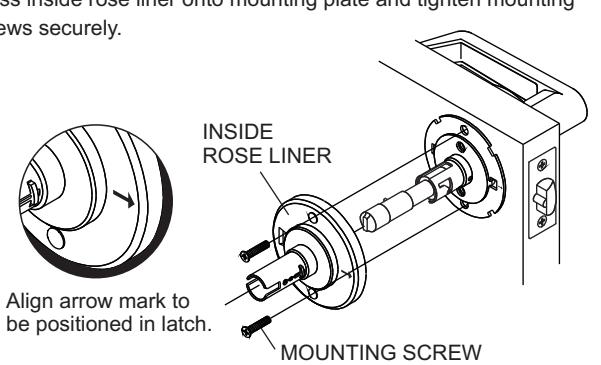

b. Press inside rose liner onto mounting plate and tighten mounting screws securely.

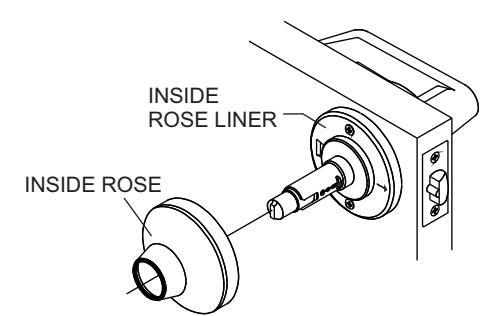

a. Be sure to fit rose in recess of rose liner.

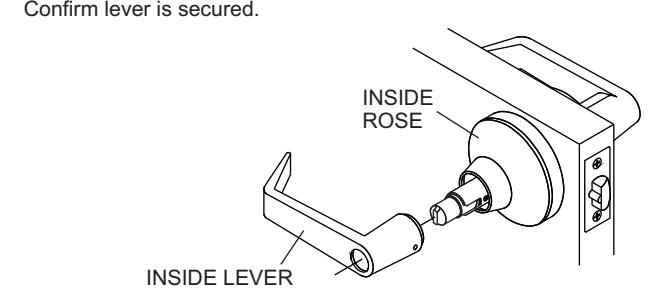

b. Depress lever catch with tool provided. Push inside lever on completely until catch engages in lever.
