INSTALLATION INSTRUCTIONS

HOLD OPEN

Adjustable power size 1 thru 6

DOOR CLOSER SIZE	MAXIMUM DOOR WIDTH		FULL TURNS OF POWER
	EXTERIOR (SWING OUT)	INTERIOR	ADJUSTMENT SCREW
1	28"(0.71m)	32"(0.81m)	7C.C.W
2	32"(0.81m)	36"(0.91m)	4C.C.W
3	36"(0.91m)	42"(1.07m)	0(PRESET)
4	42"(1.07m)	48"(1.22m)	5C.C.W
5	48"(1.22m)	54"(1.22m)	10C.C.W
6	54"(1.37m)	58"(1.47m)	15C.C.W

DOOR HANDING US STANDARDIZATION PROCEDURE DOOR HANDS DETERMINED FROM OUTSIDE INSIDE OUT SIDE LEFT HAND. REVERSE BEVEL RIGHT HAND. REVERSE BEVEL INSIDE OUT SIDE LEFT HAND RIGHT HAND

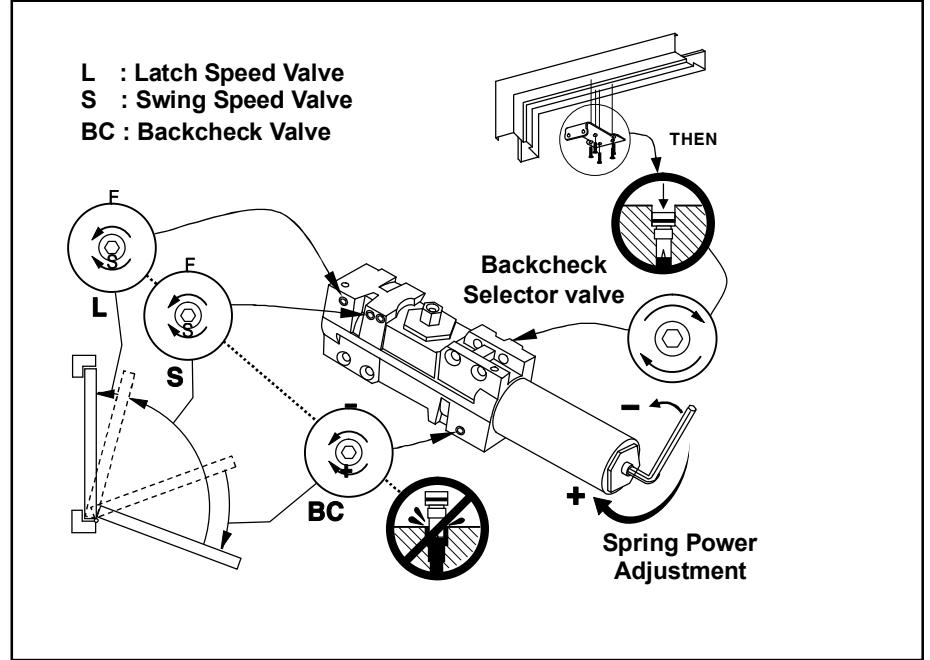

(+) = CLOCKWISE (-) = COUNTER CLOCKWISE

PLEASE NOTE TURNS REQUIRED ARE APPROXIMATE BECAUSE OF VARIOUS DOOR CONDITIONS AND LOCATIONS. YOU MAY HAVE TO FURTHER ADJUST SPRING TENSION TO SUIT YOUR REQUIREMENTS.

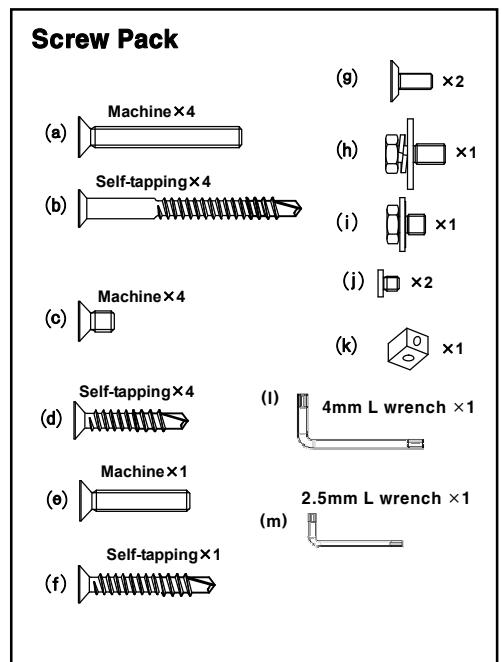

IT IS IMPORTANT TO CAREFULLY FOLLOW ALL INSTALLATION AND MOUNTING INSTRUCTIONS WHEN INSTALLING ANY DOOR CLOSER.

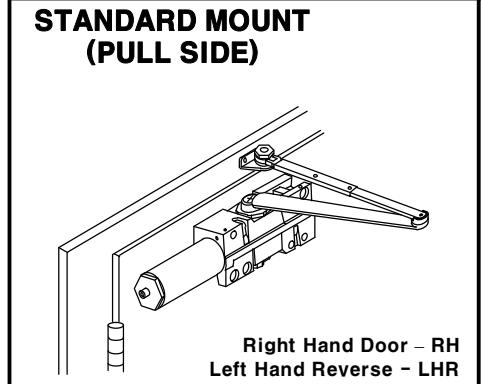

PULL SIDE (DOOR JAMB) HOLD-OPEN ARM STANDARD MOUNT

Hold-open arm. Identify direction of hold-open nut according to mounting.

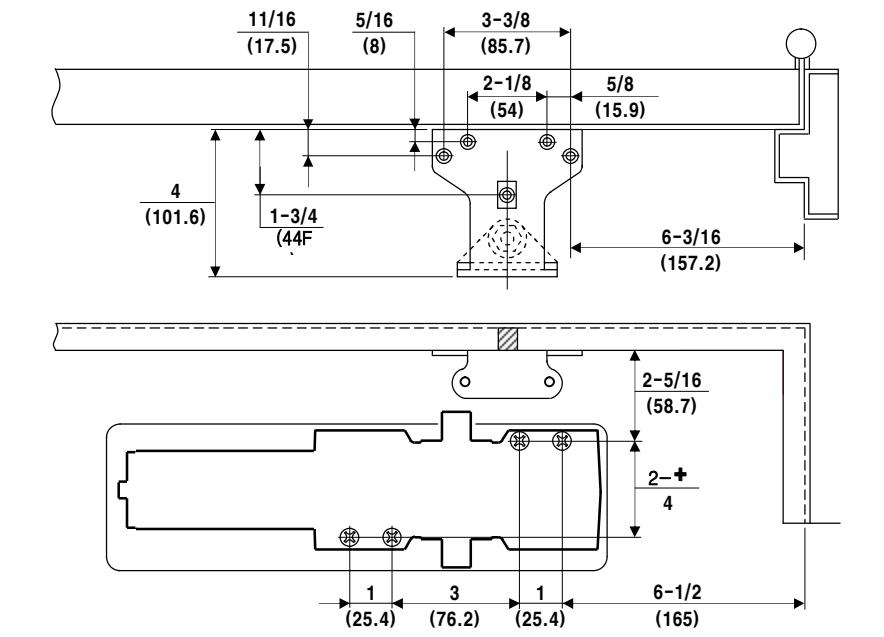

- Do Not Scale Drawing

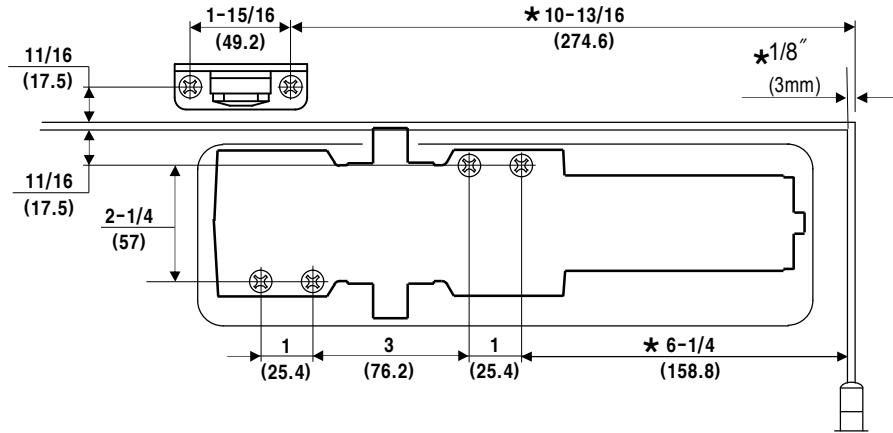

- Dimensions : inches(mm)

LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.

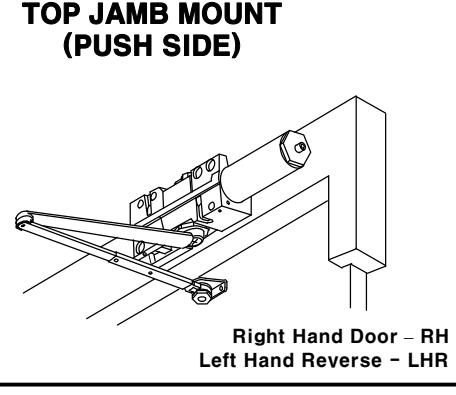

TOP JAMB MOUNT

PUSH SIDE (TOP JAMB) HOLD-OPEN ARM

Hold-open arm. Identify direction of hold-open nut according to mounting.

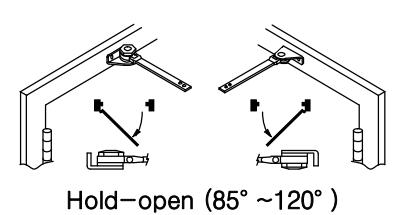

Hold-open (85° ~120°)

- Do Not Scale Drawing

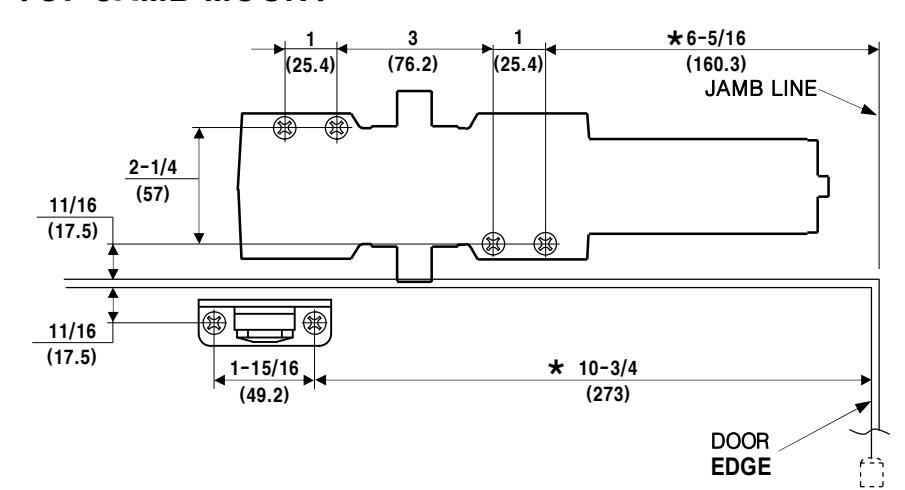

- Dimensions : inches(mm)

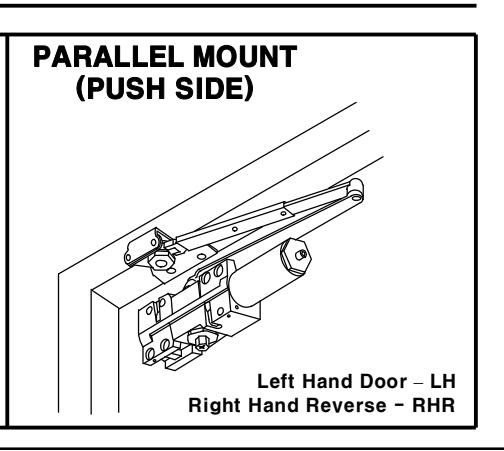

PUSH SIDE (DOOR MOUNT) HOLD-OPEN ARM PARALLEL MOUNT

RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.

RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.

Hold-open arm. Identify direction of hold-open nut according to mounting.

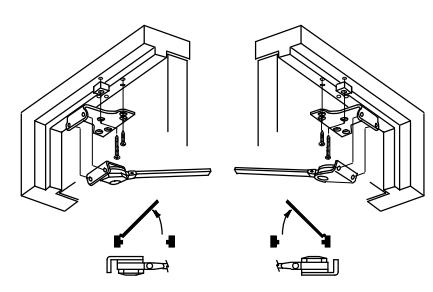

Hold-open (85° ~180°)

- Do Not Scale Drawing

- Dimensions : inches(mm)

Revision No.:0 - 20120920
