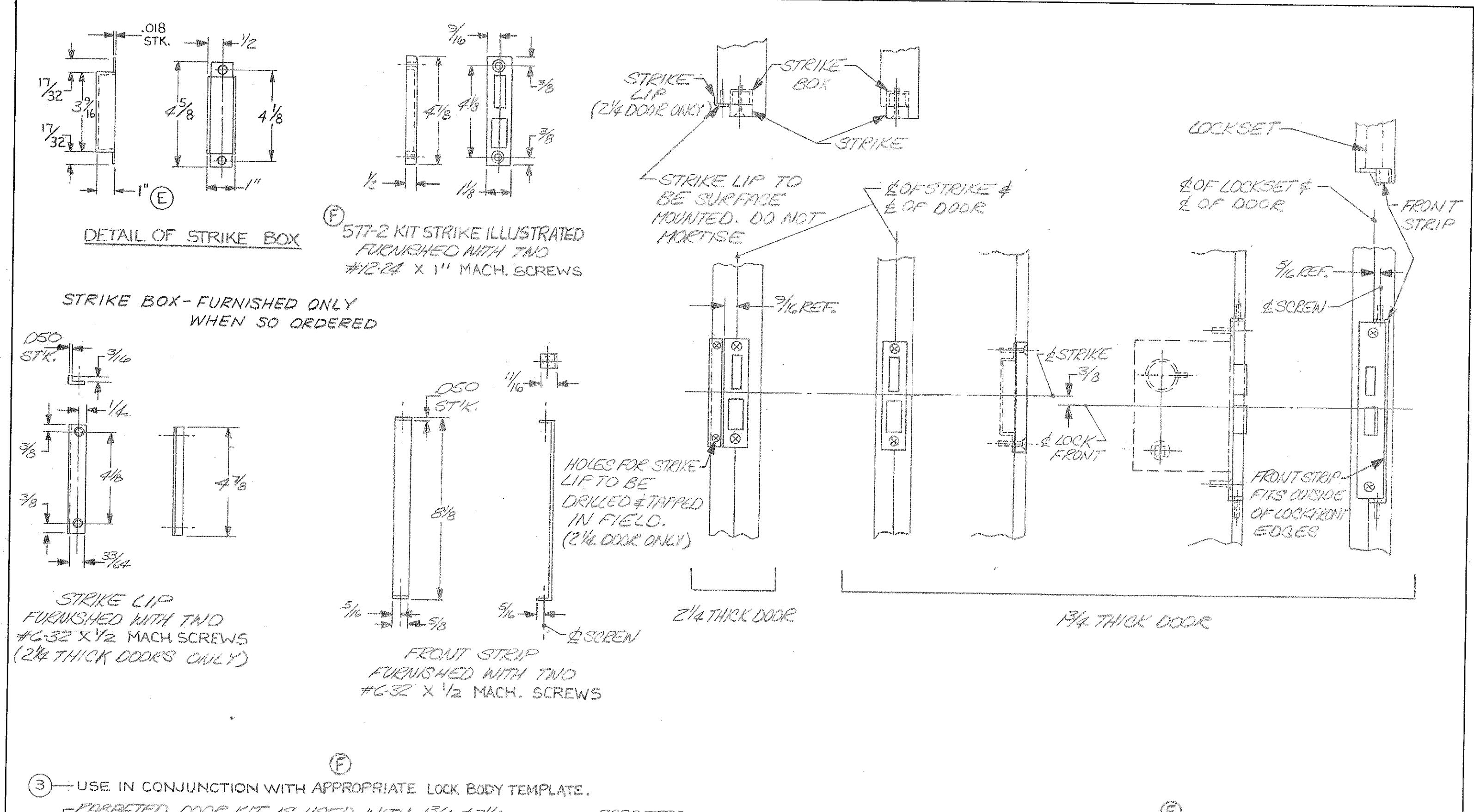

577, 677 & 2-577, 2-677 Rabbeted Door Kit

2- FABBETED DOOR KIT IS USED WITH 13/4 $2/4 2- THICK DOORS, STRIKE LIP IS USED WITH 2/4 THICK DOORS ONLY. D-EOF STRIKE AND E OF LOCK FRONT ARE LOCATED ON E OF DOOR EDGE.

SHOWN ARE COOKS PARTS SHOWN ARE COOKS WITH 1/4XB FRONTS ONLY. DIMENSIONS SHOWN ARE MAXIMUM PART DIMENSIONS.

SARGENT & COMPANY NEW HAVEN, CONN. 06509 TEMPLATE: 577/677. & Z-577/2-677 RELEASE DATE 3-FEB-99 TEMPLET NO. 4226 F
