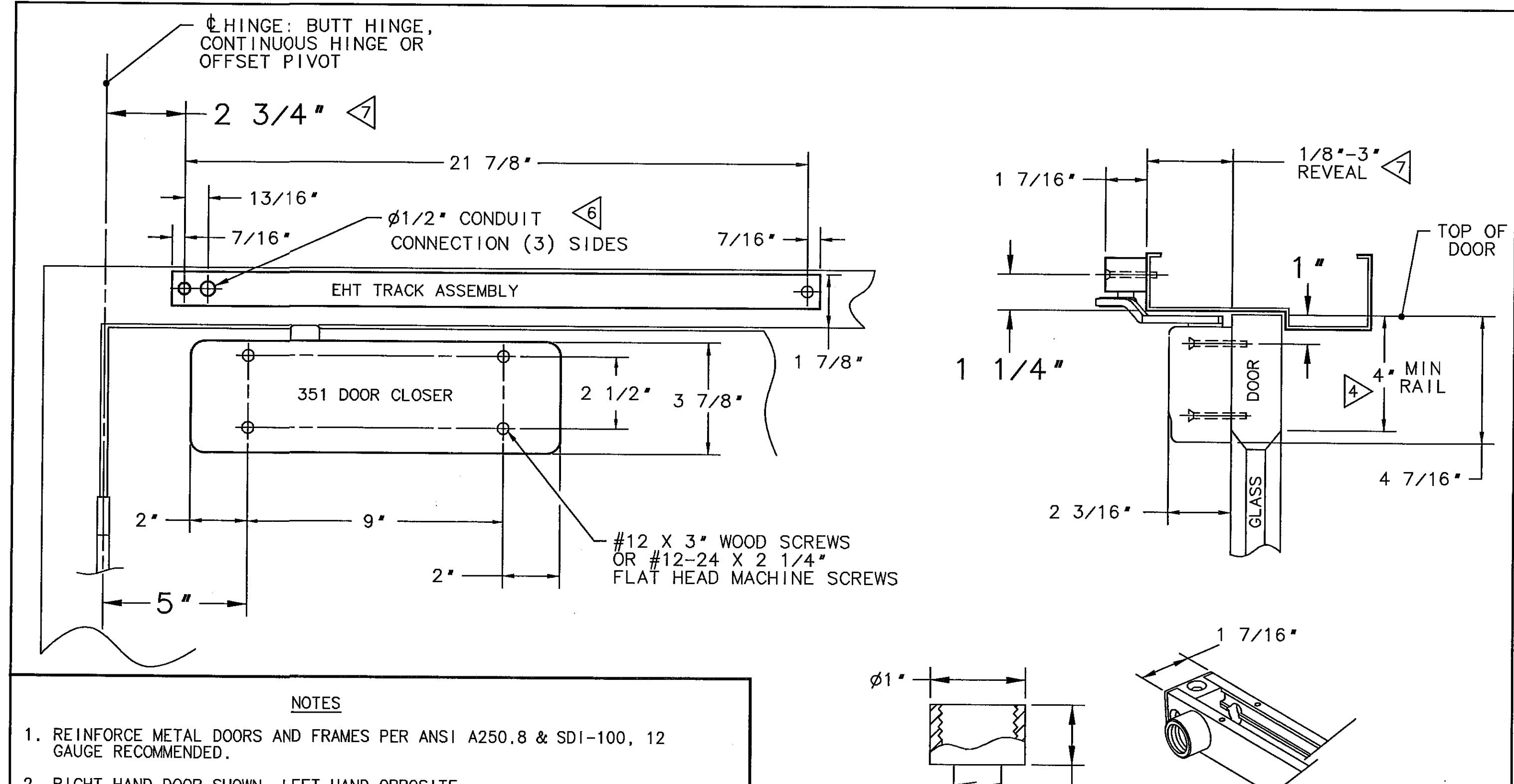

351-EHTD Double Egress Application Template

• 2. RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE.
• 3. HOLD OPEN POSITION CAN BE ALTERED FROM 85° TO 110° BY ADJUSTING ARM LENGTH.
• 4. FOR NARROW RAIL DOORS (WIDER THAN 2 1/4"), USE 351-A DROP PLATE, SEE TEMPLATE A6772.
• 5. AUXILARY STOP REQUIRED.
• 6. (3) HOLES ARE PROVIDED FOR THE CONDUIT CONNECTION. AN ADAPTER IS INCLUDED THAT ACCEPTS STANDARD 1/2" THREADED CONDUIT.
• 7. FOR REVEALS 1" OR LESS, INSTALL THE TRACK 1 3/4" AWAY FROM THE HINGE.

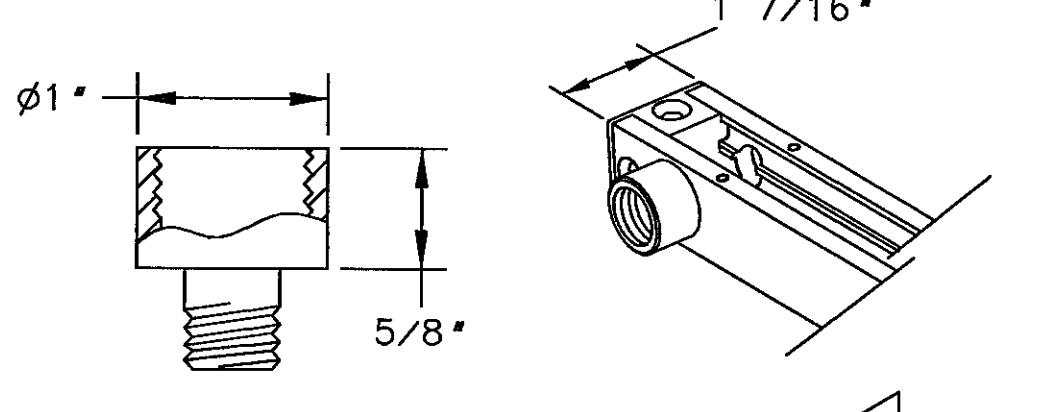

CONDUIT ADAPTER (SHOWN INSTALLED ON SIDE OF CHANNEL)

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DATA SHEET:

351EHTD SERIES CLOSER/HOLDER DOUBLE EGRESS APPLICATION

EFFECTIVE DATE JUNE 03

TEMPLATE NO. A7643
