2800 Series Door Holders

El e c t r o magnetic Door Holders

2801

2802

2804

2805

2806

2810

2860

2870

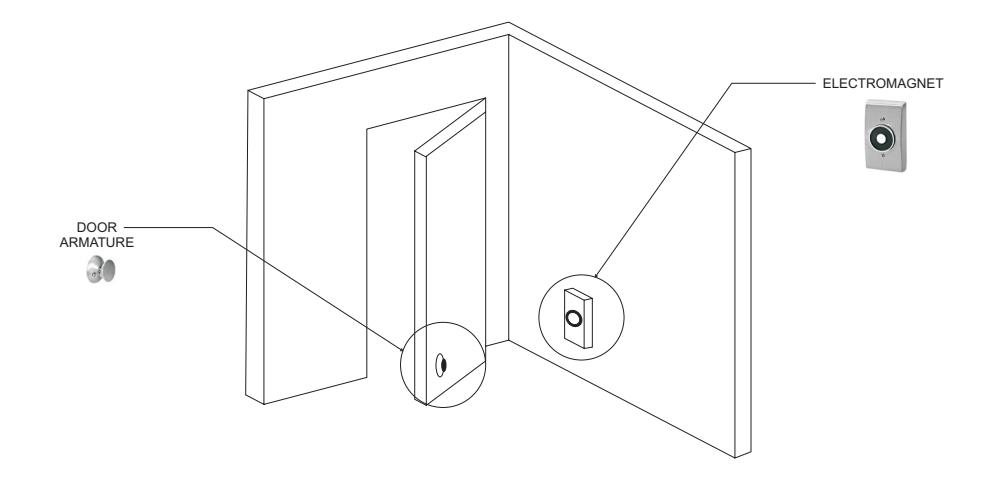

2800 Series Electromagnetic Door Holders

DynaLock 2800 Series Electromagnetic Door Holders accept Tri-Voltage, 12VDC, 24VAC/VDC, or 120VAC input (Model 2810 is 24VAC/VDC, only). Standard models are offered for single or double doors and deliver 30-45 lbs. holding force. High-security Model 2810 delivers 400 lbs. holding force.

CURRENT DRAW	VOLTAGE
0.060 AMPS	12VDC
0.030 AMPS	24VAC/VDC
0.105 AMPS	24VAC/VDC (2810)
0.030 AMPS	120VAC

MODEL	PRODUCT	WEIGHT
2801	Floor Mount, Single Door	4.2 Lbs.
2802	Floor Mount, Double Door	6.1 Lbs.
2803	Flush Wall Mount, 1" Extended Armature	2 Lbs.
2804	Flush Wall Mount, Standard Armature	2 Lbs.
2805	Surface Wall Mount	2.5 Lbs.
2806	Low Profile Wall Mount	2.5 Lbs.
2810	Surface Wall Mount, 400 lbs. Holding Force	4.9 Lbs.

ACCESSORIES	PRODUCT	WEIGHT
2860 2861 2862 2863 2864 2865 2866	Door Armature & Base, Replacement Armature Extension, 1/2" Armature Extension, 3/4" Armature Extension, 1" Armature Extension, 2" Armature Extension, 4" Armature Extension, 6"	.5 Lbs. .1 Lbs. .1 Lbs. .1 Lbs. .1 Lbs. .2 Lbs. .3 Lbs.
2870	Armature Swivel Extension	.1 Lbs.
