January 18, 2017

Re: TOWNSTEEL PRICE BOOK

Dear TownSteel Customer:

Attached is our complete new Price Book Dated 01/18/17. Effective January 18, 2017, this supersedes the previous price book:

The revisions updated to our Price Book are:

• Page 7: MSS Series Push Pull Mortise is now available.

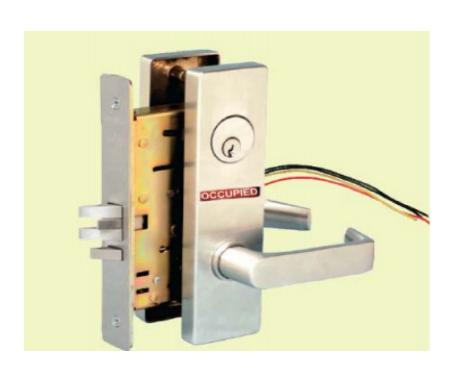

• Page 11: MSS Series Timer Lock Electrified Mortise Escutcheon is now available
• Page 20: XCDC Series Electrified Cylindrical Lock is now available
• Page 21: CSRC Series Clutched is also available with Quest and Gala Lever
• Page 30~32: XMRX-S-K, XMRX-E-K, & XMRX-A Electrified Ligature Resistant is now available

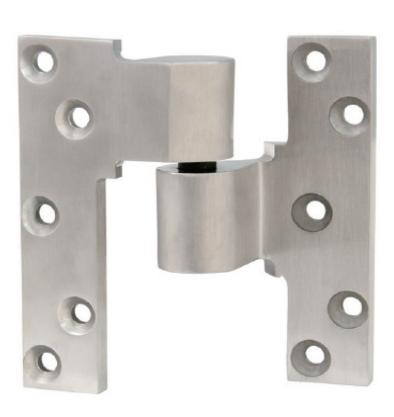

• Page 41: Pivot is now available
• Page 46: Electronic Trim (E-ALL Assy) is now available for Grade 1 ED5500/ED5600 Exit Devices

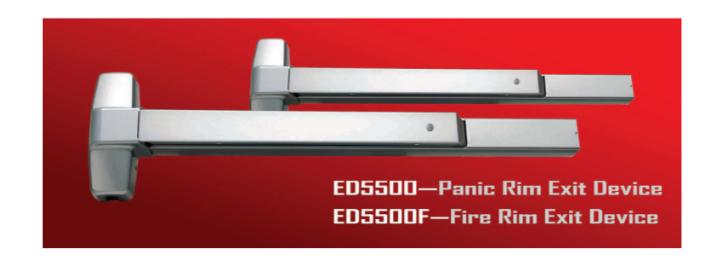

Page 48~49: Heavy Duty Grade 1 ED1100/ED1200/ED1300/ED1400/ED1500 Exit Device prices have been updated

The previous revision to our Price Book dated 10/29/15 was:

Page 29: CRXA 5-Point Ligature Resistant Cylindrical have been updated to include Small Format IC and Large Format IC Core Locks

*All orders under $300.00 net (excluding freight) will have a $30.00 handling fee effective July 01, 2015.*

Please contact us with any questions or comments. We appreciate your continued support.

Yours sincerely,

TownSteel, Inc. 17901 Railroad Street City of Industry, CA 91748

Tel: 626-965-8917 Fax: 626-965-8919 www.townsteel.com

MSS-R Sectional dimensions: 9/16" (D) x 2" (W) x 11/16" (L)

ANSI Grade 1 Heavy Duty Mortise Lock

MSS Commercial Mortise Lockset Series sectional trims available in 8 different designs.

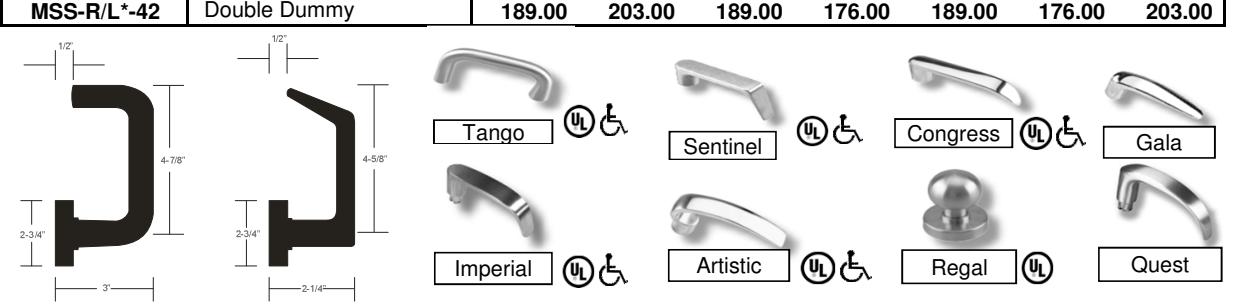

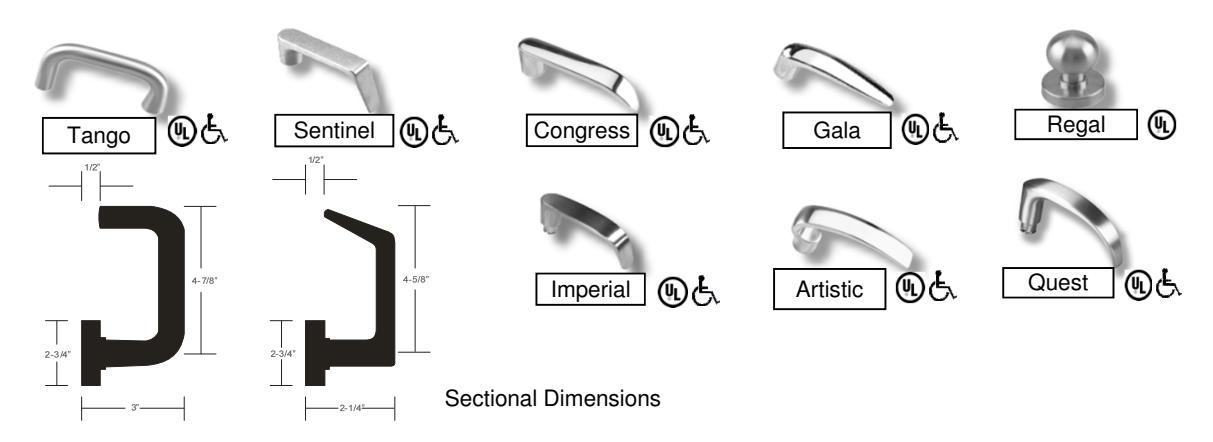

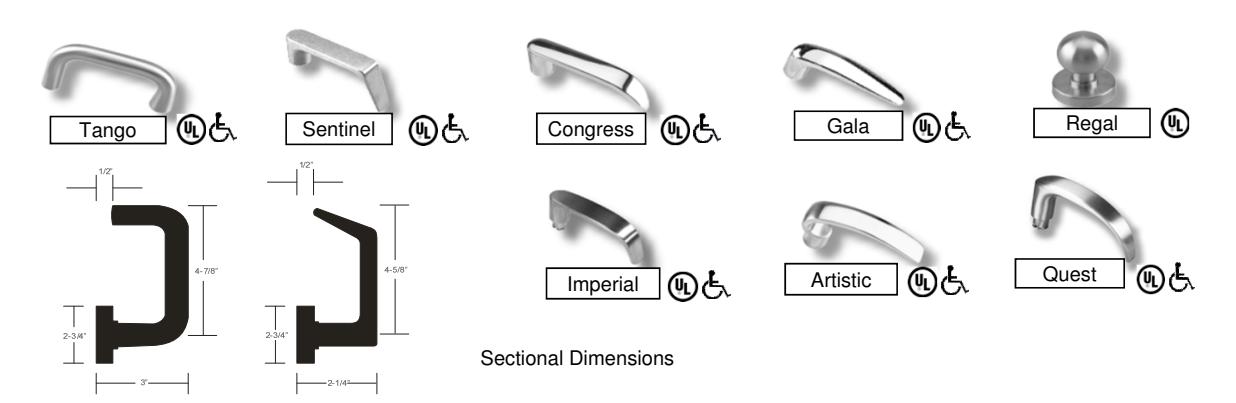

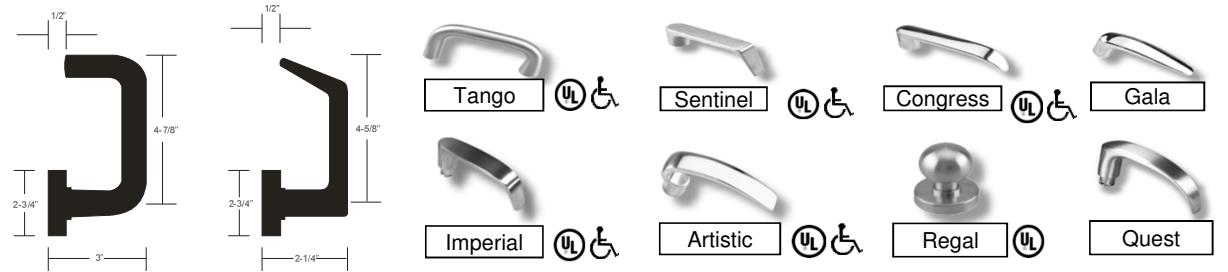

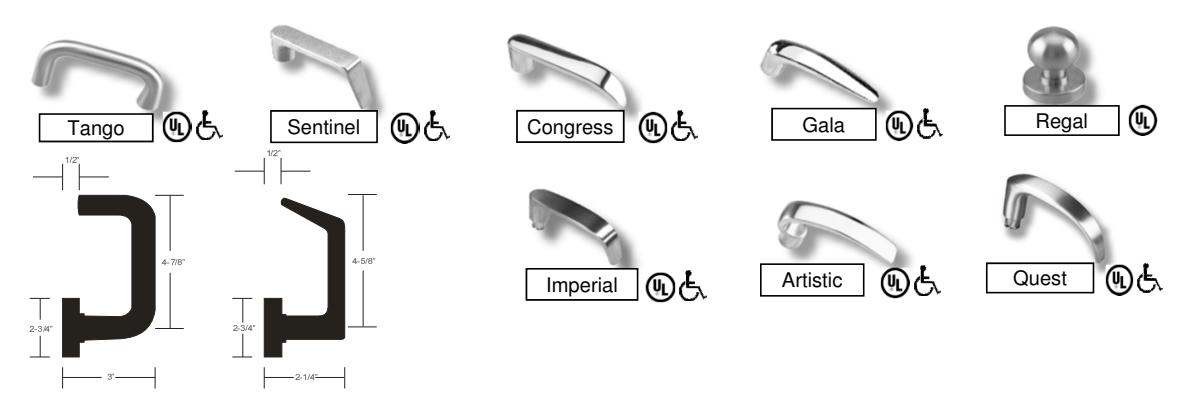

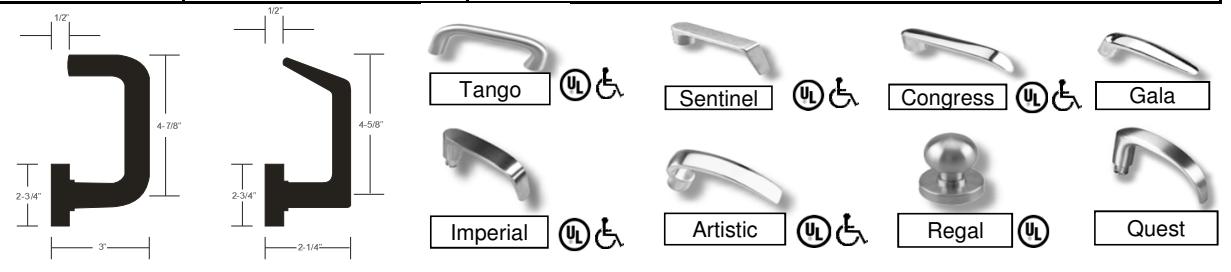

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest.

Knob style: Regal. *R=Regular; L=Low

MSS-L Sectional dimentions: 3/8" (D) x 2" (W) x 1/2" (L) Sectional Trims Levers & Knobs US32D US32 US3 US4 US26 US26D US10B MSS-R/L*-04 Entry/Office 290.00 304.00 277.00 262.00 277.00 262.00 304.00 MSS-R/L*-05 Classroom 290.00 304.00 277.00 262.00 277.00 262.00 304.00 MSS-R/L*-06 Holdback 290.00 304.00 277.00 262.00 277.00 262.00 304.00 MSS-R/L*-07 Storeroom/Closet 290.00 304.00 277.00 262.00 277.00 262.00 304.00 MSS-R/L*-08 Front Door/Corridor 311.00 324.00 297.00 284.00 297.00 284.00 324.00 MSS-R/L*-12 Dormitory/Exit 311.00 324.00 297.00 284.00 297.00 284.00 324.00 MSS-R/L*-13 Dormitory/Exit 311.00 324.00 297.00 284.00 297.00 284.00 324.00 MSS-R/L*-15 Hotel or Motel 311.00 324.00 297.00 284.00 297.00 284.00 324.00 MSS-R/L*-17 Deadlock 250.00 257.00 236.00 216.00 236.00 216.00 257.00 MSS-R/L*-18 Deadlock 250.00 257.00 236.00 216.00 236.00 216.00 257.00 MSS-R/L*-20 Entrance/Apartment 311.00 324.00 297.00 284.00 297.00 284.00 324.00 MSS-R/L*-21 Dormitory with Deadbolt 311.00 324.00 297.00 284.00 297.00 284.00 324.00 MSS-R/L*-29 Classroom Deadbolt 250.00 257.00 236.00 216.00 236.00 216.00 257.00 MSS-R/L*-81 Hotel Privacy 241.00 257.00 241.00 226.00 241.00 226.00 257.00 MSS-R/L*-09 Apartment/Exit/Public Toilet 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-14 Storeroom 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-16 Deadlock 250.00 257.00 236.00 216.00 236.00 216.00 257.00 MSS-R/L*-30 Institutional 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-32 Intruder Latch Bolt 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-33 Intruder Deadbolt 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-34 Intruder Deadbolt 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-35 Storeroom with Deadbolt 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-82 Storeroom 348.00 361.00 334.00 321.00 334.00 321.00 361.00 MSS-R/L*-01 Passage/Closet 241.00 257.00 241.00 226.00 241.00 226.00 257.00 MSS-R/L*-02/19 Privacy/Bathroom 290.00 304.00 277.00 262.00 277.00 262.00 304.00 MSS-R/L*-22 Privacy 290.00 304.00 277.00 262.00 277.00 262.00 304.00 Non-Keyed Functions MSS Series Single Cylinder Functions Double Cylinder Functions FINISH

MSS-R/L*-31 Exit 209.00 223.00 209.00 196.00 209.00 196.00 223.00 MSS-R/L*-41 Single Dummy 101.00 108.00 101.00 95.00 101.00 95.00 108.00

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial,, Quest, Gala & Regal. [2] Regal knob available in US3,4,26D,32,32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

MSE-R MSE-L A A A A A A A A A A A A A A A A A A A

ANSI Grade 1 Heavy Duty Mortise Lock

MSE Series standard escutcheon trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest.

Knob style: Regal. *R=Regular; L=Low

Standard Escutcheon

Escutcheon Dimensions 5/8"(D) x 2-1/4"(W) x 8-1/8" (L)

Escutcheon Dimensions 7/16"(D) x 2-1/4"(W) x 8-1/8" (L)

MCE Corice	Escutcheon Trims	·			FINISH
MSE Series	Levers & Knobs	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder I	Functions
MSE-R/L*-04	Entry/Office	337.00	350.00	337.00	316.00	337.00	316.00	350.00
MSE-R/L*-05	Classroom	337.00	350.00	337.00	316.00	337.00	316.00	350.00
MSE-R/L*-06	Holdback	337.00	350.00	337.00	316.00	337.00	316.00	350.00
MSE-R/L*-07	Storeroom/Closet	337.00	350.00	337.00	316.00	337.00	316.00	350.00
MSE-R/L*-08	Front Door/Corridor	350.00	364.00	350.00	330.00	350.00	330.00	364.00
MSE-R/L*-12	Dormitory/Exit	350.00	364.00	350.00	330.00	350.00	330.00	364.00
MSE-R/L*-13	Dormitory/Exit	350.00	364.00	350.00	330.00	350.00	330.00	364.00
MSE-R/L*-15	Hotel or Motel	350.00	364.00	350.00	330.00	350.00	330.00	364.00
MSE-R/L*-17	Deadlock	303.00	310.00	289.00	269.00	289.00	268.00	310.00
MSE-R/L*-18	Deadlock	303.00	310.00	289.00	269.00	289.00	268.00	310.00
MSE-R/L*-20	Entrance/Apartment	350.00	364.00	350.00	330.00	350.00	330.00	364.00
MSE-R/L*-21	Dormitory with Deadbolt	350.00	364.00	350.00	330.00	350.00	330.00	364.00
MSE-R/L*-29	Classroom Deadbolt	303.00	310.00	289.00	269.00	289.00	268.00	310.00
MSE-R/L*-81	Hotel Privacy	298.00	314.00	298.00	283.00	298.00	283.00	314.00
Double Cylinder	Functions
MSE-R/L*-09	Apartment/Exit/Public Toilet	401.00	414.00	387.00	374.00	387.00	374.00	414.00
MSE-R/L*-14	Storeroom	401.00	414.00	387.00	374.00	387.00	374.00	414.00
MSE-R/L*-16	Deadlock	303.00	310.00	289.00	269.00	289.00	269.00	310.00
MSE-R/L*-30	Institutional	401.00	414.00	387.00	374.00	387.00	374.00	414.00
MSE-R/L*-32	Intruder Latch Bolt	401.00	414.00	387.00	374.00	387.00	374.00	414.00
MSE-R/L*-33	Intruder Deadbolt	401.00	414.00	387.00	374.00	387.00	374.00	414.00
MSE-R/L*-34	Intruder Deadbolt	401.00	414.00	387.00	374.00	387.00	374.00	414.00
MSE-R/L*-35	Storeroom with Deadbolt	401.00	414.00	387.00	374.00	387.00	374.00	414.00
MSE-R/L*-82	Storeroom	401.00	414.00	387.00	374.00	387.00	374.00	414.00
Non-Keyed Fund	tions
MSE-R/L*-01	Passage/Closet	298.00	314.00	298.00	283.00	298.00	283.00	314.00
MSE-R/L*-02/19	Privacy/Bathroom	337.00	350.00	337.00	316.00	337.00	316.00	350.00
MSE-R/L*-22	Privacy	337.00	350.00	337.00	316.00	337.00	316.00	350.00
MSE-R/L*-31	Exit	262.00	276.00	262.00	249.00	262.00	249.00	276.00
MSE-R/L*-41	Single Dummy	154.00	161.00	154.00	148.00	154.00	148.00	161.00
MSE-R/L*-42	Double Dummy	242.00	256.00	242.00	229.00	242.00	229.00	256.00

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Quest, Gala & Regal. [2] Regal knob available in US3.4.26D,32,32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

ANSI Grade 1 Heavy Duty Mortise Lock

MSW Series wide escutcheon trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest.

Knob style: Regal.

Wide Escutcheon

Escutcheon Dimensions 5/8"(D) x 2-5/8"(W) x 8-1/2"(L)

Lacutorieon Dimensio	ons 5/8"(D) x 2-5/8"(W) x 8-1/2"(L)				EINIOLI
MSW Series	Escutcheon Trims Levers & Knobs	US32D	US32	US3	FINISH US4	US26	US26D	US10B
Single Cylinder		U332D	0332	USS	U3 4	0520	U320D	03100
MSE-W-04	Entry/Office	355.00	369.00	355.00	335.00	355.00	335.00	369.00
MSE-W-04 MSE-W-05	Classroom	355.00 355.00	369.00	355.00 355.00	335.00	355.00	335.00	369.00
MSE-W-05	Holdback	355.00	369.00	355.00	335.00	355.00	335.00	369.00
MSE-W-07	Storeroom/Closet	355.00 355.00	369.00	355.00 355.00	335.00	355.00 355.00	335.00	369.00
MSE-W-07	Front Door/Corridor	369.00	382.00	369.00	348.00	369.00	348.00	382.00
MSE-W-08	Dormitory/Exit	369.00	382.00	369.00	348.00	369.00	348.00	382.00
MSE-W-12	Dormitory/Exit	369.00	382.00	369.00	348.00	369.00	348.00	382.00
	Hotel or Motel
MSE-W-15	Deadlock	369.00	382.00	369.00	348.00	369.00	348.00	382.00
MSE-W-17	Deadlock	321.00	328.00	308.00	288.00	308.00	288.00	328.00
MSE-W-18		321.00	328.00	308.00	288.00	308.00	288.00	328.00
MSE-W-20	Entrance/Apartment	369.00	382.00	369.00	348.00	369.00	348.00	382.00
MSE-W-21	Dormitory with Deadbolt	369.00	382.00	369.00	348.00	369.00	348.00	382.00
MSE-W-29	Classroom Deadbolt	321.00	328.00	308.00	288.00	308.00	288.00	328.00
MSE-W-81	Hotel Privacy	324.00	339.00	324.00	308.00	324.00	308.00	339.00
Double Cylinder		440.00	100.00					100.00
MSE-W-09	Apartment/Exit/Public Toilet	419.00	433.00	406.00	392.00	406.00	392.00	433.00
MSE-W-14	Storeroom	419.00	433.00	406.00	392.00	406.00	392.00	433.00
MSE-W-16	Deadlock	321.00	328.00	308.00	288.00	308.00	288.00	328.00
MSE-W-30	Institutional	419.00	433.00	406.00	392.00	406.00	392.00	433.00
MSE-W-32	Intruder Latch Bolt	419.00	433.00	406.00	392.00	406.00	392.00	433.00
MSE-W-33	Intruder Deadbolt	419.00	433.00	406.00	392.00	406.00	392.00	433.00
MSE-W-34	Intruder Deadbolt	419.00	433.00	406.00	392.00	406.00	392.00	433.00
MSE-W-35	Storeroom with Deadbolt	419.00	433.00	406.00	392.00	406.00	392.00	433.00
MSE-W-82	Storeroom	419.00	433.00	406.00	392.00	406.00	392.00	433.00
Non-Keyed Fund
MSE-W-01	Passage/Closet	324.00	339.00	324.00	308.00	324.00	308.00	339.00
MSE-W-02/19	Privacy/Bathroom	355.00	369.00	355.00	335.00	355.00	335.00	369.00
MSE-W-22	Privacy	355.00	369.00	355.00	335.00	355.00	335.00	369.00
MSE-W-31	Exit	281.00	294.00	281.00	267.00	281.00	267.00	294.00
MSE-W-41	Single Dummy	173.00	180.00	173.00	166.00	173.00	166.00	180.00
MSE-W-42	Double Dummy	261.00	274.00	261.00	247.00	261.00	247.00	274.00

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Quest, Gala & Regal. [2] Regal knob available in US3,4,26D,32,32D only, [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

CLUTCHING

ANSI Grade 1 Heavy Duty Mortise Lock

MCS Series sectional trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest.

Knob style: Regal

	Sectional Trims				FINISH
MCS Series	Levers & Knobs	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder Functions
MCS-05	Classroom	317.00	331.00	304.00	289.00	304.00	289.00	331.00
MCS-15	Hotel	317.00	331.00	304.00	289.00	304.00	289.00	331.00
MCS-20	Entrance/Apartment	338.00	351.00	324.00	311.00	324.00	311.00	351.00

MCE Series Escutcheon Dimensions 5/8"(D) x 2-1/4"(W) x 8-1/8" (L) Knob style: Regal MCW Series Escutcheon Dimensions 5/8"(D) x 2-5/8"(W) x 8-1/2"(L)

CLUTCHING

ANSI Grade 1 Heavy Duty Mortise Lock

MCE, MCW Series escutcheon trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest.

MCE, MCW	Escutcheon Trims				FINISH
Series	Levers & Knobs	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder Functions
MCE-05	Classroom	338.00	351.00	338.00	317.00	338.00	317.00	351.00
MCE-15	Hotel	338.00	351.00	338.00	317.00	338.00	317.00	351.00
MCE-20	Entrance/Apartment	351.00	365.00	351.00	331.00	351.00	331.00	365.00
MCW-05	Classroom	382.00	396.00	382.00	362.00	382.00	362.00	396.00
MCW-15	Hotel	382.00	396.00	382.00	362.00	382.00	362.00	396.00
MCW-20	Entrance/Apartment	396.00	409.00	396.00	375.00	396.00	375.00	409.00

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Quest, Gala & Regal. [2] Regal knob available in US3, 4 , 26D, 32, 32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

ANSI Grade 1 Heavy Duty Mortise Lock

	Sectional Trims				FINISH
MDS Series	Levers	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder Functions
MSS-L*-04	Entry/Office	473.00	473.00	436.00	436.00	436.00	436.00	473.00
MSS-L*-05	Classroom	473.00	473.00	436.00	436.00	436.00	436.00	473.00
MSS-L*-07	Storeroom/Closet	473.00	473.00	436.00	436.00	436.00	436.00	473.00
MSS-L*-13	Dormitory/Exit	491.00	491.00	453.00	453.00	453.00	453.00	491.00
MSS-L*-17	Deadlock	419.00	419.00	382.00	382.00	382.00	382.00	419.00
MSS-L*-18	Deadlock	388.00	388.00	351.00	351.00	351.00	351.00	388.00
MSS-L*-20	Entrance/Apartment	491.00	491.00	453.00	453.00	453.00	453.00	491.00
Double Cylinder Functions
MSS-L*-14	Storeroom	529.00	529.00	492.00	492.00	492.00	492.00	529.00
MSS-L*-16	Deadlock	419.00	419.00	382.00	382.00	382.00	382.00	419.00
Non-Keyed Functions
MSS-L*-01	Passage/Closet	436.00	436.00	400.00	400.00	400.00	400.00	436.00
MSS-L*-19	Privacy/Bathroom	475.00	475.00	439.00	439.00	439.00	439.00	475.00
MSS-L*-41	Single Dummy	329.00	329.00	283.00	283.00	283.00	283.00	329.00
MSS-L*-42	Double Dummy	413.00	413.00	377.00	377.00	377.00	377.00	413.00

Note 1*: MSS-B (Bevel), C (Curve), F (Flat), H (Heritage), LS (LS), S (Square), V (Vintage) Levers, quote upon request. Note 2: For dimentions, refer to Catalog and TownSteel website.

ANSI Grade 1 Heavy Duty Mortise Lock

	Escutcheon Trims				FINISH
MDE Series	Levers	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder Functions
MSE-L*-04	Entry/Office	509.00	509.00	472.00	472.00	472.00	472.00	509.00
MSE-L*-05	Classroom	509.00	509.00	472.00	472.00	472.00	472.00	509.00
MSE-L*-07	Storeroom/Closet	509.00	509.00	472.00	472.00	472.00	472.00	509.00
MSE-L*-13	Dormitory/Exit	527.00	527.00	489.00	489.00	489.00	489.00	527.00
MSE-L*-17	Deadlock	455.00	455.00	418.00	418.00	418.00	418.00	455.00
MSE-L*-18	Deadlock	424.00	424.00	387.00	387.00	387.00	387.00	424.00
MSE-L*-20	Entrance/Apartment	527.00	527.00	489.00	489.00	489.00	489.00	527.00
Double Cylinder Functions
MSE-L*-14	Storeroom	565.00	565.00	528.00	528.00	528.00	528.00	565.00
MSE-L*-16	Deadlock	455.00	455.00	418.00	418.00	418.00	418.00	455.00
Non-Keyed Functions
MSE-L*-01	Passage/Closet	472.00	472.00	436.00	436.00	436.00	436.00	472.00
MSE-L*-19	Privacy/Bathroom	511.00	511.00	475.00	475.00	475.00	475.00	511.00
MSE-L*-41	Single Dummy	365.00	365.00	319.00	319.00	319.00	319.00	365.00
MSE-L*-42	Double Dummy	449.00	449.00	413.00	413.00	413.00	413.00	449.00

Note 1*: MSE-C (Cube), AD (Art Deco), F (Flat), N (N), O (Oval), S (Square), V (Vintage) Levers, quote upon request. Note 2: For dimentions, refer to Catalog and TownSteel website.

[1] Please refer to the lever sheet for levers available. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B.. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

ANSI Grade 1 Heavy Duty Mortise Lock

DESIGNER SECTIONAL DESIGNER ESCUTCHEON

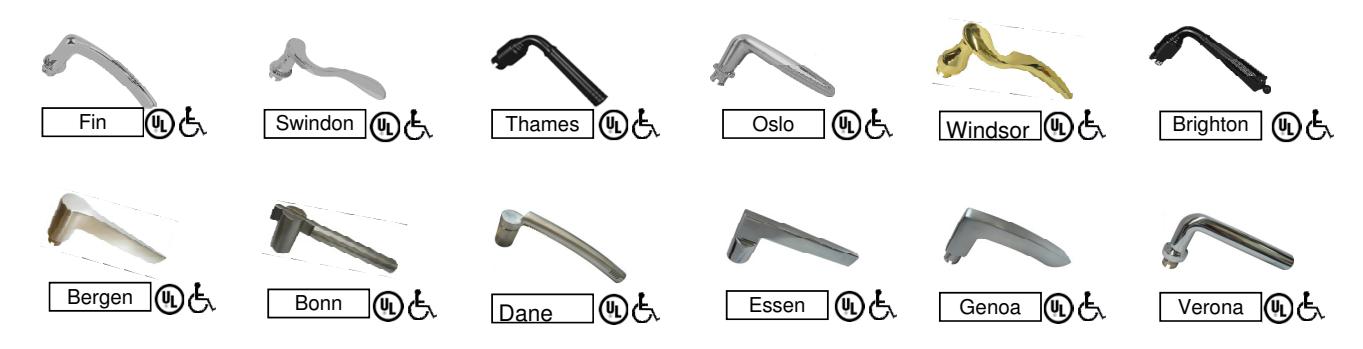

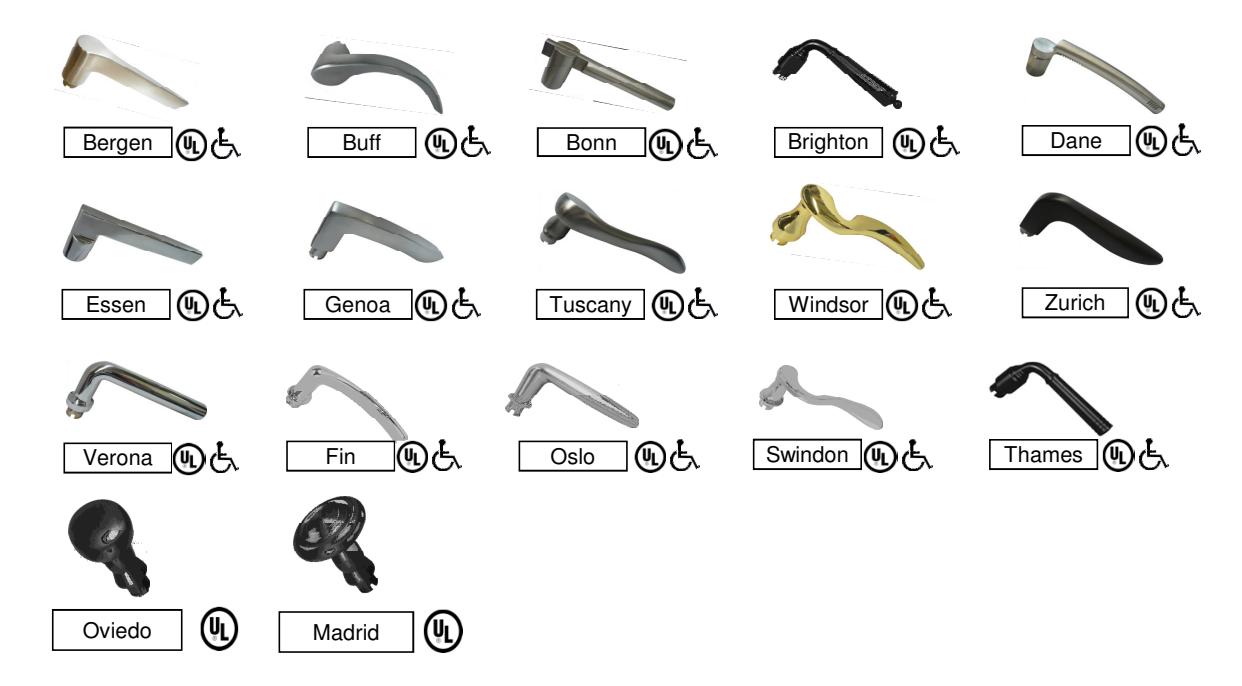

Brass/Zinc Lever Designs Available:

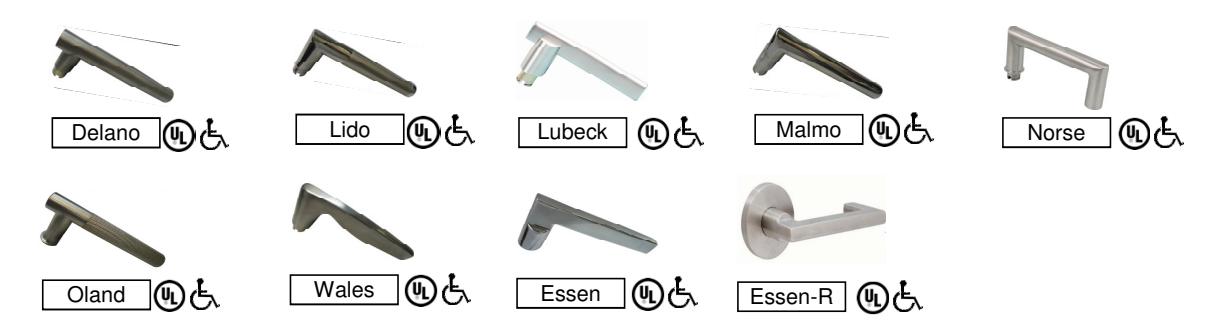

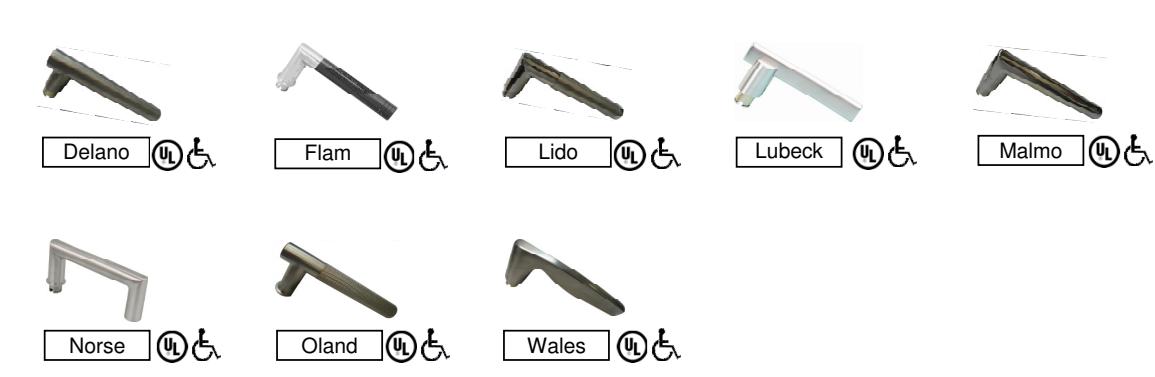

SST Lever Designs available:

• * Not all levers available in all finishes, please contact factory.
• * For levers and finishes not shown, please contact factory.

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Gala & Regal. [2] Regal knob available in US3, 4,26D,32,32D only, [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. Covina, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Push Pull Mortise ANSI Grade 1 Mortise Lockset

MSS Series	Sectional Trims	FINISH
	Levers & Knobs	US32D
Single Cylinder Functions
MSS-04-PP	Entry/Office	473.00
MSS-05-PP	Classroom	473.00
MSS-06-PP	Holdback	473.00
MSS-07-PP	Storeroom/Closet	473.00
MSS-08-PP	Front Door/Corridor	491.00
MSS-12-PP	Dormitory/Exit	491.00
MSS-13-PP	Dormitory/Exit	491.00
MSS-15-PP	Hotel or Motel	491.00
MSS-20-PP	Entrance/Apartment	491.00
MSS-21-PP	Dormitory with Deadbolt	491.00
MSS-26-PP	Institutional Privacy	491.00
Double Cylinder Functions
MSS-09-PP	Apartment/Exit/Public Toilet	529.00
MSS-11-PP	Dormitory/Exit	529.00
MSS-14-PP	Storeroom	529.00
MSS-30-PP	Institutional	529.00
MSS-32-PP	Intruder Latch Bolt	529.00
MSS-33-PP	Intruder Deadbolt	560.00
MSS-34-PP	Intruder Deadbolt	560.00
MSS-35-PP	Storeroom with Deadbolt	560.00
Non-Keyed Functions
MSS-01-PP	Passage/Closet	431.00
MSS-02/19-PP	Privacy/Bathroom	475.00
MSS-22-PP	Privacy	475.00
MSS-31-PP	Exit	475.00
MSS-41-PP	Single Dummy	329.00
MSS-42-PP	Double Dummy	413.00

Tubular Series	Descriptions	FINISH
		US32D
Tubular Passage
TLL-8301-PP	Passage	366.00

Heavy Duty Auxiliary Mortise Deadbolt Lock

DBM	Function				FINISH
Series	2.101.01.	US32D	US32	US3	US4	US26	US26D	US10B
With Standard 6-pin Cylinder
DBM-15	Classroom Deadlock, Key O/S by turnpiece I/S (T-turn will retract but not project deadbolt)	220.00	220.00	200.00	180.00	200.00	180.00	220.00
DBM-16	Deadlock by key on either side	220.00	220.00	200.00	180.00	200.00	180.00	220.00
DBM-17	Deadlock by key O/S and turnpiece I/S	220.00	220.00	200.00	180.00	200.00	180.00	220.00
DBM-18	Deadlock by key one side only	210.00	210.00	190.00	170.00	190.00	170.00	210.00
DBM-29	Exit Lock	210.00	210.00	190.00	170.00	190.00	170.00	210.00

[1] All locks come with 6-pin Schlage C keyway standard cylinder. [2] GGMK, GMK & MK available at additional charge. [4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock,

MS Mortise Lock with Electrified Mortise

ANSI Grade 1 Heavy Duty Electrified Mortise Lock

MSS sectional trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest. Knob style: Regal

MOO Conico	Sectional Trims				FINISH
MSS Series	Levers & Knobs	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder	Functions, 3-Position monit	oring
MSS-121	Fail Safe (12VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
MSS-122	Fail Secure (12VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
MSS-241	Fail Safe (24VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
MSS-242	Fail Secure (24VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
Single Cylinder	Functions, RQE
MSS-121RQE	Fail Safe (12VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
MSS-122RQE	Fail Secure (12VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
MSS-241RQE	Fail Safe (24VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
MSS-242RQE	Fail Secure (24VDC)	565.00	590.00	550.00	520.00	550.00	520.00	615.00
Deadbolt w/Thu	mbturn Functions, RQE
MSS-121-DB	Fail Safe (12VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00
MSS-122-DB	Fail Secure (12VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00
MSS-241-DB	Fail Safe (24VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00
MSS-242-DB	Fail Secure (24VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00
Deadbolt w/Dou	ble Cylinder Functions, RQ	E
MSS-121-DC	Fail Safe (12VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00
MSS-122-DC	Fail Secure (12VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00
MSS-241-DC	Fail Safe (24VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00
MSS-242-DC	Fail Secure (24VDC)	605.00	630.00	590.00	560.00	590.00	560.00	655.00

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Gala & Regal. [2] Regal knob available in US3. 4, 26D, 32, 32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

MS Mortise Lock with Electrified Mortise

Escutcheon

ANSI Grade 1 Heavy Duty Electrified Mortise Lock

MSE escutcheon trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest.

Knob style: Regal

MSE Series	Escutcheon Trims				FINISH
MSE Series	Levers & Knobs	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder	Functions, 3-Position monit	oring
MSE-121	Fail Safe (12VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
MSE-122	Fail Secure (12VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
MSE-241	Fail Safe (24VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
MSE-242	Fail Secure (24VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
Single Cylinder	Functions, RQE
MSE-121RQE	Fail Safe (12VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
MSE-122RQE	Fail Secure (12VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
MSE-241RQE	Fail Safe (24VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
MSE-242RQE	Fail Secure (24VDC)	610.00	630.00	610.00	575.00	610.00	575.00	665.00
Deadbolt w/Thu	mbturn Functions, RQE
MSE-121-DB	Fail Safe (12VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00
MSE-122-DB	Fail Secure (12VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00
MSE-241-DB	Fail Safe (24VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00
MSE-242-DB	Fail Secure (24VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00
Deadbolt w/Dou	ble Cylinder Functions, RQE
MSE-121-DC	Fail Safe (12VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00
MSE-122-DC	Fail Secure (12VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00
MSE-241-DC	Fail Safe (24VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00
MSE-242-DC	Fail Secure (24VDC)	650.00	670.00	650.00	615.00	650.00	615.00	705.00

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Gala & Regal. [2] Regal knob available in US3, 4, 26D, 32, 32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

MS Timer Lock with Electrified Mortise

Timer-24 hour electromechanical

ANSI Grade 1 Heavy Duty Electrified Mortise Lock

MSE escutcheon trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest. Knob style: Regal

TME Series	Escutcheon Trims		## FINISH US32D US32 US3 US4 US26 US26D US10
	Levers & Knobs	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder	Functions
TME-E-L	Fail Secure (12VDC)	N/A	N/A	N/A	N/A	N/A	2,472.00	N/A
TME-E-L-A*	Fail Secure (12VDC)	N/A	N/A	N/A	N/A	N/A	2,490.00	N/A

*Note 1: TME-E-L-A with ADA Thumbturn

MS Electrified Mortise Lock

Escutcheon

ANSI Grade 1 Heavy Duty Electrified Mortise Lock

MSE escutcheon trims available in 8 different designs.

Lever styles: Sentinel, Artistic, Congress, Tango, Gala, Imperial, Quest. Knob style: Regal

MEE Series	Escutcheon Trims	FINISH
WILL Selles	Levers & Knobs	US32D	US32	US3	US4	US26	US26D	US10B
Single Cylinder Functions
MEE-E-L	Fail Secure (12VDC)	N/A	N/A	N/A	N/A	N/A	1,400.00	N/A
MEE-E-L-A	Fail Secure (12VDC)	N/A	N/A	N/A	N/A	N/A	1,418.00	N/A

Note 1: Lock does not include timer and power supply

Note 2: MEE-E-L-A with ADA Thumbturn

[1] All locks comes with 6-pin Schlage C keyway standard cylinder. [2] GGMK, GMK & MK available at additional charge. [3] Prices based on F.O.B. City of Industry, CA. [4] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

XCE 2000 Cylindrical Grade 1 Electronic Lockset with Keypad

Lever Styles: Sentinel (S), Quest (Q) and Gala (G)

XCE Series	Function	Unit Price
		26D/10B
XCE-2010 or IC	Rigid, Electronic Cylindrical Lockset Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	615.00
XCE-2020 or IC	Clutched, Electronic Cylindrical Lockset Standard Cylinder C Keyway , or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	687.00
XCE-2030 or IC	Rigid, Electronic Cylindrical Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	745.00
XCE-2040 or IC	Clutched, Electronic Cylindrical Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	817.00

FCE 2000 Cylindrical Grade 1 Lockset with RFID Technology

FCE Series	Function	Unit price
		26D/10B
FCE-2010 or IC	Rigid, Cylindrical Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	687.00
FCE-2020 or IC	Clutched, Cylindrical Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	752.00
FCE-2030 or IC	Rigid, Cylindrical Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	817.00
FCE-2040 or IC	Clutched, Cylindrical Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	882.00

XME 2000 Mortise Grade 1 Electronic Lockset with Keypad

XME Series	Function	Unit price
		26D/10B
XME-2010 or IC	Rigid, Mortise Lockset Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	687.00
XME-2020 or IC	Clutched, Mortise Lockset Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	752.00
XME-2030 or IC	Rigid, Mortise Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	817.00
XME-2040 or IC	Clutched, Electronic Mortise Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	882.00
XME-2050 or IC	Rigid, Mortise Lockset with Deadbolt Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	687.00
XME-2060 or IC	Clutched, Mortise Locksetwith Deadbolt Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	752.00
XME-2070 or IC	Rigid, Mortise Lockset with Deadbolt High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	817.00
XME-2080 or IC	Clutched, Mortise Lockset with Deadbolt High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	882.00

FME 2000 Mortise Grade 1 Lockset with RFID Technology

FME Series	Function	Unit price
		26D/10B
FME-2010 or IC	Rigid, Mortise Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	752.00
FME-2020 or IC	Clutched, Mortise Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	822.00
FME-2030 or IC	Rigid, Mortise Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	882.00
FME-2040 or IC	Clutched, Electronic Mortise Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	952.00
FME-2050 or IC	Rigid, Mortise Lockset, Keycard, with Deadbolt Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	752.00
FME-2060 or IC	Clutched, Mortise Lockset, Keycard, with Deadbolt Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	822.00
FME-2070 or IC	Rigid, Mortise Lockset, Keycard, with Deadbolt High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	882.00
FME-2080 or IC	Clutched, Electronic Mortise Lockset, Keycard, with Deadbolt High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	952.00

FCE 3000 RFID Cylindrical Lockset with ROU

Lever Styles: Sentinel (S), Quest (Q) and Gala (G)

FCE Series	Function	Finish
		US26D / US10B
FCE-3010 or IC	Rigid, Cylindrical Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	866.00
FCE-3020 or IC	Clutched, Cylindrical Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	866.00
FCE-3030 or IC	Rigid, Cylindrical Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	996.00
FCE-3040 or IC	Clutched, Cylindrical Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin less core	996.00

FME 3000 RFID Mortise Lockset with ROU

Lever Styles: Sentinel (S), Quest (Q) and Gala (G)

FME Series	Function	Finish US26D / US10B
FME-3010 or IC	Rigid, Mortise Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	939.00
FME-3020 or IC	Clutched, Mortise Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	939.00
FME-3030 or IC	Rigid, Mortise Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	1,069.00
FME-3040 or IC	Clutched, Electronic Mortise Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	1,069.00

Remote	TS Product #	No Finish
	Remote Open Unit (ROU)	64.00

Keycard	TS Product #	No Finish
	Keycard	7.30

IC Core	TS Product #		US26D
	IC6	6 Pin SFIC Core, Best Keyway (uncombinated)	29.50
	IC7	7 Pin SFIC Core, Best Keyway (uncombinated)	32.50

^* High Security, please check with factory.

KEYING

Commercial Keying Charges

TS Product #		No Finish
TLBR100	KA - Keyed Alike	16.00
TLBR200	MK - Master Keying	18.00
TLBR300	Cut Key Charge	4.50
TLBR400	Key Stamping Charge	3.00

Interchangeable Keying Charges

TS Product #		No Finish
TLBR600	IC Keying Charge	18.00
TLBR300	Cut Key Charge	8.00
TLBR400	Key Stamping Charge	3.00

FCE 4000 RFID Electronic Classroom Instruder Cylindrical Lockset

Lever Styles: Sentinel (S), Quest (Q) and Gala (G)

		Finish
FCE Series	Function	US26D / US10B
FCE-4010 or IC	Rigid, Cylindrical Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	866.00
FCE-4020 or IC	Clutched, Cylindrical Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	866.00
FCE-4030 or IC	Rigid, Cylindrical Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	996.00
FCE-4040 or IC	Clutched, Cylindrical Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin less core	996.00

FME 4000 RFID Electronic Intruder Classroom Mortise Lockset

Lever Styles: Sentinel (S), Quest (Q) and Gala (G)

FME Series	Function	Finish
		US26D / US10B
FME-4010 or IC	Rigid, Mortise Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	939.00
FME-4020 or IC	Clutched, Mortise Lockset, Keycard, Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	939.00
FME-4030 or IC	Rigid, Mortise Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	1,069.00
FME-4040 or IC	Clutched, Electronic Mortise Lockset, Keycard, High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	1,069.00

Remote	TS Product #	No Finish
	Remote Control Unit (RCU)	64.00

Keycard	TS Product #	No Finish
	Keycard	7.30

IC Core	TS Product #		US26D
	IC6	6 Pin SFIC Core, Best Keyway (uncombinated)	29.50
	IC7	7 Pin SFIC Core, Best Keyway (uncombinated)	32.50

^* High Security, please check with factory.

KEYING

Commercial Keying Charges

TS Product #		No Finish
TLBR100	KA - Keyed Alike	16.00
TLBR200	MK - Master Keying	18.00
TLBR300	Cut Key Charge	4.50
TLBR400	Key Stamping Charge	3.00

Interchangeable Keying Charges

TS Product #		No Finish
TLBR600	IC Keying Charge	18.00
TLBR300	Cut Key Charge	8.00
TLBR400	Key Stamping Charge	3.00

XCE 9000 Electronic Classroom Instruder Cylindrical Lockset with Keypad

Lever Styles: Sentinel (S), Quest (Q) and Gala (G)

XCE Series	Function	Finish
		US26D / US10B
XCE-9010 or IC	Rigid, Electronic Cylindrical Lockset Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	793.00
XCE-9020 or IC	Clutched, Electronic Cylindrical Lockset Standard Cylinder C Keyway , or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	793.00
XCE-9030 or IC	Rigid, Electronic Cylindrical Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	923.00
XCE-9040 or IC	Clutched, Electronic Cylindrical Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	923.00

XME 9000 Electronic Intruder Classroom Mortise Lockset with Keypad

Lever Styles: Sentinel (S), Quest (Q) and Gala (G)

		Finish
XME Series	Function	US26D / US10B
XME-9010 or IC	Rigid, Mortise Lockset Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	865.00
XME-9020 or IC	Clutched, Mortise Lockset Standard Cylinder C Keyway, or Small Format 6 or 7 pin, or LFIC Schlage/Corbin Russwin 6 pin, less core	865.00
XME-9030 or IC	Rigid, Mortise Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	995.00
XME-9040 or IC	Clutched, Electronic Mortise Lockset High Security cylinder, Townsteel "L" keyway, Regular 6 pin, SFIC 7 pin- less core	995.00

Remote	TS Product #
	Remote Control Unit (RCU)	64.00

IC Core	TS Product #		US26D
	IC6	6 Pin SFIC Core, Best Keyway (uncombinated)	29.50
	IC7	7 Pin SFIC Core, Best Keyway (uncombinated)	32.50

^* High Security, please check with factory.

KEYING

Commercial Keying Charges

TS Product #		US26D
TLBR100	KA - Keyed Alike	16.00
TLBR200	MK - Master Keying	18.00
TLBR300	Cut Key Charge	4.50
TLBR400	Key Stamping Charge	3.00

Interchangeable Keying Charges

TS Product #		US26D
TLBR600	IC Keying Charge	18.00
TLBR300	Cut Key Charge	8.00
TLBR400	Key Stamping Charge	3.00

Interconnected Locks

4" CTC

Levers Available: Sentinel, Quest, and Gala

		Finish
	CIL Series Function		626
	With Standard Schlage 6-pin Cylinder
CIL-S-81	Double Locking-Entry, Sectional O/S	199.00	188.00
CIL-S-82	Single Locking-Passage, Sectional O/S	194.00	183.00
CIL-E-81	Double Locking-Entry, Escutcheon Plate		213.00
CIL-E-82	Single Locking-Passage, Escutcheon Plate		208.00
With SFIC, IC core not included
CIL-S-81-IC	Double Locking-Entry, Sectional O/S, IC	199.00	188.00
CIL-S-82-IC	Single Locking-Passage, Sectional O/S, IC	194.00	183.00
CIL-E-81-IC Double Locking-Entry, Escutcheon Plate, IC 224.00			213.00
CIL-E-82-IC	Single Locking-Passage, Escutcheon Plate, IC	219.00	208.00

Note 1: Stock finish: US26D. Other finish upon request for lead time.

^[1] All standard cylinder comes with 6-pin Schlage C keyway only. [2] GGMK, GMK & MK available at additional charge. [3] Standard T strike furnished with lockset. 2 3/4" x 1 1/8" square strike with deadbolt. [4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Sentinel lever Gala lever Quest Lever

CE			FINISH
NON-CLUTCHED	Function	US10B	US15	US26	US26D
Non Keyed and Single Cylinder, Standard 6-Pin Functions
CE-75	Passage	181.00	181.00	181.00	181.00
CE-76/77	Privacy / Patio	216.00	216.00	216.00	216.00
CE-89	Exit Latch	216.00	216.00	216.00	216.00
CE-82	Entrance/Office	228.00	228.00	228.00	228.00
CE-84	Classroom	257.00	257.00	257.00	257.00
CE-86/89	Storeroom / Exit	228.00	228.00	228.00	228.00
CE-90	Corridor	288.00	288.00	288.00	288.00
CE-93	Hotel Motel	288.00	288.00	288.00	288.00
CE-109	Entry/Office	228.00	228.00	228.00	228.00
Double Cylinder, Standard 6-Pin
CE-80	Communicating	288.00	288.00	288.00	288.00
CE-87	Asylum	288.00	288.00	288.00	288.00
CE-88	Vestibule	288.00	288.00	288.00	288.00
CE-91	Store Door	288.00	288.00	288.00	288.00
CE-110	Classroom Intruder	288.00	288.00	288.00	288.00
CEI			FINISH
NON-CLUTCHED-IC	Function	US10B	US15	US26	US26D
Small Format I.C. Core Ready. Small Format I.C. Core Not Included.
CEI-80	Communicating	278.00	278.00	278.00	278.00
CEI-82	Entrance /Office	221.00	221.00	221.00	221.00
CEI-84	Classroom	251.00	251.00	251.00	251.00
CEI-86	Storeroom	221.00	221.00	221.00	221.00
CEI-87	Asylum	278.00	278.00	278.00	278.00
CEI-88	Vestibule	278.00	278.00	278.00	278.00
CEI-90	Corridor	278.00	278.00	278.00	278.00
CEI-91	Store Door	278.00	278.00	278.00	278.00
CEI-93	Hotel / Motel	278.00	278.00	278.00	278.00
CEI-109	Entry/Office	221.00	221.00	221.00	221.00
CEI-110	Classroom Intruder	278.00	278.00	278.00	278.00

Note 1: US3 and US4 finish upon request for lead time.

[1] All standard cylinder comes with 6-pin Schlage C keyway only. [2] GGMK, GMK & MK available at additional charge. [3] All locks come with ANSI strike unless specified otherwise. [ 4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

CE Series (CEC) Grade 1, Clutched

Extra Heavy Duty Cylindrical - Low Profile Rose

Sentinel lever

CEC		FINISH
CLUTCHED	Function	US32D / US32
Non Keyed and Single C	ylinder, Standard 6
CEC-75	Passage	274.00
CEC-76/77	Privacy / Patio	319.00
CEC-82	Entrance /Office	312.00
CEC-84	Classroom	327.00
CEC-86/89	Storeroom / Exit	295.00
CEC-90	Corridor	364.00
CEC-109	Entry/Office	321.00
Double Cylinder, Standard 6-Pin
CEC-80	Communicating	320.00
CEC-88	Vestibule	340.00
CEC-91	Store Door	373.00
CECI	Function	FINISH
CLUTCHED-IC	T diletion	US32D / US32
Small Format I.C. Core F	leady. Small Forma	t I.C. Core Not Included.
CECI-80	Communicating	315.00
CECI-82	Entrance /Office	307.00
CECI-84	Classroom	322.00
CECI-86	Storeroom	290.00
CECI-88	Vestibule	335.00
CECI-90	Corridor	359.00
CECI-91	Store Door	368.00
CECI-109	Entry/Office	316.00

[1] All standard cylinder comes with 6-pin Schlage C keyway only. [2] GGMK, GMK & MK available at additional charge. [3] All locks come with ANSI strike unless specified otherwise. [4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

				FINISH
CDC Series Clutching	Function	US10B	US3	US4	US15	US26	US26D
With Standard 6-pin Cylinder
CD-SD	Single Dummy	67.00	65.00	65.00	65.00	65.00	65.00
CDC-75	Passage	166.00	157.00	157.00	157.00	157.00	157.00
CDC-76	Privacy	198.00	188.00	188.00	188.00	188.00	188.00
CDC-84	Classroom	232.00	223.00	223.00	223.00	223.00	223.00
CDC-86	Storeroom	207.00	198.00	198.00	198.00	198.00	198.00
CD-87*	Asylum	259.00	250.00	250.00	250.00	250.00	250.00
CDC-90	Corridor	259.00	250.00	250.00	250.00	250.00	250.00
CDC-109	Entry/Office	207.00	198.00	198.00	198.00	198.00	198.00
CDC-110	Classroom Intruder	259.00	250.00	250.00	250.00	250.00	250.00
CDC Series Clutching-IC	Function	FINISH
		US10B	US3	US4	US15	US26	US26D
S.F.I.C. Core Ready. S.F.I.C. Cylinder Not Included.
CDCI-84	Classroom	227.00	218.00	218.00	218.00	218.00	218.00
CDCI-86	Storeroom	201.00	192.00	192.00	192.00	192.00	192.00
CDI-87*	Asylum	251.00	242.00	242.00	242.00	242.00	242.00
CDCI-90	Corridor	251.00	242.00	242.00	242.00	242.00	242.00
CDCI-109	Entry/Office	201.00	192.00	192.00	192.00	192.00	192.00
CDCI-110	Classroom Intruder	251.00	242.00	242.00	242.00	242.00	242.00

Note 1: Stock finish : US26D, US10B. Other finish upon request for lead time.

Note 2: F87 only non-clutching available

[1] All standard cylinder comes with 6-pin Schlage C keyway only. [2] GGMK, GMK & MK available at additional charge. [3] All locks come with ANSI strike unless specified otherwise. [ 4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

XCDC Electrified Grade 1

ANSI/BHMA GRADE 1 CYLINDRICAL LOCKSET

XCDC Series Clutching	Function	FINISH
ACDC Series Clutching	FullClion	US10B	US3	US4	US15	US26	US26D
With Standard 6-pin Cyli	nder
XCDC-8612	Classroom (Fail Safe)	N/A	N/A	N/A	N/A	N/A	399.00
XCDC-8614	Storeroom (Fail Safe)	N/A	N/A	N/A	N/A	N/A	399.00
XCDC-8622	Classroom (Fail Secure)	N/A	N/A	N/A	N/A	N/A	399.00
XCDC-8624	Storeroom (Fail Secure)	N/A	N/A	N/A	N/A	N/A	399.00
XCDC Series Clutching-	Function	FINISH
IC	runction	US10B	US3	US4	US15	US26	US26D
S.F.I.C. Core Ready. S.F.I.	C. Cylinder Not Included.	Schlage LFIC Less	Core Ready, Cy	inder Not Includ	led
XCDCI-8612	Classroom (Fail Safe)	N/A	N/A	N/A	N/A	N/A	399.00
XCDCI-8614	Storeroom (Fail Safe)	N/A	N/A	N/A	N/A	N/A	399.00
XCDCI-8622	Classroom (Fail Secure)	N/A	N/A	N/A	N/A	N/A	399.00
XCDCI-8624	Storeroom (Fail Secure)	N/A	N/A	N/A	N/A	N/A	399.00

Note1: Stock finish: US26D. Other finish upon request for lead time.

Note 2: XCDC-8612 & XCDC-8622 is for 12VDC and XCDC-8614 & XCDC-8624 is for 24VDC.

[1] All standard cylinder comes with 6-pin Schlage C keyway only. [2] GGMK, GMK & MK available at additional charge. [3] All locks come with ANSI strike unless specified otherwise. [4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice. "Schlage is a registered trademark of Schlage Lock.

Sentinel Standard trim Cylindrical Lockset CSRC Series, Clutched, Conical Rose

Lever Styles: Sentinel (S), Quest (Q), & Gala (G)

CSRC		FINISH
Series	Function	US10B	US26D
	With Standard 6-pin Cylinder
CSRC-75	Passage	105.00	96.00
CSRC-76	Privacy	110.00	98.00
CSRC-109	Entry	128.00	114.00
CSRC-84	Classroom	128.00	114.00
CSRC-86	Storeroom	128.00	114.00

[1] All standard cylinder comes with 6-pin Schlage C keyway only. [2] GGMK, GMK & MK available at additional charge. [3] All locks come with ASA strike unless otherwise specified . [4] Prices based on F.O.B. City of Industry CA. [5] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Low in stock, will be replaced by CSRC Grade 2 Cylindrical Lockset

Heavy Duty Clutched Cylindrical Lockset

			FINISH
CS Series	Function	US15	US10B	US3	US4	US26	US26D
	With Standard 6-pin Cylinder
CS-SD	Single Dummy	61.00	66.00	61.00	61.00	61.00	61.00
CS-T/COMM	Exit / Twin Communicating	96.00	105.00	96.00	96.00	96.00	96.00
CS-75	Passage	96.00	105.00	96.00	96.00	96.00	96.00
CS-76	Privacy	98.00	110.00	98.00	98.00	98.00	98.00
CS-109	Entry	114.00	128.00	114.00	114.00	114.00	114.00
CS-84	Classroom	114.00	128.00	114.00	114.00	114.00	114.00
CS-86	Storeroom	114.00	128.00	114.00	114.00	114.00	114.00
CS-87	Asylum	127.00	142.00	127.00	127.00	127.00	127.00

Note: CS Series available with Sentinel, Quest, and Gala levers only

	Function	FINISH
CSI Series		US26D
	I.C. Core Ready, I.C. Cylinder Not Included
CSI-109	Entry	109.00
CSI-84	Classroom	109.00
CSI-86	Storeroom	109.00

Note: CSI Series available with Sentinel and Quest levers only

Heavy Duty Non-Clutched Cylindrical Lockset

	Function		FINISH
CB Series		US15	US10B	US3	US4	US26	US26D
	With Standard 6-pin Cylinder
CBC-75	Passage	N/A	105.00	N/A	N/A	N/A	96.00
CB-76	Privacy	N/A	110.00	N/A	N/A	N/A	98.00
CB-109	Entry	N/A	128.00	N/A	N/A	N/A	114.00
CB-84	Classroom	N/A	128.00	N/A	N/A	N/A	114.00
CB-86	Storeroom	N/A	128.00	N/A	N/A	N/A	114.00

Note: CB Series available with Sentinel lever only.

^[1] All standard cylinder comes with 6-pin Schlage C keyway only. [2] GGMK, GMK & MK available at additional charge. [3] All locks come with T-strike unless otherwise specified . [4] Prices based on F.O.B. City of Industry CA. [5] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Tubular Lock

Designer		FINISH
Series	Descriptions	US3	US4	US26	US26D	US10B	US14	US15
TDS-L	Dummy Single	73.00	73.00	73.00	73.00	89.00	81.00	81.00
TDP-L	Dummy Pair	127.00	127.00	127.00	127.00	155.00	140.00	140.00
TLL-L-2-3/8	Passage, 2-3/8" Backset	144.00	144.00	144.00	144.00	176.00	159.00	159.00
TLL-L-2-3/4	Passage, 2-3/4" Backset	144.00	144.00	144.00	144.00	176.00	159.00	159.00
TLP-L-2-3/8	Privacy, 2-3/8" Backset	162.00	162.00	162.00	162.00	196.00	178.00	178.00
TLP-L-2-3/4	Privacy, 2-3/4" Backset	162.00	162.00	162.00	162.00	196.00	178.00	178.00

Note 1: TLL-B (Bevel), C (Curve), F (Flat), H (Heritage), LS (LS), S (Square) Levers, quote upon request.

Note 2: For dimentions, refer to Catalog and TownSteel website.

Tubular Lock

Vintage	Descriptions	FINISH
Series		US3	US4	US26	US26D	US10B	US14	US15
TDS-V	Dummy Single	81.00	81.00	81.00	81.00	99.00	89.00	89.00
TDP-V	Dummy Pair	140.00	140.00	140.00	140.00	171.00	155.00	155.00
TLL-V-2-3/8	Passage, 2-3/8" Backset	159.00	159.00	159.00	159.00	193.00	176.00	176.00
TLL-V-2-3/4	Passage, 2-3/4" Backset	159.00	159.00	159.00	159.00	193.00	176.00	176.00
TLP-V-2-3/8	Privacy, 2-3/8" Backset	178.00	178.00	178.00	178.00	216.00	196.00	196.00
TLP-V-2-3/4	Privacy, 2-3/4" Backset	178.00	178.00	178.00	178.00	216.00	196.00	196.00

^* Sentinel, Quest, Tango, Gala, Imperial Levers also available. * Not all lever designs available in all finishes, please contact factory.

[1] For levers and finishes not shown, Please contact factory. [2] Different finishes require different lead times. Please contact factory. [3] PVD finish available upon request for an additional 15% charge. Please contact factory. [4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice.

Tubular Lock

Designer	Descriptions	FINISH
Series	Descriptions	US32D US32
TDS-L	Dummy Single	89.00 89.00
TDP-L	Dummy Pair	155.00 155.00
TLL-L-2-3/8	Passage, 2-3/8" Backset	176.00 176.00
TLL-L-2-3/4	Passage, 2-3/4" Backset	176.00 176.00
TLP-L-2-3/8	Privacy, 2-3/8" Backset	196.00 196.00
TLP-L-2-3/4	Privacy, 2-3/4" Backset	196.00 196.00

SST Lever Designs available**:

^* Tango, Gala, Imperial levers also available.

[1] Not all lever designs available in all finishes. Please contact factory. [2] Different finishes require different lead times. Please contact factory. [3] PVD finish available upon request for an additional 15% charge. Please contact factory. [4] Prices based on F.O.B. City of Industry, CA. [5] Prices subject to change without notice.

^** More levers are available, refer to Catalog and TownSteel website.

DBD-81

DBD Series	Function	FINISH
DDD Selles		US10B	US26D
With 6-pin Ro	egular Cylinder. 2-3/4" backset.
DBD-61	Single Cylinder x Thumbturn	111.00	105.00
DBD-62	Double Cyinder	136.00	130.00
DBD-81	Single Cylinder x Blank Plate	101.00	95.00

DBDI-62

DBDI Series	Function	FINISH
DBDI Selles		US10B	US26D
S.F.I.C. Co	re Ready. S.F.I.C. Core Not Included. 2-3/4"	backset.
DBDI-61	Single Cylinder x Thumbturn	111.00	105.00
DBDI-62	Double Cylinder	136.00	130.00

*** STANDARD DISCOUNT ONLY *** (No Extra Charge if ordered with lock only)
DBD-Latch-2 3/8" (26D / 10B) 2-3/8" backset latch		22.00

DBT-62 DBT-50 Indicator (DBT-70 outside)

DBT Series	Function	FINISH
DB1 Series	Function	US10B	US26D	US32D
With 6-pin Re	egular Cylinder. 2-3/8" & 2-3/4" adjustable ba	ickset.
DBT-50	Thumbturn Only	34.00	32.00	30.00
DBT-61	Single Cylinder x Thumbturn	69.00	67.00	65.00
DBT-62	Double Cyinder	90.00	88.00	86.00
DBT-65	Single Cylinder x Thumbturn Classroom	78.00	76.00	74.00
DBT-70	Deadbolt with Indicator	48.00	46.00	44.00

DBTI-61

Commercial Deadbolt

DBTI Series	Function	FINISH
DB II Selles	Fullction	US10B	US26D	US32D
S.F.I.C. Co	S.F.I.C. Core Ready. S.F.I.C. Core Not Included. 2-3/8" & 2-3/4" adjustable backset.
DBTI-61	Single Cylinder x Thumbturn	69.00	67.00	65.00
DBTI-62	Double Cylinder	90.00	88.00	86.00
DBTI-65	Single Cylinder x Thumbturn Classroom	78.00	76.00	74.00

• [1] All regular cylinder comes with 6-pin Schlage C keyway only. [2] I.C. Core fits Falcon and Best I.C. cylinder. [3] I.C. Cylinder not included.
• [4] GGMK, GMK & MK available at additional charge. [5] All locks comes with 2-3/4" x 1-1/8" lipless strike unless specified otherwise.
• [6] Prices based on F.O.B. City of Industry, CA [7] Prices subject to change without notice.

^** Schlage, Falcon and Best are registered trademarks of their respective owners.

Commercial Deadbolt

DBF Series	Function	FINISH
DBF Selles	Function	US10	US10B	US3	US26	US26D
With 6-pin Re	egular Cylinder
DBF-61	Single Cylinder	211.00	211.00	202.00	202.00	202.00
DBF-62	Double Cylinder	261.00	261.00	252.00	252.00	252.00

Commercial Deadbolt

DBFI Series	Function		FINISH
DBI I Selles	i diletion	US10	US10B	US3	US26	US26D
I.C. Core Rea	ady. I.C. Cylinder Not Included.
DBFI-61	Single Cylinder	206.00	206.00	195.00	195.00	195.00
DBFI-62	Double Cylinder	249.00	249.00	238.00	238.00	238.00

DBS Series	Function	FINI	SH
DBS Selles	FullClion	US10B	US3	US26	US26D
With 6-pin R	egular Cylinder
DBS-61	Single Cylinder	63.00	54.00	57.00	N/A
DBS-62	Double Cylinder	80.00	72.00	74.00	N/A
DBS-63	Thumbturn	N/A	17.00	N/A	20.00

• [1] All regular cylinder comes with 6-pin Schlage C keyway only.
• [2] I.C. Core fits Falcon and Best I.C. cylinder.
• [3] I.C. Cylinder not included.
• [4] GGMK, GMK & MK available at additional charge.
• [5] All locks comes with 2-3/4" x 1-1/8" lipless strike unless specified otherwise.
• [6] Prices based on F.O.B. City of Industry, CA.
• [7] Prices subject to change without notice.
• ** Schlage, Falcon and Best are registered trademarks of their respective owners.

Heavy Duty Anti-Ligature Lever ANSI Grade 1 Mortise Lockset

MRX-L Series	Descriptions	FINISH
MDV C L 01	Coational Trim Non Koyad Daggara V Layara	US32D
MRX-S-L-01 MRX-S-L-02	Sectional Trim, Non Keyed, Passage X Levers Sectional Trim, Non Keyed, Privacy/Bathroom with Deadbolt X Levers	670.00 690.00
MRX-S-L-02	Sectional Trim, Keyed Single Cylinder, Entry/Office X Levers	720.00
MRX-S-L-05	Sectional Trim, Keyed Single Cylinder, Classroom X Levers Sectional Trim, Keyed Single Cylinder, Classroom X Levers	720.00
MRX-S-L-07	Sectional Trim, Reyed Single Cylinder, Classroom & Levers Sectional Trim, Keyed Single Cylinder, Storeroom/Closet X Levers	720.00
MRX-S-L-07	Sectional Trim, Keyed Single Cylinder, Storeroom/Closet X Levers Sectional Trim, Keyed Single Cylinder, Front Door/Corridor Lock X Levers	720.00
MRX-S-L-12	Sectional Trim, Keyed Single Cylinder, Front Book Corndon Edox & Levers Sectional Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Levers	740.00
MRX-S-L-13	Sectional Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Levers	740.00
MRX-S-L-14	Sectional Trim, Keyed Single Cylinder, Store Door X Levers	800.00
MRX-S-L-15*	Sectional Trim, Keyed Single Cylinder, Hotel/Motel with T-Turn X Levers. *The full functionality of the F15 function cannot be achieved with the cylinder supplied from TownSteel. Customer must furnish their own emergency cylinder.	740.00
MRX-S-L-19	Sectional Trim, Non Keyed, Privacy/Bathroom with Deadbolt X Levers	690.00
MRX-S-L-20	Sectional Trim, Keyed Single Cylinder, Entrance/Apartment/Dormitory with T-Turn X Levers	740.00
MRX-S-L-22	Sectional Trim, Non Keyed, Privacy/Bathroom without Deadbolt X Levers	690.00
MRX-S-L-26	Sectional Trim, Keyed Single Cylinder, Institutional Privacy X Levers	800.00
MRX-S-L-29	Sectional Trim, Keyed Single Cylinder, Anti-Ligature T-Turn Levers, Classroom Dead Lock	670.00
MRX-S-L-30	Sectional Trim, Keyed Double Cylinders, Institutional X Levers	800.00
MRX-S-L-32	Sectional Trim, Keyed Double Cylinders, Intruder Latch Bolt X Levers	800.00
MRX-S-L-33	Sectional Trim, Keyed Double Cylinders, Intruder Dead Bolt X Levers	800.00
MRX-S-L-34	Sectional Trim, Keyed Double Cylinders, Intruder Dead Bolt with Auxiliary Dead Latch X Levers	800.00
MRX-S-L-35	Sectional Trim, Keyed Double Cylinders, Storeroom with Dead Bolt X Levers	800.00
MRX-S-L-46	Sectional Trim, Keyed Single Cylinder,Institutional Privacy with Key locked feature	800.00
MRX-S-L-RF	Sectional Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Levers	800.00
MRX-S-L-LTF	Sectional Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Levers	800.00
MRX-E-L-01	Escutcheon Trim, Non Keyed, Passage X Levers	870.00
MRX-E-L-02	Escutcheon Trim, Non Keyed, Privacy/Bathroom with Deadbolt X Levers	890.00
MRX-E-L-04	Escutcheon Trim, Keyed Single Cylinder, Entry/Office X Levers	920.00
MRX-E-L-05	Escutcheon Trim, Keyed Single Cylinder, Classroom X Levers	920.00
MRX-E-L-07	Escutcheon Trim, Keyed Single Cylinder, Storeroom/Closet X Levers	920.00
MRX-E-L-08	Escutcheon Trim, Keyed Single Cylinder, Front Door/Corridor Lock X Levers	920.00
MRX-E-L-12	Escutcheon Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Levers	940.00
MRX-E-L-13	Escutcheon Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Levers	940.00
MRX-E-L-14	Escutcheon Trim, Keyed Double Cylinder, Store Door X Levers	990.00
MRX-E-L-15*	Escutcheon Trim, Keyed Single Cylinder, Hotel/Motel with T-Turn X Levers. 'The full functionality of the F15 function cannot be achieved with the cylinder supplied from TownSteel. Customer must furnish their own emergency cylinder.	940.00
MRX-E-L-20	Escutcheon Trim, Keyed Single Cylinder, Entrance/Apartment/dormitory with T-Turn X Levers	940.00
MRX-E-L-22	Escutcheon Trim, Non Keyed, Privacy/Bathroom without Deadbolt X Levers	890.00
MRX-E-L-26	Escutcheon Trim, Keyed Single Cylinder, Institutional Privacy X Levers	990.00
MRX-E-L-29	Escutcheon Trim, Keyed Single Cylinder, Anti-Ligature T-Turn Levers, Classroom Dead Lock	870.00
MRX-E-L-30	Escutcheon Trim, Keyed Double Cylinders, Institutional X Levers	990.00
MRX-E-L-32	Escutcheon Trim, Keyed Double Cylinders, Intruder Latch Bolt X Levers	990.00
MRX-E-L-33	Escutcheon Trim, Keyed Double Cylinders, Intruder Dead Bolt X Levers	990.00
MRX-E-L-34	Escutcheon Trim, Keyed Double Cylinders, Intruder Dead Bolt with Auxiliary Dead Latch X Levers	990.00
MRX-E-L-35	Escutcheon Trim, Keyed Double Cylinders, Storeroom with Dead Bolt X Levers	990.00
MRX-E-L-46	Escutcheon Trim, Keyed Single Cylinder, Institutional Privacy with Key locked feature	990.00
MRX-E-L-RF	Escutcheon Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Levers	990.00
MRX-E-L-LTF	Escutcheon Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Levers	990.00

^* Special Note: TownSteel can only supply the Schlage C Keyway Cylinder and not the Special Hotel Cylinder for F15 Function [1] All locks comes with 6-pin Schlage C keyway standard cylinder. [2] Small Format IC housing is available. SFIC core is available at additional charge. [3] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Heavy Duty Anti-Ligature Knob ANSI Grade 1 Mortise Lockset

MRX-K Series	Descriptions	FINISH
MDV C I/ 04	Costional Trim, Non-Koyad Bassana V Knaha	US32D
MRX-S-K-01 MRX-S-K-02	Sectional Trim, Non Keyed, Passage X Knobs	620.00 640.00
MRX-S-K-04	Sectional Trim, Non Keyed, Privacy/Bathroom with Deadbolt X Knobs Sectional Trim, Keyed Single Cylinder, Entry/Office X Knobs	670.00
MRX-S-K-05	Sectional Trim, Reyed Single Cylinder, Entry/Onice X Knobs Sectional Trim, Keyed Single Cylinder, Classroom X Knobs	670.00
MRX-S-K-07	Sectional Trim, Keyed Single Cylinder, Storeroom/Closet X Knobs	670.00
MRX-S-K-08	Sectional Trim, Keyed Single Cylinder, Front Door/Corridor Lock X Knobs	670.00
MRX-S-K-12 MRX-S-K-13	Sectional Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Knobs	690.00 690.00
MUV-2-V-13	Sectional Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Knobs	690.00
MRX-S-K-15*	Sectional Trim, Keyed Single Cylinder, Hotel/Motel with T-Turn X Knobs *The full functionality of the F15 function cannot be achieved with the cylinder supplied from TownSteel. Customer must furnish their own emergency cylinder.	690.00
MRX-S-K-19	Sectional Trim, Non Keyed, Privacy/Bathroom with Deadbolt X Knobs	640.00
MRX-S-K-20	Sectional Trim, Keyed Single Cylinder, Entrance/Apartment/Dormitory with T-Turn X Knobs	690.00
MRX-S-K-22	Sectional Trim, Non Keyed, Privacy/Bathroom without Deadbolt X Knobs	640.00
MRX-S-K-26	Sectional Trim, Keyed Single Cylinder, Institutional Privacy X Knobs	745.00
MRX-S-K-29	Sectional Trim, Keyed Single Cylinder, Anti-Ligature T-Turn Knobs, Classroom Dead Lock	620.00
MRX-S-K-30	Sectional Trim, Keyed Double Cylinders, Institutional X Knobs	745.00
MRX-S-K-32	Sectional Trim, Keyed Double Cylinders, Intruder Latch Bolt X Knobs	745.00
MRX-S-K-33	Sectional Trim, Keyed Double Cylinders, Intruder Dead Bolt X Knobs	745.00
MRX-S-K-34	Sectional Trim, Keyed Double Cylinders, Intruder Dead Bolt with Auxiliary Dead Latch X Knobs	745.00
MRX-S-K-35	Sectional Trim, Keyed Double Cylinders, Storeroom with Dead Bolt X Knobs	745.00
MRX-S-K-46	Sectional Trim, Keyed Single Cylinder, Institutional Privacy with Key locked feature	745.00
MRX-S-K-RF	Sectional Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Knob	745.00
MRX-S-K-LTF	Sectional Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Knob	745.00
MRX-E-K-01	Escutcheon Trim, Non Keyed, Passage X Knobs	820.00
MRX-E-K-02	Escutcheon Trim, Non Keyed, Privacy/Bathroom with Deadbolt X Knobs	840.00
MRX-E-K-04	Escutcheon Trim, Keyed Single Cylinder, Entry/Office X Knobs	870.00
MRX-E-K-05	Escutcheon Trim, Keyed Single Cylinder, Classroom X Knobs	870.00
MRX-E-K-07	Escutcheon Trim, Keyed Single Cylinder, Storeroom/Closet X Knobs	870.00
MRX-E-K-08	Escutcheon Trim, Keyed Single Cylinder, Front Door/Corridor Lock X Knobs	870.00
MRX-E-K-12	Escutcheon Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Knobs	890.00
MRX-E-K-13	Escutcheon Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn X Knobs	890.00
MRX-E-K-15*	Escutcheon Trim, Keyed Single Cylinder, Hotel/Motel with T-Turn X Knobs *The full functionality of the F15 function cannot be achieved with the cylinder supplied from TownSteel. Customer must furnish their own emergency cylinder.	890.00
MRX-E-K-20	Escutcheon Trim, Keyed Single Cylinder, Entrance/Apartment/Dormitory with T-Turn X Knobs	890.00
MRX-E-K-22	Escutcheon Trim, Non Keyed, Privacy/Bathroom without Deadbolt X Knobs	840.00
MRX-E-K-26	Escutcheon Trim, Keyed Single Cylinder, Institutional Privacy X Knobs	945.00
MRX-E-K-29	Escutcheon Trim, Keyed Single Cylinder, Anti-Ligature T-Turn Knobs, Classroom Dead Lock	820.00
MRX-E-K-30	Escutcheon Trim, Keyed Double Cylinders, Institutional X Knobs	945.00
MRX-E-K-32	Escutcheon Trim, Keyed Double Cylinders, Intruder Latch Bolt X Knobs	945.00
MRX-E-K-33	Escutcheon Trim, Keyed Double Cylinders, Intruder Dead Bolt X Knobs Escutcheon Trim, Keyed Double Cylinders, Intruder Dead Bolt with Auxiliary Dead	945.00
MRX-E-K-34	Latch X Knobs	945.00
MRX-E-K-35	Escutcheon Trim, Keyed Double Cylinders, Storeroom with Dead Bolt X Knobs	945.00
MRX-E-K-46	Escutcheon Trim, Keyed Single Cylinder, Institutional Privacy with Key locked feature	945.00
MRX-E-K-RF	Escutcheon Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Knob	945.00
MRX-E-K-LTF	Escutcheon Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn X Knob	945.00

^* Special Note: TownSteel can only supply the Schlage C Keyway Cylinder and not the Special Hotel Cylinder for F15 Function [1] All locks comes with 6-pin Schlage C keyway standard cylinder. [2] Small Format IC housing is available. SFIC core is available at additional charge. [3] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

ANSI Grade 1 Mortise Lockset with Ligature Resistant Trim - Arch

FINISH MRX-A Series Descriptions US32D MRX-A-01 Arch Lever Trim, Non Keyed, Passage 870.00 MRX-A-02 Arch Lever Trim, Non Keyed, Privacy/Bathroom with Deadbolt 890.00 MRX-A-04 Arch Lever Trim, Keyed Single Cylinder, Entry/Office 920.00 MRX-A-05 Arch Lever Trim, Keyed Single Cylinder, Classroom 920.00 MRX-A-07 Arch Lever Trim, Keyed Single Cylinder, Storeroom/Closet 920.00 MRX-A-08 Arch Lever Trim, Keyed Single Cylinder, Front Door/Corridor Lock 920.00 MRX-A-12 Arch Lever Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn 940.00 MRX-A-13 Arch Lever Trim, Keyed Single Cylinder, Dormitory or Exit with T-Turn 940.00 MRX-A-14 Arch Lever Trim, Keyed Double Cylinder, Store Door Lock 990.00 Arch Lever Trim, Keyed Single Cylinder, Hotel/Motel with T-Turn *The full functionality of MRX-A-15 the F15 function cannot be achieved with the cylinder supplied from TownSteel. Customer must furnish their own emergency cylinder. 940.00 MRX-A-19 Arch Lever Trim, Non Keyed, Privacy/Bathroom with Deadbolt 890.00 Arch Lever Trim, Keyed Single Cylinder, Entrance/Apartment/dormitory with T-Turn MRX-A-20 940.00 MRX-A-22 Arch Lever Trim, Non Keyed, Privacy/Bathroom without Deadbolt 890.00 MRX-A-26 Arch Lever Trim, Keyed Single Cylinder, Institutional Privacy 990.00 MRX-A-29 MRX-A-29, Keyed Single Cylinder, Classroom Dead Lock 560.00
MRX-A-30 Arch Lever Trim, Keyed Double Cylinders, Institutional 990.00
MRX-A-32 Arch Lever Trim, Keyed Double Cylinders, Intruder Latch Bolt 990.00
MRX-A-33 Arch Lever Trim, Keyed Double Cylinders, Intruder Dead Bolt 990.00
MRX-A-34 Arch Lever Trim, Keyed Double Cylinders, Intruder Dead Bolt with Auxiliary Dead Latch 990.00
MRX-A-35 Arch Lever Trim, Keyed Double Cylinders, Storeroom with Dead Bolt 990.00
Arch Lever Trim, Keyed Single Cylinder, Institutional Privacy with Key locked feature MRX-A-46 990.00
MRX-A-RF Arch Lever Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn 990.00
MRX-A-LTF Arch Lever Trim, Keyed Single Cylinder, Female Patient Privacy with T-Turn 990.00
MRX-A-41 Arch Lever Trim, Single Dummy 280.00
MRX-A-72 Arch Lever Trim, Back to Back Double Dummy 560.00

^[1] All locks comes with 6-pin Schlage C keyway standard cylinder. [2] Small Format IC housing is available. SFIC core is available at additional charge.

^[3] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

XMRX-S-K Electrified Ligature Resistant Mortise Lock - Knob

		Finish
XMRX-S-K Series	Descriptions	US32D
	Single Cylinder Functions, 3-Position monitoring
XMRX-S-K-121	12VDC Fail Safe, 3-Position Monitoring	870
XMRX-S-K-122	12VDC Fail Secure, 3-Position Monitoring	870
XMRX-S-K-241	24VDC Fail Safe, 3-Position Monitoring	870
XMRX-S-K-242	24VDC Fail Secure, 3-Position Monitoring	870
Single Cylinder Functions, RQE
XMRX-S-K-121RQE	12VDC Fail Safe, Request-to-Exit (RQE)	870
XMRX-S-K-122RQE	12VDC Fail Secure, Request-to-Exit (RQE)	870
XMRX-S-K-241RQE	24VDC Fail Safe, Request-to-Exit (RQE)	870
XMRX-S-K-242RQE	24VDC Fail Secure, Request-to-Exit (RQE)	870
Deadbolt w/Thumbturn Functions, RQE
XMRX-S-K-121-DB	12VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	870
XMRX-S-K-122-DB	12VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	870
XMRX-S-K-241-DB	24VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	870
XMRX-S-K-242-DB	24VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	870
Deadbolt w/Double Cylinder Functions, RQE
XMRX-S-K-121-DC	12VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	945
XMRX-S-K-122-DC	12VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	945
XMRX-S-K-241-DC	24VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	945
XMRX-S-K-242-DC	24VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	945

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Gala & Regal. [2] Regal knob available in US3, 4 , 26D, 32, 32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

XMRX-E-K Electrified Ligature Resistant Mortise Lock - Knob

		Finish
XMRX-E-K Series	Descriptions	US32D
Single Cylinder Functions, 3-Position monitoring
XMRX-E-K-121	12VDC Fail Safe, 3-Position Monitoring	1070
XMRX-E-K-122	12VDC Fail Secure, 3-Position Monitoring	1070
XMRX-E-K-241	24VDC Fail Safe, 3-Position Monitoring	1070
XMRX-E-K-242	24VDC Fail Secure, 3-Position Monitoring	1070
Single Cylinder Functions, RQE
XMRX-E-K-121RQE	12VDC Fail Safe, Request-to-Exit (RQE)	1070
XMRX-E-K-122RQE	12VDC Fail Secure, Request-to-Exit (RQE)	1070
XMRX-E-K-241RQE	24VDC Fail Safe, Request-to-Exit (RQE)	1070
XMRX-E-K-242RQE	24VDC Fail Secure, Request-to-Exit (RQE)	1070
Deadbolt w/Thumbturn Functions, RQE
XMRX-E-K-121-DB	12VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1070
XMRX-E-K-122-DB	12VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1070
XMRX-E-K-241-DB	24VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1070
XMRX-E-K-242-DB	24VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1070
	Deadbolt w/Double Cylinder Functions, RQE
XMRX-E-K-121-DC	12VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1145
XMRX-E-K-122-DC	12VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1145
XMRX-E-K-241-DC	24VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1145
XMRX-E-K-242-DC	24VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1145

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Gala & Regal. [2] Regal knob available in US3, 4 , 26D, 32, 32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

XMRX-A Electrified Ligature Resistant Mortise Lock

XMRX-A Series	Descriptions	Finish US32D
	Single Cylinder Functions, 3-Position monitoring
XMRX-A-121	12VDC Fail Safe, 3-Position Monitoring	1120
XMRX-A-122	12VDC Fail Secure, 3-Position Monitoring	1120
XMRX-A-241	24VDC Fail Safe, 3-Position Monitoring	1120
XMRX-A-242	24VDC Fail Secure, 3-Position Monitoring	1120
	Single Cylinder Functions, RQE
XMRX-A-121RQE	12VDC Fail Safe, Request-to-Exit (RQE)	1120
XMRX-A-122RQE	12VDC Fail Secure, Request-to-Exit (RQE)	1120
XMRX-A-241RQE	24VDC Fail Safe, Request-to-Exit (RQE)	1120
XMRX-A-242RQE	24VDC Fail Secure, Request-to-Exit (RQE)	1120
Deadbolt w/Thumbturn Functions, RQE
XMRX-A-121-DB	12VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1120
XMRX-A-122-DB	12VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1120
XMRX-A-241-DB	24VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1120
XMRX-A-242-DB	24VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1120
	Deadbolt w/Double Cylinder Functions, RQE
XMRX-A-121-DC	12VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1190
XMRX-A-122-DC	12VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1190
XMRX-A-241-DC	24VDC Fail Safe, Deadbolt Request-to-Exit (RQE)	1190
XMRX-A-242-DC	24VDC Fail Secure, Deadbolt Request-to-Exit (RQE)	1190

[1] Complete stainless steel trims available only with Sentinel, Congress, Artistic, Tango, Imperial, Gala & Regal. [2] Regal knob available in US3, 4 , 26D, 32, 32D only. [3] All locks comes with 6-pin Schlage C keyway standard cylinder. [4] GGMK, GMK & MK available at additional charge. [5] Prices based on F.O.B. City of Industry, CA. [6] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Heavy Duty Ligature Resistant Lever Grade 1 Cylindrical Lockset

TRX-L Series	Descriptions	FINISH
TRX-L Series	Descriptions	US32D
TRX-L-75	Passage, Non Keyed, Clutched Levers	500.00
TRX-L-76**	Privacy, Non Keyed, Clutched Levers, Not available with 5" Backset	520.00
TRX-L-109*	Entry, Keyed, Clutched Levers	540.00
TRX-L-84	Classroom, Keyed, Clutched Levers	540.00
TRX-L-86	Storeroom, Keyed, Clutched Levers	540.00
TRX-L-87	Asylum, Keyed, Double Cylinders, Clutched Levers	630.00
TRX-L-72	Back to Back Dummy, Thru-Bolt, Levers	400.00
TRX-L-110	Classroom Intruder, Keyed, Clutched Levers	680.00
TRX-L-80	Communicating, Keyed, Clutched Levers	680.00
TRX-L-SFIC Series	Descriptions	FINISH
THA-L-SI IC SCHES	Descriptions	US32D
TRX-L-IC Function	Clutched Levers, Small Format 6-Pin/7-Pin IC Core Ready (I.C. core not included) (Available for F109, F84, F86 or F87 function)	530.00
TRX-L-IC Function	Clutched Levers, Small Format 6-Pin/7-Pin IC Core Ready (I.C. core not included) (Available for F110 or F80 function)	580.00
TDV L LEIC Corios	Descriptions	FINISH
TRX-L-LFIC Series	Descriptions	US32D
TRX-L-IC Function	Clutched Levers, Large Format Schlage/Corbin Russwin 6-Pin IC Core Ready (I.C. core not included) (Available for F109,F84,F86 or F87 function)	580.00
Optional Backset
5" Optional Backset	(For TRX-L)	Add $10.00 Net

Special note 1: *TRX-L-81 is old item number, replaced by new item number, TRX-L-109

Special note 2: **5" Backset is not available for TRX-L-76 (Privacy Function)

^[1] All locks comes with 6-pin Schlage C keyway standard cylinder. [2] Small Format IC housing is available. SFIC core is available at additional charge. [3] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Heavy Duty Anti-Ligature Knob ANSI Grade 1 Cylindrical Lockset

CRX-K Series	Descriptions	FINISH US32D
CRX-K-75	Passage, Non Keyed, Knobs	580.00
CRX-K-76	Privacy, Non Keyed, Knobs	600.00
CRX-K-81	Entry, Keyed Single Cylinder, Knobs	620.00
CRX-K-84	Classroom, Keyed Single Cylinder, Knobs	620.00
CRX-K-86	Storeroom, Keyed Single Cylinder, Knobs	620.00
CRX-K-87	Asylum, Keyed, Double Cylinder, Knobs	680.00
CRX-K-110	Classroom Intruder, Keyed, Double Cylinder, Knobs	680.00
CRX-K-72	Back to Back Dummy, Thru-Bolt, Knobs	480.00
Optional Backset
5" Optional Backset (Fo	or CRX-K)	Add $10.00 Net

^[1] All locks comes with 6-pin Schlage C keyway standard cylinder. [2] IC is not available.

Heavy Duty Ligature Resistant Arch Trim Grade1 Cylindrical Lockset

CRX-A Series	Descriptions	FINISH
	·	US32D
CRX-A-75	Passage, Non Keyed	680.00
CRX-A-76	Privacy, Non Keyed	700.00
CRX-A-84	Classroom, Keyed	720.00
CRX-A-86	Storeroom, Keyed	720.00
CRX-A-41	Single Dummy	280.00
CRX-A-72	Back to Back Dummy	560.00
ODY A CEIO Conica	Permissions	FINISH
CRX-A-SFIC Series	Descriptions	US32D
CRX-A-IC Function	Keyed, Small Format 6-Pin/7-Pin IC Core Ready (I.C. core not included) (Available for F84 and F86 function)	820.00
CRX-A-LFIC Series	Descriptions	FINISH
CHA-A-LI IC Selles	Descriptions	US32D
CRX-A-IC Function	Keyed, Large Format Schlage/Corbin Russwin 6-Pin IC Core Ready (I.C. core not included) (Available for F84 and F86 function)	820.00
Optional Backset
5" Optional Backset (For	· CRX-A)	Add $10.00 Net

^[1] All locks comes with 6-pin Schlage C keyway standard cylinder.

^[2] High security cylinder available, TownSteel "L" keyway, 6 pin [3] Prices subject to change without notice. ** Schlage is a registered trademark of Schlage Lock.

Heavy Duty Anti-Ligature Thumbturn ANSI Grade 1 Mortise Deadbolt

DRX Series	Descriptions	FINISH US32D
DRX-09	Deadbolt, Thumbturn, Single Cylinder, Classroom	270.00
DRX-07	Deadbolt, Thumbturn, Single Cylinder	270.00
DRX-18	Deadbolt, Thumbturn only. No trim on the other side	230.00

CYLINDERS & KEYING

Cylinders

TS Product #	Description	3,4, 26, 26D	32D	10B
4036SC	1-1/4" Mortise Cylinder, Schlage C Keyway	$28.50	$32.50	$32.50
4046SC	1-3/8" Mortise Cylinder, Schlage C Keyway	$30.50	$34.50	-
4056SC	1-1/2" Mortise Cylinder, Schlage C Keyway	$34.50	-	-
4066SC	1-5/8" Mortise Cylinder, Schlage C Keyway	$46.50	-	-

IC Housing

TS Product #	Description	3,4, 26, 26D	10	10B
4036I	1-1/4" IC Mortise Housing (Less Core),6 pin	$28.50	-	$31.00
4046I	1-3/8" IC Mortise Housing (Less Core), 7 pin	$38.50	$31.00	$33.00
4056I	1-1/2" IC Mortise Housing (Less Core), 7 pin	$39.50	-	$39.50
4066I	1-5/8" IC Mortise Housing (Less Core), 7 pin	$44.50	-	$44.50

IC Core

TS Product #	Description	4, 26D
IC6	6 Pin IC Core, Best Keyway (uncombinated)	$29.50
IC7	7 Pin IC Core, Best Keyway (uncombinated)	$32.50

Rim Cylinders

TS Product #	Description	US26D	US32D
TS1 4026-RIMSC	1-1/8" Rim Cylinder, Schlage C Keyway	$55.00	-
TS1 ICR6	1/1/2" IC Rim Housing (Less Core), 6 Pin	$55.00	-
TS1 ICR7	1/1/2" IC Rim Housing (Less Core), 7 Pin	$55.00	$55.00

Cylinder Parts

TS Product #	Description	3,4,26D,32,32D	10,10B	No Finish
TS Cam	TS Standard Butterfly Cam	n/a	n/a	$5.00
S8333	Cylinder Ring - for 1-1/4" Cylinder	$13.00	-	n/a
S8233	Cylinder Ring - for 1-3/8" to 1-1/2" Cylinder	$13.00	$15.00	n/a
S8239	Cylinder Ring - for 1-1/2" to 1-5/8" Cylinder	$13.00	-	n/a
S8234	Cylinder Ring - for 1-1/4" Cylinder	$13.00	-	n/a

Note: Please consult factory for availability of other types of cams.

Models with no pricing might be available upon request. Please contact factory about availability.

Status Indicators

	TS Product #	Description	US26D	US32D
	MSG AE55012-OC	SI2 Indicator Assy. Sect, Outside Cylinder, "V/O" Msg, Cylinder not included	$90.00	$90.00
	MSG AE55012-OT	SI1 Indicator Assy. SECT,OT, Outside Emerg Rel "V/O" Msg	$90.00	$90.00
MSG AE55012	MSG AE87012-IC	SI3 Indicator Assy. ESCN, Inside Cylinder, "V/O" Msg, Cylinder not included	$90.00	$90.00
	MSG AE87012-OC	SI3 Indicator Assy. ESCN, Outside Cylinder, "V/O" Msg, Cylinder not included	$90.00	$90.00
	MSG AE87012-OT	SI3 Indicator Assy. ESCN, OT, Outside Emerg Rel., "V/O" Msg	$90.00	$90.00
	MSG AE87212-IC	SI3 Indicator Assy. ESCN, Inside Cylinder, "Locked /Unlocked," Cylinder not included	$90.00	$90.00

MSG AE87012 MSG AE87212

(1) All standard cylinder except 1-5/8" comes with 6-pin Schlage C keyway only. 7 pin Schlage C keyway available for 1-5/8" cylinder in 26D fInish. (2) I.C. Core fits Falcon and Best I.C. cylinder. Keyways available: Best A-H,J-M, Q.3) GGMK, GMK & MK available at additional charge. (5) Prices based on F.O.B. City of Industry, CA. (6) Prices subject to change without notice. ** Schalge, Falcon and Best are registered trademarks of their respective owners.

KEYING

Commercial Keying Charges

TS Product #	Description
TLBR100	KA - Keyed Alike	$16.00
TLBR200	MK - Master Keying	$18.00
TLBR300	Cut Key Charge	$4.50
TLBR400	Key Stamping Charge	$3.00

Key NOT included

Master Key NOT included.

Interchangeable Core Keying Charges

TS Product #	Description
TLBR600	IC Keying Charge	$18.00
TLBR300	Cut Key Charge	$8.00
TLBR400	Key Stamping Charge	$3.00

Key NOT included

Master Key or Control NOT included.

Residential Keying Charges

TS Product #	Description
TLBR100RES	Key Alike Charge Residential	$16.00
TLBR200RES	Master Key Charge Residential	$18.00
TLBR300RES	Cut Key Charge Residential	$4.50
TLBR400RES	Stamping Charge Residential	$3.00
TLBR500RES	Construction Key Charge Residential	$16.00

CLOSERS

TDC70 - Standard Duty Commercial Closer

TS Product #	Description	AL, DU	3, 26
TDC70	Standard Arm Tri-Packed	$122.00	$203.00
TDC70DA	Delay Action - Standard Arm	$129.00	$216.00
TDC70HOA	Friction Hold Open Arm	$163.00	n/a
TDC70CUSH	CUSH Parallel Arm	$173.00	n/a
TDC70HCUSH	Hold Open CUSH Parallel Arm	$183.00	n/a
TDC70T	Non-Hold Open Slide Track Arm	$197.00	n/a

BF (suffix) - Barrier Free Spring Size 1 - 4 n/c (6 units x case)

TDC90 - Lite Duty Commercial Closer

TS Product #	Description	AL,DU
TDC90	Standard Arm Tri-Packed	$102.00

BF (suffix) - Barrier Free Spring Size 1 - 4 n/c (10 units x case)

TDC50 - Economy Duty Commercial Closer

TS Product #	Description	AL,DU
TDC53	Standard Arm Tri-Packed	$82.00
TDC54	Standard Arm Tri-Packed	$89.00

(10 units x case)

TDC40 - Heavy Duty Commercial Closer

TS Product #	Description	AL,DU
TDC40	Standard Arm Tri-Packed	$187.00
TDC40DA	Delay Action - Standard Arm	$192.00
TDC40HOA	Friction Hold Open Arm	$230.00
TDC40CUSH	CUSH Parallel Arm	$235.00
TDC40HCUSH	Hold Open CUSH Parallel Arm	$241.00
(4 units x case)

TDC85 - Heavy Duty Commercial Closer

TS Product #	Description	AL,DU
TDC85	Adjustable -Standard Arm Tri-Packed	$128.00
TDC85DA	Delay Action - Standard Arm	$136.00
TDC85HOA	Friction Hold Open Arm	$169.00
TDC85CUSH	CUSH Parallel Arm	$175.00
TDC85HCUSH	Hold Open CUSH Parallel Arm	$189.00
(6 units x case)

CLOSER ARMS

TDC ARM- Commercial Closer Arm

TDC ARM-01

TS Product #	Description	AL, DU
TDC ARM-01	Friction Hold Open Arm (for TDC70)	$61.00
TDC ARM-01-40	Friction Hold Open Arm (for TDC40)	$61.00
TDC ARM-01-85	Friction Hold Open Arm (for TDC85)	$61.00
TDC ARM-02	Cush Parallel Arm (for TDC70)	$64.00
TDC ARM-02-40	Cush Parallel Arm (for TDC 40)	$64.00
TDC ARM-02-85	Cush Parallel Arm (for TDC 85)	$64.00
TDC ARM-03	Cush-N-Stop Armset (for TDC70)	$66.00
TDC ARM-03-40	Cush-N-Stop Armset (for TDC 40)	$66.00
TDC ARM-03-85	Cush-N-Stop Armset (for TDC 85)	$66.00
TDC ARM-04	Track Armset (Only for TDC70 & TDC85, not TDC40)	$77.00
TDC BLADE-40	Door Closer Blade for all models, For TDC-40 Only	$25.00
TDC BLADE-85	Door Closer Blade for all models, For TDC-70/85/90/53/54	$25.00
TDC 40-AL Cover	Cover only for TDC-40-AL	$40.00
TDC 70-AL Cover	Cover only for TDC-70-AL	$36.00

TDC ARM-03

TDC ARM-04

CLOSER PLATES

TPDC - Mounting Plates & TDC - Drop Plates

TS Product #	Description	AL, DU
TPDC-718	Drop Plate (where top rail less than 3 3/4") (for TDC40)	$27.00
	Top Jamb Drop Plate (requires 1 3/4" minimum head frame)
TPDC-718G	(for TDC 40)	$27.00
	Top Jamb Drop Plate (where face is less than 3 1/2") (for
TPDC-718TJ	TDC 40)	$27.00
TPDC-718PA	Parallel Arm Mounting Plate (for TDC 40)	$27.00
	Drop Plate (for pull side, where mounting surface height is
TDC 70-DP	less than 3-1-2")	$27.00
	Drop Plate (for push side parallel arm, mounting surface
TDC 70-DPPA	height is less than 4-3/4")	$30.00
	Drop Plate (for mounting surface when clearance or
TDC 85-DP	mounting surface dimensions are limited)	$27.00
	Drop Plate (for parallel arm installation where a narrow top
TDC 85-DPPA	rail prevents direct mounting)	$30.00
	Drop Plate for TDC 90, for Top Jamb and standard
TDC 90-NDP	application	$30.00

BAA DOOR CLOSERS (MEET BUY AMERICAN ACT)

TDC70-BAA - Standard Duty Commercial Closer

TS Product #	Description	AL
TDC70-BAA	Standard Arm Tri-Packed	$196.00
TDC70HOA-BAA	Friction Hold Open Arm	$253.00
TDC70CUSH-BAA	CUSH Parallel Arm	$272.00
TDC70HCUSH-BAA	Hold Open CUSH Parallel Arm	$294.00

BF (suffix) - Barrier Free Spring Size 1 - 4 n/c (6 units x case)

TDC40-BAA - Heavy Duty Commercial Closer

TS Product #	Description	AL
TDC40-BAA	Standard Arm Tri-Packed	$290.00
TDC40DA-BAA	Delay Action - Standard Arm	$301.00
TDC40HOA-BAA	Friction Hold Open Arm	$348.00
TDC40CUSH-BAA	CUSH Parallel Arm	$365.00
TDC40HCUSH-BAA	Hold Open CUSH Parallel Arm	$388.00
(4 units x case)

TDC85-BAA - Heavy Duty Commercial Closer

TS Product #	Description	AL
TDC85-BAA	Adjustable -Standard Arm Tri-Packed	$206.00
TDC85HOA-BAA	Friction Hold Open Arm	$264.00
TDC85CUSH-BAA	CUSH Parallel Arm	$282.00
TDC85HCUSH-BAA	Hold Open CUSH Parallel Arm	$304.00

(6 units x case)

CLOSER ARMS TDC ARM-BAA - Commercial Closer Arm

TDC ARM-04

TS Product #	Description	AL
TDC ARM-04-BAA	Track Armset	$124.00

PIVOT

TS Product #	Description	US4	US10B	US32D
TSP 8727F-BLANK	Offset Pivot, Top and Bottom Set	$420.00	$510.00	$350.00
TSP 8727F-TOP	Offset Pivot, Top Pivot Only	$210.00	$225.00	$175.00
TSP 8727F-BOTTOM	Offset Pivot, Bottom Pivot Only	$210.00	$225.00	$175.00
	Intermediate Pivot Only, use with
TSP 8727F-INT	TSP 8727F Offset Pivot	$255.00	$280.00	$255.00

TOP BOTTOM

HINGES - STEEL Base Metal Commercial Hinges

TH179	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 5 Knuckle Plain Bearing	P	-	-	6.50	10.50
	WHT	-	-	-	-
	3	-	8.50	9.50	13.50
	4	-	-	-	-
	10B	-	7.00	8.50	12.50
	15	-	-	-	-
	15A	-	-	-	-
	26	-	-	-	-
	26D	-	6.50	7.50	11.50

THBB179	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 5 Knuckle Ball Bearing	P	-	6.50	7.50	11.50
	WHT	-	-	-	-
	3	-	9.50	11.00	15.00
	4	-	-	-	-
	10B	-	9.50	9.50	13.50
	15	-	-	-	-
	15A	-	-	-	-
	26	-	-	11.00	-
	26D	-	7.50	9.00	13.00

THBB179 NRP	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 5 Knuckle Ball Bearing, NRP	26D	-	10.50	12.00	16.00

THBB168	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Heavy Weight 5 Knuckle Ball Bearing	P	-	20.00	21.00	25.00
	WHT	-	-	-	-
	3	-	23.00	24.50	28.50
	4	-	-	-	-
	10B	-	23.00	23.00	27.00
	15	-	-	-	-
	15A	-	-	-	-
	26	-	-	-	-
	26D	-	21.00	22.50	26.50

THBB168 NRP	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Heavy Weight 5 Knuckle Ball Bearing, NRP	US26D	-	24.00	25.50	29.50

THSP179	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight Spring	P	-	-	14.50	-
	WHT	-	-	-	-
	3	-	-	18.00	-
	4	-	-	18.00	-
	10B	-	-	18.00	-
	15	-	-	18.00	-
	15A	-	-	18.00	-
	26	-	-	19.00	-
	26D	-	-	17.00	-

Note: Models with no pricing might be available upon request. Please contact factory about availability.

THCB168	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Heavy Weight 3 Knuckle Concealed Ball Bearing	10B	-	-	18.00	-
THCB179	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 3 Knuckle Concealed Ball Bearing	10B	-	-	15.00	-
THCP179	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 3 Knuckle Concealed Plain Bearing	10B	-	-	11.00	-
					4.5 x 4.5
TH179 Standard Weight 5 Knuckle Radius/Square Corner	Finish 15	3.5 x 3.5 -	4 x 4 6.50	4.5 x 4 -	-

HINGES - BRASS Base Metal Commercial Hinges

THBB179BR	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 3 Knuckle Plain Bearing	10B	-	-	51.00	-
	26D	-	-	51.00	-
THBB168BR
	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Heavy Weight 5 Knuckle Ball Bearing	3	-	-	45.00	-
	10B	-	-	74.00	-
	26D	-	-	74.00	-

HINGES - STAINLESS STEEL Base Metal

THBB179SS		Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 5 Knuckle 2 Ball Bearing		32D	-	24.00	27.00	31.50
THBB179SS NRP		Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Standard Weight 5 Knuckle 2 Ball Bearing, Non-Removable Pin		32D	-	-	32.00	36.50
THBB168SS
Heavy Weight 5		Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Knuckle Ball Bearing		32D	-	-	40.50	45.00
	`
THBB168SS NRP		Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Heavy Weight 5 Knuckle Ball Bearing,		32D	-	-	45.50	50.00

Note: Models with no pricing might be available upon request. Please contact factory about availability.

EXTRA HEAVY DUTY HINGES

ELECTRIFIED HINGES

XTHBB179
Standard Weight 5	Finish	4 x 4	4.5 x 4	4.5 x 4.5	5 x 4.5
Knuckle Ball Bearing,	26D	-	-	195.00	-
Electrified

Note: Models with no pricing might be available upon request. Please contact factory about availability.

Grade 1 Exit Devices 5500, 5600 Series

TS Product #	Description	32D	Alum	Duro
ED5500-36	Panic Rim Exit Device, for 36" Door	412.00	268.00	268.00
ED5500-48	Panic Rim Exit Device, for 48" Door	452.00	305.00	305.00
ED5500F-36	Fire Rim Exit Device, for 36" Door	430.00	286.00	286.00
ED5500F-48	Fire Rim Exit Device, for 48" Door	471.00	325.00	325.00
ED5600-3684	Surface Vertical Rod Panic Exit Device, for 36" Door	612.00	451.00	451.00
ED5600-4896	Surface Vertical Rod Panic Exit Device, for 48" Door	653.00	489.00	489.00
ED5600F-3684	Surface Vertical Rod Fire Exit Device, for 36" Door	654.00	492.00	492.00
ED5600F-4896	Surface Vertical Rod Fire Exit Device, for 48" Door	693.00	529.00	529.00

Optional Outside Trims for Grade1 ED5500/ED5600 Exit Devices

TS Product #	Description	US32D	US26D	Alum	Duro
ED5500L-08	Keyed-in-lever Trim, Entrance Function	N/A	140.00	N/A	140
ED5500L-09	Keyed-in-lever Trim, Storeroom Function	N/A	140.00	N/A	N/A
ED5500L-14	Keyed-in-lever Trim, Passage Function	N/A	133.00	N/A	N/A
ED5500L-02	Keyed-in-lever Trim, Dummy Function	N/A	133.00	N/A	N/A
ED5500E-08	Escutcheon Lever Trim, Entrance Function, Clutch Freewheeling	N/A	183.00	169.00	169.00
ED5500E-09	Escutcheon Lever Trim, Storeroom Function, Clutch FreewheelingN/A		183.00	169.00	169.00
ED5500E-14	Escutcheon Lever Trim, Passage Function, Clutch Freewheeling	N/A	176.00	162.00	162.00
ED5500E-02	Escutcheon Lever Trim, Dummy Function, Clutch Freewheeling	N/A	176.00	162.00	162.00
ED5500T-05	Thumbpiece Trim, Entrance Function, Clutch Freewheeling	169.00	N/A	N/A	141.00
ED5500T-03	Thumbpiece Trim, Storeroom Function, Clutch Freewheeling	169.00	N/A	N/A	141.00
ED5500T-15	Thumbpiece Trim, Passage Function, Clutch Freewheeling	155.00	N/A	N/A	133.00
ED5500T-02	Thumbpiece Trim, Dummy Function, Clutch Freewheeling	155.00	N/A	N/A	133.00

Alarm Kit for Grade 1 Exit Devices

TS Product #	Description	US32D	US26D	Alum	Duro
ED5500A-36	Alarm Kit for 36" Device, Non UL	188.00	N/A	N/A	188.00
ED5500A-48	Alarm Kit for 48" Device, Non-UL	198.00	N/A	N/A	198.00

Extension Rod for ED5600 Exit Device

TS Product #	Description	US32D	US26D	Alum	Duro
	ED5600-Extension Extension Rod for ED5600-3684, to fit 8" Door	30.00	N/A	30.00	30.00

Electronic Trim (E-ALL Assy) for Grade 1 Exit Devices

TS Product #	Description	US26D
XDK	E-ALL Trim Assy for ED5500, Rigid, Keypad	909.00
XRF	E-ALL Trim Assy for ED5500, Rigid, RFID Keycard & Remote Lockdown	1072.00

Strike for Grade 1 Exit Devices

TS Product #	Description	No Finish
ED 254 Strike	ED5500 Series Exit Device for Double Door, Overlapping	42.00

NARROW STILE EXIT DEVICES

PRICE LIST

ED6500-Grade 1 Rim Type, Narrow Stile Exit Device

TS Product #	Description	32D	10B
ED6500-36	Panic Rim Narrow Device, for 36" Door	561.00	610.00
ED6500-48	Panic Rim Narrow Device, for 48" Door	598.00	647.00

ED6700-Grade 1 Concealed Vertical Rod Narrow Stile Exit Device

TS Product #	Description	32D	10B
ED6700-3684	Panic CVR Narrow Device, for 36" Door	856.00	906.00
ED6700-4896	Panic CVR Narrow Device, for 48" Door	933.00	983.00

Escutcheon Trim for ED6500/ED6700 Narrow Stile Exit Device

TS Product #	Description	US26D	US10B
ED6500E-08	Escutcheon Lever Trim, Entrance Function, Clutched, Key locks or unlocks lever	219.00	239.00
ED6500E-09	Escutcheon Lever Trim, Storeroom Function, Clutched, Key unlocks lever, lever retracts latch bolt	219.00	239.00
ED6500E-02	Escutcheon Lever Trim, Dummy Function, Rigid, Pull when dogged	219.00	239.00
ED6500E-14	Escutcheon Lever Trim, Passage Function, Trim always operable	219.00	239.00
ED6700E-08	Escutcheon Lever Trim, Entrance Function, Clutched, Key locks or unlocks lever	219.00	239.00
ED6700E-09	Escutcheon Lever Trim, Storeroom Function, Clutched, Key unlocks lever, lever retracts latch bolt	219.00	239.00
ED6700E-02	Escutcheon Lever Trim, Dummy Function, Rigid, Pull when dogged	219.00	239.00
ED6700E-14	Escutcheon Lever Trim, Passage Function, Trim always operable	219.00	239.00

Parts for ED6700 Narrow Stile Exit Device

TS Product #	Description	US32D
ED6700-ROD-8"	Top Rod/ED6700 8" Height Door	55.00

Heavy Duty Grade 1 Exit Devices

TS Product #	Description	US10B	US26D	US32D
ED1100-36	Rim Exit Device, for 36" Door	1021.00	N/A	669.00
ED1100-48	Rim Exit Device, for 48" Door	1158.00	N/A	774.00
ED1100F-36	Fire Rim Exit Device, for 36" Door	1404.00	N/A	1053.00
ED1100F-48	Fire Rim Exit Device, for 48" Door	1513.00	N/A	1163.00
ED1200-36	Surface Vertical Rod Exit Device, for 36" Door	1443.00	N/A	950.00
ED1200-48	Surface Vertical Rod Exit Device, for 48" Door	1637.00	N/A	1061.00
ED1200F-36	Surface Vertical Rod Fire Exit Device, for 36" Door	1827.00	N/A	1334.00
ED1200F-48	Surface Vertical Rod Fire Exit Device, for 48" Door	1941.00	N/A	1446.00
ED1300-36	Concealed Vertical Rod Exit Device, for 36" Door	N/A	N/A	950.00
ED1300-48	Concealed Vertical Rod Exit Device, for 48" Door	N/A	N/A	1056.00
ED1300F-36	Concealed Vertical Rod Fire Exit Device, for 36" Door		N/A	1334.00
ED1300F-48	Concealed Vertical Rod Fire Exit Device, for 48" Door	N/A	N/A	1440.00
ED1400-36	Mortise Lock Exit Device, for 36" Door	N/A	N/A	880.00
ED1400-48	Mortise Lock Exit Device, for 48" Door	N/A	N/A	986.00
ED1400F-36	Mortise Lock Fire Exit Device, for 36" Door	N/A	N/A	1264.00
ED1400F-48	Mortise Lock Fire Exit Device, for 48" Door	N/A	N/A	1368.00
ED1500-36*	Three Point Latching Exit Device, for 36" Door	N/A	N/A	1021.00
ED1500-48*	Three Point Latching Exit Device, for 48" Door	N/A	N/A	1196.00
ED1500F-36*	Three Point Latching Fire Exit Device, for 36" Door	N/A	N/A	1394.00
ED1500F-48*	Three Point Latching Fire Exit Device, for 48" Door	N/A	N/A	1514.00

Optional Outside Trims for Grade 1 Exit Devices

TS Product #	Description	Finish
Thumbpiece Trim		US10B	US26D	US32D
ED201*	Exit only, F01 Function	N/A	N/A	113.00
ED202	Dummy Pull only, F02 Function	N/A	N/A	212.00
ED203R	Night Latch (Key Retracts Latch Bolt), F03 Function, Less Cylinder	N/A	N/A	212.00
ED203M*	Night Latch (Key Retracts Latch Bolt), F03 Function, Mortise, Less Cylinder	N/A	N/A	212.00
ED205R	Key Locks or Unlocks Latchbolt, F05 Function, Less Cylinder	N/A	N/A	247.00
ED205M*	Key Locks or Unlocks Latchbolt, F05 Function, Mortise, Less Cylinder	N/A	N/A	247.00
ED215R*	Thumbpiece Always Active, F15 Function	N/A	N/A	247.00
ED215M*	Thumbpiece Always Active, F15 Function, Mortise	N/A	N/A	247.00
Escutcheon Trim		US10B	US26D	US32D
ED302	Dummy Pull only, F02 Function	669.00	458.00	N/A
ED308R	Key Locks or Unlocks Latch Bolt, F08/10 Function, Less Cylinder	739.00	528.00	N/A
ED308M	Key Locks or Unlocks Latch Bolt, F08/10 Function, Mortise, Less Cylinder	739.00	528.00	N/A
ED309R	Key Retract Latch Bolt, F09 Function, Less Cylinder	739.00	458.00	N/A
ED309M	Key Retract Latch Bolt, F09 Function, Mortise, Less Cylinder	739.00	458.00	N/A
ED314R	Lever/Knob Always Operable, F14 Function	684.00	493.00	N/A
ED314M	Lever/Knob Always Operable, F14 Function, Mortise	684.00	493.00	N/A

Optional Alarm Kits for Grade 1 Exit Devices

Alarm Kit		US10B	US26D	US32D
ED1000-36-xx-Alarm	Alarm Kit for ED1100/1200/1300/1400/1500 for 36" exit device's	746.00	N/A	692.00
ED1000-48-xx-Alarm	Alarm Kit for ED1100/1200/1300/1400/1500 for 48" exit device's	777.00	N/A	715.00

Optional Mullions for Grade 1 Exit Devices

Mullion		AL	US26D	US32D
ED170-8-689	Keyed Removable Mullion 8", AL, with 1-1/8" Mortise Cylinder with Cam	1443.00	N/A	N/A
	Fire Rated Keyed Removable Mullion 8", AL, with 1-1/8" Mortise Cylinder
EDF170-8-689	with Cam	1729.00	N/A	N/A
ED270-8-689	Non-Keyed Mullion 8", AL	1092.00	N/A	N/A
EDF270-8-689	Fire Rated Non-Keyed Mullion 8", AL	1308.00	N/A	N/A

Note: 1. Items with * will be available upon request only, with longer lead times.

2. LBR available for ED1200, ED1200F, ED1300, ED1300F, ED1500, ED1500F.

Optional Extension Rod's and Strikes for Grade 1 Exit Devices

TS Product #	Description	No Finish
Extension Rod
ED1200 Extension Rod	24" Extension Rod for Surface Vertical Rod Exit Device, for 8' door height	54.00
ED1300 Extension Rod	23-7/8" Extension Rod for Concealed Vertical Rod Exit Device, for 8' door height	54.00
Rim Device Strikes
ED 136 Rim Strike	For double door RIM / SVR / CVR combination with coordinator, Panic and Fire Application	36.00
ED 106 Rim Strike	For RIM / SVR / 3PT top strike, Panic Application	38.00
ED 108 Rim Strike	For double door RIM / 3PT use with F170/ F270 mullion, Panic and Fire Application	89.00
Vertical Rod Device Strikes
ED 215 Top Strike	For flush transom SVR / 3PT, Panic and Fire Application	22.00
ED 216 Top Strike	For CVR, Panic and Fire Application	32.00
ED 225 Bottom Strike (Flat)	Optional for SVR / CVR / 3PT round slide bolt, Panic and Fire Application	15.00
ED 226 Bottom Strike (Flat)	Optional for SVR / CVR / 3PT round slide bolt, Panic and Fire Application	15.00
ED 224 Bottom Strike	Standard furnished for SVR / CVR / 3PT, Panic and Fire Application	21.00
ED 227 Bottom Strike	Optional for SVR / 3PT, Panic and Fire Application	61.00

Optional Top/Bottom Rod for Grade 1 Exit Devices

TS Product #	Description	US32D
Top Rod
ED 616823-030	For ED1200/ED1500 (SVR/3PT) of 8' Door Height, 48-1/8" Length	74.00
ED 616823-040	Add to ED 616823-030 for 10' Door Height, 24" Length	72.00
Bottom Rod
ED 616823-010	For ED1200/ED1500 (SVR/3PT), 31-7/8" Length	288.00

Heavy Duty Grade 2 Exit Devices

TS Product #	Description	AL	US32D
TS5000-36	Rim Exit Device, for 36" Door	200.00	304.00
TS5000-48	Rim Exit Device, for 48" Door	214.00	330.00
TS8000-36	Fire Rim Exit Device, for 36" Door	236.00	337.00
TS8000-48	Fire Rim Exit Device, for 48" Door	249.00	350.00
TS5100-3684	Surface Vertical Rod Exit Device, for 36" Door	320.00	449.00
TS5100-3696	Surface Vertical Rod Exit Device, for 36" x 96" Door	313.00	427.00
TS5100-4896	Surface Vertical Rod Exit Device, for 48" Door	340.00	482.00
TS8100-3684	Surface Vertical Rod Fire Exit Device, for 36" Door	376.00	508.00
TS8100-3684LBR	Surface Vertical Rod Fire Exit Device, for 36" Door, Less Bottom Rod with Auxiliary Fire Latch	N/A	479.00
TS8100-3696	Surface Vertical Rod Fire Exit Device, for 36" x 96" Door	363.00	479.00
TS8100-4896	Surface Vertical Rod Fire Exit Device, for 48" Door	409.00	535.00

Optional Outside Trims for Grade 2 Exit Devices

TS Product #	Description	US26D
TL8000L	Entrance Function	116.00
TL8000L-IC	Entrance Function, IC	111.00
TL8000S	Storeroom Function	116.00
TL8000P	Passage Function	107.00
TLESC-00	Escutcheon Lever Trim Entrance Function, Clutch Freewheeling	159.00
TLESC-05	Escutcheon Lever Trim Storeroom Function, Clutch Freewheeling	159.00
TLESC-30	Escutcheon Lever Trim Passage Function, Clutch Freewheeling	123.00

General Hardware

			TS Product #	Description	10B	3, 26, 26D	32D
1	2	3	1. TSH446	Low Dome Stop	$11.00	$11.00	$11.00
			2. TSH438	High Dome Stop	$11.00	$11.00	N/A
		High Dome Stop with 1/2" Riser & 1-
	3. TSH438H	1/2" screws	N/A	$10.00	N/A
			4. TSH401	Concave Wall Stop	$4.25	N/A	$4.00
			5. TSH406	Convex Wall Stop	$4.25	N/A	$4.00

TS Product #	Description	AL
TGD900W-S	Magnetic Door Holder, 24V	$175.00

Door Guards

TS Product #	Description	3, 26D
TDG128BR	Door Guard - Solid Forged Brass	$23.00
TS Product #	Description	26
TDG 129	Door Guard with Buffers	$23.00

Viewers

TS Product #	Description		3, 26,26D
TDV3315	UL Listed with 200 degree Viewing	- Polished	$11.00
TDV3316	Viewer with 200 degree Viewing	- Polished	$11.00

Heavy Duty Roller Catch

Dust Proof Strike

TS Product #	Description	26D
TDPS280	Dust Proof Strike	$20.00

General Hardware

Flush Bolts

TS Product #	Description	26D	US15	10B	32D
1. TFB197SB	Manual Flush Bolt - Brass Forged, Single	$28.00	$28.00	$28.00	-
2. TFB297W	Manual Flush Bolt for Wood Door, Single	$53.00	-	$53.00	-
3. TFBA291M	Auto Flush Bolt for Metal Door, Pair	-			$140.00
4. TFBA291W	Auto Flush Bolt for Wood Door, Pair	-			$140.00
5. TFL001	Auxiliary Fire Latch	-			$55.00

Coordinator and Accessories

TS Product #	Description	AL
TCOR-52	Fire Door Coordinators, 52", Alum	$128.00
TCOR-60	Fire Door Coordinators, 60", Alum	$136.00
TFCOR-18	Coordinator Filler Bar, 18-5/8", Alum	$15.00
TFCOR-32	Coordinator Filler Bar, 32", Alum	$25.00
TFCOR-42	Coordinator Filler Bar, 42-5/8", Alum	$34.00

Kick Plates

TS Product #	Description	32D
TS1034	10" x 34" Kick Plate	$95.00

Push and Pulls

TS Product #	Description	32D
TSPP3515	3.5" X 15" Push Plate	$21.00
TSPP4016	4" x 16" Push Plate	$23.00
TSPP3515R	3.5" X 15" Plate with Round Pulls	$57.00
TSPP4016R	4" x 16" Plate with Round Pulls	$57.00

Note: Finishes with no pricing might be available upon request. Please contact factory about availability.

STOCK PRODUCT DISCOUNT PROGRAM

ORDER AMOUNT	DISCOUNT %
$0 - $5,000.00	50/35
$5,001.00 - $10,000.00	50/40
$10,001 or greater	50/45

Notes:

• 1. Discounts are based on List Price.
• 2. Minimum is $500.00 list.
• 3. Freight prepaid on all orders that exceed $2,500 net.
• 4. Discounts apply to Stock Product Program Pricing Only.

LIGATURE RESISTANT

DISCOUNT PROGRAM

PRODUCT	DISCOUNT %
LIGATURE RESISTANT RX	50%

Mortise Lock Sets: Sentinel, Gala, Tango

MSS Series	Description	US26D	US32D
Sectional Trims, Single Cylinde Functions
MSS-R-04	Entry/Office	262.00	290.00
MSS-R-05	Classroom	262.00	290.00
MSS-R-07	Storeroom/Closet	262.00	290.00
MSS-R-13	Dormitory/Exit	284.00	311.00
MSS-R-17	Deadlock	216.00	250.00
MSS-R-18	Deadlock	216.00	250.00
MSS-R-20	Entrance/Apartment	284.00	311.00
	Sectional Trims, Double Cylinder Functions
MSS-R-14	Storeroom	321.00	348.00
MSS-R-16	Deadlock	216.00	250.00
Sectional Trims, Non-Keyed Functions
MSS-R-01	Passage/Closet	226.00	241.00
MSS-R-19	Privacy/Bathroom	262.00	290.00
MSS-R-41	Single Dummy	95.00	101.00
MSS-R-42	Double Dummy	176.00	189.00

MSE Series	Description	US26D	US32D
Escutcheon Trims, Single Cylinder Functions
MSE-R-04	Entry/Office	316.00	337.00
MSE-R-05	Classroom	316.00	337.00
MSE-R-07	Storeroom/Closet	316.00	337.00
MSE-R-13	Dormitory/Exit	330.00	350.00
MSE-R-17	Deadlock	269.00	303.00
MSE-R-18	Deadlock	269.00	303.00
MSE-R-20	Entrance/Apartment	330.00	350.00
Double Cylinder Functions
MSE-R-14	Storeroom	374.00	401.00
MSE-R-16	Deadlock	269.00	303.00
Non-Keyed Functions
MSE-R-01	Passage/Closet	283.00	298.00
MSE-R-19	Privacy/Bathroom	316.00	337.00
MSE-R-41	Single Dummy	148.00	154.00
MSE-R-42	Double Dummy	229.00	242.00

Cylindrical Locks

CDC Series Clutching	Description	US26D
	Extra Heavy Duty Grade 1, Clutching, with Standard 6-pin Cylinder
CDC-109	Entry	198.00
CDC-84	Classroom	223.00
CDC-86	Storeroom	198.00
CD-87	Asylum	250.00
CDC-76	Privacy	188.00

CD Series Non-Clutching	Description	US26D
	Extra Heavy Duty Grade 1, Non-Clutching, with Standard 6-pin Cylinder
CD-75	Passage	157.00

CDCI Series Clutching	Description	US26D
	Extra Heavy Duty Grade 1, Clutching, I.C. Core Ready. I.C. Cylinder Not Included.
CDCI-109	Entry	192.00
CDCI-84	Classroom	218.00
CDCI-86	Storeroom	192.00

CSRC Series
Clutching	Description	US26D
	Heavy Duty Grade 2, Clutching with Standard 6-pin Cylinder
CSRC-75	Passage	96.00
CSRC-76	Privacy	98.00
CSRC-109	Entry	114.00
CSRC-84	Classroom	114.00
CSRC-86	Storeroom	114.00

CS Series Clutching	Description	US26D
	Heavy Duty Grade 2, Clutching, with Standard 6-pin Cylinder
CS-109	Entry	114.00
CS-84	Classroom	114.00
CS-86	Storeroom	114.00
CS-87	Asylum	127.00
CS-76	Privacy	98.00
CS-75	Passage	96.00

CSI Series Clutching	Description	US26D
	Heavy Duty Grade 2, Clutching, I.C. Core Ready. I.C. Cylinder Not Included.
CSI-109	Entry	109.00
CSI-84	Classroom	109.00
CSI-86	Storeroom	109.00

Interconnected Locks

CIL Series	Description	US26D
Grade 2, With Standard 6-pin Cylinder
CIL-S-81	Entry	188.00

Deadbolts

DBF Series	Description	US26D
	Heavy Duty Grade 1, With Standard 6-pin Cylinder
DBF-62	Double Cylinder	252.00

DBFI Series	Description	US26D
	Heavy Duty Grade 1, I.C. Core Ready. I.C. Cylinder Not Included.
DBFI-62	Double Cylinder	238.00

DBD Series	Description	US26D
	Heavy Duty Grade 1, With Standard 6-pin Cylinder
DBD-61	Single Cylinder	105.00
DBD-62	Double Cylinder	130.00

DBDI Series	Description	US26D
	Heavy Duty Grade 1, I.C. Core Ready. I.C. Cylinder Not Included.
DBDI-61	Single Cylinder	105.00
DBDI-62	Double Cylinder	130.00

DBT Series	Description	US32D	US26D
	Heavy Duty Grade 2, With Standard 6-pin Cylinder
DBT-61	Single Cylinder	65.00	67.00
DBT-62	Double Cylinder	86.00	88.00

DBTI Series	Description	US32D	US26D
	Heavy Duty Grade 2, I.C. Core Ready. I.C. Cylinder Not Included.
DBTI-61	Single Cylinder	65.00	67.00
DBTI-62	Double Cylinder	86.00	88.00

Door Closers

TDC40 - Heavy Duty Multi-Size Grade 1

TS Product #	Description	AL
TDC40	Standard Arm Tri-Packed	$187.00
TDC40DA	Delay Action - Standard Arm	$192.00
TDC40HOA	Friction Hold Open Arm	$230.00
TDC40CUSH	CUSH Parallel Arm	$235.00
TDC40HCUSH	Hold Open CUSH Parallel Arm	$241.00

TDC70 - Heavy Duty Power Adjustable Grade 1

TS Product #	Description	AL
TDC70	Standard Arm Tri-Packed	$122.00
TDC70DA	Delay Action - Standard Arm	$129.00
TDC70HOA	Friction Hold Open Arm	$163.00
TDC70CUSH	CUSH Parallel Arm	$173.00
TDC70HCUSH	Hold Open CUSH Parallel Arm	$183.00
BF (suffix) - Barrier Free Spring Size 1 - 4		n/c

TDC85 - Heavy Duty Power Adjustable Grade 1

TS Product #	Description	AL
TDC85	Adjustable -Standard Arm Tri-Packed	$128.00
TDC85DA	Delay Action - Standard Arm	$136.00
TDC85HOA	Friction Hold Open Arm	$169.00
TDC85CUSH	CUSH Parallel Arm	$175.00
TDC85HCUSH	Hold Open CUSH Parallel Arm	$189.00

TDC90 - Medium Duty Grade 2

TS Product #	Description	AL
TDC90	Standard Arm Tri-Packed	$102.00
	BF (suffix) - Barrier Free Spring Size 1 - 4

TDC50 - Medium Duty Grade 3

TS Product #	Description	AL
TDC53	Standard Arm Tri-Packed	$82.00
TDC54	Standard Arm Tri-Packed	$89.00

Grade 1 Exit Devices 5500, 5600 Series

TS Product #	Description	US32D
ED5500-36	Panic Rim Exit Device, for 36" Door	412.00
ED5500-48	Panic Rim Exit Device, for 48" Door	452.00
ED5500F-36	Fire Rim Exit Device, for 36" Door	430.00
ED5500F-48	Fire Rim Exit Device, for 48" Door	471.00
ED5600-3684	Surface Vertical Rod Panic Exit Device, for 36" Door	612.00
ED5600-4896	Surface Vertical Rod Panic Exit Device, for 48" Door	653.00
ED5600F-3684	Surface Vertical Rod Fire Exit Device, for 36" Door	654.00
ED5600F-4896	Surface Vertical Rod Fire Exit Device, for 48" Door	693.00

Optional Outside Trims for Grade1 ED5500/ED5600 Exit Devices

TS Product #	Description	US26D
ED5500L-08	Keyed-in-lever Trim, Entrance Function	140.00
ED5500L-09	Keyed-in-lever Trim, Storeroom Function	140.00
ED5500L-14	Keyed-in-lever Trim, Passage Function	133.00
ED5500L-02	Keyed-in-lever Trim, Dummy Function	133.00
ED5500E-08	Escutcheon Lever Trim, Entrance Function, Clutch Freewheeling	183.00
ED5500E-09	Escutcheon Lever Trim, Storeroom Function, Clutch Freewheeling	183.00
ED5500E-14	Escutcheon Lever Trim, Passage Function, Clutch Freewheeling	176.00
ED5500E-02	Escutcheon Lever Trim, Dummy Function, Clutch Freewheeling	176.00

Heavy Duty Grade 1 Exit Devices

TS Product #	Description	US32D
ED1100-36	Rim Exit Device, for 36" Door	669.00
ED1100-48	Rim Exit Device, for 48" Door	774.00
ED1100F-36	Fire Rim Exit Device, for 36" Door	1053.00
ED1100F-48	Fire Rim Exit Device, for 48" Door	1163.00
ED1200-36	Surface Vertical Rod Exit Device, for 36" Door	950.00
ED1200-36-LBR	Surface Vertical Rod Exit Device, for 36" Door, Less Bottom Rod	950.00
ED1200-48	Surface Vertical Rod Exit Device, for 48" Door	1061.00
ED1200-48-LBR	Surface Vertical Rod Exit Device, for 48" Door, Less Bottom Rod	1061.00
ED1200F-36	Surface Vertical Rod Fire Exit Device, for 36" Door	1334.00
ED1200F-36-LBR	Surface Vertical Rod Fire Exit Device, for 36" Door, Less Bottom Rod	1334.00
ED1200F-48	Surface Vertical Rod Fire Exit Device, for 48" Door	1446.00
ED1200F-48-LBR	Surface Vertical Rod Fire Exit Device, for 48" Door, Less Bottom Rod	1446.00

Optional Outside Trims for Grade 1 Exit Devices

TS Product #	Description	US26D	US32D
ED203R	Night Latch (Key Retracts Latch Bolt), F03 Function, Less Cylinder	N/A	212.00
ED205R	Key Locks or Unlocks Latchbolt, F05 Function, Less Cylinder	N/A	247.00
ED308R	Key Locks or Unlocks Latch Bolt, F08/10 Function, Less Cylinder	528.00	N/A
ED309R	Key Retracts Latch Bolt, F09 Function, Less Cylinder	458.00	N/A
ED314R	Lever/Knob Always Operable, F14 Function	493.00	N/A

Heavy Duty Grade 2 Exit Devices

TS Product #	Description	AL	US32D
TS5000-36	Rim Exit Device, for 36" Door	200.00	304.00
TS5000-48	Rim Exit Device, for 48" Door	214.00	330.00
TS8000-36	Fire Rim Exit Device, for 36" Door	236.00	337.00
TS8000-48	Fire Rim Exit Device, for 48" Door	249.00	350.00
TS5100-3684	Surface Vertical Rod Exit Device, for 36" Door	320.00	449.00
TS5100-4896	Surface Vertical Rod Exit Device, for 48" Door	340.00	482.00
TS8100-3684	Surface Vertical Rod Fire Exit Device, for 36" Door	376.00	508.00
TS8100-4896	Surface Vertical Rod Fire Exit Device, for 48" Door	409.00	535.00

Optional Outside Trims for Grade 2 Exit Devices

TS Product #	Description	US26D
TL8000L	Entrance Function	116.00
TL8000S	Storeroom Function	116.00
TL8000P	Passage Function	107.00
TLESC-00	Escutcheon Lever Trim, Entrance Function, Clutch Freewheeling	159.00
TLESC-05	Escutcheon Lever Trim, Storeroom Function, Clutch Freewheeling	159.00
TLESC-30	Escutcheon Lever Trim, Passage Function, Clutch Freewheeling	123.00

Flushbolts

TS Product #	Description	US26D	US32D
TFBA291-M	Auto Flush Bolt for Metal Door, Pair	N/A	140.00
TFBA291-W	Auto Flush Bolt for Wood Door, Pair	N/A	140.00
TFB197SB	Manual Flush Bolt for Metal Door, Single	28.00	N/A
TFB297W	Manual Flush Bolt for Wood Door, Single	53.00	N/A

Hinges

TS Product #	Description	US26D	US32D
TH179 4.5x4	5 Knuckle Plane Bearing, Removable Pin, 4.5 x 4	6.50	N/A
TH179 4.5x4.5	5 Knuckle Plane Bearing, Removable Pin, 4.5 x 4.5	7.50	N/A
TH179 5x4.5	5 Knuckle Plane Bearing, Removable Pin, 5 x 4.5	11.50	N/A
THBB179 4.5x4	5 Knuckle 2 Ball Bearing, Removable Pin, 4.5 x 4	7.50	N/A
THBB179 4.5x4.5	5 Knuckle 2 Ball Bearing, Removable Pin, 4.5 x 4.5	9.00	27.00
THBB179 5x4.5	5 Knuckle 2 Ball Bearing, Removable Pin, 4.5 x 4	13.00	31.50
THBB179 4.5x4.5 NRP	5 Knuckle 2 Ball Bearing, Non-Removable Pin, 4.5 x 4.5	12.00	32.00
THBB168 4.5x4	5 Knuckle 4 Ball Bearing, Removable Pin, 4.5 x 4	21.00	N/A
THBB168 4.5x4.5	5 Knuckle 4 Ball Bearing, Removable Pin, 4.5 x 4.5	22.50	40.50
THBB168 5x4.5	5 Knuckle 4 Ball Bearing, Removable Pin, 5 x 4.5	26.50	45.00
THSP179 4.5x4.5	UL Listed Spring Hinges, Adjustable Spring Tension	17.00	N/A

STOCK PRODUCT PROGRAM

PRICE LIST

Door Viewers

TS Product #	Description	US26D
	UL Listed with 200 degree viewing - Polished Glass Lenses,
TDV 3315	Door thickness 1-3/8"~2-1/4"	11.00
	UL Listed with 200 degree viewing - Polished Glass Lenses,
TDV 3316	Door thickness 1"~1-7/8"	11.00

General Hardware

TS Product #	Description	AL	US26D	US32D
TCOR-52	UL ULC Listed Surface Mounted Coordinator, 52"	128.00	N/A	N/A
TCOR-60	UL ULC Listed Surface Mounted Coordinator, 60"	136.00	N/A	N/A
TFCOR-18	Coordinator Filler Bar, 18-5/8"	15.00	N/A	N/A
TFCOR-32	Coordinator Filler Bar, 32"	25.00	N/A	N/A
TFCOR-42	Coordinator Filler Bar, 42-5/8"	34.00	N/A	N/A
TDG128BR	Solid Brass Safety Door Guard	N/A	23.00	N/A
TSPP4016	4" x 16" Push Plate	N/A	N/A	23.00
TSPP4016R	4" x 16" Plate with Round Pulls	N/A	N/A	57.00

TS Product #	Description	AL	US26D	US32D
TSH446	3/16" Rise X 1-3/16" Low Dome Floor Stop	N/A	11.00	11.00
TSH438	1/2" Rise X 1-7/16" High Dome Floor Stop	N/A	11.00	N/A
TSH401	2-1/2" x 1" Concave Wall Stop	N/A	N/A	4.00
TSH406	2-1/2" x 1" Convex Wall Stop	N/A	N/A	4.00
TFL001	UL Listed Auxiliary Fire Latch, Temperature Actuated	N/A	N/A	55.00
TH502	Heavy Duty Roller Catch, Adjustable Spring Tenstion	N/A	22.00	N/A
TDPS280	Dust Proof Strike, 3" x 1 1/2" Faceplate, 2-1/4" Length	N/A	20.00	N/A

TS Product #	Description	AL	US26D	US32D
4036SC	1-1/4" Mortise Cylinder, Schlage C Keyway	NA	$28.50	NA
4046SC	1-3/8" Mortise Cylinder, Schlage C Keyway	NA	$30.50	NA
4056SC	1-1/2" Mortise Cylinder, Schlage C Keyway	NA	$34.50	NA
4066SC	1-5/8" Mortise Cylinder, Schlage C Keyway	NA	$46.50	NA
4036I	1-1/4" IC Mortise Housing, 6 pin, Small Format	NA	$28.50	NA
4046I	1-3/8" IC Mortise Housing, 7 Pin, Small Format	NA	$38.50	NA
4056I	1-1/2" IC Mortise Housing, 7 Pin, Small Format	NA	$39.50	NA
4066I	1-5/8" IC Mortise Housing, 7 pin, Small Format	NA	$44.50	NA
IC6	6 Pin IC Core, Best Keyway, Small Format	NA	29.50	NA
IC7	7 Pin IC Core, Best Keyway, Small Format	NA	32.50	NA
S8333	Cylinder Ring - for 1-1/4" Cylinder	NA	13.00	NA
S8233	Cylinder Ring - for 1-3/8" to 1-1/2" Cylinder	NA	13.00	NA
S8239	Cylinder Ring - for 1-1/2" to 1-5/8" Cylinder	NA	13.00	NA
S8234	Cylinder Ring - for 1-1/4" Cylinder	NA	13.00	NA

TS Product #	Description	US26D	US32D
MSG AE55012-OC	Indicator Assy. Sect, O/S Cylinder, "V/O" Msg, Cylinder not included	$90.00	$90.00
MSG AE55012-OT	Indicator Assy. SECT,OT, O/S Emerg Rel "V/O" Msg	$90.00	$90.00
MSG AE87012-IC	Indicator Assy. ESCN, I/S Cylinder, "V/O" Msg, Cylinder not included	$90.00	$90.00
MSG AE87012-OC	Indicator Assy. ESCN, O/S Cylinder, "V/O" Msg, Cylinder not included	$90.00	$90.00
MSG AE87012-OT	Indicator Assy. ESCN, OT, O/S Emerg Rel., "V/O" Msg	$90.00	$90.00
MSG AE87212-IC	Indicator Assy. ESCN, I/S Cylinder,"Locked/Unlocked," Cylinder not incl.	$90.00	$90.00
