1431 Series Closer x PS & PSH Parallel Heavy Duty Arm (center hung pivot)

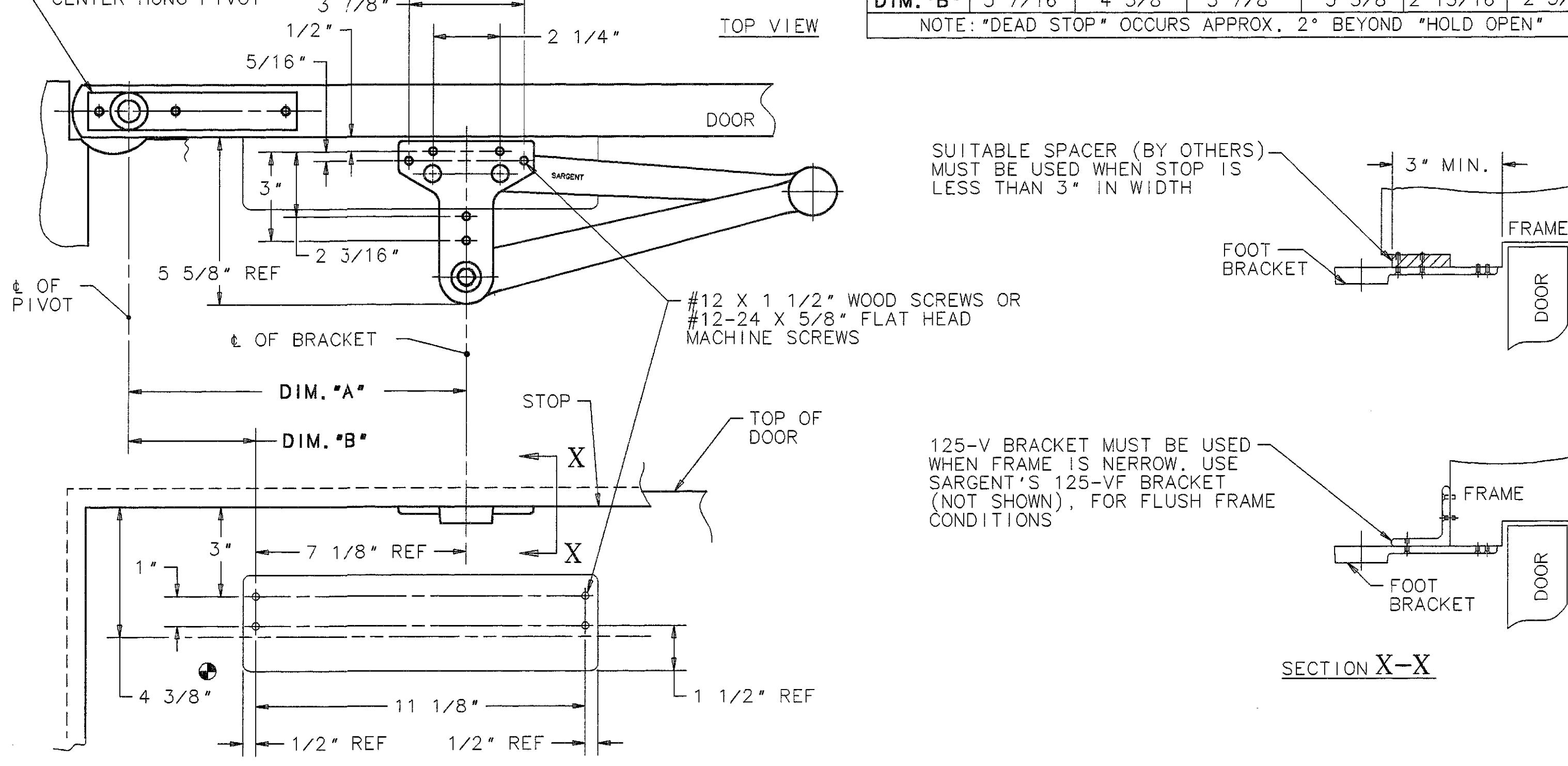

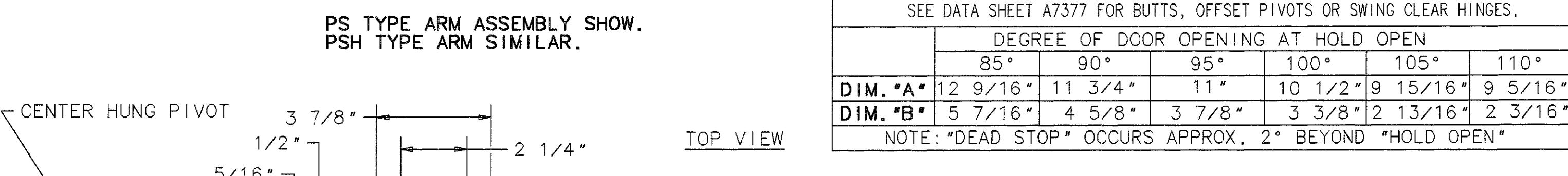

PS TYPE ARM ASSEMBLY SHOW. PSH TYPE ARM SIMILAR.

NOTES:

• 1. LEFT HAND DOOR SHOWN. RIGHT HAND OPPOSITE,
• 2. 12 GAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS AND FRAMES.
• 3. P SPACE REQUIRED TO MOUNT CLOSER ON TOP RAIL. IF SPACE IS LESS THAN SHOWN USE 1430-D DROP PLATE. SEE DATA SHEET A7168 FOR DETAILES.

SARGENT MANUFACTURING COMPANY	NEW HAVEN, CONN. 06511
DATA SHEET: 1430 SERIES DOOR CLOSERS. PARALLEL HEAVY DUTY ARM APPLICATIONS - PS & PSH	JANUARY 00
ARM APPLICATIONS - PS & PSH ARMS. CENTER HUNG PIVOT.	TEMPLET NO. A7376 A
