1431 Series Closer x ‘O’-‘RO’ Standard Arm Application x 1536-1539 Series Holders & Stops

NOTES:

• 1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 & SDI-100 STANDARDS, 12 GAUGE RECOMMENDED.
• A 1430-J COVER PLATE MAY BE USED WHEN CLOSER IS VISIBLE THROUGH GLASS.
• 3 FOR 1530 INSTALLATION, SEE TEMPLATES A7485 THRU A7487

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

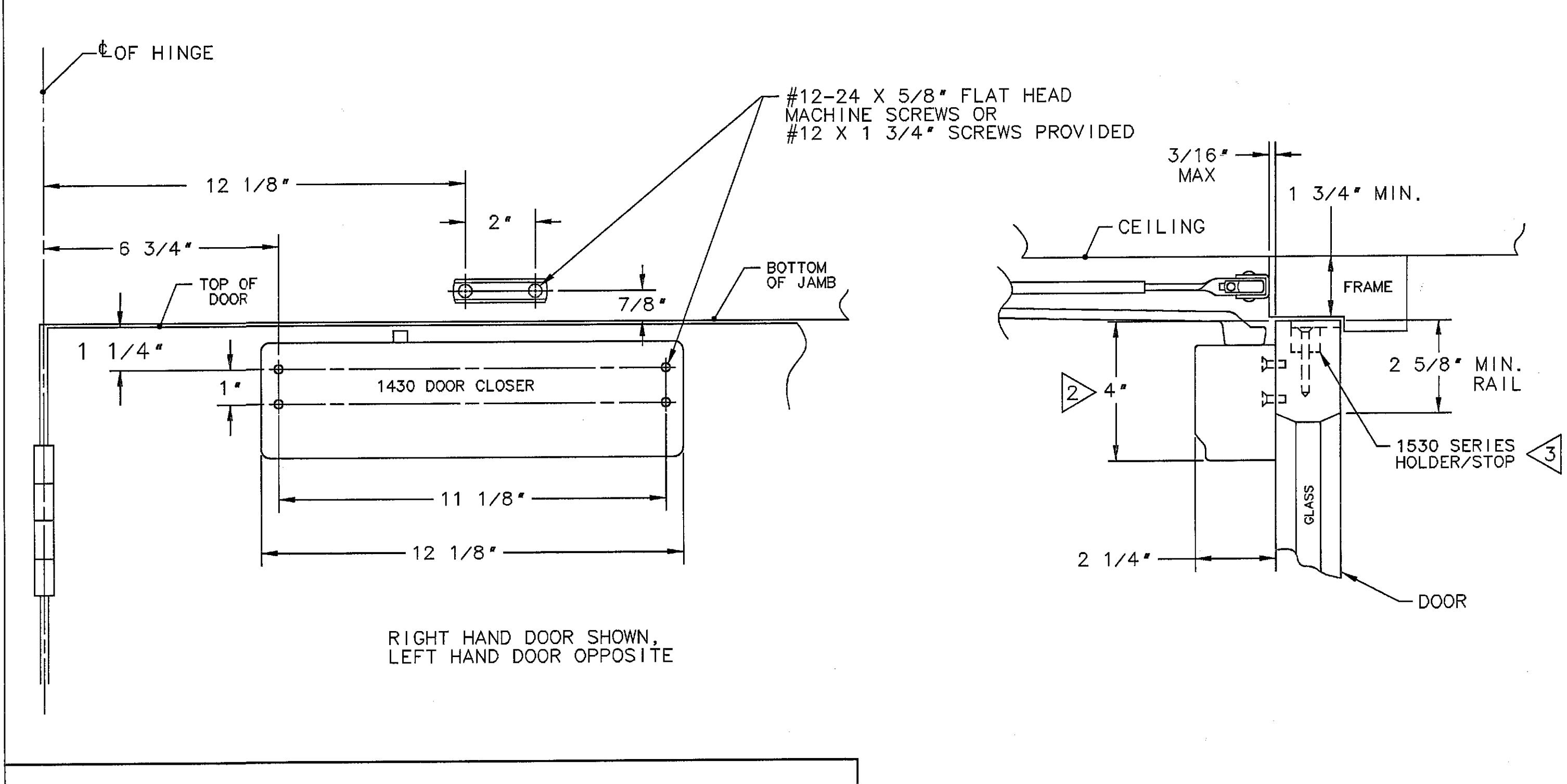

DATA SHEET: 1430 SERIES CLOSER WITH STANDARD 18 DEC 03 APPLICATION O & RO ARM & 1530 SERIES HOLDER OR STOP

EFFECTIVE DATE

TEMPLATE NO. A7549 A
