PROUDLY MADE IN THE USA (SEE PAGE 3)

XGT Series

Super Heavy Duty Cylindrical Grade 1 Locks

Designed for the most challenging high abuse situations.

BEYOND THE LIMITS

When ANSI Grade 1 Standards aren't close to being enough.

INCLUDES SCHOOL SECURITY SOLUTIONS SECTION FEATURED ON PAGES 4 AND 5.

TABLE OF CONTENTS

HISTORY OF THE XGT SERIES LOCK 2
PRODUCT SPECIFICATIONS 3
LEVER DESIGNS 3
SCHOOL SECURITY SOLUTIONS 4-5
CROSS REFERENCE
FUNCTIONS
HOW TO ORDER
DIMENSIONS 10
STRIKES 11
PARTS, CYLINDERS, CORES AND KEYWAYS

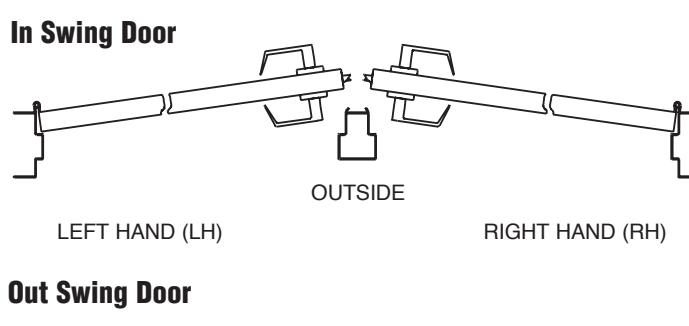

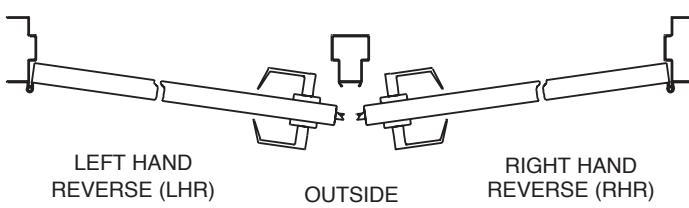

FINISHES, HANDING
ARCHITECTURAL SPECIFICATIONS 15

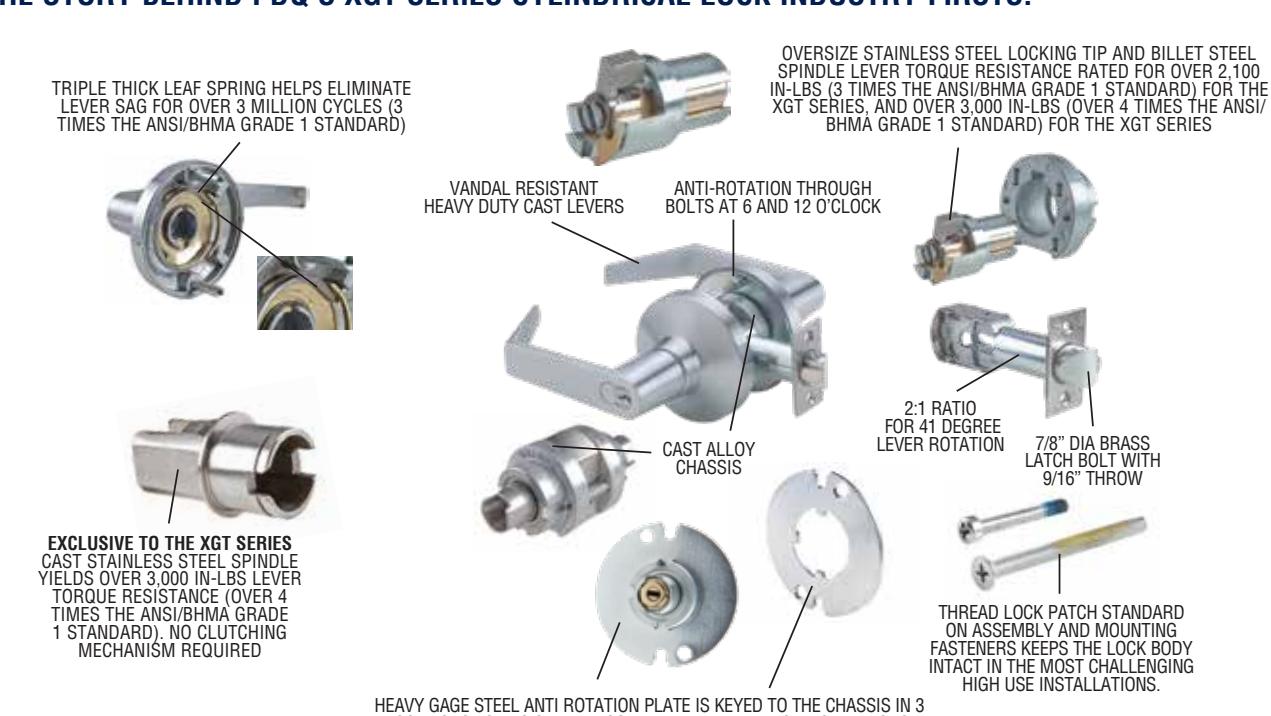

THE STORY BEHIND PDO'S XGT SERIES CYLINDRICAL LOCK INDUSTRY FIRSTS:

LOCATIONS TO RESIST THE MOST EXTREME AND ABUSIVE SITUATIONS.

PDQ'S GRADE 1 CYLINDRICAL LOCKS ARE THE STRONGEST IN THE INDUSTRY.

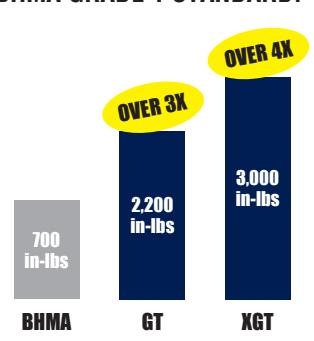

LEVER TORQUE RESISTANCE EXCEEDS 4 TIMES THE ANSI/ BHMA GRADE 1 STANDARD.

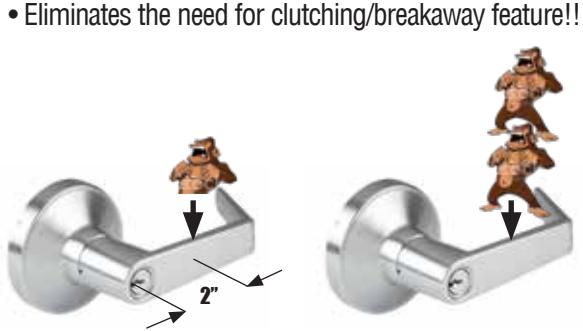

BUT WHAT DOES THIS LEVER TORQUE RESISTANCE MEAN?

ANSI/BHMA Less than One Gorilla

GT Series Can Hold More Than Two 500lh Gorillas

XGT Series Can Hold More Than Three 500lh Gorillas

PERFORMANCE, MECHANICAL

  • Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard).
  • Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard).

SPECIFICATIONS

FOR DOORS : • 1-3/4" to 2-1/4" thick.

• Preset for 1-3/4" door.

APPLICATION : • Through door thru-bolting.

DOOR PREP : • Standard ANSI A156.115 (161) for Cylindrical Locks.

BACKSET : • 2-3/4" Standard. 3-3/4" and 5" Optional (Ordered from factory only). CHASSIS : • Heavy duty zinc diecast, investment cast, chromated cold rolled steel,

stainless steel and EZAC™ diecast mechanism. Billet Steel spindles

for locking functions.

FRONT : • 2-1/4" x 1-1/8". • Stainless Steel or Wrought Brass.

• Beveled 1/8" in 2".

STRIKE : • ASA standard. • T-Strike or Full Lip Strike optional.

• Stainless Steel or Wrought Brass.

LATCHBOLT : • 9/16" Throw Deadlocking.

• 3/4" Latch projection for available as option.

HAND : • Non-handed.

TRIM : • Solid Zinc diecast PHL, BSN or MIA Levers.

• 41° Lever Rotation Standard with 2-3/4" backset.

• Wrought Brass Roses, Concealed Screws.

• 65° Lever Rotation Standard with 3/4" latch for double doors (Ordered

from factory only) and all 3-3/4" and 5" backsets.

(Ordered from factory only)

KEYS : • Two (2) per Lock.

KEYWAYS : • SCC standard (Schlage C Compatible).

• Also available in keyways of other manufacturers.

INTERCHANGEABLE CORE : • Available for all keyed functions.

• 6 or 7-pin.

• Large Format IC Core available for PHL Lever ONLY.

• Compatible with Best, Falcon and Arrow.

CYLINDER : • 6-pin Brass Insert Cylinder keyed to 5-pins.

KEYING : • Options: MK, CMK or GMK.

• Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing

master key systems.

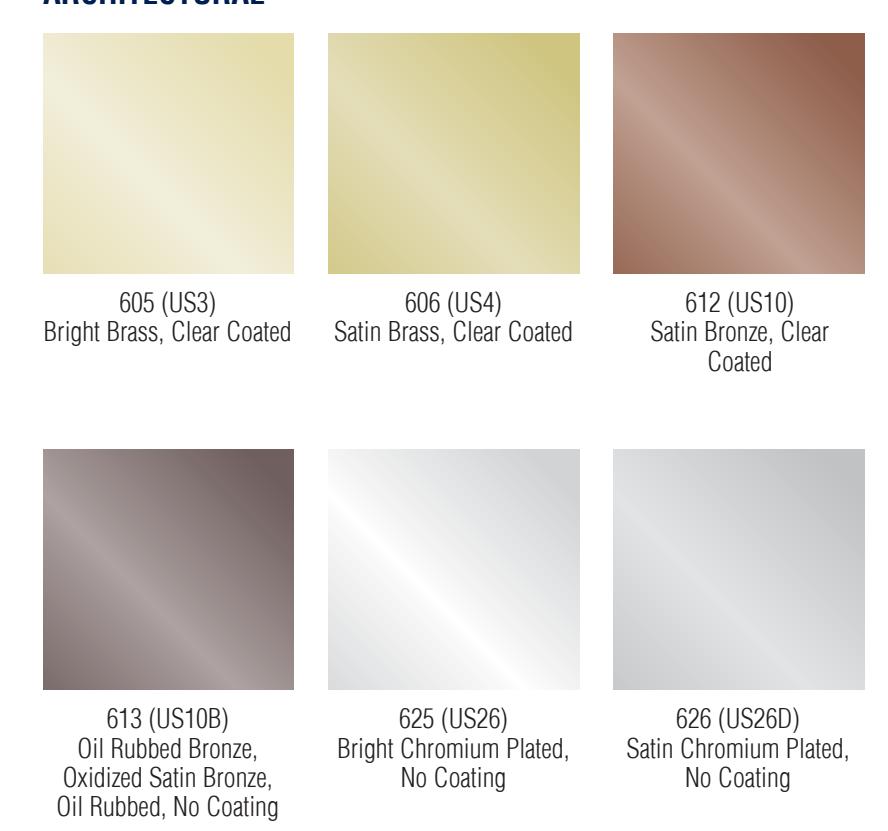

FINISHES : • 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613

(US10B) Oil Rubbed Bronze, 625 (US26) Bright Chrome, 626 (US26D) Satin Chrome.

• Optional Antimicrobial Coating 626 (USD26D) only‡.

CERTIFICATIONS, LISTINGS

COMPLIANCES : • UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0".

• Certified to ANSI/BHMA A156.2-2011, Grade 1.

• California Education Code Compliant (Functions XGT135, XGT135LED, XGT145).

• Federal Specification FF-H-10C (Superseded by A156.2).

• Windstorm Rated - Florida Building Code listed FL3262, ANSI A250.13, ASTM E1886, ASTM E330, Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 1485 lbf.

• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings.

WARRANTY : • Limited Lifetime Warranty.

COUNTRY OF ORIGIN : • Proudly Made in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

BSN — BOSTON

MIA — MIAMI

PHL — PHILADELPHIA

‡ Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.

SCHOOL SECURITY SOLUTIONS

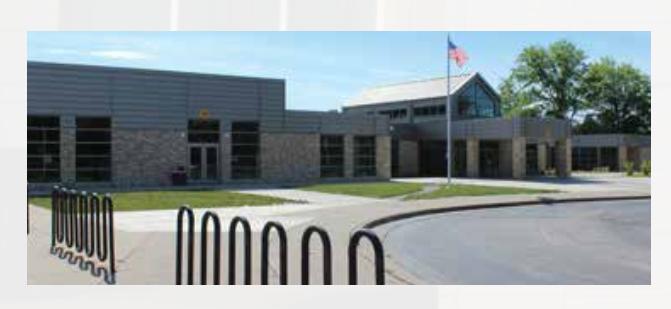

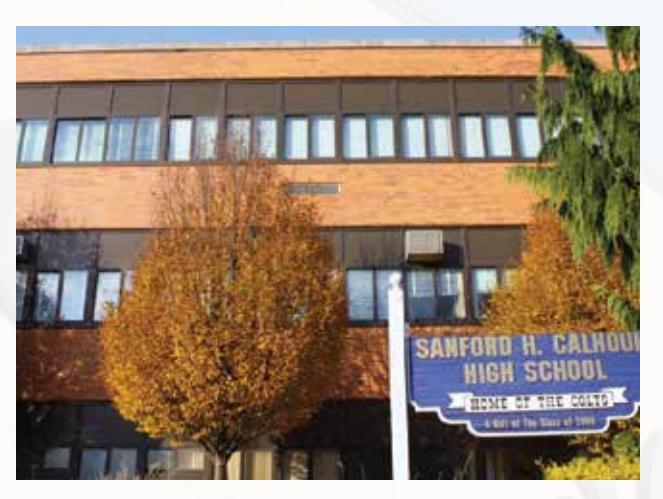

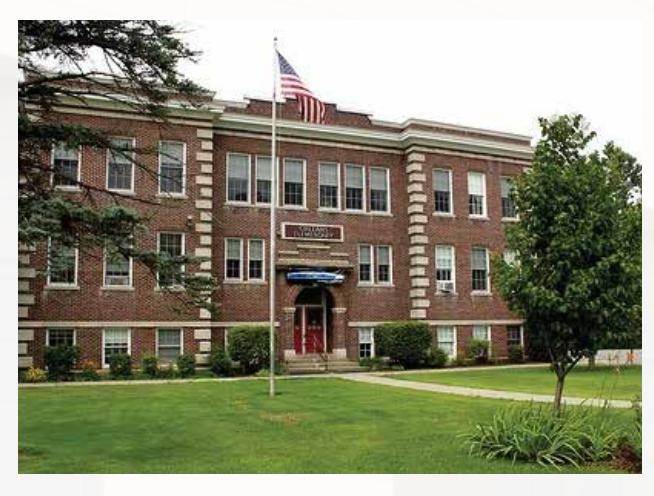

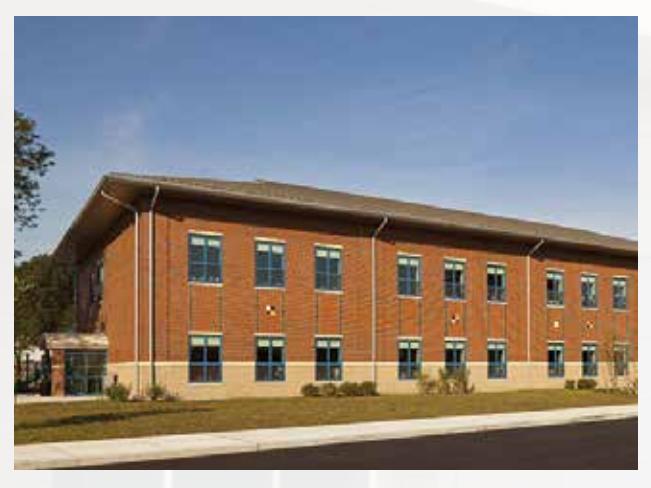

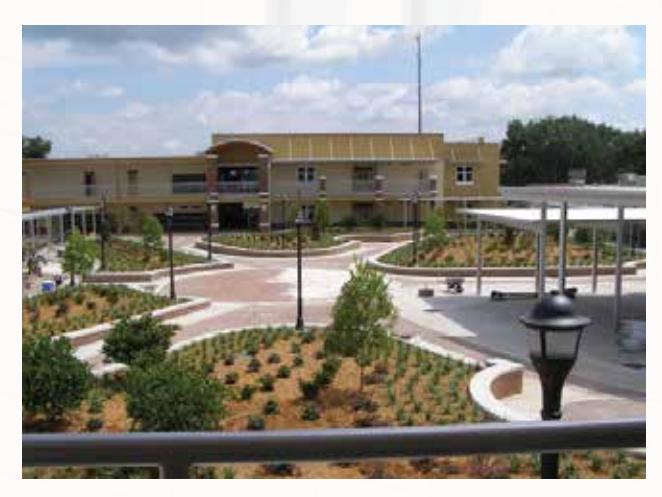

PAST PERFORMANCE LOCATIONS

PASCO COUNTY SCHOOLS Land O'Lakes, FL

BELLMORE - MERRICK SCHOOLS North Merrick, NY

BURLINGTON PUBLIC SCHOOLS Burlington, MA

ORLEANS SUPERVISORY UNION SCHOOLS Barton, VT

BETTENDORF COMMUNITY SCHOOL DISTRICT Bettendorf, IA

SCHOOL SECURITY SOLUTIONS

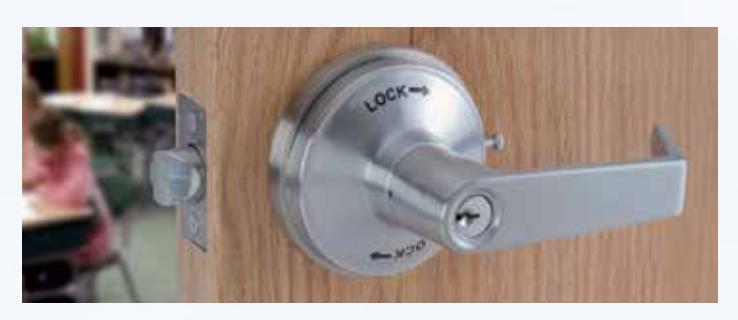

PDQ's Patented (US Patent #9,187,928) XGT 135 LED Classroom Intruder Cylindrical Lock is designed to allow a staff member to use the inside cylinder to lock the outside of the door, without compromising safety to the occupants in the room. But how does a staff member know if the outside lever is locked? Until now, it required opening the door and checking the lever. PDQ's 135 LED Classroom Intruder function eliminates the need to open the door. Simply press the button on the lock, and…if the Red LED lights up, the outside lever is locked and secure. If the Red LED does not light up, this indicates the outside lever is not locked and secure.

LEVER DESIGNS

PHL — PHILADELPHIA

BSN — BOSTON MIA — MIAMI

FEATURES

  • Complies with California Education Code (Functions XGT135, XGT135LED, XGT145)
  • Red LED (Light Emitting Diode) outside lever status indicator.
  • Pushing the button located on the rose of the inside lock, Red LED illuminates indicating the outside lever is locked.
  • Offered with cylinder housings compatible with Best® Small Format Inter-changeable cores, Schlage® Large Format Interchangeable cores and most others.
  • Large Format Inter-changeable cores only available with PHL lever .
  • Keying options available, compatible with most key systems.
  • Battery life rating: 10 years*
  • Battery type: CR1220
  • Patented (US Patent #9,187,928)

PERFORMANCE, MECHANICAL

  • Factory tested to over 2 million cycles (2 times the ANSI/BHMA Grade 1 std)
  • Lever torque tested to 2,100 in-lbs (3 times the ANSI/BHMA Grade 1 std)

OUTSIDE LEVER UNLOCKED

TO CHECK THE SECURITY OF THE OUTSIDE LEVER, PRESS THE BUTTON. IF THE RED LED LIGHTS UP, THAT CONFIRMS THE OUT-SIDE LEVER IS LOCKED AND SECURE.

SCHOOL SECURITY FUNCTIONS

FUNCTION FUNCTION
NUMBER 		INSIDE | OUTSIDE DESCRIPTION
KEYED
WITH LED STATUS INDICATOR
Vestibule
Class Room
Security 		• Latchbolt operated by lever from either side
• Key in either lever locks outside lever
• Key in either lever unlocks outside lever
F110
• Inside lever always free
• Red LED Outside Lever Status Indicator
• Lock Directional Arrow
XGT135LED
• Patent #9,187,928
WITHOUT LED STATUS INDICATOR
Vestibule
Class Room
Security 		XGT135 • Latchbolt operated by lever from either side
• Key in either lever locks outside lever
• Key in either lever unlocks outside lever
• Inside lever always free 		F110
Vestibule
Class Room
Security 		XGT145 • Latchbolt operated by lever from either side
• Key in either lever locks outside lever
• Key in either lever unlocks outside lever
• Inside lever always free
• Lock Directional Arrow" 		F110

* Battery tested to over 7,300 illumination cycles. 10 year life rating is calculated using 1 sec per illumination @ 2 illuminations per day @ 365 days per year @ 10 years

CROSS REFERENCE

ANSI # /
FUNCTION 		PDQ CORBIN SARGENT
F75 PASSAGE XGT 126 CL3310 10U15
F76 PRIVACY XGT 176 CL3320 10U65
F82 ENTRY XGT 182 CL3361 10G24
F109 ENTRANCE XGT 116 CL3351 10G05
F84 CLASSROOM XGT 148 CL3355 10G37
F86 STORE ROOM XGT 115 CL3357 10G04
F90 CORRIDOR XGT 165 CL3375 10G54
F110
INTRUDER CLASSROOM 		XGT 135 CL3352 10G38
F110
INTRUDER CLASSROOM
W/LED INDICATOR 		XGT 135 LED
PDQ Exclusive -
Patent Pending 		N/A N/A
SINGLE DUMMY XGT 211 CL3350 10U93

LEVER COMPARISON

PDQ CORBIN SARGENT
MIA — MIAMI AZD B Lever
PHL — PHILADELPHIA NZD L Lever
BSN — BOSTON PZD P Lever

BOSTON (BSN) LEVER MIAMI (MIA) LEVER PHILADELPHIA (PHL) LEVER

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

FUNCTIONS - NON KEYED

FUNCTION FUNCTION
Number 		INSIDE | OUTSIDE DESCRIPTION ANSI
NUMBER
NON KEYED
Passage /
Closet 		XGT126 Latchbolt operated by lever from either side at all times
Privacy
Bedroom /
Bathroom 		XGT176
  • Latchbolt operated by lever from either side or emergency release in outside lever
  • Outside lever locked by push button on inside
  • Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
F76

FUNCTIONS - KEYED

FUNCTION FUNCTION
Number 		INSIDE | OUTSIDE DESCRIPTION ANSI
Number
Storeroom XGT115
  • Latchbolt operated by inside lever or key in outside lever
  • Outside lever always fixed
F86
Entrance XGT116
  • Latchbolt operated by lever from either side or key in outside lever
  • Outside lever locked by push/turn button on inside
  • When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever
  • When outside lever is locked by pushing and turning button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever
F109
Security XGT120
  • Latchbolt operated by lever from either side
  • Key on outside locks inside lever
  • Key on outside unlocks inside lever
  • Outside keyed lever always free
  • Inside lever has non-removable security features
_
Utility
Asylum /
Institution 		XGT128 Both levers rigid Latchbolt retracted by key on both sides Can only gain entry or exit by key F87
Vestibule
Class Room
Security 		XGT135 Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free F110
Vestibule
Class Room
Security 		XGT135LED Latchbolt operated by lever from either side Key in either lever locks outside lever Key in either lever unlocks outside lever Inside lever always free Red LED Outside Lever Status Indicator Lock Directional Arrow Patent #9,187,928 F110
Store Door XGT137
  • Latchbolt operated by lever from either side
  • Both levers locked by key from either side
  • Both levers unlocked by key from either side
F91
Communicating XGT141
  • Latchbolt operated by lever from either side
  • Key in either side locks or unlocks its own lever independently
F80
Vestibule
Class Room
Security 		XGT145
  • Latchbolt operated by lever from either side
  • Key in either lever locks outside lever
  • Key in either lever unlocks outside lever
  • Inside lever always free
  • Lock Directional Arrow"
F110
Classroom XGT148 *************************************** Latchbolt operated by lever from either side Outside lever locked by key from outside Outside lever unlocked by key from outside Inside lever always operates latch F84

FUNCTIONS - KEYED

FUNCTION FUNCTION
Number 		INSIDE | OUTSIDE INSIDE | OUTSIDE DESCRIPTION
KEYED
Service Station XGT155
  • Latchbolt operated by lever from either side or key in outside lever
  • Outside lever locked by push button on inside
  • When outside lever is locked by push button on inside – key from outside, rotating inside lever, or closing door unlocks outside lever
  • When outside lever is locked by pushing and turning the slotted button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever
F92
Dormitory /
Corridor 		XGT165
  • Latchbolt operated by lever from either side or key in outside lever
  • Outside lever locked by key on outside or push button on inside
  • Outside lever unlocked by key in outside lever, closing door, or rotating inside lever
  • Inside lever always free
F90
Entry XGT182
  • Latchbolt operated by lever from either side or key in outside lever
  • Outside lever locked by push button on inside
  • Outside lever unlocked by key from outside
F82

HOW TO ORDER

SERIES FUNCTION LEVER FINISH BACKSET STRIKE CYLINDER
Or Housing 		KEYWAY KEYING
XGT SEE FUNCTION
TABLE 		PHL 626 234 ASA D SCC KD
NOTE: Case quantity (GT 126 PHL 626 234 /
is 6 / Case weight is 3
s / For split finishes, do 		3 lbs. Keyed Fund - ht is 31 lbs. D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge® Compatible LFIC w/Core SFL — SFIC Housing less core LFL — Schalge® Compatible LFIC Housing less core SCC —
Default
Others —
See Keyways
Table below 		KD — Keyed
Different
Others —
See Keying
Table below.

KEYWAYS

CONVENTI ONAL CYLINDER SMALL FORMAT INTE RCHANGEABLE CORE LARGE FORMAT INTERCHANGEABLE
KEYWAY PDQ KEYWAY DESIGNATOR KEYWAY (BEST COMPATIBLE) PDQ KEYWAY DESIGNATOR KEYWAY (SCHLAGE
Compatible) 		PDQ KEYWAY DESIGNATOR
Schlage C (Default) SCC Schlage C (Default) SCC
PDQ Restricted TA
PDQ Restricted TA BEST A (Default), B, C, D, E, F, A (Default), B, C, D, E, F, G,
Arrow AR1 AR1 G, H, J, K, L, M, Q, R, WA, WB, H, J, K, L, M, Q, R, WA, WB,
Corbin 59A1 C059A1 WG, WH, TB, TD, TE, R WG, WH, TB, TD, TE, R
Corbin 60 C06 KEYING
Corbin L4 CL4 KETIKO
Russwin D1 RUD DDO Evaluaiva PDQ1 PDQ KEYING
Russwin 981 RUD981 PDQ Exclusive PDQ2 DESCRIPTION DESIGNATOR
Schlage E SCE PDQ Exclusive and Restricted PDQ3 DESIGNATOR
Schlage C SCC Keyed Different (Default :) KD
Schlage C-K SCC-K Keyed Alike KA
Sargent LA SAL "O" Zero Bitted КО
Sargent RA-RC RA-RC Master Keyed MK
Yale E1R YA8 ,
Yale GA GA Construction Master Ke ,
Falcon E-R FAL Grand Master Keyed GMK
Kwikset KW 1

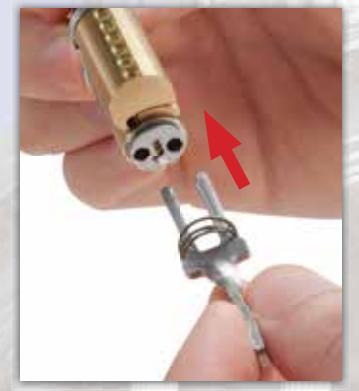

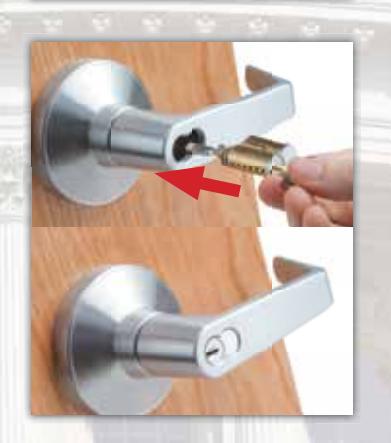

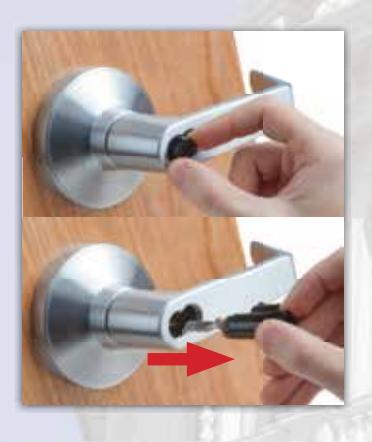

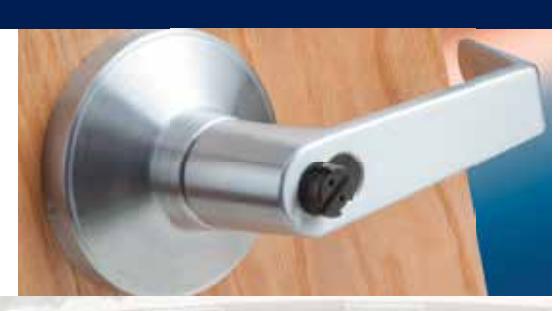

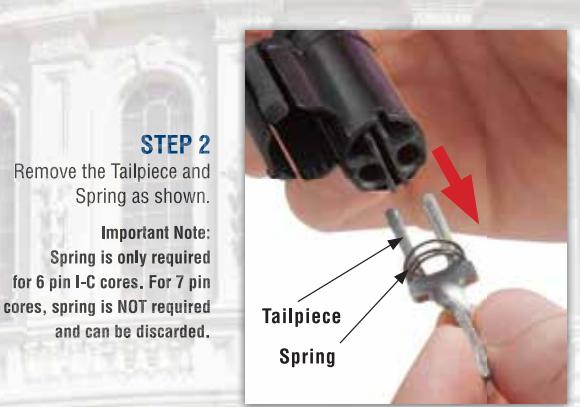

CYLINDERS/CORES/KEYWAYS

PDQ cylinders and cores are designed to interface with the keyways of most major lock manufacturers. Insert cylinders are designed to accept 6 pins and are combinated for 5 pins. These cylinders are shipped with two keys. Interchangeable core cylinders are available combinated or uncombinated for 6 and 7 pins and must be specified when ordering. Available in two finishes—606 (US4) and 626 (US26D); specify when ordering separately.

Key in Knob/Lever Cylinder (Default) Small Format Interchangeable Core. Large Format Interchangeable Core

CYLINDERS & CORES

FINISHES
DESCRIPTION PINS 606 626
Conventional Key In Knob/Lever Cylinder 6 Pin V4802-8 V4802-7
Small Format, Best® Compatible - Uncombinated 6 Pin
7 Pin 		I5206 -8
I5207-8 		I5206 -7
I5207-7
Small Format, Best® Compatible - Combinated 6 Pin
7 Pin 		I5206-1-8
I5207-1-8 		I5206-1 -7
I5207-1 -7
Large Format, Schlage® Compatible - Uncombinated 6 Pin I5206-816 I5206-716
Large Format, Schlage® Compatible - Combinated 6 Pin I5206-8116 I5206-7116

NOTE: Part Numbers Listed For Default Keyway. For Other Keyways, See Price List.

HIGH SECURITY CYLINDERS & CORES

FINISHES
DESCRIPTION PINS
606
Key in Knob/Lever Cylinder
Key in Knob/Lever Cylinder - UL437 		6 Pin
6 Pin 		HSC125-8
HSC425-8 		HSC125-7
HSC425-7
Small Format, Best® Compatible - Combinated
Small Format, Best® Compatible - Combinated 		6 Pin
7 Pin 		HSC806-8
HSC807-8 		HSC806-7
HSC807-7
Large Format, Schlage® Compatible - Combinated 6 Pin HSC906-8 HSC906-7

KEYWAYS, KEY IN KNOB/LEVER CYLINDER KEYWAYS, INTERCHANGEABLE CORES

PDQ KEYWAY COMPATIBLE WITH
ARA
CO6 / CO59A1 		Arrow / AR1
Corbin / 60/59A1
CL4 Corbin / L4
RUD/RUD981 Russwin / D1
SCE Schlage / E
SCC Schlage / C (Default)
SCC-K Schlage / C-K
SAL Sargent / LA
RA-RC Sargent / RA-RC
YA8 Yale / E1R
GA Yale / GA
FAL Falcon / E-R
KW Kwikset
TA PDQ / TA (Restricted)

DESCRIPTION BEST® Compatible — A (DEFAULT) , B, C, D, E, F, G, H, J, K, L, M, Q, WB, WC, WG, WH, TB, TD, TE, & R PDQ Exclusive — PDQ1, PDQ2 PDQ Exclusive and Restricted — PDQ3 SFIC CONSTRUCTION — Construction Core 6-pin only, Dummy Construction Core Plastic LFIC CONSTRUCTION — Construction Core 6-pin only, IC Tailpiece Assembly. Construction cores are invoiced at shipment and credited upon return. LFIC COMBINATED — Schlage compatible LFIC, SCC (Schlage C compatible) keyway PDQ TA LFIC RESTRICTED LFIC UNCOMBINATED — Schlage compatible LFIC, SCC (Schlage C compatible) keyway

WHEN IT'S TIME TO ADD INTERCHANGEABLE CORES, PDQ HAS MADE THIS QUICK AND EASY.

SIMPLY FOLLOW THESE STEPS:

When ordered less Interchangeable Cores, included with PDQ's GT Series Cylindrical Locks is a Temporary Plastic Disposable Talipiece Core. This Core is designed to stay with the lock when it is installed. It is discarded when the permanent Small Format Interchangeable Core is installed. While in the lock, the Temporary Disposable Core can be used to retract the latchbolt.

STEP 1

Remove the Temporary Plastic Tailpiece Core from the Lever Housing with a\nsimple, gentle pull. When adding permanent Small Format Interchangeable Cores, verify proper lock function then rotate the insert to home position. A detent is provided to assist you in finding the home position.

Important Note: Do not rotate the insert or tailpiece when removing it from the lock.

STEP 3

Insert the Tailpiece into the Small Format Interchangeable Core as shown.

Important Note: Spring is only required for 6 pin I-C cores. For 7 pin cores, spring is NOT required and can be discarded.

is operating properly. Lock is now ready for use.

DIMENSIONS

BSN -BOSTON

PHL -PHILADELPHIA

MAI -MIAMI

STRIKES

All PDQ series strikes are reversible and shipped with screws. Specify finish when ordering.

"T" Strike Square Corners* 1-1/8" x 2-3/4" x 3/32"

ASA ANSI Strike* 1-1/4" x 4-7/8" x 3/32" (Default)

FL Full Lip Strike* 1-5/8" x 2-1/4" x 3/32"

*Not to scale

PARTS

REPLACEMENT DESCRIPTION FINISHES
LEVERS DESCRIP HOR 605 606 612 613 625 626
A Non-Cylinder Plain V32319-5 V32319-8 V32319-3 V32319-6 V32319-2 V32319-7
Non-Cylinder with button lock V32321-5 V32321-8 V32321-3 V32321-6 V32321-2 V32321-7
Conventional Key in Knob/Lever V32310-5 V32310-8 V32310-3 V32310-6 V32310-2 V32310-7
BOSTON Small Format Interchangeable Core V32327-5 V32327-8 V32327-3 V32327-6 V32327-2 V32327-7
Non-Cylinder Plain V32361-5 V32361-8 V32361-3 V32361-6 V32319-2 V32361-7
Non-Cylinder with button lock V32360-5 V32360-8 V32360-3 V32360-6 V32360-2 V32360-7
Conventional Key in Knob/Lever V32362-5 V32362-8 V32362-3 V32362-6 V32362-2 V32362-7
MIAMI Small Format Interchangeable Core V32364-5 V32364-8 V32364-3 V32364-6 V32364-2 V32364-7
Non-Cylinder Plain V32305-5 V32305-8 V32305-3 V32305-6 V32305-2 V32305-7
Non-Cylinder with button lock V32307-5 V32307-8 V32307-3 V32307-6 V32307-2 V32307-7
Conventional Key in Knob/Lever V32306-5 V32306-8 V32306-3 V32306-6 V32306-2 V32306-7
Small Format Interchangeable Core V32322-5 V32322-8 V32322-3 V32322-6 V32322-2 V32322-7
PHILADELPHIA Large Format Interchangeable Core V32427-5 V32427-8 V32427-3 V32427-6 V32427-2 V32427-7
LATCHBOLTS DESCRIPTION FINISHES
LAIUNDULIS DESCRIPTION 605 606 612 613 625 626
Standard Latchbolt
With Dead Latch
2-3/8" Backset, 9/16" Throw V91904-521 V91904-821 V91904-321 V91904-621 V91904-221 V91904-721
Faceplate: 2-1/4" X 1-1/8",
Square Corners
See note 1.
Standard Latchbolt With Dead Latch 2-3/4" Backset, 1/2" Throw Faceplate: 2-1/4" X 1-1/8", V91904-511 V91904-811 V91904-311 V91904-611 V91904-211 V91904-711
c(UL) USTED Square Corners
Latchbolt With DeadLatch
For Double Doors
2-3/4" Backset, 3/4" Throw
Faceplate: 2-1/4" X 1-1/8",
Square Corners 		V91904-511DD V91904-811DD V91904-311DD V91904-611DD V91904-211DD V91904-711DD

Note: Replacement latch for 3-3/4" backset applications when used with V21902 extension.

PARTS

DESCRIPTION N/A COE coc FINISHES COF coc
Push Button For Functions XGT155, XGT165, XGT173, XGT175, XGT176, XGT177, XGT182 N/A 605
VA91302-5 		606
VA91302-8 		612
VA91302-3 		613
VA91302-6 		625
VA91302-2 		626
VA91302-7
0 Outside Rose for All Functions, Inside Rose For All functions except XGT135LED, XGT145 _ V32006-5 V32006-8 V32006-3 V32006-6 V32006-2 V32006-7
0 Inside Rose w/Locking Directional Arrow For Functions
XGT135LED, XGT145 		_ VA10093-5 VA10093-8 VA10093-3 VA10093-6 VA10093-2 VA10093-7
"T" STRIKE SQUARE CORNERS
1-1/8" X 2-3/4" X 3/32" 		_ V919050-5 V919050-8 V919050-3 V919050-6 V919050-2 V919050-7
ASA ANSI STRIKE
1-1/4" X 4-7/8" X 3/32" 		_ V91905-5 V91905-8 V91905-3 V91905-6 V91905-2 V91905-7
"FULL LIP" STRIKE
1-5/8" X 2-1/4" X 3/32" 		_ V919051-5 V919051-8 V919051-3 V919051-6 V919051-2 V919051-7
SCREW PACK - INCLUDES MOUNTING SCREWS, HEX KEY(M5 X .8) AND PICK. _ VA10030-3 VA10030-8 VA10030-3 VA10030-6 VA10030-2 VA10030-7
SPACER For 1-3/8" doors. Sold as a pair. To be installed as a set. V32433 _ _ _ _ _ _
EXTENSION Converts standard latchbolt from 2-3/4" backset to 5" VA21902 _ _ _ _ _ _
EXTENSION Converts standard latchbolt from 2-3/8" backset to 3-3/4"" VA21903 _
CENTERING PLATE 1-1/8" latch Front Filler Plate. Centers and supports latch bolt when used in hollow stile doors. V21904 _ _ _ _ _ _
DISPOSABLE TAILPIECE CORE FOR SFIC VA10100 _ _ _ _ _ _
TAILPIECE WITH SPRING FOR SFIC HOUSING VP92905 _ _ _ _ _ _
TAILPIECE FOR LFIC HOUSING V32434 _ _ _ _
5) DUST BOX FOR "T" STRIKE 10251 _ _ _ _ _ _
DUST BOX FOR ASA (ANSI) Y025-SBX _ _ _ _ _ _
DUST BOX FOR FULL LIP STRIKE 10251R _ _ _ _ _ _
4 Boring Jig - Locates off 2-1/8" bore to drill 2ea 5/16"DIA anti-rotation through-bolts V11225 _ _ _ _ _

FINISHES

ARCHITECTURAL

Finishes shown are representative only. PDQ cannot guarantee that product shipped will match finishes shown.

HANDING

SUGGESTED ARCHITECTURAL SPECIFICATIONS

The XGT series from PDQ Industries, Inc. Leola, Pennsylvania, is assembled in the USA with US and foreign materials, and meets the requirements of the Buy American Act. It features a Limited Lifetime warranty and is certified to ANSI A156.2, Series 4000, Grade 1. The XGT has been listed as a Windstorm Resistant Product - ANSI A250.13-2003, ASTM E1886-02, ASTM E330-02. Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 1485lbf. Locksets and is listed by UL / ULC for ratings of "A" label (3 hours) and less, UL10C / UBC 7-2 (1997) positive pressure, for single doors up to 4'0" x 8'0". The levers are solid cast with no plastic inserts and have a minimum 5-1/2" overall length. The supportive springs are located outside the chassis and deliver

power totally independent of chassis or latch unit. The 9/16" throw latch requires only 41° rotation of levers for full retraction. The standard backset for XGT Series is 2-3/4", with 3-3/4 and 5" backsets optional configurations. The mounting uses a unique design that incorporates concealed fasteners with through-thedoor through-bolt attachment outside the 2-1/8" door prep. This prevents abusive stress from reaching the chassis and instead transmits it to the door. The XGT series features an oversize stainless steel locking tip resulting in over 3100 in lbs. of torque resistance (4 times the ANSI/BHMA Grade 1 Standard). The XGT has been tested to more than 3 Million cycles (3 times the ANSI/ BHMA Grade 1 Standard) with virtually no lever sag.

NOTES:

Headquarters: 2754 Creek Hill Road • Leola, PA 17540 • 800.441.9692 • 717.656.6892 Fax Regional Distribution Centers: Kansas City, MO, Salt Lake City, UT, Seattle, WA www.pdqlocks.com

PDQ'S XGT Series Brochures are now printed entirely on Forest Stewardship Council™ certified paper. harvested forests that meet strict environmental and socioeconomic standards. We're proud to be one of the first hardware manufacturers in the country to make this significant move to help our environment. The FSC logo on our brochure signals not only FSC Certification, but also PDQ's commitment to improving the environment.
