DEADBOLT DOUBLE CYLINDER

TEMPLATE: W53518

REV. 3 04-29-2019

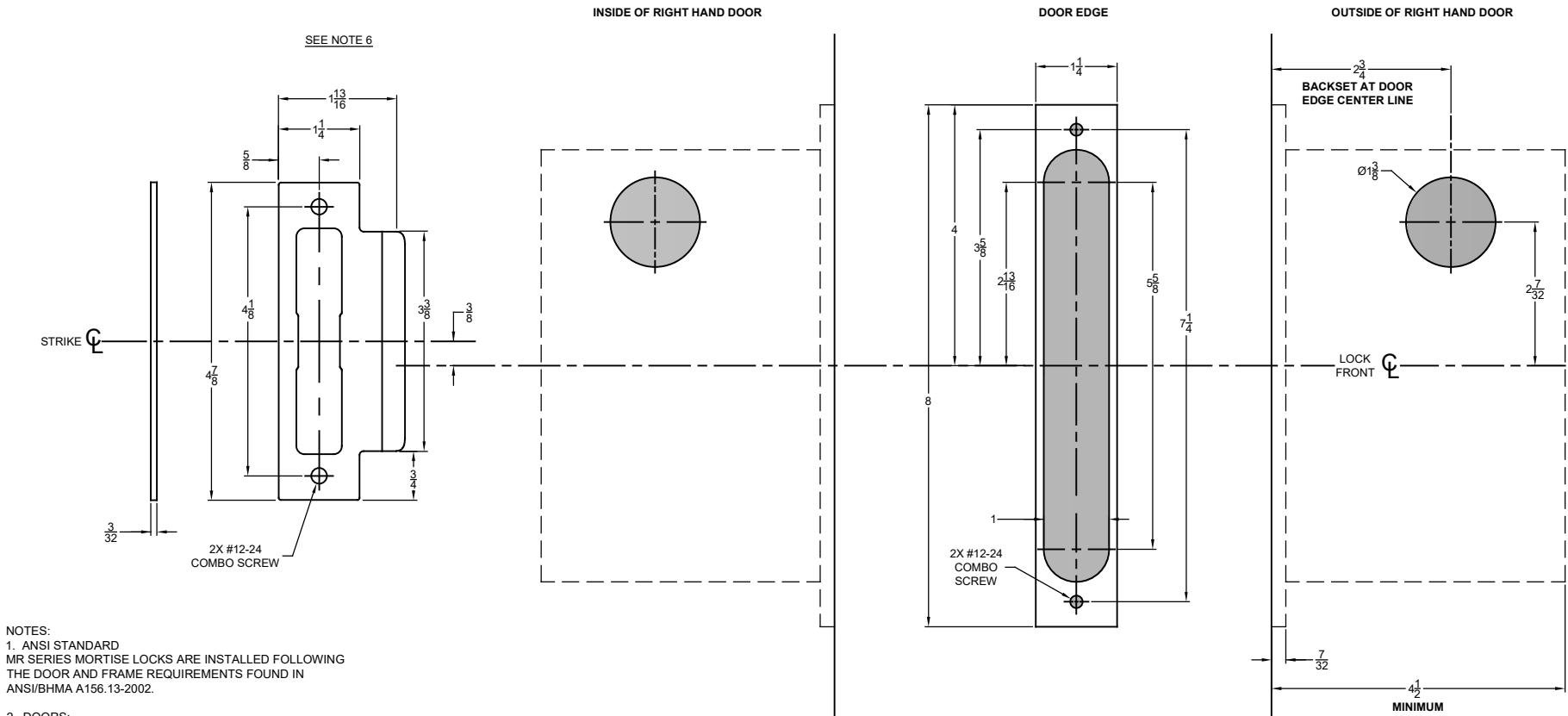

MORTISE FUNCTIONS MR133 MR134

2. DOORS:

REINFORCEMENT IS REQUIRED PER ANSI A115.1-1991.

STANDARD DOOR THICKNESS IS 1-3/4 ". CONSULT FACTORY FOR OTHER DOOR SIZES.

4. LEAD LINING:

ADD 1/2" TO MORTISE WIDTH WHEN PREPARING DOOR FOR A LEAD LINED MR SERIES MORTISE LOCK BODY.

5. SILENCERS AND WEATHER STRIPPING: PROVISIONS MUST BE MADE TO ALLOW PROPER DOOR CLOSURE WHEN USING DOOR SILENCERS, WEATHER STRIPPING OR SOUND PROOFING.

6. DIMENSIONS FOR STRIKE ARE NOT APPLICABLE FOR THE ELECTRIC STRIKE. SEE ELECTRIC STRIKE MANUFACTURERS TEMPLATE FOR DETAILS.
