SECTIONAL LEVER AND BALL KNOB TRIM

TEMPLATE: W53515 REV. 6 04-29-2019

MORTISE FUNCTIONS

MR205 TJ211

MR211 TJ205

INSIDE OF RIGHT HAND DOOR

DOOR EDGE

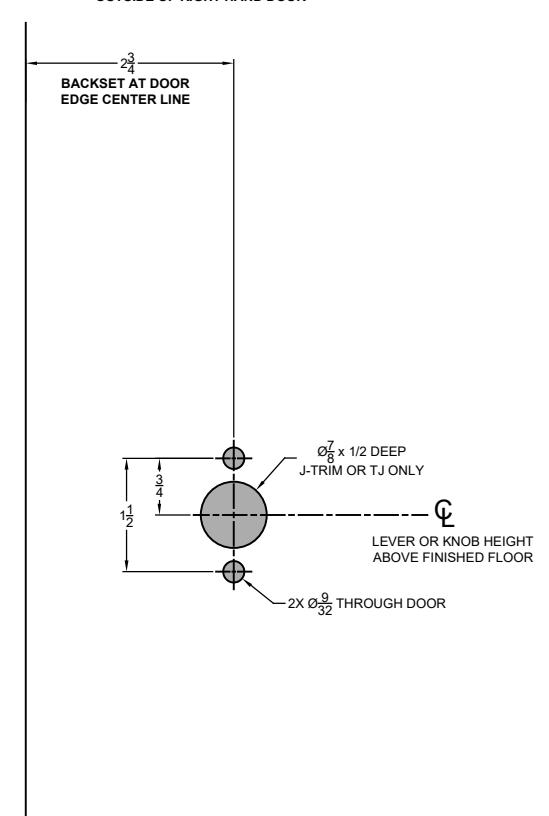

OUTSIDE OF RIGHT HAND DOOR

ANSI STANDARD:

MR SERIES MORTISE LOCKS ARE INSTALLED FOLLOWING THE DOOR AND FRAME REQUIREMENTS FOUND IN ANSI/BHMA

DOORS:

REINFORCEMENT IS REQUIRED PER ANSI A115.1-1991.

DOOR THICKNESS:

STANDARD DOOR THICKNESS IS 1-3/4". CONSULT FACTORY FOR OTHER DOOR SIZES.

LEAD LINING:

ADD 1/8" TO MORTISE WIDTH WHEN PREPARING DOOR FOR A LEAD LINED MR SERIES MORTISE LOCK BODY.

SILENCERS AND WEATHER STRIPPING:

PROVISIONS MUST BE MADE TO ALLOW PROPER DOOR CLOSURE WHEN USING DOOR SILENCERS, WEATHER STRIPPING OR SOUND PROOFING.
