w53506 Rev3 MR211

ESCUTCHEON LEVER AND BALL KNOB TRIM

MORTISE FUNCTIONS MR211

INSIDE OF RIGHT HAND DOOR $2X\; \backslash otimes\_\{\backslash underline\{A\}\}^\{1\}$ - INTERSECT $\backslash otimes\_\{\backslash underline\{1\}\}^\{1\}$ HOLE —

ANSI STANDARD

MR SERIES MORTISE LOCKS ARE INSTALLED FOLLOWING THE DOOR AND FRAME REQUIREMENTS FOUND IN ANSI/BHMA A156.13-2002.

DOORS:

REINFORCEMENT IS REQUIRED PER ANSI A115.1-1991.

DOOR THICKNESS:

STANDARD DOOR THICKNESS IS 1- $\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !$

LEAD LINING:

ADD $\backslash mbox\{\backslash sc\; 1\}\_8$ TO MORTISE WIDTH WHEN PREPARING DOOR FOR A LEAD LINED MR SERIES MORTISE LOCK BODY.

SILENCERS AND WEATHER STRIPPING:

PROVISIONS MUST BE MADE TO ALLOW PROPER DOOR CLOSURE WHEN USING DOOR SILENCERS, WEATHER STRIPPING OR SOUND PROOFING.

DOOR EDGE

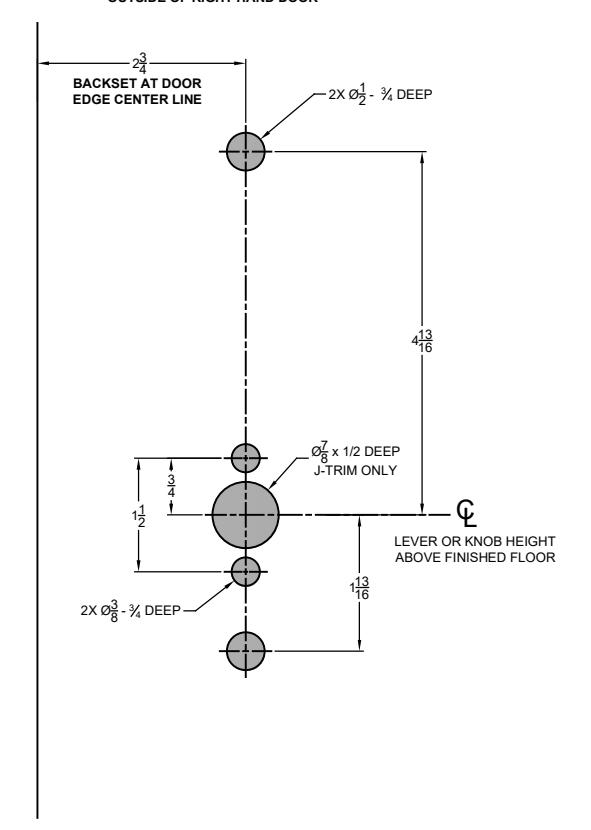

OUTSIDE OF RIGHT HAND DOOR

TEMPLATE: W53506 REV. 3 04-18-2019
