ESCUTCHEON LEVER AND BALL KNOB TRIM

TEMPLATE: W53505 REV. 4 04-18-2019

MORTISE FUNCTIONS MR2

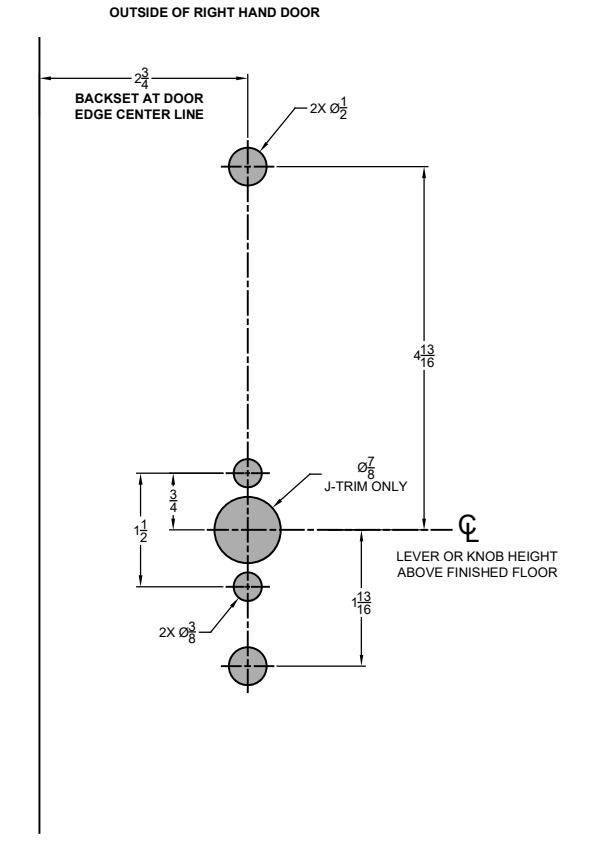

INSIDE OF RIGHT HAND DOOR

ф------------------------------------

ANSI STANDARD

MR SERIES MORTISE LOCKS ARE INSTALLED FOLLOWING THE DOOR AND FRAME REQUIREMENTS FOUND IN ANSI/BHMA A156.13-2002.

DOORS:

REINFORCEMENT IS REQUIRED PER ANSI A115.1-1991.

DOOR THICKNESS:

STANDARD DOOR THICKNESS IS 1- $\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !\backslash !$

LEAD LINING:

ADD $\backslash mbox\{\backslash sc\; 1\}\_8$ TO MORTISE WIDTH WHEN PREPARING DOOR FOR A LEAD LINED MR SERIES MORTISE LOCK BODY.

SILENCERS AND WEATHER STRIPPING:

PROVISIONS MUST BE MADE TO ALLOW PROPER DOOR CLOSURE WHEN USING DOOR SILENCERS, WEATHER STRIPPING OR SOUND PROOFING.

DOOR EDGE OL
