ESCUTCHEON LEVER AND BALL KNOB TRIM

TEMPLATE: W53504 REV. 4 04-12-2019

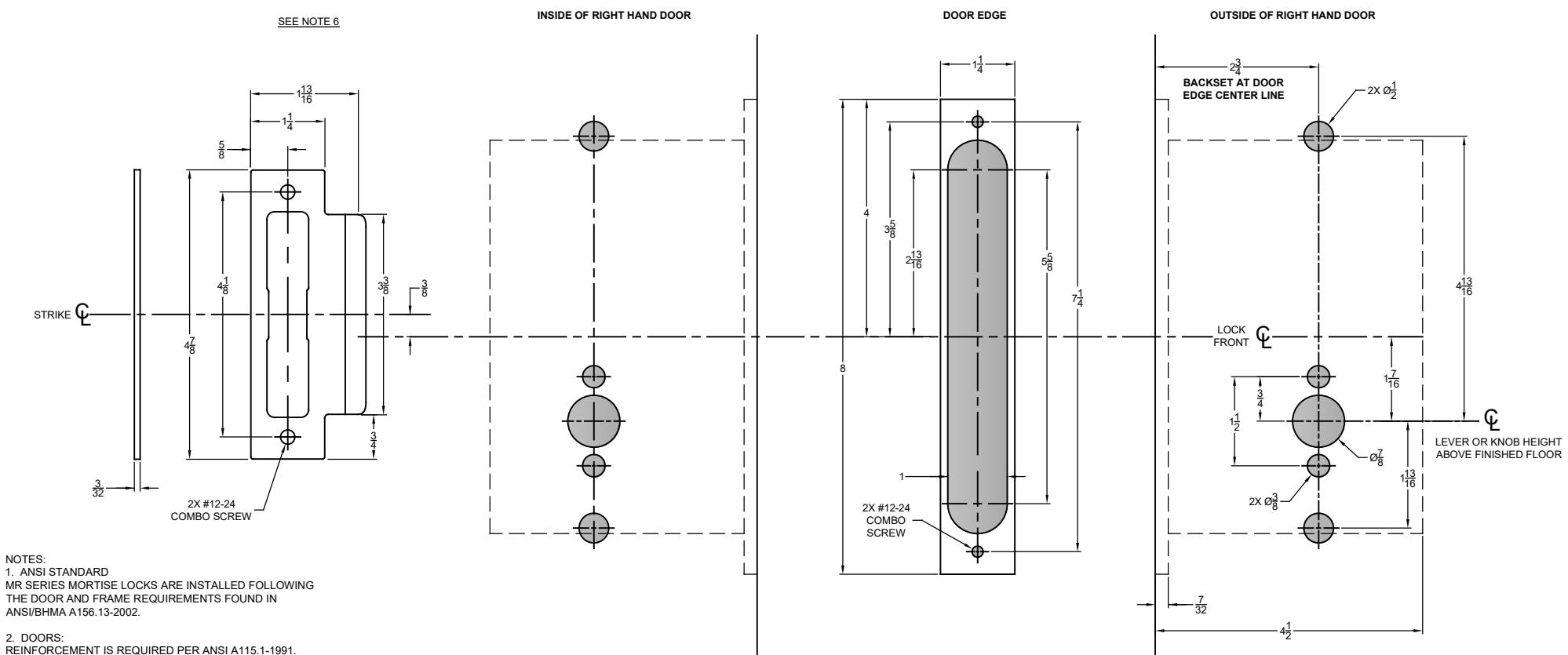

MORTISE FUNCTIONS

STANDARD DOOR THICKNESS IS 1- $\backslash frac\{1\}\{4\}$ ". CONSULT FACTORY FOR OTHER DOOR SIZES.

4. LEAD LINING:

ADD ¾" TO MORTISE WIDTH WHEN PREPARING DOOR FOR A LEAD LINED MR SERIES MORTISE LOCK BODY.

5. SILENCERS AND WEATHER STRIPPING: PROVISIONS MUST BE MADE TO ALLOW PROPER DOOR CLOSURE WHEN USING DOOR SILENCERS, WEATHER STRIPPING OR SOUND PROOFING.

6. DIMENSIONS FOR STRIKE ARE NOT APPLICABLE FOR THE ELECTRIC STRIKE. SEE ELECTRIC STRIKE MANUFACTURERS TEMPLATE FOR DETAILS.
