Security Indicators
Designed for high use and abuse institution environments, such as schools and hospitals, these Von Duprin® products are recommended for the following applications:
- § Visual verification Reduce the time it takes to tour your facility and ensure each door is secure by installing the Von Duprin security indicator to provide at-a-glance visual verification.
- § Lockdown Lock down high occupancy areas such as auditoriums, cafeterias and gymnasiums, from inside the room with the Von Duprin security indicator that provides positive visual confirmation.

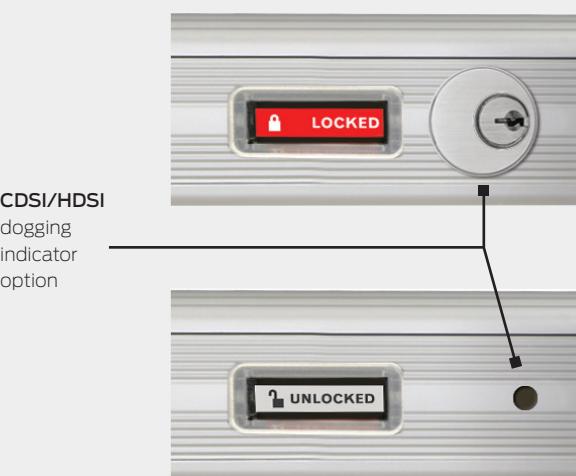

The CDSI/HDSI dogging indicator provides an at-aglance verification of the status of the door from inside of the room. Visible "LOCKED" and "UNLOCKED" indicators show whether the device is undogged or dogged. This feature can be used with hex key (HDSI) or cylinder dogging (CDSI) options on various device types–rim, mortise and vertical systems.

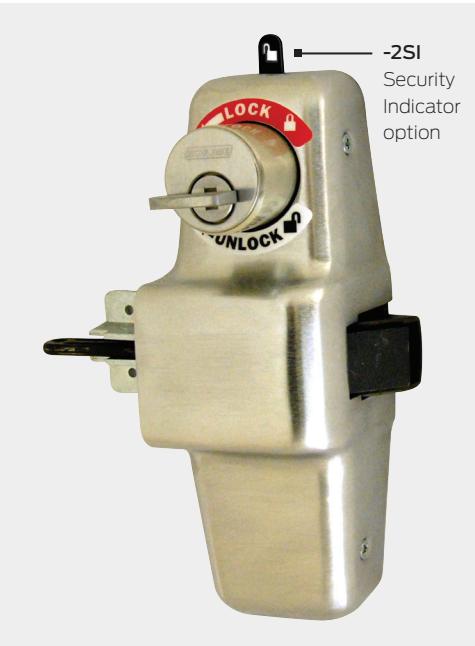

The -2SI Security Indicator provides an at-a-glance verification of the LOCKED/UNLOCKED status of the door from inside of the room. This option can be ordered as a new product or as a retrofit conversion kit to an existing 98/99 rim device. Indicator in "UNLOCKED" state presents a 1 ⁄2" x 1 ⁄2" metal flag (unlock icon, laser cut into flag) at top of device head. Indicator in "LOCKED" state has no flag present.
Features and benefits
- § Lockdown solution that meets fire and life safety codes for free egress
- § Modular conversion kits allow you to quickly and easily upgrade your existing devices

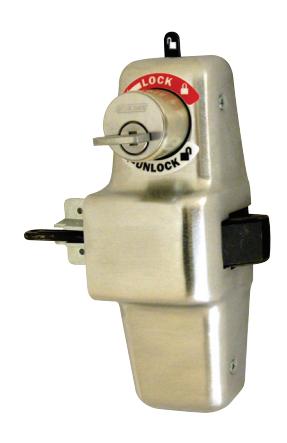

2SI security indicator with double cylinder
- § Thumbturn or key cylinder with lock/unlock labels provide a clear direction of rotation to secure opening
- § Available for 98/99 Series rim devices
CDSI/HDSI dogging indicator
- § Hex or cylinder dogging options
- § Visual indication of whether the exit device is dogged or undogged
- § Available for 98/99 & 33A/35A Series panic devices
Product availability
|
-2SI
Security Indicator |
NEW
DEVICES |
||
|---|---|---|---|
| Options | Device | How to order | |
|
Classroom security
double cylinder with Security Indicator |
98/99 Rim only |
Suffix = -2SI double
cylinder with Security Indicator |
|
|
Above applications available with L, TP, or K functions only. Specify
handing. Rim cylinder (3216) sold separately. Rim cylinder with T-Turn |
|||
available from Schlage, order part number XB 11-979
| -2SI Security Indicator: | CONVERSION |
| conversion options | KITS |
| Part number | Description | |
|---|---|---|
| 051883 | 98/99-2S1 Conversion Kit RHR | |
| 051884 | 98/99-2S1 Conversion Kit LHR | |
| 050884 | 98/99-F-2SI Conversion Kit RHR | |
| 050883 | 98/99-F-2SI Conversion Kit LHR | |
| 090599 | XP98/99-2SI Conversion Kit RHR | |
| 090600 | XP98/99-2SI Conversion Kit LHR | |
| 090794 | XP98/99-F-2SI Conversion Kit RHR | |
| 090795 | XP98/99-F-2SI Conversion Kit LHR | |
| 971220-00 | Lock/unlock label only | |
|
CDSI/HDSI
dogging indicator |
NEW
DEVICES |
|
|---|---|---|
| Options | Device | How to order |
|
Cylinder dogging
Security Indicator |
Panic devices:
33A/35A Series 98/99 Series |
Prefix = CDSI |
|
Hex dogging
Security Indicator |
Panic devices:
33A/35A Series 98/99 Series |
Prefix = HDSI |
| Above options can not be used with fire-rated devices and are |
Above options can not be used with fire-rated devices and are recommended for use in combination with the following trim functions - DT, K-DT, L-DT, EO, NL, K-NL, L-NL, NL-OP
|
Dogging indicator:
conversion options* |
CONVERSION
KITS |
||
|---|---|---|---|
| Part number | Description | ||
| 040070 / 040071 | 33A CDSI Conversion Kit 3' / 4' | ||
| 040072 / 040073 | 33A HDSI Conversion Kit 3' / 4' | ||
| 040074 / 040075 | 35A CDSI Conversion Kit 3' / 4' | ||
| 040076 / 040077 | 35A HDSI Conversion Kit 3' / 4' | ||
| 040078 / 040079 | 98 CDSI Conversion Kit 3' / 4' | ||
| 040080 / 040081 | 98 HDSI Conversion Kit 3' / 4' | ||
| 040082 / 040083 | 99 CDSI Conversion Kit 3' / 4' | ||
| 040084 / 040085 | 99 HDSI Conversion Kit 3' / 4' | ||
* For devices manufactured after 9/1997.
