Von Duprin NY5547L @ 39-13by16 inch CL (Standard) Series Vertical Rod Device For Metal Doors Template diagram on page 1

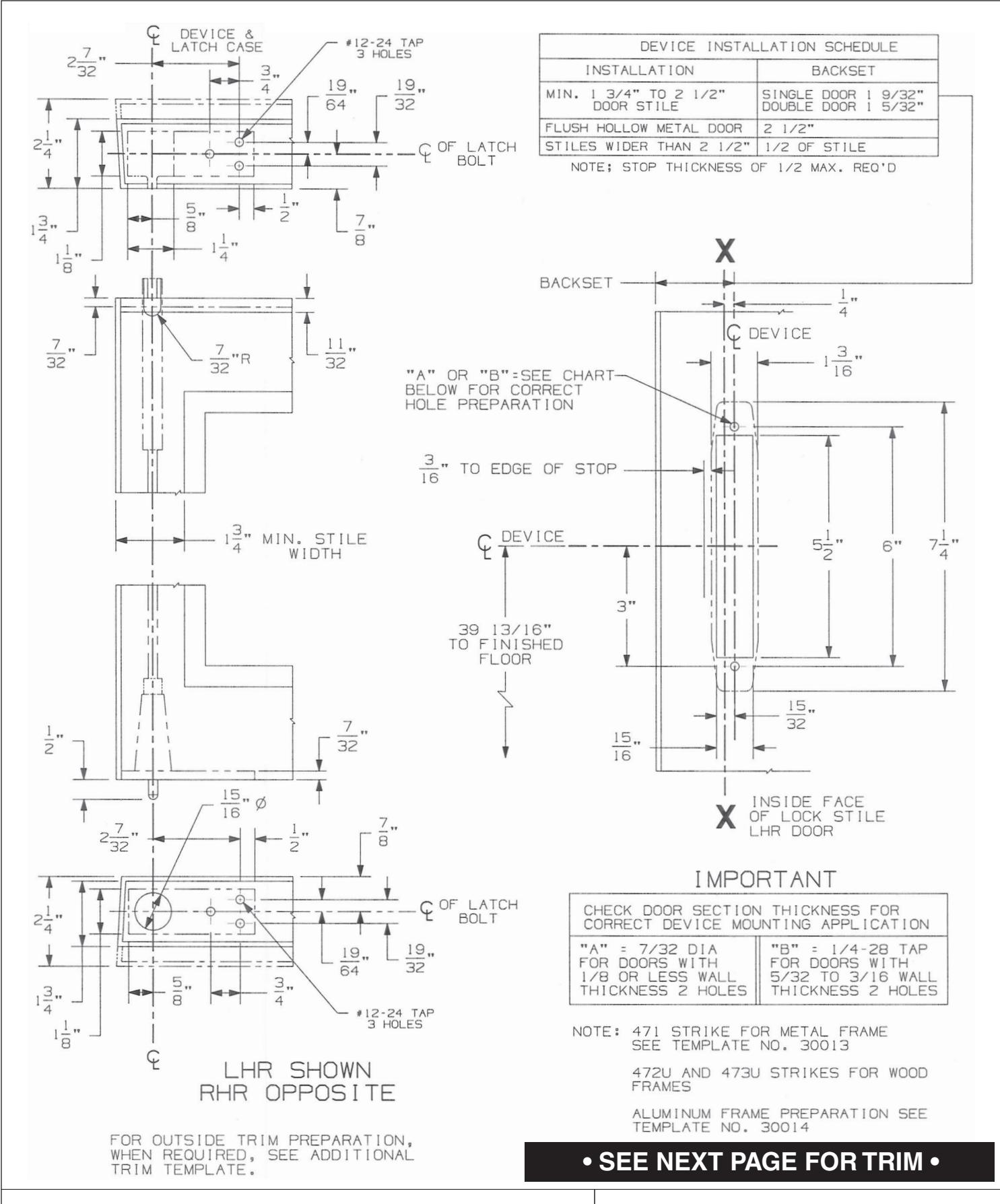

NY5547L @ 39<sup>13</sup>/<sub>16</sub>" CL (STANDARD) VERTICAL ROD DEVICES (METAL DOOR)

VON DUPRIN ®

TEMPLATE NUMBER:

931045_a

DATE: 04-28-20

Von Duprin NY5547L @ 39-13by16 inch CL (Standard) Series Vertical Rod Device For Metal Doors Template diagram on page 2

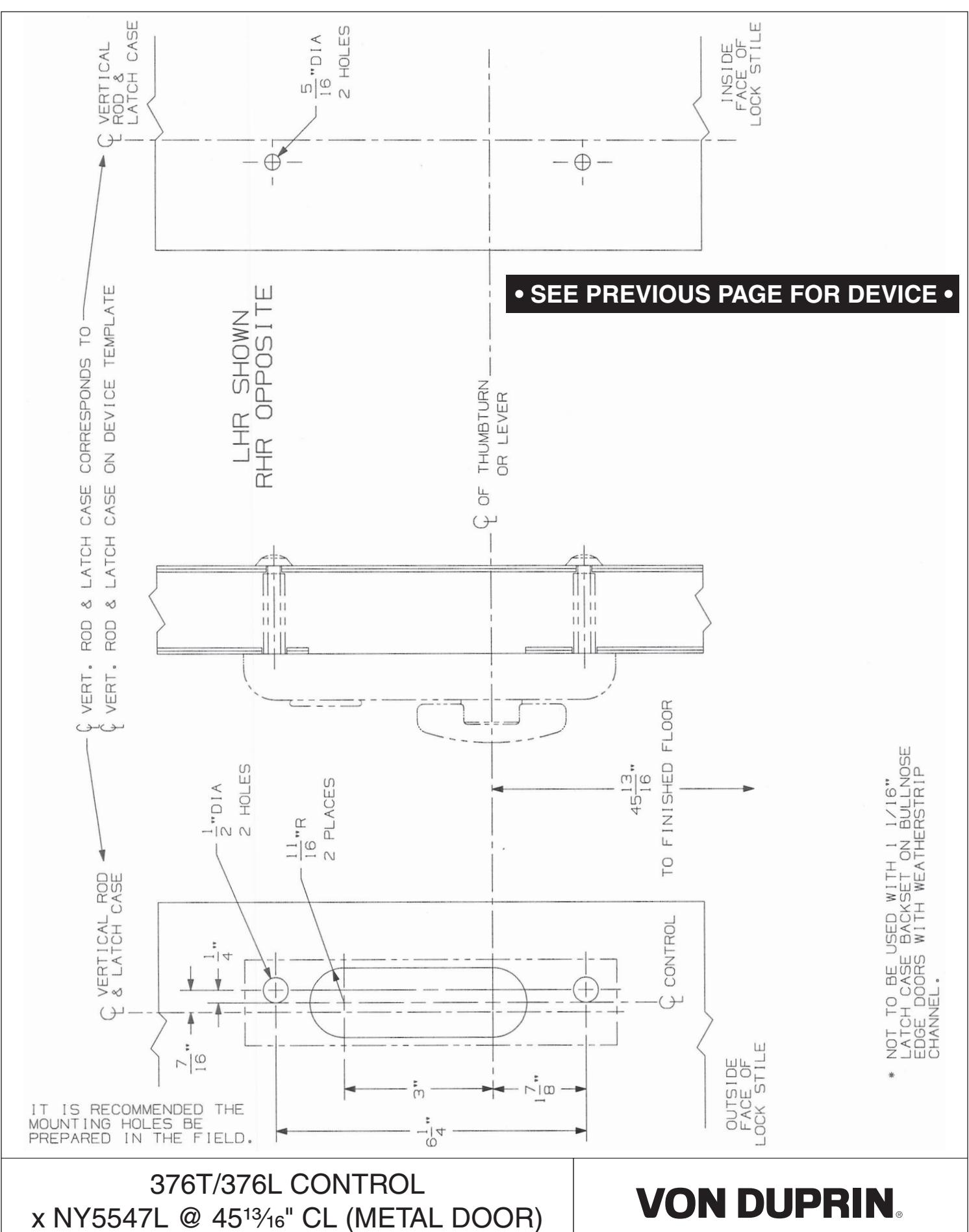

x NY5547L @ 45<sup>13</sup>/<sub>16</sub>" CL (METAL DOOR)

TEMPLATE NUMBER:

931047_a

DATE: 04-28-20
