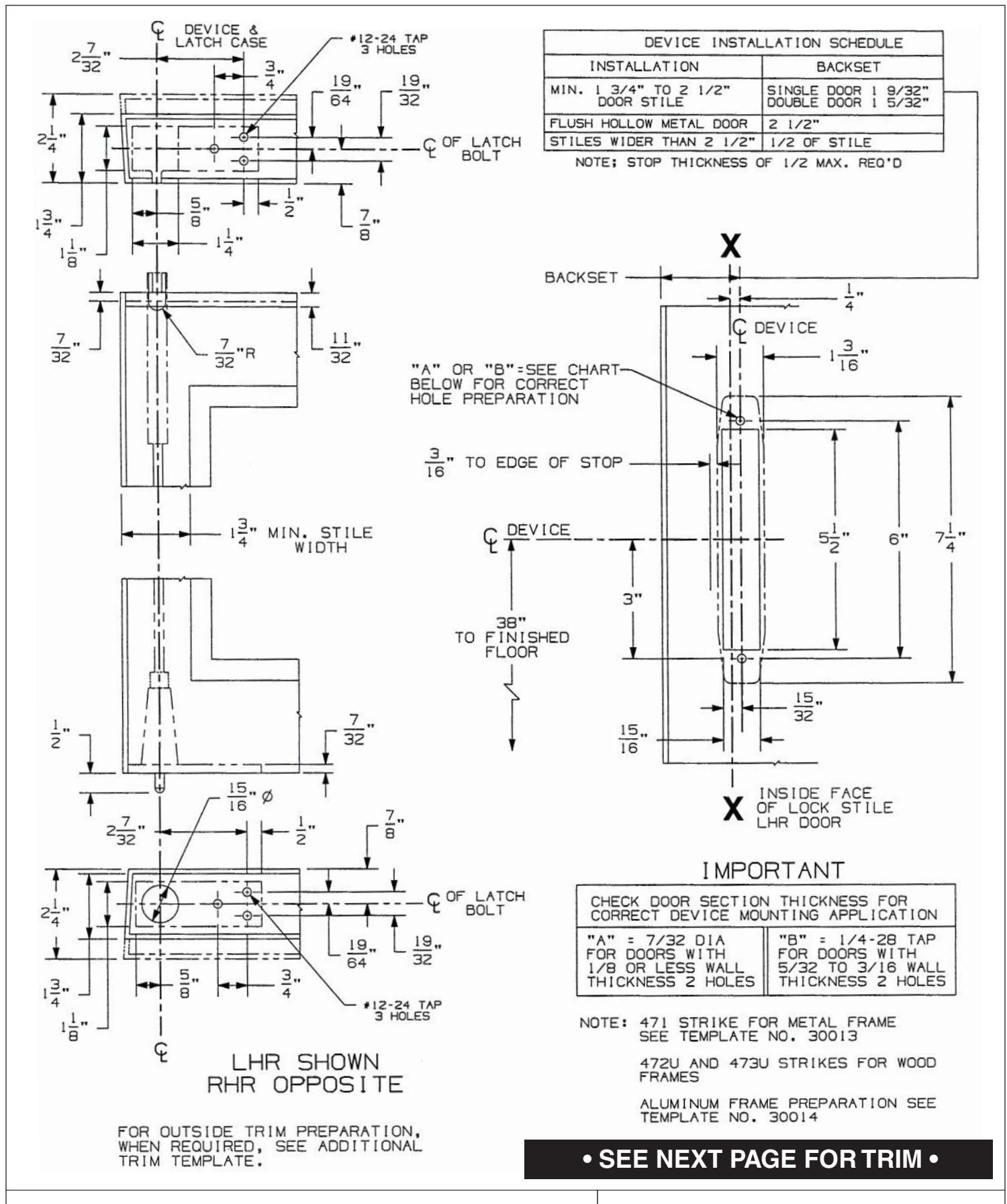

Von Duprin NY5547L @ 38 inch CL (For California) Vertical Rod Device For Metal Doors Template diagram on page 1

NY5547L @ 38" CL (FOR CALIFORNIA) VERTICAL ROD DEVICES (METAL DOOR)

VON DUPRIN ®

TEMPLATE NUMBER:

931048_a

DATE: 04-28-20

Von Duprin NY5547L @ 38 inch CL (For California) Vertical Rod Device For Metal Doors Template diagram on page 2

x NY5547L @ 44" CL (FOR CALIFORNÍA)

TEMPLATE NUMBER:

931049_a

DATE: 04-28-20
