INSTALLATION INSTRUCTIONS
512 MONITORING SWITCH KIT VON DUPRIN 88 SERIES
WIRING SPECIFICATION
COM N\O N\C 5AMP MAX - WHT - YEL - ORG
- 1. Connect Wires.

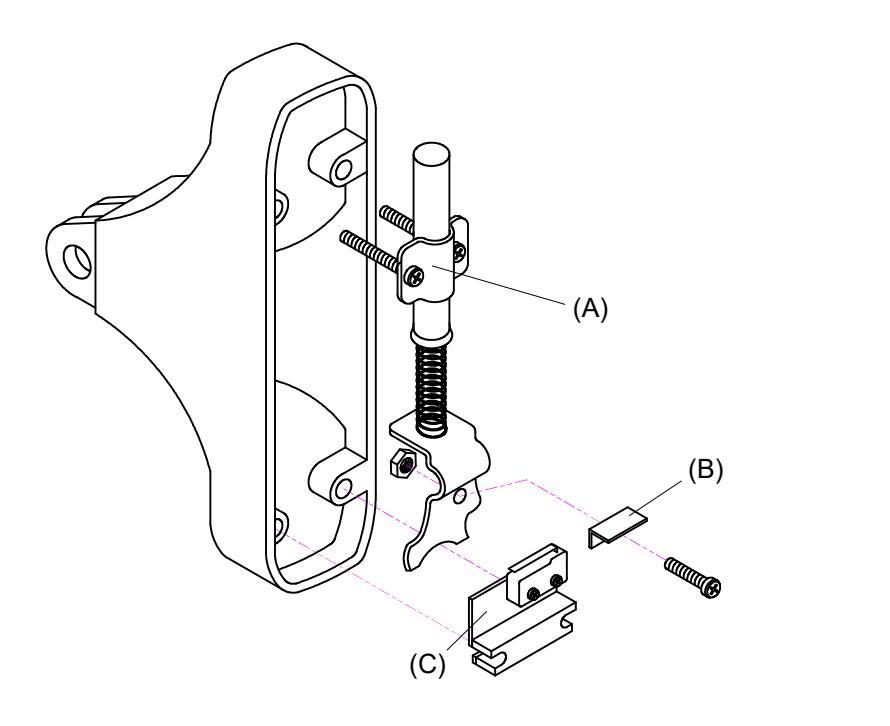

- 2. Remove Bracket (A) to remove spring assembly.

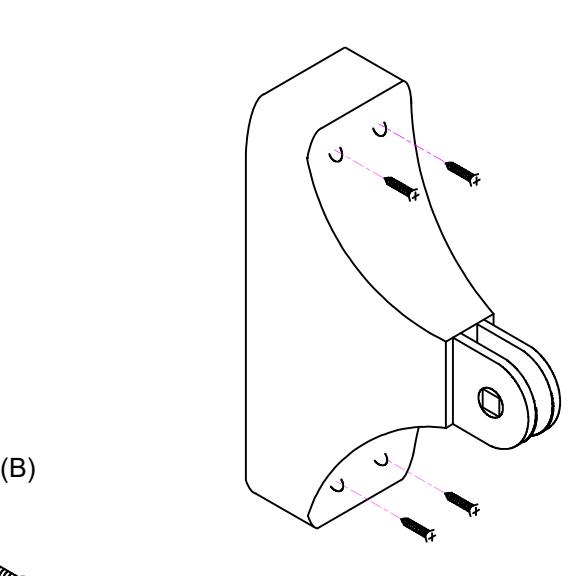

- 3. Mount switch bracket (B), using screw and nut.
- 4. Place spring assembly back into housing.
RESISTIVE
5. Position switch assembly (C) as shown and secure to door.
