Von Duprin HH3347A, HH3547A 3347A-F, 3547A-F, 3348A-F & 3548A-F Concealed Vertical Rod Series Metal Door Template

Original Source Document Full PDF Version

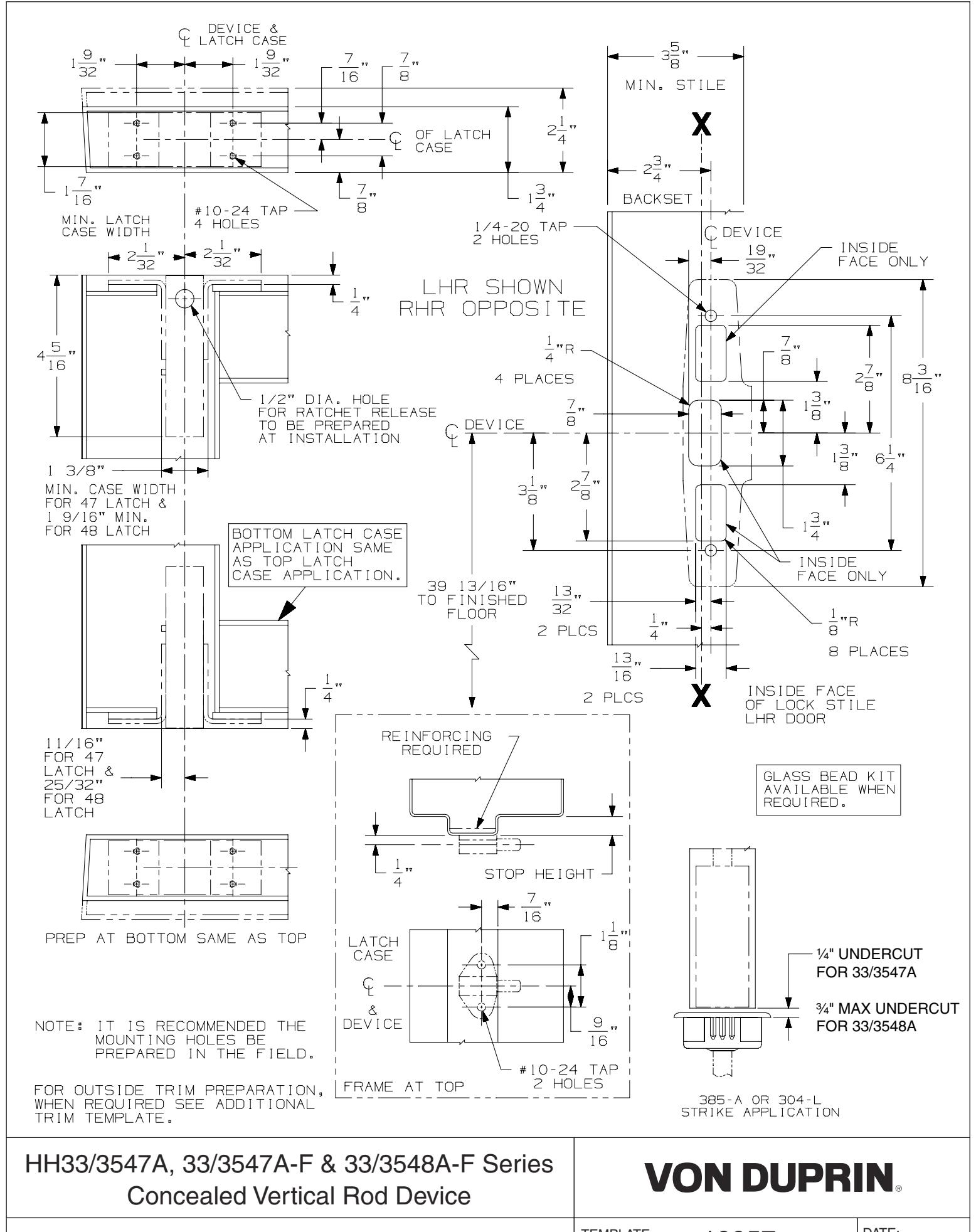

Von Duprin HH3347A, HH3547A 3347A-F, 3547A-F, 3348A-F & 3548A-F Concealed Vertical Rod Series Metal Door Template diagram on

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

10057_c

DATE: 05-21-21
