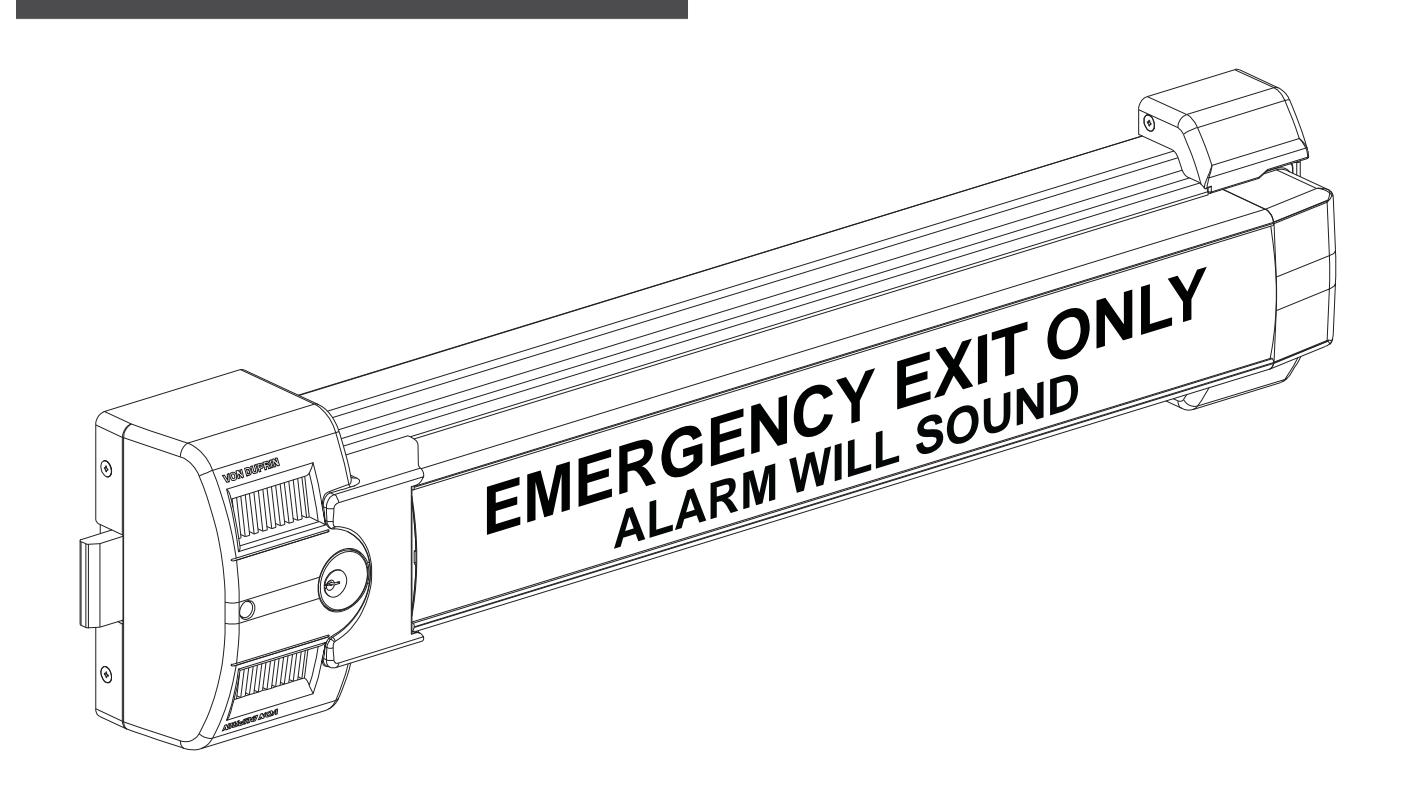

Guard-X 2670 Exit Alarm Lock
Service manual
INDEX
General Information
Introduction ............................................................................................................2 How to Order .........................................................................................................2 Part Number Changes ...........................................................................................2 Guard-X 2670 Exit Alarm Lock Parts Lockside Cover Kit ................................................................................................3 Hingeside Cover Kit ..............................................................................................3 Endcap Kit.............................................................................................................3 Alarm Sign.............................................................................................................3 Lightpipe Kit ..........................................................................................................3
PCB Kit .................................................................................................................4 Cylinder Retaining Bracket Kit ...............................................................................4 Device Mounting Package .....................................................................................4 Cover Screw Kit.....................................................................................................4
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the Guard-X 2670 Exit Alarm Lock.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, IN 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
2670 EXIT ALARM PARTS
| Part No. | Includes Items | Description | Quantity |
|---|---|---|---|
| COVER.109 | 2670 Lockside Cover Kit SP28 | ||
| 1 | LocksideCover | 1 | |
| 2 | Lightpipe | 1 | |
| 3 | BaffleStamp | 1 | |
| 4 | RetainingRing | 3 | |
| 5 |
10-16
x 5/8" FPHMS |
2 | |
| 6 |
10-16
x 1-1/2" FPHMS |
2 | |
| COVER.121 | same as COVER.109 | 2670 Lockside Cover Kit SP313 | |
| COVER.122 | same as COVER.109 | 2670 Lockside Cover Kit US19 | |
| COVER.114 | 2670 Hingeside Cover - Silver | ||
| 7 | HingesideCover | 1 | |
| 8 |
10-16
x 5/8" FPHMS |
2 | |
| COVER.115 | same as COVER.114 | 2670 Hingeside Cover - Black | |
| COVER.116 | same as COVER.109 | 2670 Hingeside Cover - Brown | |
| ECAP.105 | 2670 Endcap Kit | ||
| 9 | Endcap | 1 | |
| 10 |
10-24
x 1/4" UFPHMS |
2 | |
| SIGN.1001 | 11 | Alarm Sign - English | 1 |
| SIGN.1002 | 11 | Alarm Sign - Spanish | 1 |
| SIGN.1003 | 11 | Alarm Sign - French | 1 |
| PIPE.101 | Lightpipe Kit | ||
| 12 | Lightpipe | 1 | |
| 13 | RetainingRing | 1 |

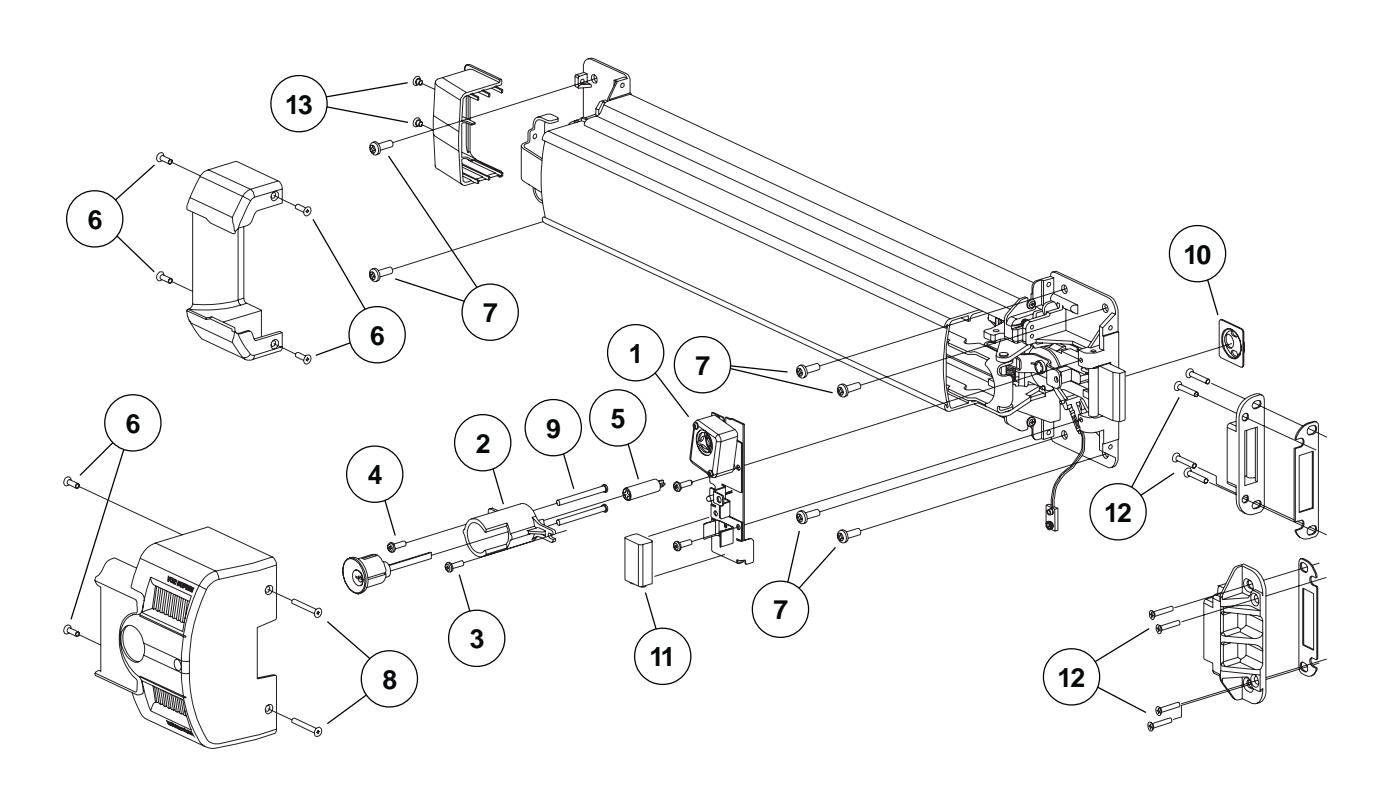

2670 EXIT ALARM PARTS
| Part No. | Includes Items | Description | Quantity |
|---|---|---|---|
| PCB.10018 | 1 | 2670 PCB Kit Field - English | 1 |
| PCB.10019 | 1 | 2670 PCB Kit Field - Spanish | 1 |
| PCB.10020 | 1 | 2670 PCB Kit Field - French | 1 |
| BRKT.121 | Cylinder Retaining Bracket Kit | ||
| 2 | Cylinder Retaining Bracket | 1 | |
| 3 | 10-24 x 5/8" PPHMS | 1 | |
| 4 | 10-16 x 5/8" PPHMS | 1 | |
| 050379 | 5 | 2670 Cylinder Tailpiece Extension | 1 |
| PKGMTG.1002 | 2670 Device Mounting Package US28 | ||
| 5 | Tailpiece Extension | 1 | |
| 6 | 10-16 x 5/8" FPHSMS | 6 | |
| 7 | 1/4-20 x 3/4" PPHMS | 6 | |
| 7 | 1/4-14 x 1" PPHMS | 6 | |
| 8 | 10-16 x 1-1/2" FPHMS | 2 | |
| 9 | 12-24 x 9/32" FSH Cylinder Screw | 2 | |
| 10 | Cylinder Anchor Plate | 1 | |
| 11 | 9 Volt Battery | 1 | |
| PKGMTG.1003 | same as PKGMTG.1002 | 2670 Device Mounting Package Black | |
| PKGSCR.1001 | 2670 Cover Screw Kit SP28 | ||
| 5 | Tailpiece Extension | 1 | |
| 6 | 10-16 x 5/8" FPHSMS | 6 | |
| 7 | 1/4-20 x 3/4" PPHMS | 6 | |
| 7 | 1/4-14 x 1" PPHMS | 6 | |
| 8 | 10-16 x 1-1/2" FPHMS | 2 | |
| 9 | 12-24 x 9/32" FSH Cylinder Screw | 2 | |
| 12 | 1/4-20 x 1" FPHMS | 4 | |
| 12 | 1/4-14 x 1-1/4" FPHMS | 4 | |
| 13 | 10-24 x 1/4" UFPHMS | 2 |
