Electrical power transfer
Overview

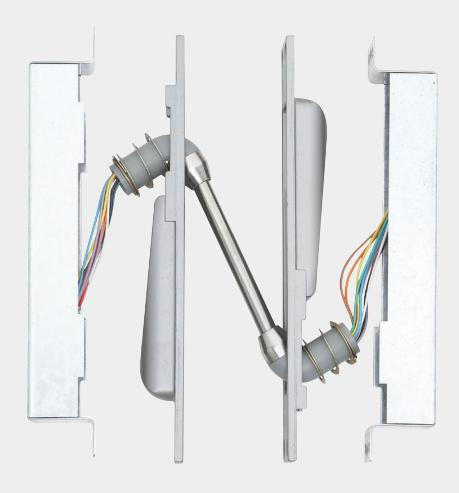

Electric power transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The units are completely concealed when the door is in the closed position, and are ideally suited for installations involving abuse or heavy traffic.
Two models are available; EPT-2, two 18 gauge wires and EPT-10, ten 24 gauge wires.
Features and benefits
- § UL Listed for use on fire doors
- § UL listed as Miscellaneous Door Accessory
- § Ball-and-socket joint construction provides cut and pinch protection for wiring
- § Built for heavy traffic and high abuse openings
- § EPT-2 and EPT-10 are UL634, ULC/ORD C634 and UL10C/CAN-ULC-S104 certified
- § PNT-1 is UL10C/CAN-ULC-S104 certified
Door applications
- § Up to 5" butt hinges 180o swing.
- § 5 1 ⁄2" butt hinges – 130o swing.
- § 6" butt hinges 110o swing.
- § 3⁄4" offset pivots 180o swing.
Not for use with swing clear hinges, center-hung pivots, pocket pivots or balanced doors.
Door applications shown are for 1 ¾" door thickness, for all other applications contact Technical Support to confirm compatibility.
Finishes
- § SP28 (sprayed aluminum)
- § SP313 (sprayed duranodic)
| Dimensions | |
|---|---|
| Housing |
9" X 1 1
⁄4 X 1 5⁄8 (229mm X 32mm X 38mm) |
| EPT-2 | Two 18 gauge wires, up to 2 AMPS @ 24VDC, with a 16 AMPS maximum surge |
| EPT-10 | Ten 24 gauge wires, up to 1 AMPS @ 24VDC, with a 16 AMPS maximum surge |
| PNT-1 | 5/32" tubing |
To order, specify
- § EPT-2, EPT-10 or PNT-1.
- § Finish, SP28 or SP313.
