Von Duprin EL, SS 9827 and 9927 Series Surface Vertical Rod Device Hinge Stile Preparation For Wood Door Template

Original Source Document Full PDF Version

Von Duprin EL, SS 9827 and 9927 Series Surface Vertical Rod Device Hinge Stile Preparation For Wood Door Template diagram on


	"C" DIMENSION FORMULA
	"A" (LOCK STILE EDGE OF DOOR TO HINGE STOP)
_	"B" (SEE DEVICE TEMPLATE FOR BACKSET)
=
_	SUBTRACT 30 1/2" FOR DOOR FROM 2'6" THRU 3'0" SUBTRACT 42 1/2" FOR DOOR FROM 3'0" THRU 4'0"
=	"C" DIM. (ENTER CALCULATED DIMENSION BUT NOT LESS THAN 1 13/32")

Von Duprin EL, SS 9827 and 9927 Series Surface Vertical Rod Device Hinge Stile Preparation For Wood Door Template image on pa

FACE OF HINGE STOP -

LHR SHOWN RHR OPPOSITE

NOTE: MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

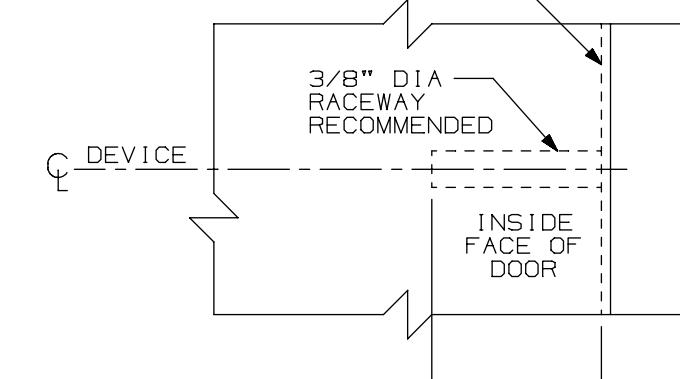

EL, SS 9827/9927 Series Device Hinge Stile Preparation (Wood Door)

"" C "" —

TEMPLATE

NUMBER:

W40086_a

DATE: 05-29-13
